Reese Trailer Tow Hitch For 98-10 Volkswagen Beetle Ex Turbo S, Golf, Golf City Canada Complete Package w/ Wiring Draw Bar and 2" Ball
-1-550x550.jpg "77026 119178 3593 63820 1998 1999 2000 2001 98 99 00 01 Volkswagen Beetle Reese Towpower Trailer Tow Hitch Receiver Bar Frame")
-1-150x150.jpg "77026 119178 3593 63820 1998 1999 2000 2001 98 99 00 01 Volkswagen Beetle Reese Towpower Trailer Tow Hitch Receiver Bar Frame")
Reese Trailer Tow Hitch For 98-10 Volkswagen Beetle Ex Turbo S, Golf, Golf City Canada Complete Package w/ Wiring Draw Bar and 2" Ball
$345.58
- Stock: In Stock
- Brand: Reese
- Model: 77026 119178 3593 63820
Verify Product Fitment

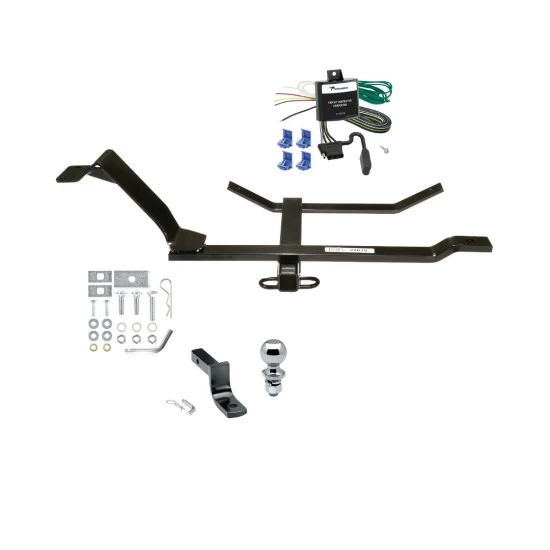

Includes Everything Pictured:
Custom Fit Trailer Hitch
Wiring Harness (Requires Splicing)
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1998 - 2001 Volkswagen, Beetle, All Styles
2002 - 2010 Volkswagen, Beetle, Except Turbo S
1999 - 2006 Volkswagen, Golf, All Styles
2007 - 2010 Volkswagen, Golf City, (Canada Only)
Custom Fit Trailer Hitch
Wiring Harness (Requires Splicing)
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1998 - 2001 Volkswagen, Beetle, All Styles
2002 - 2010 Volkswagen, Beetle, Except Turbo S
1999 - 2006 Volkswagen, Golf, All Styles
2007 - 2010 Volkswagen, Golf City, (Canada Only)
Trailer Hitch Specs:
| Part Number | 77026 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 119178 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Hitch Ball Specs:
| Part Number | 63820 |
| Brand | Draw-Tite |
| Size | 2" x 3/4" x 1-1/2" |
| Towing Capacity | 3,500 lbs. GTW |
| Material | Chrome |
| Torque | Torque to 160 ft. lbs |
| Shank Diameter | 3/4" |
| Warranty | Lifetime |
Ball Mount Specifications:
| Fits | 1-1/4" x 1-1/4" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 6-5/8" From Center of Pin Hole to Center of Ball Hole |
| Rise | 2-1/8" From inside top of hitch opening |
| Towing Capacity in Rise Position | 2,000 lb Gross Towing Weight 200 lb Tongue Weight |
| Drop | 2-3/4" From inside top of hitch opening |
| Towing Capacity in Drop Position | 2,000 lb Gross Towing Weight 200 lb Tongue Weight |
| Ball Hole Diameter | 3/4" |
| Pin hole diameter | 1/2" |
| Warranty | Limited Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 98 99 00 01 02 03 04 05 06 07 08 09 10 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010
Compatibility Chart:
| Year Range | Make | Model | Style |
|---|
