Reese Trailer Tow Hitch For 98-10 Volkswagen Beetle Ex Turbo S, Golf, Golf City Canada Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
-1-550x550.jpg "77026 3593 119178 63820 63810 580407 2211 1998 1999 2000 2001 98 99 00 01 Volkswagen Beetle Reese Towpower Trailer Tow Hitch Receiver Bar Frame")
-1-550x550.jpg "77026 3593 119178 63820 63810 580407 2211 1998 1999 2000 2001 98 99 00 01 Volkswagen Beetle Reese Towpower Trailer Tow Hitch Receiver Bar Frame")
-1-150x150.jpg "77026 3593 119178 63820 63810 580407 2211 1998 1999 2000 2001 98 99 00 01 Volkswagen Beetle Reese Towpower Trailer Tow Hitch Receiver Bar Frame")
-1-150x150.jpg "77026 3593 119178 63820 63810 580407 2211 1998 1999 2000 2001 98 99 00 01 Volkswagen Beetle Reese Towpower Trailer Tow Hitch Receiver Bar Frame")
Reese Trailer Tow Hitch For 98-10 Volkswagen Beetle Ex Turbo S, Golf, Golf City Canada Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
$386.28
- Stock: In Stock
- Brand: Reese
- Model: 77026 119178 3593 63820 63810 580407 2211
Verify Product Fitment

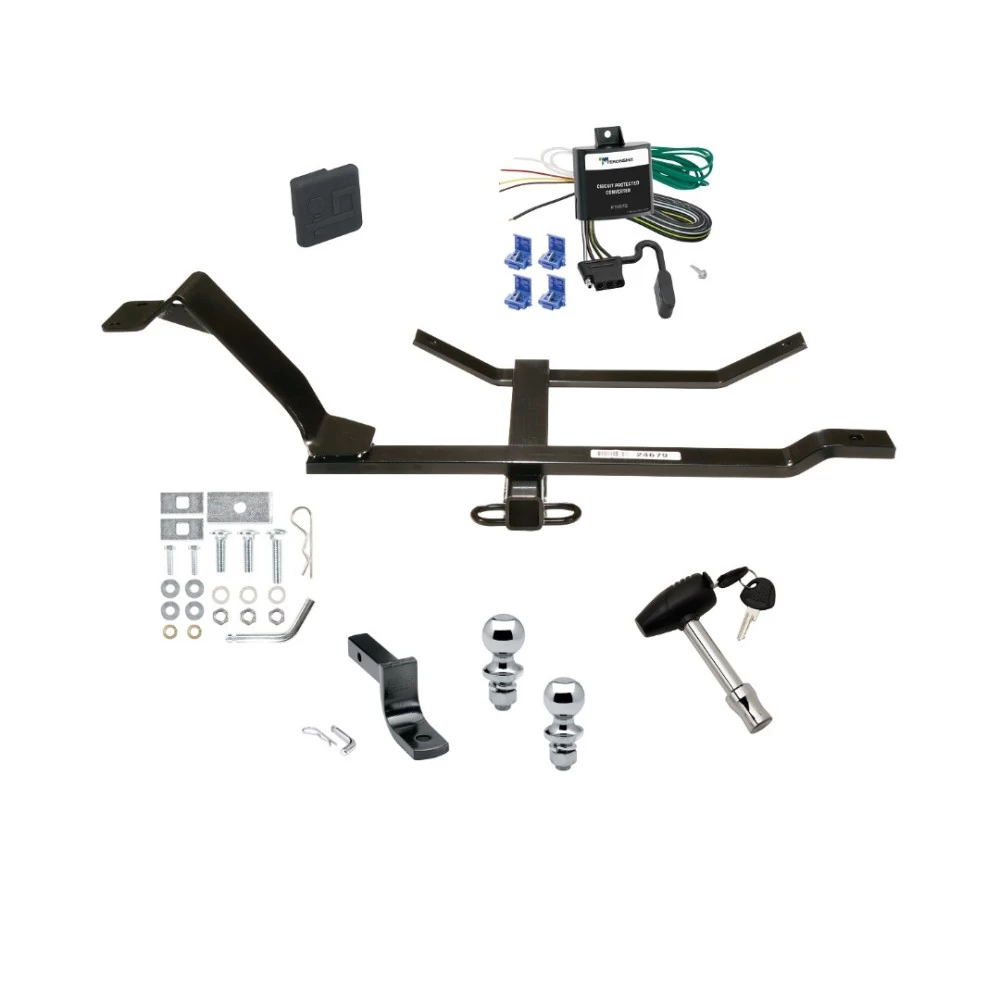

Includes Everything Pictured:
Custom Fit Trailer Hitch
Wiring Harness (Requires Splicing)
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1998 - 2001 Volkswagen, Beetle, All Styles
2002 - 2010 Volkswagen, Beetle, Except Turbo S
1999 - 2006 Volkswagen, Golf, All Styles
2007 - 2010 Volkswagen, Golf City, (Canada Only)
Custom Fit Trailer Hitch
Wiring Harness (Requires Splicing)
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1998 - 2001 Volkswagen, Beetle, All Styles
2002 - 2010 Volkswagen, Beetle, Except Turbo S
1999 - 2006 Volkswagen, Golf, All Styles
2007 - 2010 Volkswagen, Golf City, (Canada Only)
Trailer Hitch Specs:
| Part Number | 77026 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Ball Mount Specifications:
| Fits | 1-1/4" x 1-1/4" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 6-5/8" From Center of Pin Hole to Center of Ball Hole |
| Rise | 2-1/8" From inside top of hitch opening |
| Towing Capacity in Rise Position | 2,000 lb Gross Towing Weight 200 lb Tongue Weight |
| Drop | 2-3/4" From inside top of hitch opening |
| Towing Capacity in Drop Position | 2,000 lb Gross Towing Weight 200 lb Tongue Weight |
| Ball Hole Diameter | 3/4" |
| Pin hole diameter | 1/2" |
| Warranty | Limited Lifetime |

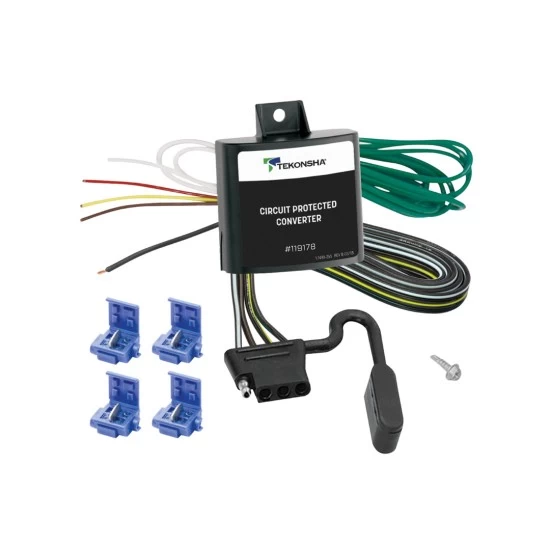

Wiring Kit Specs:
| Part Number | 119148 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Hitch Ball Specs:
| Part Number | 63820 |
| Brand | Draw-Tite |
| Size | 2" x 3/4" x 1-1/2" |
| Towing Capacity | 3,500 lbs. GTW |
| Material | Chrome |
| Torque | Torque to 160 ft. lbs |
| Shank Diameter | 3/4" |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63810 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 3/4" x 1-1/2" |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 3/4" |
| Warranty | Lifetime |
Security Lock Pin Specs:
| Part Number | 580407 |
| Fits | 2" and 1-7/8" Tow Receivers |
| Brand | Draw-Tite |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | Lifetime |
Rubber Hitch Plug Specs:
| Part Number | 2211 |
| Fits | 1-1/4" Receiver |
| Brand | Draw-Tite |
| Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Founded in 1952, the Reese brand has become a household name in the heavy-duty towing industry. With proven designs that exceed the industry standards, Reese has become the brand of choice when performance is the expectation.
Reese has been the leader in towing systems for more than 60 years. Over those years, much has changed within the industry with tow vehicles and their frames made lighter while the trailers have become heavier. The technology utilized yesterday can no longer be used in today’s world. Reese purchases metals from high quality steel mills with history of performance. Metals are routinely audited by third party labs for chemistry.
Reese has been the leader in towing systems for more than 60 years. Over those years, much has changed within the industry with tow vehicles and their frames made lighter while the trailers have become heavier. The technology utilized yesterday can no longer be used in today’s world. Reese purchases metals from high quality steel mills with history of performance. Metals are routinely audited by third party labs for chemistry.
Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Bauestions or Comments? Call 702-374-8999
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 98 99 00 01 02 03 04 05 06 07 08 09 10 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010
Compatibility Chart:
| Year Range | Make | Model | Style |
|---|
