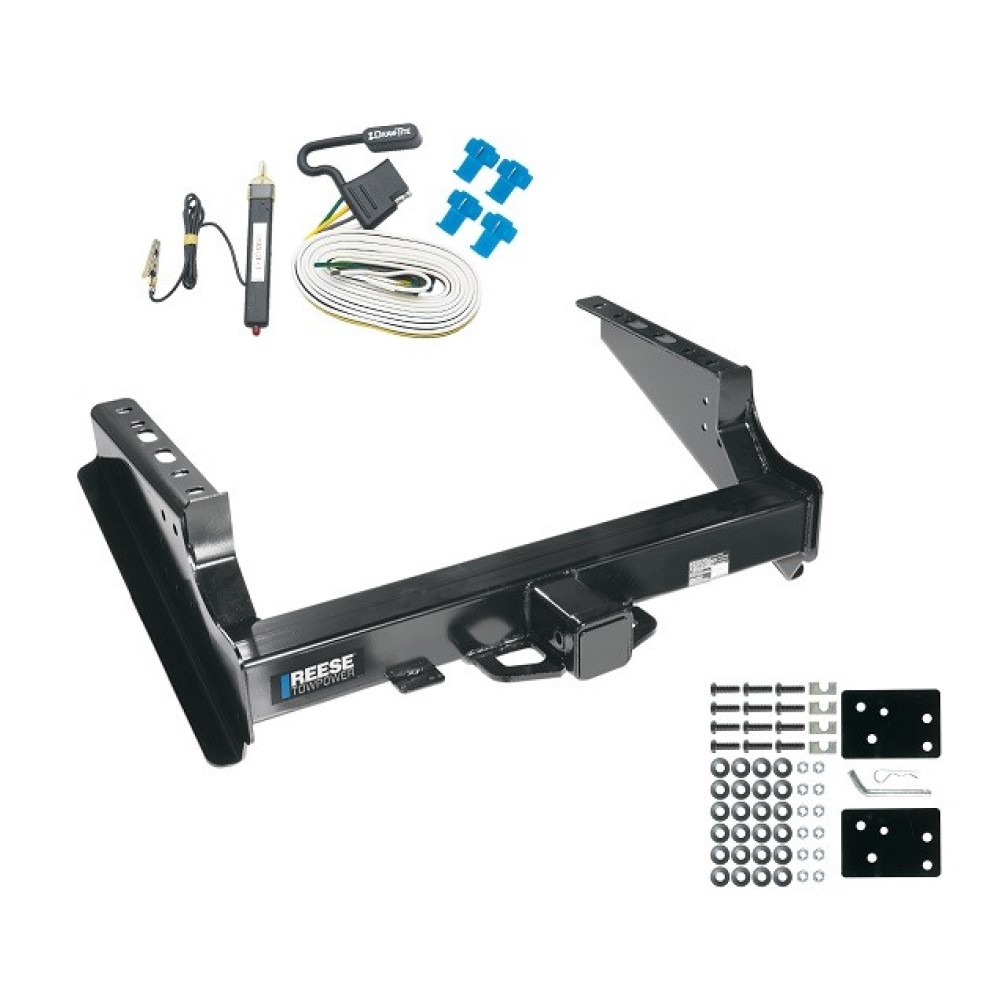

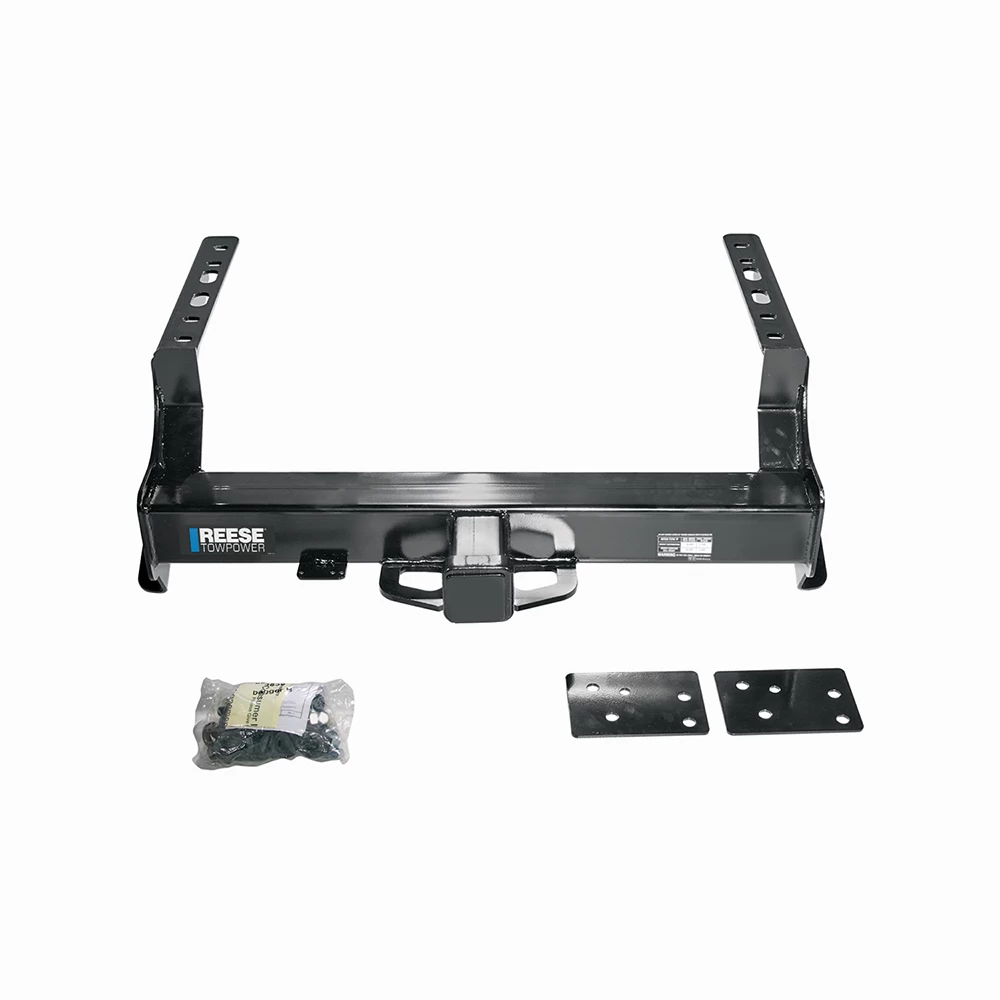

Installation Instructions for Ford F-250, F-350, and F-450 (1999–Current)

Part Numbers:

• 45508
• 45708
• CQT45508

Wiring Access Location:

• Not specified

Tools Required:

• Wrenches: 21mm, 24mm
• Ratchet
• Torque Wrench
• Safety Glasses
• 6" Socket Extension
• Block of Wood

Installation Time:

• Approximately 50 minutes for professional installers

Step-by-Step Instructions:

1. Prepare Vehicle:

   • Lower the spare tire.
   • Remove the electrical plug mounting bracket, vibration dampener, and factory hitch (if equipped).
   • Save the plates, bolts, and nuts from the factory hitch for reuse.

2. Insert Bolts:

   • Insert bolts and washers into the frame through the access points.

3. Position Hitch:

   • Raise the hitch into position and loosely attach washers and nuts by hand.

4. Install Spacers:

   • Working on one side at a time, loosen the bumper mounting bracket bolts.
   • Slide the 3/16" spacers into position and adjust the bumper alignment.
   • Retighten the bracket bolts.

5. Support Bumper:

   • Place a block of wood between the hitch and the bumper to support the bumper during the next steps.

6. Install Vertical Attachments:

   • Remove the nuts and bolt plates securing the bumper mounting bracket to the frame.
   • Slide the vertical attachment between the frame and the bracket.
   • Reinstall the factory bolt plates and nuts, adjusting the bumper alignment as needed.
   • Repeat for the other side.

7. Attach Electrical Bracket:

   • Drill new holes in the factory electrical bracket using the mounting tab as a guide and secure it (fasteners not included).

8. Tighten Fasteners:

   • Torque all M12 fasteners to 92 lb-ft (125 N*m).
   • Torque all M14 fasteners to 115 lb-ft (156 N*m).

9. Reinstall Spare Tire:

   • Raise the spare tire back into position.

Torque Specifications:

• M12 fasteners: 92 lb-ft (125 N*m)
• M14 fasteners: 115 lb-ft (156 N*m)

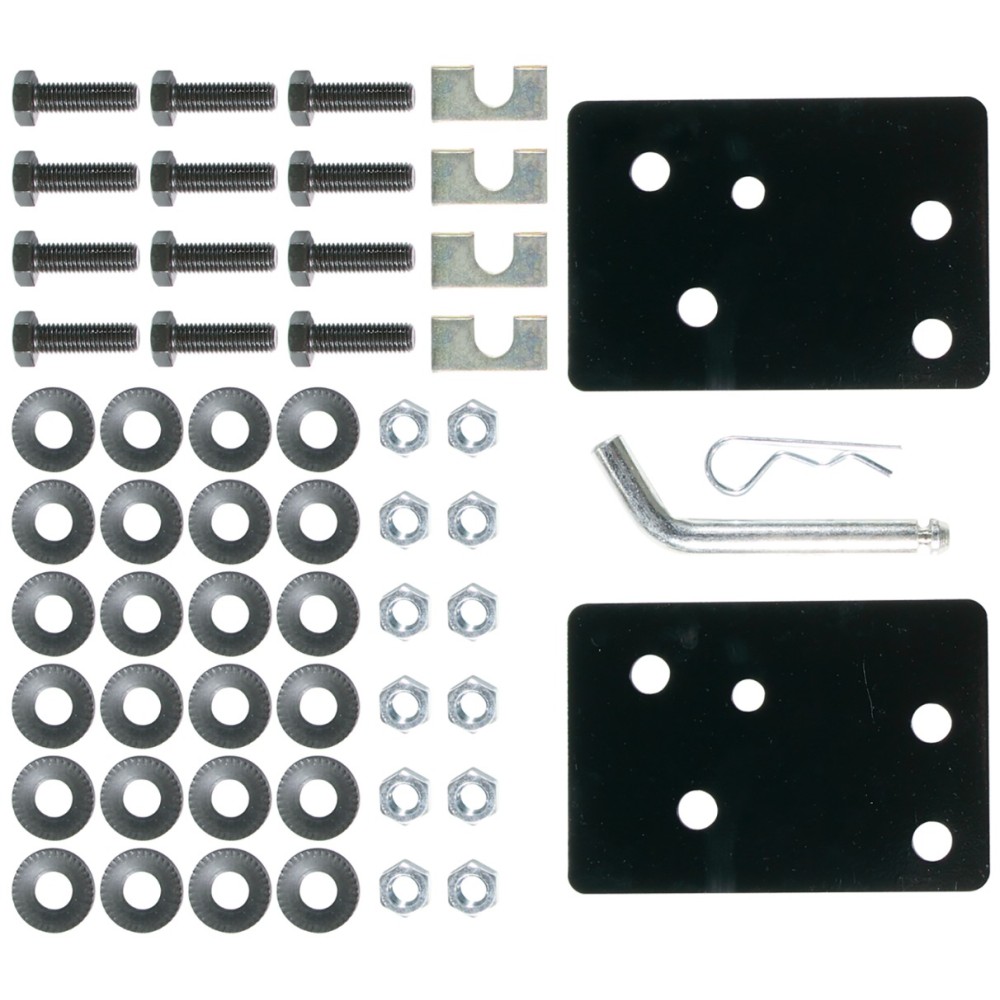

Hardware List:

• (12) Bolts, M14 x 2.00 x 45mm CL10.9
• (24) Conical Washers, 5/8"
• (12) Hex Nuts, M14 x 2.00
• (4) Spacers, 1" x 2" x 3/16"

Safety Notes:

• Frequently inspect the hitch to ensure all fasteners and the ball are properly tightened.
• Replace any damaged hitch or ball immediately.
• If the hitch is removed, plug all holes in the vehicle body to prevent water or exhaust fumes from entering.
• Always wear safety glasses and observe safety precautions when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Weight Carrying (Ball Mount):
  • Max Gross Trailer Weight: 18,000 lb (8,172 kg)
  • Max Tongue Weight: 2,000 lb (908 kg)
• Weight Distributing:
  • Max Gross Trailer Weight: 18,000 lb (8,172 kg)
  • Max Tongue Weight: 2,500 lb (1,135 kg)

Additional Notes:

• This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warning: Do not exceed the vehicle manufacturer’s towing capacity. Improper installation may result in personal injury or property damage.

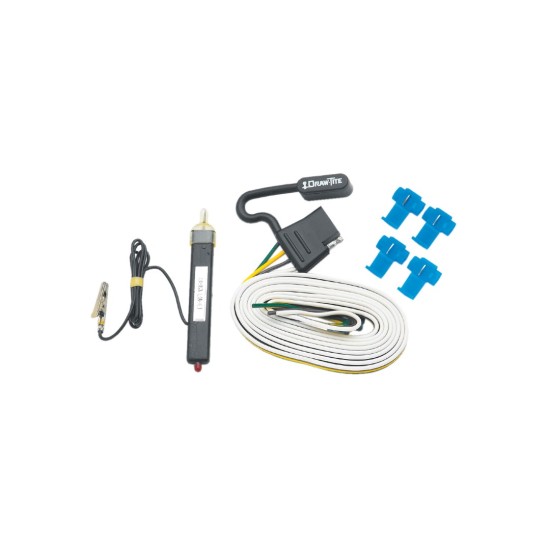

Installation Instructions for Trailer Light Wiring Kit

Part Number:

• 20252

Tools Required:

• Hot Air Gun or Appropriate Heat Source
• Wire Crimpers
• Drill (3/32” Drill Bit)
• Phillips Head Screwdriver
• Circuit Tester

Step-by-Step Instructions:

Step 1: Locate the Taillight Wiring Harness

1. Access the vehicle's taillight wiring harness.
2. Using the provided instructions, identify the appropriate wires for connection:
   • Green Wire: Right Turn & Stop
   • Yellow Wire: Left Turn & Stop
   • Brown Wire: Taillights
   • White Wire: Ground

Step 2: Make the Electrical Connections

1. Match the color-coded wires from the wiring kit to the corresponding vehicle wires.

   • Use a circuit tester to verify each wire's function before connecting.
   • CAUTION: Test one wire at a time to prevent damage to electronic components.

2. Connect the wires using the provided insulated butt connectors:

   • Strip the ends of each wire and seat them properly in the connector.
   • Use a crimping tool designed for insulated splices to secure the connections.

3. Heat the connectors:

   • Apply heat directly to the center of each splice using a hot air gun.
   • Work from the center outward until the tubing recovers and adhesive flows.
   • Allow the connections to cool before inspecting for integrity.

Step 3: Ground the System

1. Locate a grounding point near the wiring harness, such as the vehicle frame or cross member.
   • Do not drill into the vehicle floor or bed.
2. Clean the area to remove dirt, rust, or undercoating.
3. Drill a 3/32" hole at the grounding point and secure the white wire using the provided eyelet and screw.

Step 4: Verify the Installation

1. Test all connections using a circuit tester or trailer:
   • Verify the functionality of taillights, turn signals, and brake lights.
   • Ensure all connections are complete and secure.
2. If issues are identified, double-check the wiring and connections for errors.

Step 5: Store the 4-Flat Connector

• Store the 4-flat connector in the rear cargo area when not in use to protect it from damage and environmental exposure.

Warnings and Notes:

• WARNING: Overloading a circuit can cause fires. Do not exceed the following limits:
  • Stop/Turn Lights: 7.5 amps (1 per side)
  • Tail Lights: 7.5 amps
• WARNING: Always verify what is behind any surface before drilling to avoid vehicle damage or injury.
• NOTE: Trailer lighting that requires more than 7.5 amps per circuit must use a Trailer Light Power Converter.
• NOTE: If your trailer requires a plug other than the 4-flat, consult your dealer for optional 6-way or 7-way adapters.

Maintenance:

• Inspect the wiring harness periodically for damage, corrosion, or loose connections.
• Reapply heat to connectors if the adhesive seal weakens.

Specifications:

• Maximum Load:
  • Stop/Turn Lights: 7.5 amps (1 per side)
  • Tail Lights: 7.5 amps
• Recommended Grounding Hole Size: 3/32 inches
