Product Details
- Brand: Reese
- Model: 44590 7031400 63240

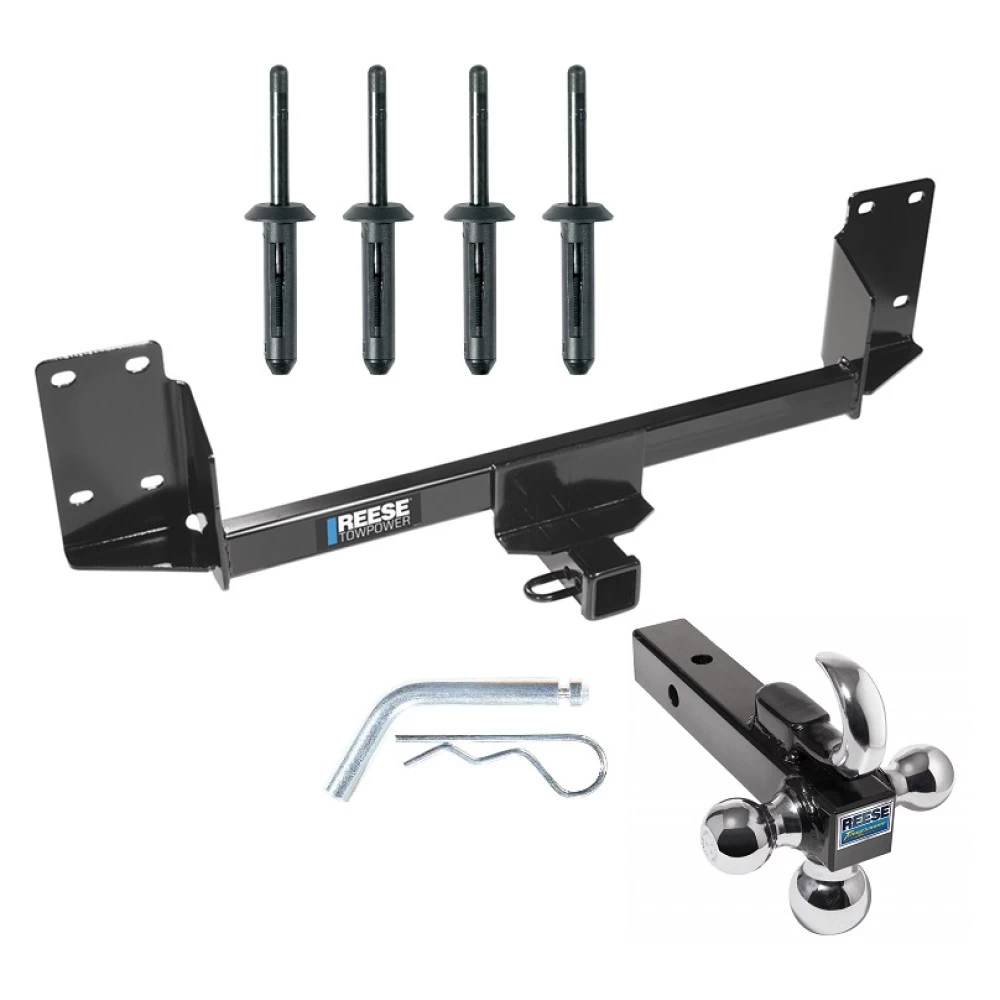

- Includes: Class 4 Trailer Tow Hitch, Tri-Ball Trailer Tow Hitch Ball Mount w/ Chrome Tow Hook, Trailer Tow Hitch Pin & Clip
Compatibility Chart
Description
Get Expert Help
Reese Trailer Tow Hitch Receiver For 07-18 BMW X5 w/Tri-Ball Triple Ball 1-7/8" 2" 2-5/16" Install Notes
Installation Instructions for BMW X5
(Fascia trim required. Obtain owner’s approval before cutting.)
Part Numbers:
- 87455
- 75600
- 44590
Tools Required:
- Wrenches: 10mm, 18mm Deep Socket
- Utility Knife
- Small Center Punch
- 5/32” Rivet Tool
Wiring Access Location:
- SUV3, SUV4
Step-by-Step Instructions:
-
Remove Rear Bumper Fascia:
- Disconnect the back-up sensor wiring if present.
- Remove the following:
- (2) Plastic pop rivets (each side) from the wheel well molding. Rivets cannot be reused; replacements are provided.
- Screws behind reflectors (one per side).
- (6) Screws from the bottom of the fascia.
- Gently pull back the wheel well molding to access and remove the screws securing the fascia.
- Detach the reflectors by releasing the clip holding them in place.
- Remove the retaining tabs under the light if necessary.
-
Remove Impact Bar:
- Use an 18mm deep socket to detach the impact bar.
- Lower the tailgate to access the upper mounting fasteners.
-
Position the Hitch:
- Raise the hitch into position under the vehicle frame.
- Reinstall the impact bar over the hitch brackets, securing with the existing flange nuts.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 fasteners to 65 lb-ft (88 N·m).
-
Trim Fascia:
- Locate the bottom center of the fascia.
- Mark and trim a rectangle measuring 8” wide x 2” high using a utility knife.
- Obtain the vehicle owner’s approval before cutting.
-
Reattach Fascia:
- Reinstall the bumper fascia.
- Reconnect wiring.
Hardware List:
- (6) Replacement Plastic Rivets (provided)
- (8) Existing Flange Nuts (from the vehicle)
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 600 lbs (272 kg).
- Weight Distributing: Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 600 lbs (272 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
