Reese Trailer Tow Hitch Receiver For 16‑23 Mercedes‑Benz Metris w/Tri‑Ball Triple Ball 1‑7/8" 2" 2‑5/16"
Model: 84015 7031400 63240Custom Fit Trailer Hitch
Tri-Ball Trailer Hitch Ball Mount w/ Pin/Clip
This Hitch Fits The Following Vehicles:
2016 - 2023 Mercedes-Benz, Metris, All Styles
Trailer Hitch Specs:
| Part Number | 84015 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 6,000 lbs |
| Max Tongue Weight | 750/750 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Tri-Ball Trailer Hitch Ball Mount Specs:
| Part Number | 7031400 |
| Brand | Reese |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Finish | Black Powdercoat Balls and hook are chromed |
| Length | 8" From Center of Pin Hole to Center of Ball Hole |
| 1 7/8 In. ball | 2,000 Lb. capacity |
| 2 In. ball | 6,000 Lb. capacity |
| 2 5/16 In. ball | 10,000 Lb. capacity |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
$277 88 $445.52 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$445.52 $277 88
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $69.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 84015 7031400 63240

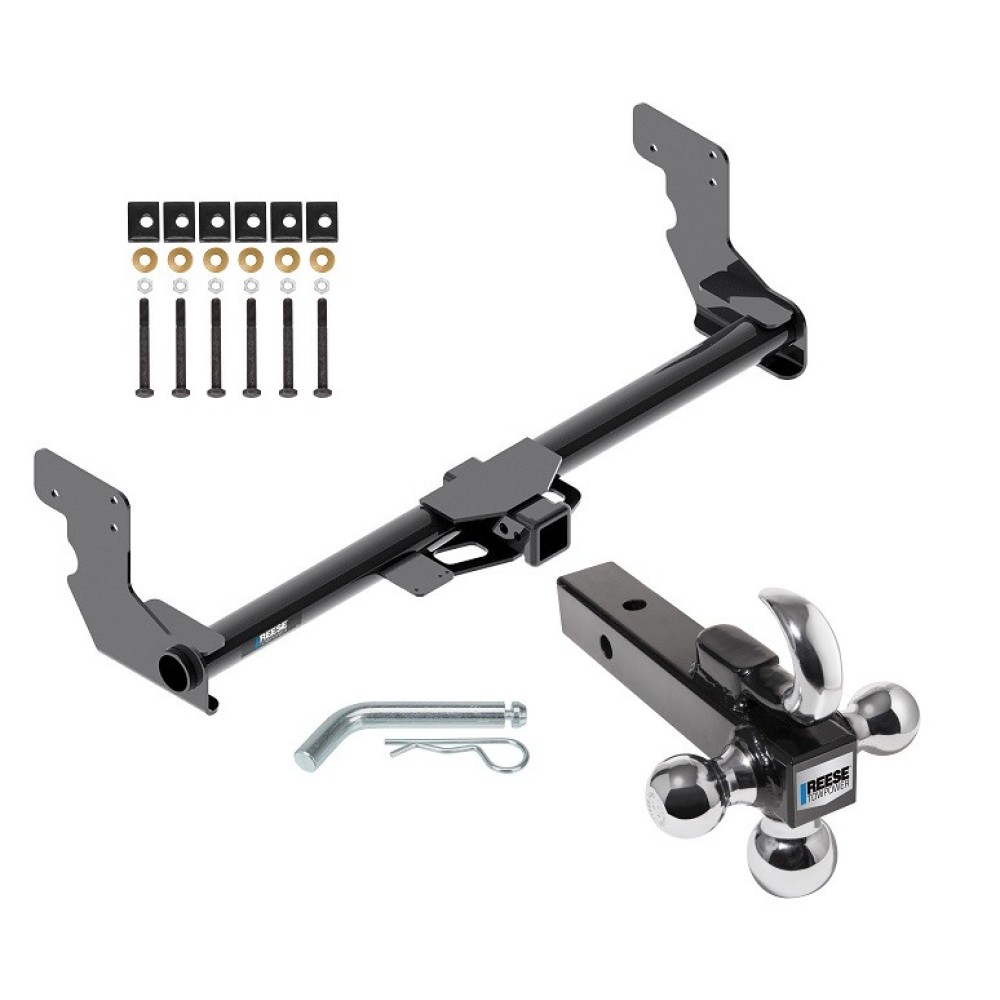

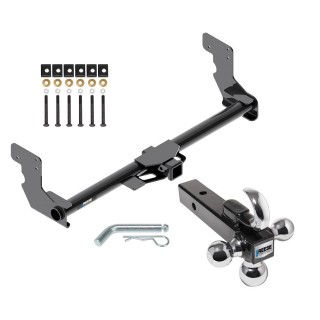

- Includes: Class 3 Trailer Tow Hitch, Tri-Ball Trailer Tow Hitch Ball Mount w/ Chrome Tow Hook, Trailer Tow Hitch Pin & Clip
Compatibility Chart
Description
Custom Fit Trailer Hitch
Tri-Ball Trailer Hitch Ball Mount w/ Pin/Clip
This Hitch Fits The Following Vehicles:
2016 - 2023 Mercedes-Benz, Metris, All Styles
Trailer Hitch Specs:
| Part Number | 84015 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 6,000 lbs |
| Max Tongue Weight | 750/750 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Tri-Ball Trailer Hitch Ball Mount Specs:
| Part Number | 7031400 |
| Brand | Reese |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Finish | Black Powdercoat Balls and hook are chromed |
| Length | 8" From Center of Pin Hole to Center of Ball Hole |
| 1 7/8 In. ball | 2,000 Lb. capacity |
| 2 In. ball | 6,000 Lb. capacity |
| 2 5/16 In. ball | 10,000 Lb. capacity |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Get Expert Help
Reese Trailer Tow Hitch Receiver For 16-23 Mercedes-Benz Metris w/Tri-Ball Triple Ball 1-7/8" 2" 2-5/16" Install Notes
Installation Instructions for Mercedes Metris (2016-Current)
(Cargo/Passenger Models)
Part Numbers:
- 76015
- 84015
- CQT76015
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 16mm, 18mm
- 6" Socket Extension
Wiring Access Location:
- N/A
Step-by-Step Instructions:
-
Remove Tow Hook:
- Use a 16mm and 18mm socket to remove:
- (2) Short bolts
- (2) Long bolts
- (2) Flange nuts
- Remove the tow hook from the passenger side. Return all fasteners and the tow hook to the vehicle owner.
- Use a 16mm and 18mm socket to remove:
-
Position the Hitch:
- Raise the hitch into position.
- Align the bracket holes with the outside frame rail holes.
- Insert the bolt (M12 x 1.75 x 110mm) and block (.375 x 1.50 x 2.00) through the frame rail holes.
- Secure loosely using the conical washers (1/2") and hex nuts (M12 x 1.75).
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 fasteners to 68 lb-ft (92 Nm).
-
Verify Installation:
- Ensure all fasteners are tightened to the correct torque specifications.
- Periodically check the hitch and ball mount for secure attachment.
Hardware List:
- (6) M12 x 1.75 x 110mm CL10.9 Bolts
- (6) .375 x 1.50 x 2.00 Spacer Blocks
- (6) 1/2" Conical Toothed Washers
- (6) M12 x 1.75 Hex Nuts
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses during installation.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 750 lbs (340 kg).
- Weight Distributing: Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 750 lbs (340 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation time is approximately 20 minutes for a professional installer.
- If you are uncomfortable performing this installation, consult a professional installer.
