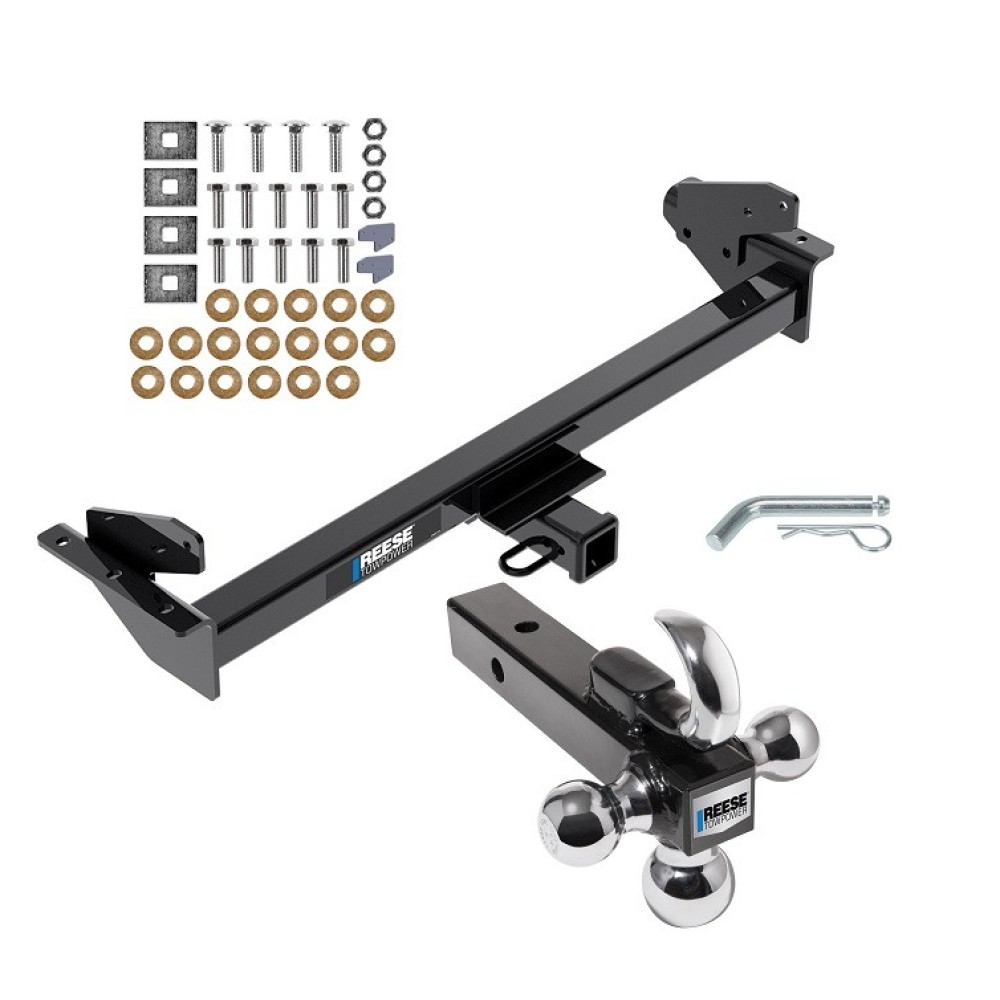

Reese Trailer Tow Hitch Receiver For 16‑22 Nissan NP300 Navara International Only w/Tri‑Ball Triple Ball 1‑7/8" 2" 2‑5/16"
Model: 84078 7031400 63240Custom Fit Trailer Hitch
Tri-Ball Trailer Hitch Ball Mount w/ Pin/Clip
This Hitch Fits The Following Vehicles:

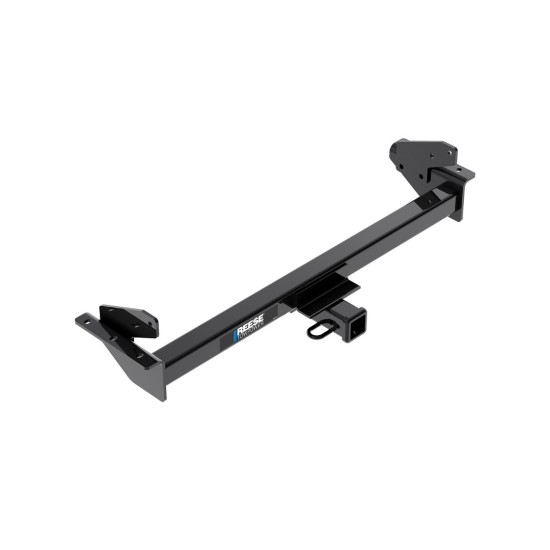

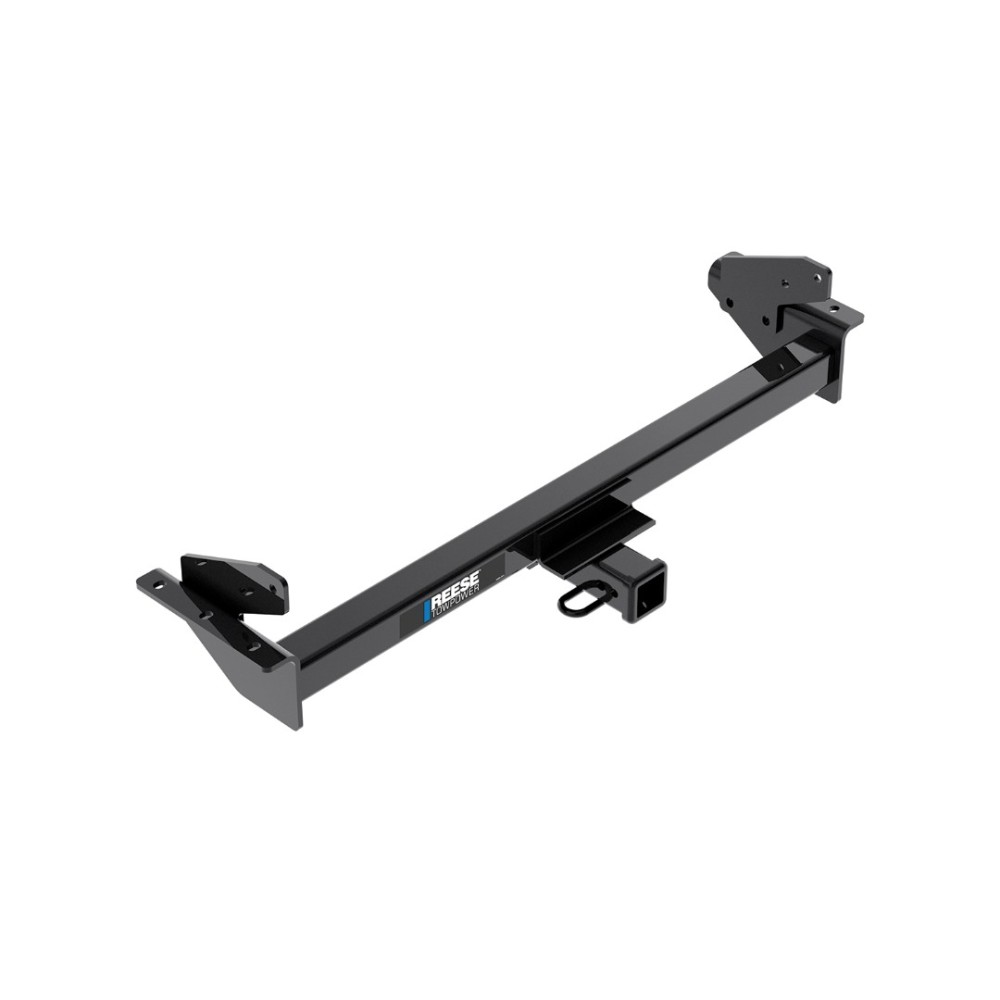

Trailer Hitch Specs:
| Part Number | 84078 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 8,000 lbs |
| Max GTW w/ weight distribution | 8,000 lbs |
| Max Tongue Weight | 800/800 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Tri-Ball Trailer Hitch Ball Mount Specs:
| Part Number | 7031400 |
| Brand | Reese |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Finish | Black Powdercoat Balls and hook are chromed |
| Length | 8" From Center of Pin Hole to Center of Ball Hole |
| 1 7/8 In. ball | 2,000 Lb. capacity |
| 2 In. ball | 6,000 Lb. capacity |
| 2 5/16 In. ball | 10,000 Lb. capacity |
| Warranty | Lifetime |
Partial list of fitment years: 16 17 18 19 20 21 22 2016 2017 2018 2019 2020 2021 2022
$300 33 $480.61 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$480.61 $300 33
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $75.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 84078 7031400 63240

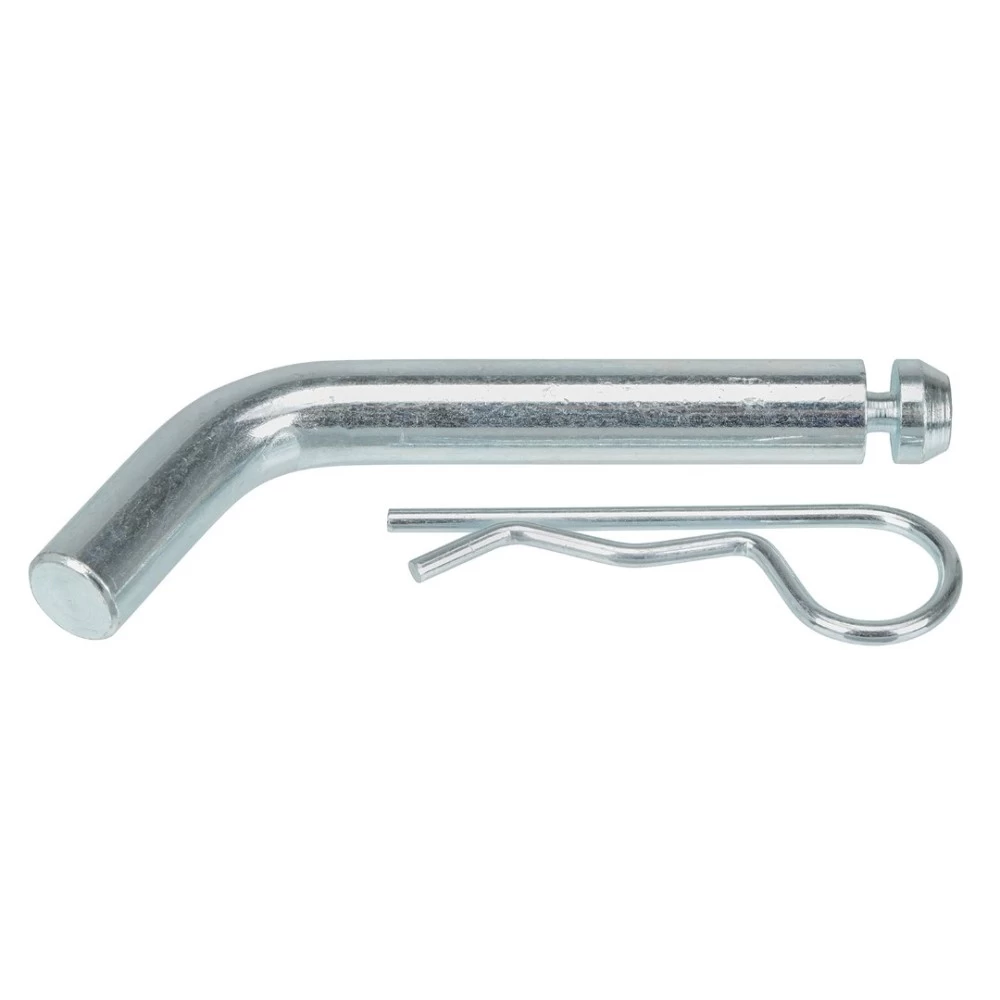

- Includes: Class 4 Trailer Tow Hitch, Tri-Ball Trailer Tow Hitch Ball Mount w/ Chrome Tow Hook, Trailer Tow Hitch Pin & Clip
Compatibility Chart
Description
Custom Fit Trailer Hitch
Tri-Ball Trailer Hitch Ball Mount w/ Pin/Clip
This Hitch Fits The Following Vehicles:
Trailer Hitch Specs:
| Part Number | 84078 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 8,000 lbs |
| Max GTW w/ weight distribution | 8,000 lbs |
| Max Tongue Weight | 800/800 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Tri-Ball Trailer Hitch Ball Mount Specs:
| Part Number | 7031400 |
| Brand | Reese |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Finish | Black Powdercoat Balls and hook are chromed |
| Length | 8" From Center of Pin Hole to Center of Ball Hole |
| 1 7/8 In. ball | 2,000 Lb. capacity |
| 2 In. ball | 6,000 Lb. capacity |
| 2 5/16 In. ball | 10,000 Lb. capacity |
| Warranty | Lifetime |
Partial list of fitment years: 16 17 18 19 20 21 22 2016 2017 2018 2019 2020 2021 2022
Get Expert Help
Reese Trailer Tow Hitch Receiver For 16-22 Nissan NP300 Navara International Only w/Tri-Ball Triple Ball 1-7/8" 2" 2-5/16" Install Notes
Installation Instructions for Trailer Hitch Models #76078, #84078, and #CQT76078
Part Numbers:
- 76078
- 84078
- CQT76078
Applications:
- Years: 2016-Current
- Make and Models: Nissan Navara NP300
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 19 mm
Step-by-Step Instructions:
1. Unbolt Bolt Plates from Hitch:
- Remove the (1) M12 bolt and (1) M12 nut from the hitch.
- Retain the bolt and nut for reuse during hitch installation.
2. Remove Tow Hook:
- Remove the tow hook from the rear driver-side frame by uninstalling (5) existing M12 bolts (2 from the bottom and 3 from the inside).
- Return the bolts and tow hook to the vehicle owner.
3. Attach Hitch to Vehicle Frame:
- Raise the hitch into position and align the (3) holes on each hitch bracket with the (3) holes on each frame.
- Install (3) M12 bolts and (3) conical washers through the holes on each hitch bracket and into the weldnuts of the frame.
- Note: If additional clearance is required, loosen or lower the spare tire or exhaust.
4. Install Bolt Plates:
- Install (2) M12 bolts and (2) conical washers through the top (2) holes of each bolt plate.
- On each bolt, place (1) spacer, then thread the bolt into the weldnut in the frame.
- In the bottom (2) holes of each bolt plate and hitch bracket, thread (1) M12 bolt and (1) conical washer, then secure with (1) conical washer and (1) M12 nut.
5. Tighten All Fasteners:
- Torque all M12 CL 8.8 fasteners to 57 lb-ft (77 N·m).
- Torque all M12 CL 10.9 fasteners to 130 lb-ft (176 N·m).

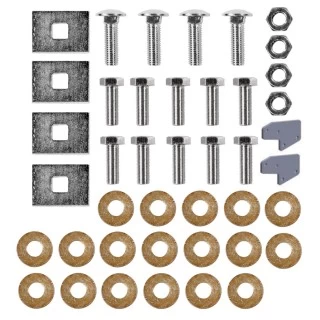

Hardware List:
- 10 × Hex Bolt CL 8.8 (M12 × 1.25 × 35 mm)
- 4 × Hex Bolt CL 10.9 (M12 × 1.25 × 40 mm)
- 18 × Conical Washer (1/2")
- 4 × Spacer (.188 × 1.50" × 2.00")
- 4 × Hex Nut CL 10.9 (M12 × 1.25)
- 2 × Bolt Plate
Safety Notes:
- Always wear safety glasses during installation.
- Periodically check the hitch to ensure all fasteners and the hitch ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball before use.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight (Weight Carrying/Weight Distributing): 8,000 lbs (3,629 kg)
- Max Tongue Weight (Weight Carrying/Weight Distributing): 800 lbs (363 kg)
- Installation Time: Approximately 30 minutes
This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
This hitch comes with a limited warranty covering defects in material and workmanship for the duration specified. For complete warranty instructions, please download the full installation PDF.
