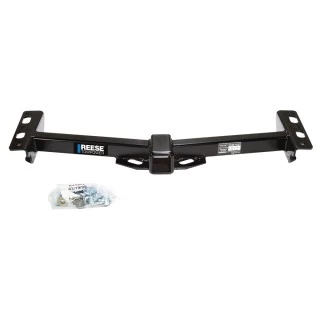

Reese Trailer Tow Hitch Receiver For 88-00 Chevy GMC C/K 1500 2500 3500 w/Aftermarket Roll Pan w/Tri-Ball Triple Ball 1-7/8" 2" 2-5/16"

Reese Trailer Tow Hitch Receiver For 88‑00 Chevy GMC C/K 1500 2500 3500 w/Aftermarket Roll Pan w/Tri‑Ball Triple Ball 1‑7/8" 2" 2‑5/16"

Name: Reese Trailer Tow Hitch Receiver For 88-00 Chevy GMC C/K 1500 2500 3500 w/Aftermarket Roll Pan w/Tri-Ball Triple Ball 1-7/8" 2" 2-5/16"
Brand: Reese
Price: 296.22 USD
Availability: InStock

Model: 96522 7031400 63240

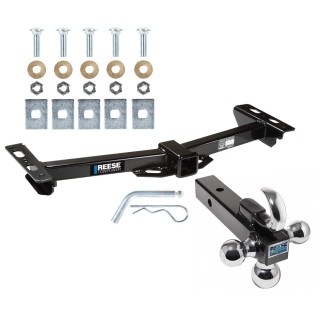

Includes Everything Pictured:
Custom Fit Trailer Hitch
Tri-Ball Trailer Hitch Ball Mount w/ Pin/Clip

This Hitch Fits The Following Vehicles:

1988 - 1999   Chevrolet, C1500, w/Aftermarket Roll Pan
1988 - 1999   Chevrolet, C2500, w/Aftermarket Roll Pan
1988 - 2000   Chevrolet, C3500, w/Aftermarket Roll Pan
1988 - 1999   Chevrolet, K1500, w/Aftermarket Roll Pan
1988 - 1999   Chevrolet, K2500, w/Aftermarket Roll Pan
1988 - 2000   Chevrolet, K3500, w/Aftermarket Roll Pan
1988 - 1999   GMC, C1500, w/Aftermarket Roll Pan
1988 - 2000   GMC, C2500, w/Aftermarket Roll Pan
1988 - 2000   GMC, C3500, w/Aftermarket Roll Pan
1988 - 1999   GMC, K1500, w/Aftermarket Roll Pan
1988 - 2000   GMC, K2500, w/Aftermarket Roll Pan
1988 - 2000   GMC, K3500, w/Aftermarket Roll Pan

Trailer Hitch Specs:

Part Number	96522
Brand	Reese
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	5,000 lbs
Max GTW w/ weight distribution	5,500 lbs
Max Tongue Weight	500/550 lbs
Warranty	Lifetime
Installation Instructions

Tri-Ball Trailer Hitch Ball Mount Specs:

Part Number	7031400
Brand	Reese
Fits	2" x 2" Trailer Hitch Receiver
Finish	Black Powdercoat Balls and hook are chromed
Length	8" From Center of Pin Hole to Center of Ball Hole
1 7/8 In. ball	2,000 Lb. capacity
2 In. ball	6,000 Lb. capacity
2 5/16 In. ball	10,000 Lb. capacity
Warranty	Lifetime

Questions or Comments? Call 702-374-8999

Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite, Hidden Hitch and Tekonsha. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 88 89 90 91 92 93 94 95 96 97 98 99 00 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000

See Full Description

$296 ²² $474.14 38% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$474.14 $296 ²²

Pay in 4 interest-free installments of $74.00 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $74.00 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Reese
Model: 96522 7031400 63240
Includes: Class 3 Trailer Tow Hitch, Tri-Ball Trailer Tow Hitch Ball Mount w/ Chrome Tow Hook, Trailer Tow Hitch Pin & Clip

Compatibility Chart

Specification
Attachment Location	Rear
Ball Mount Included	Yes
Color	Black
Drilling Required	Yes
Gross Towing Weight	5,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit	5,500 lbs.
Hitch Class	III
Material	Steel
Maximum Tongue Weight	500 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit	550 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Square Tube

Be the first to ask a question.

Description

Includes Everything Pictured:
Custom Fit Trailer Hitch
Tri-Ball Trailer Hitch Ball Mount w/ Pin/Clip

This Hitch Fits The Following Vehicles:

Trailer Hitch Specs:

Part Number	96522
Brand	Reese
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	5,000 lbs
Max GTW w/ weight distribution	5,500 lbs
Max Tongue Weight	500/550 lbs
Warranty	Lifetime
Installation Instructions

Tri-Ball Trailer Hitch Ball Mount Specs:

Part Number	7031400
Brand	Reese
Fits	2" x 2" Trailer Hitch Receiver
Finish	Black Powdercoat Balls and hook are chromed
Length	8" From Center of Pin Hole to Center of Ball Hole
1 7/8 In. ball	2,000 Lb. capacity
2 In. ball	6,000 Lb. capacity
2 5/16 In. ball	10,000 Lb. capacity
Warranty	Lifetime

Questions or Comments? Call 702-374-8999

Tags: 96522 , 7031400 , 63240 , Reese , Trailer , Tow , Hitch , Receiver , 88-00 , Chevy , GMC , C/K , 1500 , 2500 , 3500 , w/Aftermarket , Roll , Pan , w/Tri-Ball , Triple , Ball , 1-7/8" , 2" , 2-5/16" , 88 , 89 , 90 , 91 , 92 , 93 , 94 , 95 , 96 , 97 , 98 , 99 , 00 , 1988 , 1989 , 1990 , 1991 , 1992 , 1993 , 1994 , 1995 , 1996 , 1997 , 1998 , 1999 , 2000

Get Expert Help

Reese Trailer Tow Hitch Receiver For 88-00 Chevy GMC C/K 1500 2500 3500 w/Aftermarket Roll Pan w/Tri-Ball Triple Ball 1-7/8" 2" 2-5/16" Install Notes

Installation Instructions for Chevrolet/GMC Pickups with Aftermarket Roll Pan

Part Numbers:

41522

Wiring Access Location:

Tools Required:

Drill with 1/2" Drill Bit
Wrenches: 7/8" (Crowfoot)

Step-by-Step Instructions:

Remove Spare Tire:
- Remove the spare tire from the vehicle.
- If the under-bed spare tire is to be retained, an aftermarket spare tire repositioner must be installed.
Position Rearmost Slots:
- Position the rearmost slots in the receiver over/after the slot near the end of the frame.
Drill Forward Attachment Holes:
- On 8' bed models, use the hitch as a template to drill forward attachment holes.
Install Fasteners:
- Install fasteners as shown in Figure 1.
- Use 1/4" x 1-1/2" x 2" blocks (1540 and 3719) oriented as shown in the diagram.
Cut Roll Pan (if required):
- Cut the roll pan in the license plate area to provide drawbar installation and pin & clip access.
- Reposition the license plate while the drawbar is in use.
Apply Load Rating Label:
- Apply the load rating label (5767) provided in the license plate area of the roll pan.
Check Spare Tire Clearance:
- If using an aftermarket spare tire repositioner, ensure clearance between the spare tire, brake lines, and differential (see Figure 2).
Tighten Fasteners:
- Tighten all 1/2" GR5 fasteners to 75 lb-ft.

Torque Specifications:

1/2" GR5 fasteners: 75 lb-ft

Hardware List:

(6) Carriage Bolts, 1/2"-13 x 1.75" GR5
(6) Blocks, 1/4" x 1-1/2" x 2" (3719 and 1540)
(6) Conical Toothed Washers
(6) Hex Nuts, 1/2"-13

Safety Notes:

Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Observe safety precautions when working beneath the vehicle and wear eye protection.
Do not cut access or attachment holes with a torch.

Specifications:

Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb
- Max Tongue Weight: 500 lb
Weight Distributing:
- Max Gross Trailer Weight: 5,500 lb
- Max Tongue Weight: 550 lb

Additional Notes:

Hitch will not fit with step bumpers or vehicles equipped with heavy-duty suspension with additional frame reinforcements (see Diagram 1).
This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
