Reese Trailer Tow Hitch Receiver For 94-03 Dodge Van B Series Ram 1500 2500 3500 w/Tri-Ball Triple Ball 1-7/8" 2" 2-5/16"

Reese Trailer Tow Hitch Receiver For 94‑03 Dodge Van B Series Ram 1500 2500 3500 w/Tri‑Ball Triple Ball 1‑7/8" 2" 2‑5/16"

Model: 37070 7031400 63240

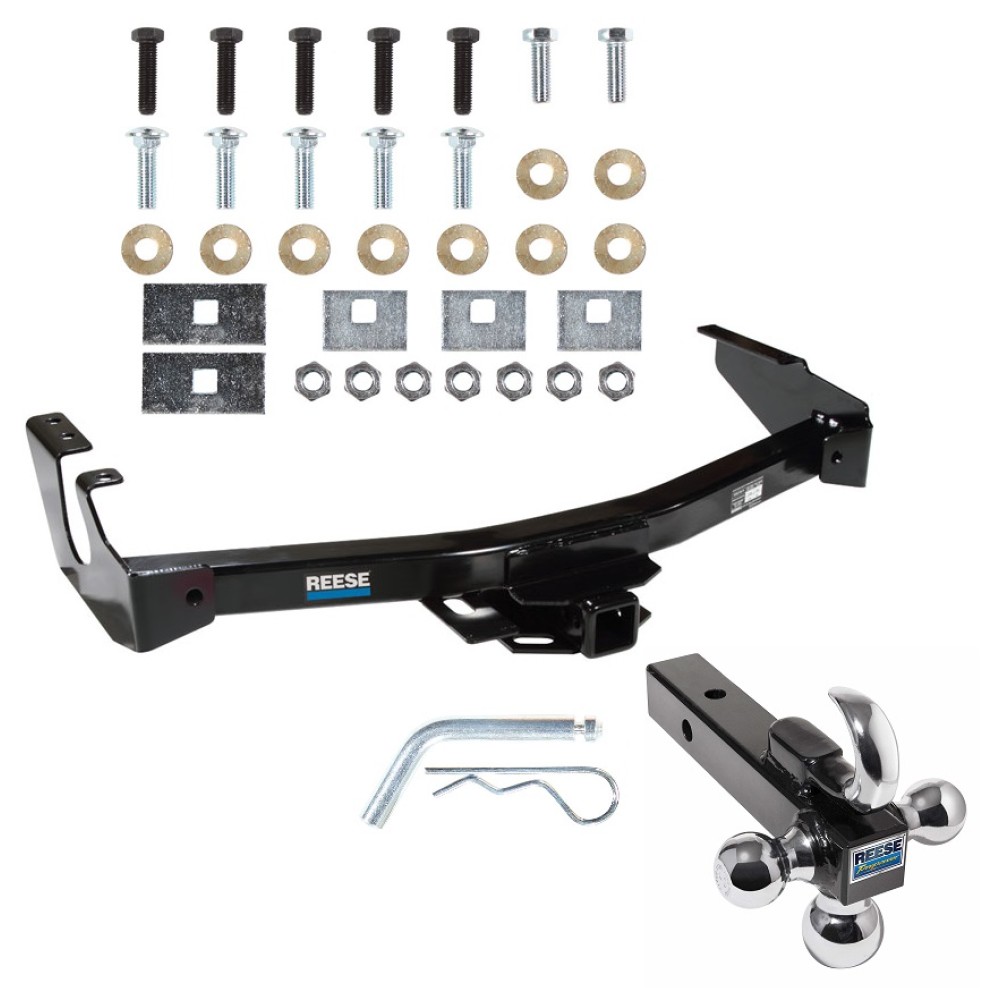

Includes Everything Pictured:

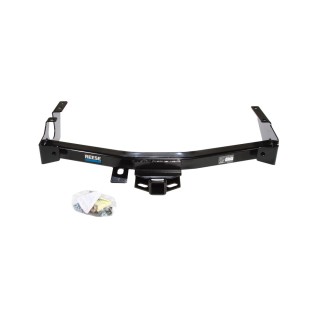

Custom Fit Trailer Hitch
Tri-Ball Trailer Hitch Ball Mount w/ Pin/Clip

This Hitch Fits The Following Vehicles:

1994   Dodge, Van, B150, without Factory Step Bumper
1994   Dodge, Van, B250, without Factory Step Bumper
1994   Dodge, Van, B350, without Factory Step Bumper
1995 - 1998   Dodge, Van, B1500, without w/Factory Step Bumper
1995 - 1998   Dodge, Van, B2500, without w/Factory Step Bumper
1995 - 1998   Dodge, Van, B3500, without w/Factory Step Bumper
1999 - 2003   Dodge, Van, Ram 1500, without w/Factory Step Bumper
1999 - 2003   Dodge, Van, Ram 2500, without Factory Step Bumper
1999 - 2003   Dodge, Van, Ram 3500, without Factory Step Bumper

Trailer Hitch Specs:

Part Number	37070
Brand	Reese
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	6,000 lbs
Max GTW w/ weight distribution	10,000 lbs
Max Tongue Weight	600/1,000 lbs
Warranty	Lifetime
Installation Instructions

Tri-Ball Trailer Hitch Ball Mount Specs:

Part Number	7031400
Brand	Reese
Fits	2" x 2" Trailer Hitch Receiver
Finish	Black Powdercoat Balls and hook are chromed
Length	8" From Center of Pin Hole to Center of Ball Hole
1 7/8 In. ball	2,000 Lb. capacity
2 In. ball	6,000 Lb. capacity
2 5/16 In. ball	10,000 Lb. capacity
Warranty	Lifetime

Questions or Comments? Call 702-374-8999

Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite, Hidden Hitch and Tekonsha. Our customhitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 94 95 96 97 98 99 00 01 02 03 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003

See Full Description

$267 ⁵¹ $464.58 42% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$464.58 $267 ⁵¹

Pay in 4 interest-free installments of $66.75 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $66.75 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Reese
Model: 37070 7031400 63240
Includes: Class 4 Trailer Tow Hitch, Tri-Ball Trailer Tow Hitch Ball Mount w/ Chrome Tow Hook, Trailer Tow Hitch Pin & Clip

Compatibility Chart

Year Range	Make	Model	Style

Description

Part Number	37070
Brand	Reese
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	6,000 lbs
Max GTW w/ weight distribution	10,000 lbs
Max Tongue Weight	600/1,000 lbs
Warranty	Lifetime
Installation Instructions

Tri-Ball Trailer Hitch Ball Mount Specs:

Part Number	7031400
Brand	Reese
Fits	2" x 2" Trailer Hitch Receiver
Finish	Black Powdercoat Balls and hook are chromed
Length	8" From Center of Pin Hole to Center of Ball Hole
1 7/8 In. ball	2,000 Lb. capacity
2 In. ball	6,000 Lb. capacity
2 5/16 In. ball	10,000 Lb. capacity
Warranty	Lifetime

Questions or Comments? Call 702-374-8999

Specifications

Specification
Attachment Location	Rear
Ball Mount Included	Yes
Color	Black
Drilling Required	No
Gross Towing Weight	6,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit	10,000 lbs.
Hitch Class	IV
Material	Steel
Maximum Tongue Weight	600 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit	1,000 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Square Tube

Questions & Answers

Be the first to ask a question.

Reviews

Tags: 37070 , 7031400 , 63240 , Reese , Trailer , Tow , Hitch , Receiver , 94-03 , Dodge , Van , B , Series , Ram , 1500 , 2500 , 3500 , w/Tri-Ball , Triple , Ball , 1-7/8" , 2" , 2-5/16" , 94 , 95 , 96 , 97 , 98 , 99 , 00 , 01 , 02 , 03 , 1994 , 1995 , 1996 , 1997 , 1998 , 1999 , 2000 , 2001 , 2002 , 2003

Get Expert Help

Reese Trailer Tow Hitch Receiver For 94-03 Dodge Van B Series Ram 1500 2500 3500 w/Tri-Ball Triple Ball 1-7/8" 2" 2-5/16" Install Notes

Installation Instructions for Dodge Van

Part Numbers:

41533
37070

Wiring Access Location:

SUV5

Tools Required:

Drill with 1/2" Drill Bit (if required)
Wrenches: 3/4", 7/8"

Step-by-Step Instructions:

Prepare Frame Rail:
- If the vehicle has a heat shield, remove one (1) screw from the bottom of the frame rail so the bracket will sit flat on the frame. Return the screw to the vehicle owner.
Fishwire Fasteners (if required):
- For vehicles without existing weldnuts, fishwire 1/2"-13 GR5 carriage bolts and spacer blocks through the access holes in the frame as shown in the diagram.
Position Hitch:
- Raise the hitch into position, aligning it with the frame rails.
Install Fasteners:
- For vehicles with weldnuts, install the provided M12 x 1.75 CL10.9 bolts with conical toothed washers into the existing weldnuts.
- For vehicles without weldnuts, secure the hitch using carriage bolts, spacer blocks, and hex nuts as shown in the diagram.
Tighten All Fasteners:
- Tighten 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m).
- Tighten M12 x 1.75 CL10.9 bolts to 92 lb-ft (125 N*m).
Ensure Proper Clearance:
- Ensure the hitch is positioned correctly and that the wiring harness located inside the passenger's side frame rail is not pinched or sandwiched between the frame rail and fasteners.

Torque Specifications:

1/2"-13 GR5 bolts: 75 lb-ft (102 N*m)
M12 x 1.75 CL10.9 bolts: 92 lb-ft (125 N*m)

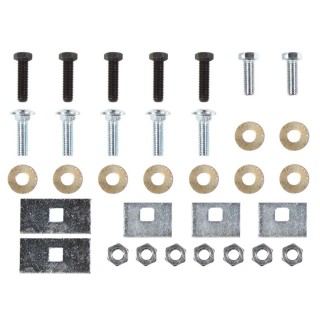

Hardware List:

(4) Carriage Bolts, 1/2"-13 x 1.75" GR5
(2) Blocks, 1/4" x 1-1/2" x 2" (1277)
(2) Blocks, 1/4" x 1-1/2" x 3" (1711)
(4) Hex Nuts, 1/2"-13
(4) Conical Toothed Washers, 1/2"
(2) Hex Bolts, M12 x 1.75 x 45mm CL10.9
(2) Conical Toothed Washers, M12

Safety Notes:

Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Observe safety precautions when working beneath the vehicle and wear eye protection.
Do not cut access or attachment holes with a torch.

Specifications:

Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 6,000 lb
- Max Tongue Weight: 600 lb
Weight Distributing:
- Max Gross Trailer Weight: 10,000 lb
- Max Tongue Weight: 1,000 lb

Additional Notes:

This hitch does not fit vehicles equipped with a factory step bumper.
Wiring harness is located inside the passenger's side frame rail. Take care to avoid damage.
This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
