Reese Trailer Tow Hitch Receiver For 97-04 Ford F150 97-07 F250 F350 w/Tri-Ball Triple Ball 1-7/8" 2" 2-5/16"

Reese Trailer Tow Hitch Receiver For 97‑04 Ford F150 97‑07 F250 F350 w/Tri‑Ball Triple Ball 1‑7/8" 2" 2‑5/16"

Model: 44673 7031400 63240

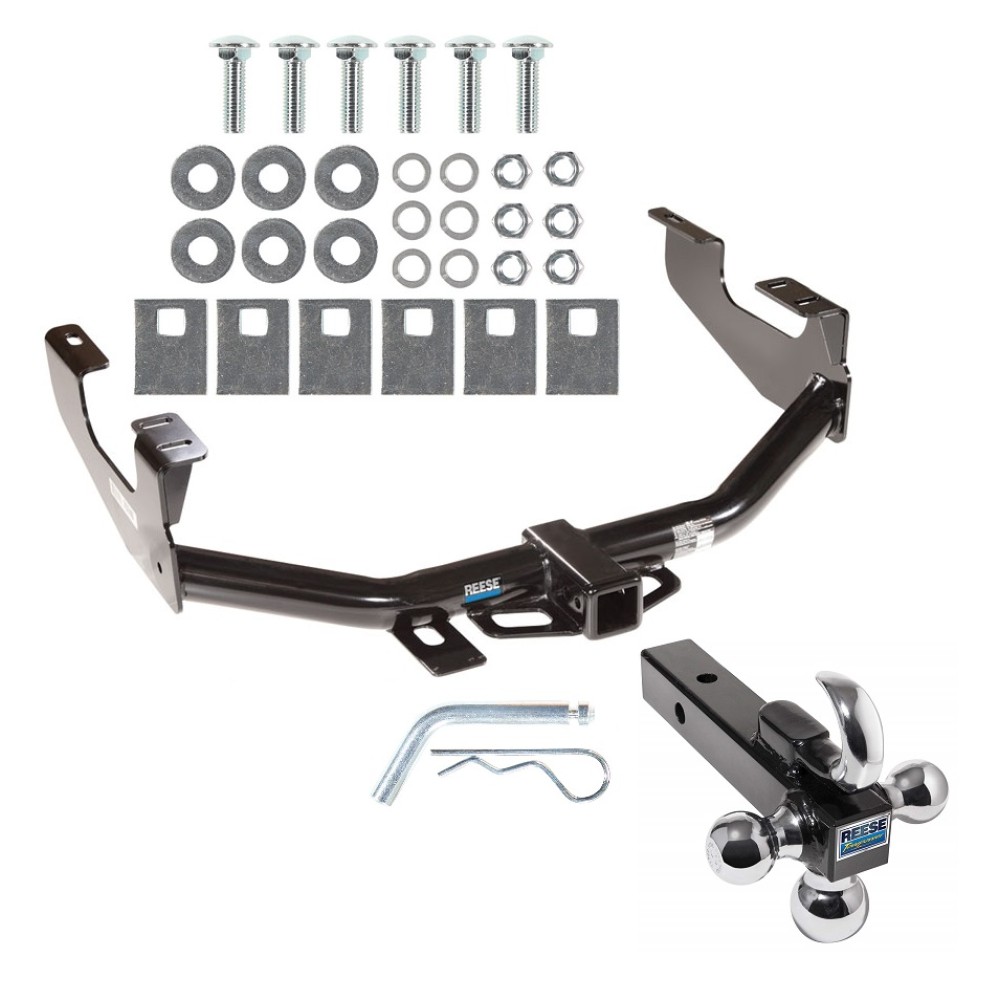

Includes Everything Pictured:
Custom Fit Trailer Hitch
Tri-Ball Trailer Hitch Ball Mount w/ Pin/Clip

This Hitch Fits The Following Vehicles:
1997 - 2003   Ford, F-150, Flareside, Styleside
1997 - 1999   Ford, F-250, Styleside
1999 - 2007   Ford, F-250 Super Duty, Except Cab & Chassis
1999 - 2007   Ford, F-350 Super Duty, Except Cab & Chassis
2000 - 2003   Ford, F-150, SuperCrew
2004   Ford, F-150 Heritage, Flareside

Trailer Hitch Specs:

Part Number	44673
Brand	Reese
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	6,000 lbs
Max GTW w/ weight distribution	10,000 lbs
Max Tongue Weight	900/1000 lbs
Warranty	Lifetime
Installation Instructions

Tri-Ball Trailer Hitch Ball Mount Specs:

Part Number	7031400
Brand	Reese
Fits	2" x 2" Trailer Hitch Receiver
Finish	Black Powdercoat Balls and hook are chromed
Length	8" From Center of Pin Hole to Center of Ball Hole
1 7/8 In. ball	2,000 Lb. capacity
2 In. ball	6,000 Lb. capacity
2 5/16 In. ball	10,000 Lb. capacity
Warranty	Lifetime

Questions or Comments? Call 702-374-8999

Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite, Hidden Hitch and Tekonsha. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 97 98 99 00 01 02 03 04 05 06 07 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007

See Full Description

$272 ⁵⁷ $437.24 38% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$437.24 $272 ⁵⁷

Pay in 4 interest-free installments of $68.00 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $68.00 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Reese
Model: 44673 7031400 63240
Includes: Class 4 Trailer Tow Hitch, Tri-Ball Trailer Tow Hitch Ball Mount w/ Chrome Tow Hook, Trailer Tow Hitch Pin & Clip

Compatibility Chart

Specification
Attachment Location	Rear
Ball Mount Included	Yes
Color	Black
Drilling Required	No
Gross Towing Weight	6,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit	10,000 lbs.
Hitch Class	IV
Material	Steel
Maximum Tongue Weight	900 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit	1,000 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Round Tube

Be the first to ask a question.

Description

Part Number	44673
Brand	Reese
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	6,000 lbs
Max GTW w/ weight distribution	10,000 lbs
Max Tongue Weight	900/1000 lbs
Warranty	Lifetime
Installation Instructions

Tri-Ball Trailer Hitch Ball Mount Specs:

Part Number	7031400
Brand	Reese
Fits	2" x 2" Trailer Hitch Receiver
Finish	Black Powdercoat Balls and hook are chromed
Length	8" From Center of Pin Hole to Center of Ball Hole
1 7/8 In. ball	2,000 Lb. capacity
2 In. ball	6,000 Lb. capacity
2 5/16 In. ball	10,000 Lb. capacity
Warranty	Lifetime

Questions or Comments? Call 702-374-8999

Tags: 44673 , 7031400 , 63240 , Reese , Trailer , Tow , Hitch , Receiver , 97-04 , F150 , 97-07 , F250 , F350 , w/Tri-Ball , Triple , Ball , 1-7/8" , 2" , 2-5/16" , 97 , 98 , 99 , 00 , 01 , 02 , 03 , 04 , 05 , 06 , 07 , 1997 , 1998 , 1999 , 2000 , 2001 , 2002 , 2003 , 2004 , 2005 , 2006 , 2007

Get Expert Help

Reese Trailer Tow Hitch Receiver For 97-04 Ford F150 97-07 F250 F350 w/Tri-Ball Triple Ball 1-7/8" 2" 2-5/16" Install Notes

Installation Instructions for 1999–2007 Ford F250/350 Super Duty Trucks

Part Numbers:

75740
87618
44673

Wiring Access Location:

PU1, PU2 (Standard)
PU3 (2004 Heritage Model)

Tools Required:

Wrenches: 3/4", 7/8"
Drill Bits: None

Step-by-Step Instructions:

Lower the spare tire:
- Lower the spare tire on all Super Duty trucks.
- For Light Duty trucks with 16” or larger tires, lower the spare tire. It will be reinstalled or relocated after the hitch installation.
- Note: 20” spare tires cannot be relocated under the truck.
Ensure a clear frame:
- Check that no electrical wires or other obstructions are inside the truck frame.
- Ensure bolts and blocks can sit flat on the bottom of the frame when tightened.
Install carriage bolts and blocks:
- Insert the carriage bolts and blocks down through the truck frame as shown in Figure 1.
- Carefully raise the hitch into position to avoid pushing the bolts back through the frame.
- Loosely install flat washers, lock washers, and hex nuts onto the carriage bolts.
- After ensuring that blocks and bolts sit flat, torque all bolts to 75 lb-ft (102 N*m).
Reinstall the spare tire:
- Replace the spare tire. If necessary, relocate it to ensure proper fitment.

Hardware List:

Qty (6): Carriage Bolt – 1/2"-13 x 1-3/4" Gr5
Qty (6): Helical Lock Washer – 1/2"
Qty (6): Block with Square Hole – 1/4" x 1-1/2" x 2"
Qty (6): Hex Nut – 1/2"
Qty (6): Flat Washer – 1/2"

Safety Notes:

Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Observe safety precautions when working beneath the vehicle and wear eye protection.
Do not cut access or attachment holes with a torch.

Specifications:

Hitch Type: Weight Distributing
- Max Gross Trailer Weight: 10,000 lbs (4,540 kg)
- Max Tongue Weight: 1,000 lbs (454 kg)
Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 6,000 lbs (2,724 kg)
- Max Tongue Weight: 900 lbs (408 kg)

Manufacturer Notes:

Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
