Installation Instructions for Toyota Corolla

Part Numbers:

• 24913
• 60345
• 77300

Wiring Access Location:

• PC3, PC4

Tools Required:

• Wrenches: 17mm, 19mm

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (90.8 kg)
• Note: Do not exceed the towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

1. Remove Tie-Down Brackets:

   • If present, remove the tie-down brackets from the vehicle frame rails.
   • Return bolts and tie-down brackets to the owner.

2. Position Hitch:

   • Raise the hitch into position.

3. Install Fasteners:

   • Install the provided fasteners into the existing weld nuts on the frame rails.
   • Tighten all M12 CL8.8 fasteners to 68 Lb.-Ft. (92 N*M) using a torque wrench.

4. For Vehicles with Appearance Panels:

   • Remove the appearance panel covering the trunk pan by detaching the two 10mm plastic rivets fastening it to the fascia.
   • Carefully remove the rivet centers with a flat-head screwdriver. Retain the rivets for reinstallation.
   • Return the appearance panel and fasteners to the owner if not reinstalled.

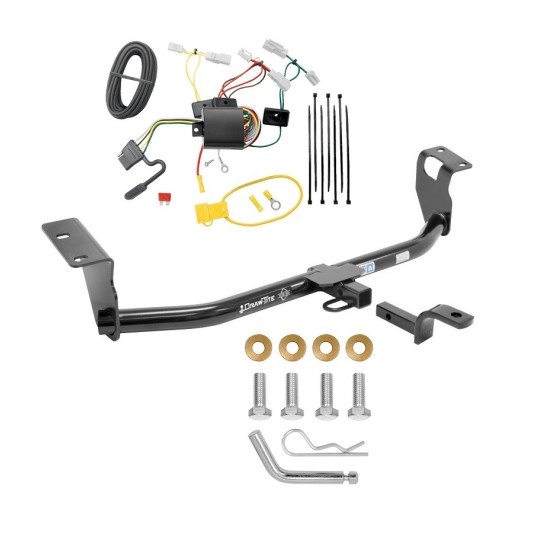

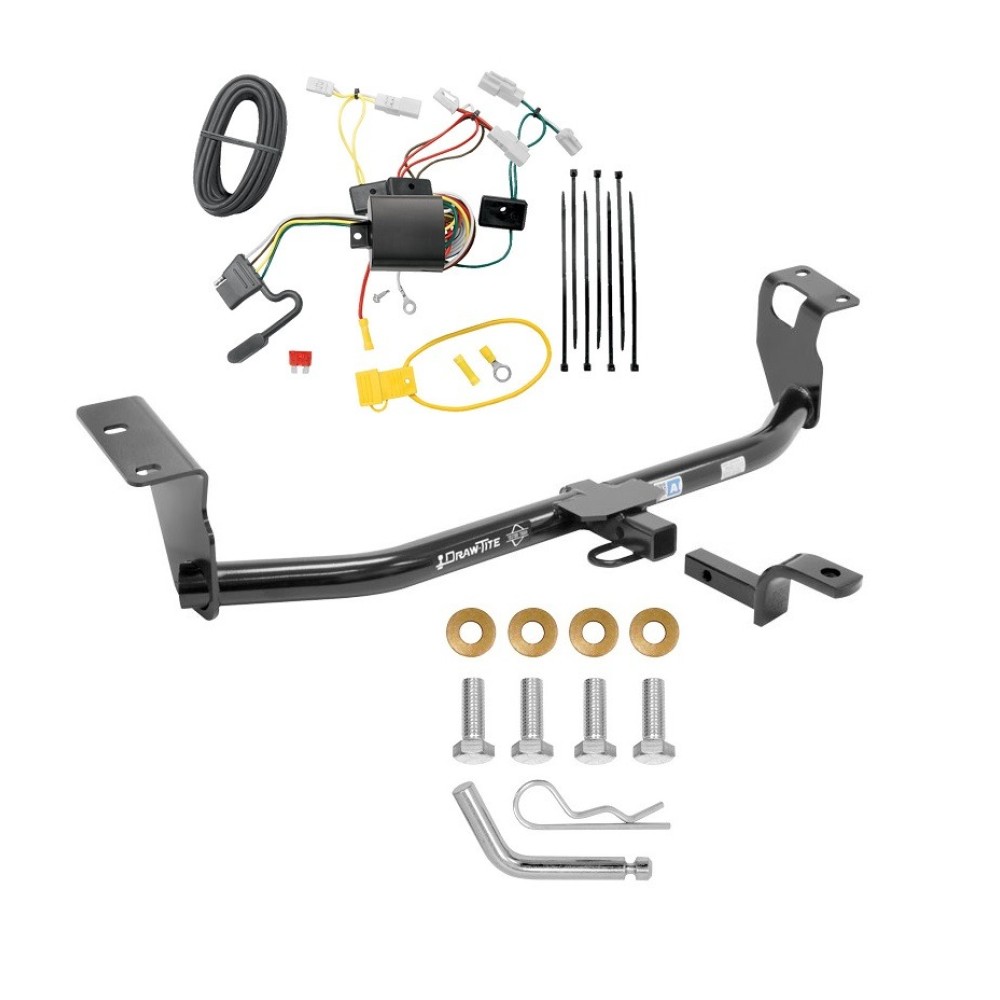

Hardware List:

• (4) Hex Bolts: M12 x 1.25 x 35 CL8.8
• (4) Conical Washers

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always observe safety precautions and wear eye protection when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Drawbar:

• Drawbar Kit: 3593
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Check the hitch frequently to ensure all fasteners remain tight.

Installation Instructions for T-Connector Adapter

Part Numbers:

• 118405

Wiring Access Location:

• Rear taillight assemblies and under the vehicle near the bumper.

Tools Required:

• Drill with 3/32” drill bit.
• Philips head screwdriver.
• 10mm socket and ratchet or wrench.
• Wire crimpers and cutters.
• Trim panel remover.

Step-by-Step Instructions:

1. Access Vehicle Wiring:

   • Open the rear tailgate and remove the threshold panel.
   • For Mazda 6 Sedan and Coupe, remove the two 10mm nuts securing the driver’s side taillight housing. Pull the housing directly rearward to remove and set aside.

2. Prepare Wiring for Mazda 6 and Toyota Camry:

   • Locate the vehicle's wiring inside the trunk area by removing the plastic threshold cover and trunk liner.
   • Route the black 12-gauge wire through the opening in the taillight socket and behind the bumper to the engine compartment.

3. Driver’s Side Connection:

   • Attach the T-Connector containing the yellow and red wires between the vehicle wiring connectors behind the driver’s side taillight. Ensure the connectors are fully inserted and secure the locking tabs.

4. Passenger’s Side Connection:

   • Route the T-Connector with the green wire to the passenger side beneath the vehicle threshold cover.
   • Repeat step 3 using the T-Connector ends with the green wire.

5. Ground Connection:

   • Locate a suitable grounding point near the connector:
     • Option 1: Clean the area, drill a 3/32” hole, and secure the white wire with the provided eyelet and screw.
     • Option 2: Use an existing ground stud. Loosen the bolt, attach the eyelet, and retighten.

6. Routing the Power Wire:

   • Route the black 12-gauge wire from the taillight area to the engine compartment, avoiding hot pipes, heat shields, and the fuel tank.

7. Connect to the Battery:

   • Disconnect the negative battery cable.
   • Install the yellow fuse holder on the positive battery cable using the provided ring terminal and yellow butt connector.
   • Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.

8. Reconnect Battery and Test Installation:

   • Reconnect the negative battery cable.
   • Insert the 10-amp fuse into the fuse holder.
   • Test the installation with a test light or trailer.

9. Final Steps:

   • Secure the T-Connector black box using the provided double-sided tape.
   • Use cable ties to secure the remaining harness to prevent damage or rattling.
   • Reinstall all panels, liners, and covers removed during the process.

   Specifications:

   • Max. stop/turn light: 1 per side (2.1 amps).
   • Max. tail lights: (4.2 amps).

Hardware List:

• T-Connector adapter.
• Black converter box.
• Yellow fuse holder with 10-amp fuse.
• Eyelet and screw.
• Double-sided tape.
• Cable ties.

Safety Notes:

• Ensure all connections are complete to avoid circuit overload.
• Test thoroughly after installation to confirm functionality.

Manufacturer Notes:

• Follow all vehicle warnings and installation instructions.
• Use a test light or trailer to confirm proper installation.
• Consult the vehicle owner’s manual for additional details.
