Tow Package For 00-02 Chevrolet Express GMC Savana Van Trailer Hitch w/ Wiring 2" Drop Mount 2" Ball 2" Receiver
$263.87
- Stock: In Stock
- Brand: Draw-Tite
- Model: 75189 118377 21536

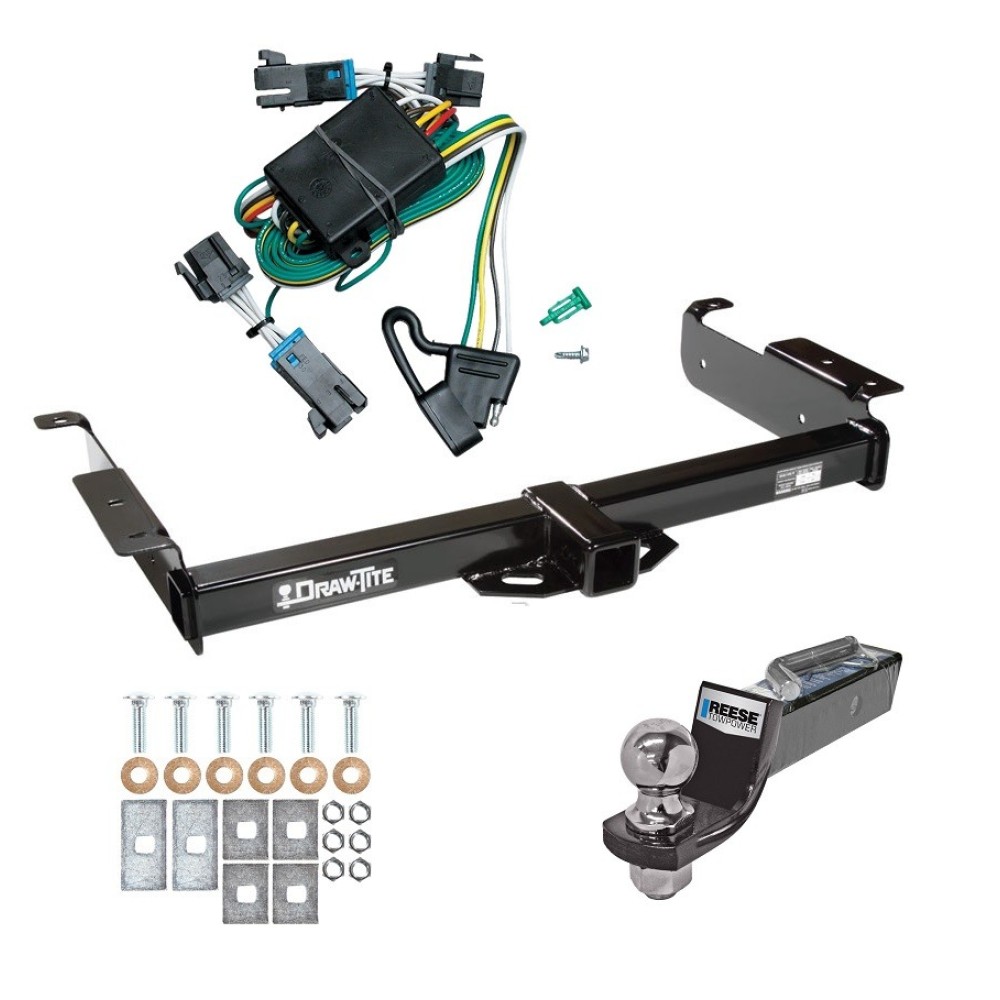

Includes Everything Pictured:
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2000 - 2002 Chevrolet, Express 1500, All Styles
2000 - 2002 Chevrolet, Express 2500, All Styles
2000 - 2002 Chevrolet, Express 3500, All Styles
2000 - 2002 GMC, Savana 1500, All Styles
2000 - 2002 GMC, Savana 2500, All Styles
2000 - 2002 GMC, Savana 3500, All Styles
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2000 - 2002 Chevrolet, Express 1500, All Styles
2000 - 2002 Chevrolet, Express 2500, All Styles
2000 - 2002 Chevrolet, Express 3500, All Styles
2000 - 2002 GMC, Savana 1500, All Styles
2000 - 2002 GMC, Savana 2500, All Styles
2000 - 2002 GMC, Savana 3500, All Styles
Trailer Hitch Specs:
| Part Number | 75189 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 7,500 lbs |
| Max Tongue Weight | 500/750 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118377 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Towing Starter Kit Specs:
| Part Number | 21536 |
| Brand | Reese |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Ball Size | 2" |
| Ball Shank Dia. | 1" |
| Ball-Mount Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 6,000 lb Gross Towing Weight 600 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Ball-Mount Finish | Black Powdercoat |
| Ball Finish | Chrome (Cold forged for superior strength) |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
Partial list of fitment years: 00 01 02 2000 2001 2002
