Installation Instructions for Chevrolet Colorado and GMC Canyon (2015-Present)

Part Numbers:

• 76004
• 84999

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 12mm, 21mm, 22mm
• Flat Head Screwdriver
• Socket Extension (6")

Wiring Access Location:

• N/A

Step-by-Step Instructions:

1. Disconnect Electrical Connections:

   • Disconnect electrical plugs and remove the wire retainer from the bumper support structure.

2. Remove Step Bumper:

   • Remove the step bumper by taking out two (2) bolts on each side of the bumper brackets.

3. Remove Bumper Support:

   • Remove the vehicle’s bumper support by removing four (4) bolts from the bottom of the frame and two (2) M8 bolts at the spare tire cradle.
   • Retain the M8 bolts for reinstallation.

4. Install the Hitch:

   • Raise the hitch into position.
   • Secure using the provided M14 hex bolts, lock washers, and flat washers into the four (4) existing weldnuts in the frame.

5. Reinstall Spare Tire Cradle:

   • Reattach the spare tire cradle using the original fasteners.
   • Torque M8 bolts to 20 lb-ft (28 N·m).

6. Reinstall Step Bumper:

   • Reinstall the step bumper using the original four (4) side fasteners.
   • Ensure the plastic tube for the spare tire mechanism is aligned.

7. Reconnect Electrical Connections:

   • Reconnect all electrical plugs.

8. Reposition Spare Tire:

   • Raise the spare tire back into position, if required.

9. Return Parts to Owner:

   • Return the vehicle’s bumper support and the bottom four (4) factory bolts to the owner.

10. Tighten Fasteners:

    • Torque all M14 CL10.9 fasteners to 100 lb-ft (136 N·m).

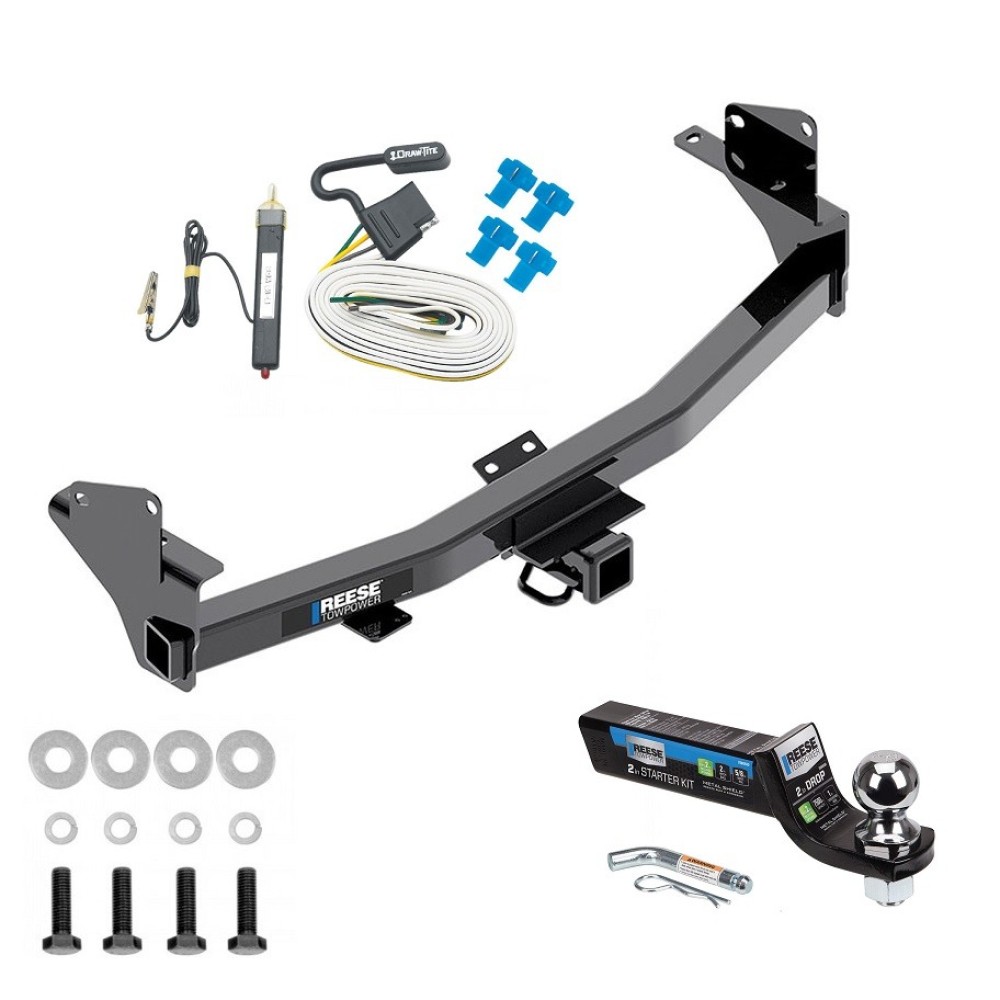

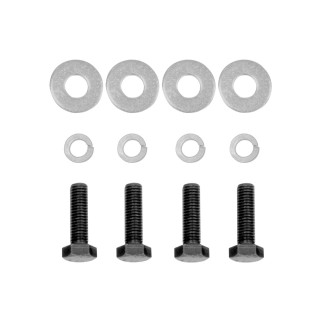

Hardware List:

• (4) M14 x 2.00 x 45mm CL10.9 Bolts
• (4) 9/16" Flat Washers
• (4) 9/16" Lock Washers

Safety Notes:

• Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always follow safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Carrying (Ball Mount): Max Trailer Weight 8,000 lbs (3,632 kg), Max Tongue Weight 800 lbs (363 kg).
  • Weight Distributing: Max Trailer Weight 10,000 lbs (4,540 kg), Max Tongue Weight 1,000 lbs (454 kg).
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Additional Notes:

• Installation time is approximately 35 minutes for a professional installer.
• If you do not feel comfortable performing this installation, contact a professional installer.

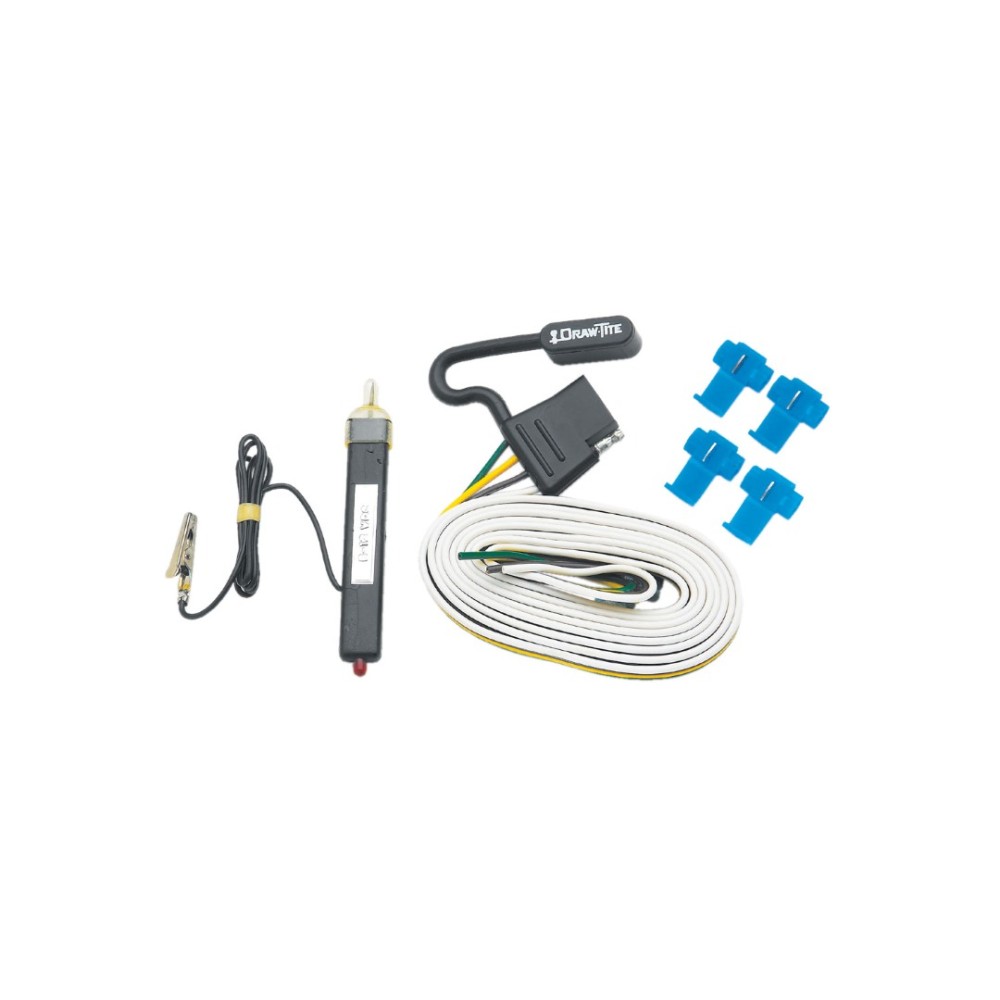

Installation Instructions for Trailer Light Wiring Kit

Part Number:

• 20252

Tools Required:

• Hot Air Gun or Appropriate Heat Source
• Wire Crimpers
• Drill (3/32” Drill Bit)
• Phillips Head Screwdriver
• Circuit Tester

Step-by-Step Instructions:

Step 1: Locate the Taillight Wiring Harness

1. Access the vehicle's taillight wiring harness.
2. Using the provided instructions, identify the appropriate wires for connection:
   • Green Wire: Right Turn & Stop
   • Yellow Wire: Left Turn & Stop
   • Brown Wire: Taillights
   • White Wire: Ground

Step 2: Make the Electrical Connections

1. Match the color-coded wires from the wiring kit to the corresponding vehicle wires.

   • Use a circuit tester to verify each wire's function before connecting.
   • CAUTION: Test one wire at a time to prevent damage to electronic components.

2. Connect the wires using the provided insulated butt connectors:

   • Strip the ends of each wire and seat them properly in the connector.
   • Use a crimping tool designed for insulated splices to secure the connections.

3. Heat the connectors:

   • Apply heat directly to the center of each splice using a hot air gun.
   • Work from the center outward until the tubing recovers and adhesive flows.
   • Allow the connections to cool before inspecting for integrity.

Step 3: Ground the System

1. Locate a grounding point near the wiring harness, such as the vehicle frame or cross member.
   • Do not drill into the vehicle floor or bed.
2. Clean the area to remove dirt, rust, or undercoating.
3. Drill a 3/32" hole at the grounding point and secure the white wire using the provided eyelet and screw.

Step 4: Verify the Installation

1. Test all connections using a circuit tester or trailer:
   • Verify the functionality of taillights, turn signals, and brake lights.
   • Ensure all connections are complete and secure.
2. If issues are identified, double-check the wiring and connections for errors.

Step 5: Store the 4-Flat Connector

• Store the 4-flat connector in the rear cargo area when not in use to protect it from damage and environmental exposure.

Warnings and Notes:

• WARNING: Overloading a circuit can cause fires. Do not exceed the following limits:
  • Stop/Turn Lights: 7.5 amps (1 per side)
  • Tail Lights: 7.5 amps
• WARNING: Always verify what is behind any surface before drilling to avoid vehicle damage or injury.
• NOTE: Trailer lighting that requires more than 7.5 amps per circuit must use a Trailer Light Power Converter.
• NOTE: If your trailer requires a plug other than the 4-flat, consult your dealer for optional 6-way or 7-way adapters.

Maintenance:

• Inspect the wiring harness periodically for damage, corrosion, or loose connections.
• Reapply heat to connectors if the adhesive seal weakens.

Specifications:

• Maximum Load:
  • Stop/Turn Lights: 7.5 amps (1 per side)
  • Tail Lights: 7.5 amps
• Recommended Grounding Hole Size: 3/32 inches
