Product Details
- Brand: Draw-Tite
- Model: 75540 119148 21536

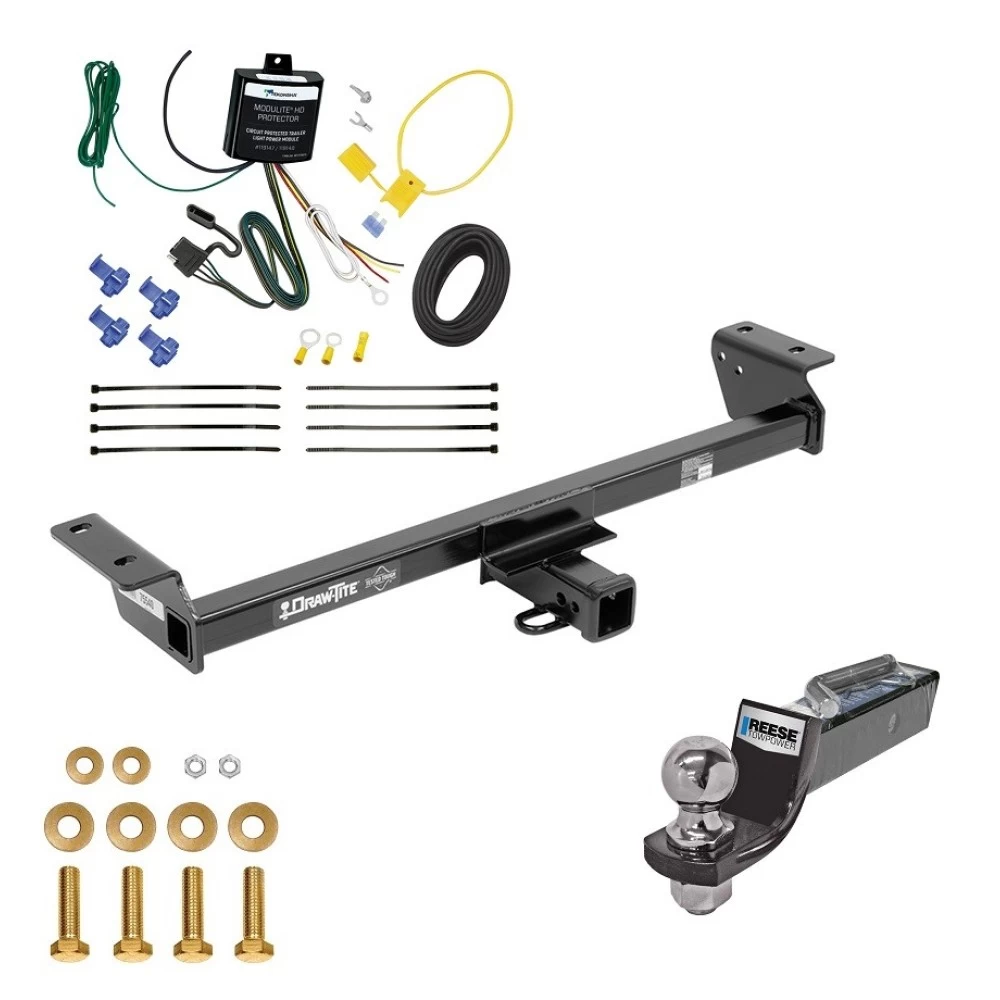

- Includes: Class 3 Trailer Tow Hitch, ModuLite HD Protector Trailer Light Power Module & Installation Kit, Trailer Tow Hitch Ball Mount Starter Kit
Compatibility Chart
Description
Get Expert Help
Tow Package For 22-22 Lexus RX350 Trailer Hitch w/ Wiring 2" Drop Mount 2" Ball 2" Receiver Install Notes
Installation Instructions for Lexus RX350 and RX450h
Part Numbers:
- 75540
- 84540
- CQT75540
Tools Required:
- Wrenches: 10mm, 12mm, 17mm, 19mm
- Ratchet
- Torque Wrench
- Flat Head Screwdriver
- Hacksaw
- Tape
- Marker
- Socket Extension
Wiring Access Location:
- Not specified in this document.
Step-by-Step Instructions:
For RX350 Models:
-
Remove Tie-Down Bracket:
- Use a 17mm socket to remove the two bolts securing the tie-down bracket on the passenger side.
- Return the tie-down bracket to the vehicle owner.
-
Remove Weldnut Covers:
- Using a flat head screwdriver, remove the two plastic caps from the rearmost existing weldnuts on the driver side.
- Remove the rearmost rubber plug from the hole between the two weldnuts.
-
Trim Lower Fascia (for models after 2021):
- Remove two tabs from the sensor bracket behind the lower fascia, if present.
- Mark a 3"x3" trimming area using tape and a marker, centered from the edge of the bottom tab.
- Use a hacksaw to trim the marked area.
-
Install Hitch:
- Raise the hitch into position over the existing weldnuts.
- Install two M12 bolts and conical washers on both sides.
- Bend the exhaust heat shield if necessary to prevent it from touching the hitch.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 fasteners to 76 lb-ft (103 N·m).
For RX450h Models:
-
Remove Underbody Panel:
- Use a 10mm socket to remove 13 fasteners securing the underbody panel. One plunger-style fastener is located behind the wheel well trim on the driver side.
- Retain the underbody panel for reinstallation after trimming.
-
Remove Hole Plugs:
- Remove three rearmost hole plugs from the driver side frame rail using a flat head screwdriver.
-
Remove Tow Loop:
- Use a 17mm socket to remove the two M12 bolts securing the tow loop on the passenger side. Return the tow loop and fasteners to the vehicle owner.
-
Lower Exhaust:
- Use a 12mm socket to remove two M8 bolts holding the exhaust hanger on the passenger side. Retain the bolts for reinstallation.
-
Install Hitch:
- Raise the hitch into position over the exhaust.
- Install two M12 bolts and conical washers on both sides.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 fasteners to 76 lb-ft (103 N·m) and M8 fasteners to 27 lb-ft (37 N·m).
-
Reinstall Exhaust:
- Use a 12mm socket to reinstall the M8 bolts, conical washers, and hex nuts.
-
Trim Underbody Panel:
- Use a hacksaw to trim the appearance panel in two places. Obtain vehicle owner approval before trimming.
-
Reinstall Underbody Panel:
- Use the 13 retained fasteners to reinstall the appearance panel.
Hardware List:
- RX350:
- (4) M12 x 1.25 x 40mm CL10.9 Hex Bolts
- (4) 1/2” Conical Washers
- RX450h:
- (4) M12 x 1.25 x 40mm CL10.9 Hex Bolts
- (4) 1/2” Conical Washers
- (2) 3/8” Conical Washers
- (2) M8 Hex Nuts
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying: Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
- Weight Distributing: Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Modulite® HD Protector Vehicle Wiring
Part Number:
- 119148
Tools Required:
- Phillips Head #2 Screwdriver
- Wire Cutters
- Wire Strippers/Wire Crimpers
- Tester or Volt Meter
- Socket & Ratchet Set
- Drill with 3/32” Drill Bit
- Double-Sided Tape
Step-by-Step Instructions:
Tow Vehicle Inputs - Determination:
- Disconnect and isolate the vehicle's negative battery terminal.
- Warning: Read and follow all warnings and instructions on the tow vehicle's battery.
- Splice the tow harness input wires to the vehicle as determined.
- Caution: Use appropriate gauge wire splices. Blue taps are for 16-18 gauge wires only.
Harness Installation:
- Determine the mounting location of the module and secure it using the double-sided tape provided.
- Warning: Mount the module with the epoxy side pointed towards the ground to prevent water buildup.
- Locate a suitable grounding point near the module, such as an existing ground stud, or drill a 3/32” hole to secure the white wire using the provided eyelet and screw.
- Caution: Verify what is behind any surface before drilling to avoid damage or personal injury.
- Route the power wire to the vehicle’s positive battery terminal. Use the provided fuse holder, butt connector, and ring terminal to connect to the battery.
- Do not insert the 15 amp fuse yet.
- Caution: Ensure the module is connected to a constant power source and avoid routing the wire near hot pipes, heat shields, fuel tanks, or pinch points.
Completion:
- Secure the harness with cable ties provided to prevent damage or rattling.
- Reconnect the vehicle's negative battery cable.
- Insert the 15 amp fuse into the fuse holder and close the cap.
- Test the installation using a test light or trailer. Check each function independently and in combination.
Hardware List:
- 8 × Cable Ties, 8.5”
- 1 × 15 AMP Fuse
- 2 × Ring Terminals
- 1 × Fuse Holder
- 2 × Yellow Butt Connectors
- 1 × Self-Tapping Screw
- 4 × Blue Taps
- 1 × Spade Terminal
Wiring Outputs:
- White Wire: Ground
- Brown Wire: Tail
- Yellow Wire: Left Turn/Brake
- Green Wire: Right Turn/Brake
- Red Wire: Stop (for 3-wire systems only)
Safety Notes:
- Always read and follow all warnings and instructions included with the product and the vehicle's manual.
- Do not exceed the manufacturer’s towing capacity or the product’s amperage ratings.
- Wear safety glasses and use all necessary safety precautions during installation.
Troubleshooting Guide:
- 4-Flat Not Functioning: Ensure input wires are correctly installed and repeat testing after removing the 15 amp fuse for 10 seconds.
- No Power to 4-Flat: Check the chassis ground and ensure the module is properly connected to a constant power source.
Specifications:
- Installation Time: Approximately 45 minutes
- Compatibility: Does not work with multiplex vehicles (BM, BT, or BTT). Use part numbers 119190 or 119250 for these systems.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
