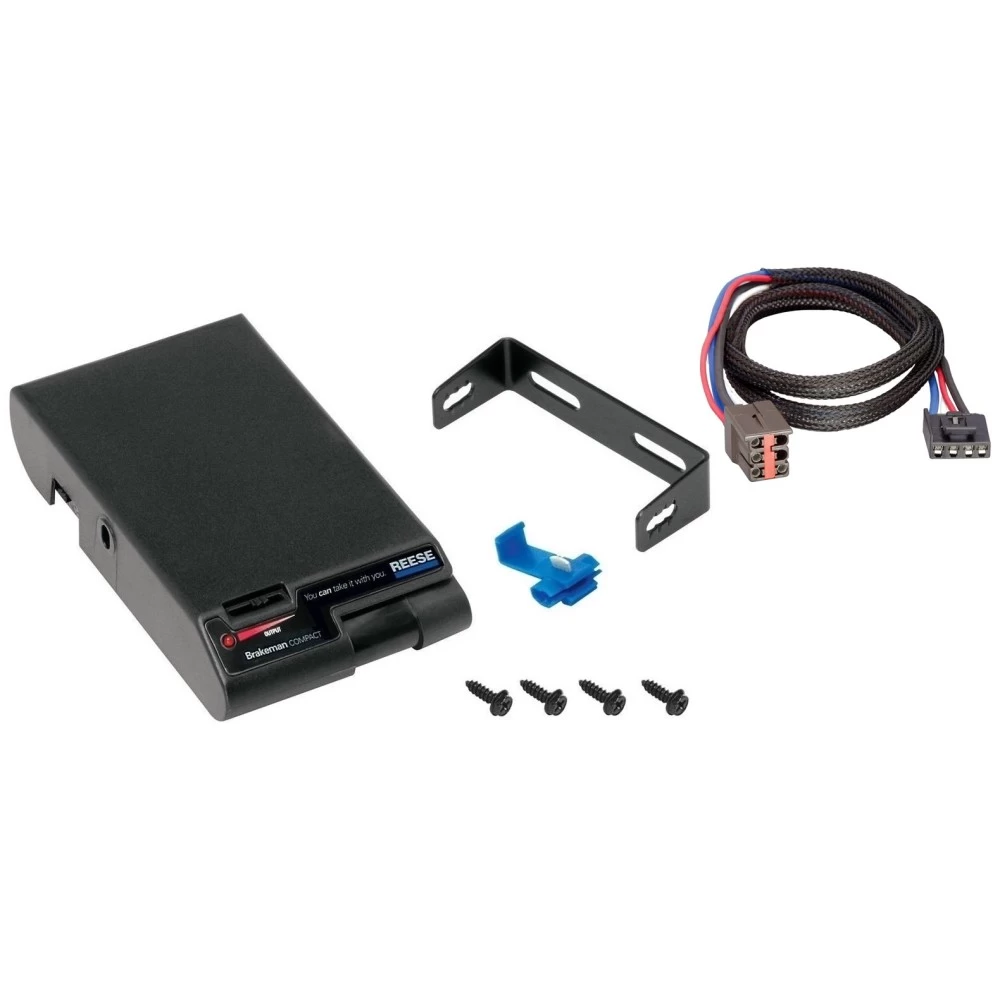

Trailer Brake Control for 03-05 Lincoln Aviator w/ Plug Play Wiring Adapter Eletric Trailer Brakes Module Box Controller Brakeman Compact Reese Install Notes
Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Number: 303500
Tools Required:
- Test Light
Step-by-Step Instructions:
Step 1: Locate the Vehicle’s Electric Brake Control Harness
- Locate the electric brake control harness under the dashboard:
- Near the center console on most vehicles.
- For Ford Full-Size Vans: Underneath and to the left of the steering column.
- For Ford Explorer/Mercury Mountaineer:
- Behind the glove box on the passenger side, or
- Underneath and to the left of the steering column, taped to another harness near the emergency brake pedal.
- Identify the 6-pin connector that matches the adapter’s plug.
Step 2: Verify Battery Power
- Use a test light to probe the connector and verify that battery power is supplied.
- Alternatively, follow the wires from the connector to ensure they are not disconnected behind the instrument panel.
If battery power is present:
- Proceed to Step 4.
If no battery power is present:
- Follow Step 3 to add power.
Step 3: Add Power to the Connector
- Use an electric brake control wiring kit to route the required wires as follows:
- Cut the battery feed wire at the vehicle connector, leaving enough wire to splice.
- Use the supplied butt connector to connect the wiring kit’s battery feed wire to the vehicle harness.
- Cut the trailer brake wire at the vehicle connector, leaving enough wire to splice.
- Connect the wiring kit’s trailer brake wire using the supplied butt connector.
Step 4: Connect the Adapter
- Plug the brake control adapter into the vehicle’s electric brake control harness connector.
- Follow the brake control manufacturer’s installation instructions to wire and mount the brake controller unit.
Step 5: Test the Installation
- Complete the installation as instructed by the brake control manufacturer.
- Perform all test procedures to verify proper operation of the trailer brake system.
Warnings:
- Overloading the Circuit May Cause Fires:
- DO NOT exceed the lower of the following:
- The vehicle manufacturer’s towing rating, or
- Maximum Capacity: 4 axles / 8 brakes (24 amps).
- DO NOT exceed the lower of the following:
- Always read and follow the vehicle owner’s manual and the brake controller installation instructions.
Wiring Overview:
- Battery Feed (Fused): Supplies power to the brake controller.
- Ground: Ensures proper grounding for the brake controller system.
- Stop Lamp Switch (Input): Provides a braking signal to the brake controller.
- Trailer Brake Controller (Output): Sends braking signals to the trailer brakes.
Safety Notes:
- Verify all wiring connections are secure and routed away from:
- Sharp edges
- Hot surfaces
- Moving parts
- Inspect the adapter and wiring periodically for wear or damage.
End of Instructions
Installation Instructions for Electronic Brake Control for 2 & 4 Brake Systems
Product Information:
- Part Number: N83501
- Application: Compatible with 2 and 4 trailer brake systems
Package Contents:
- Brake Control Unit
- Mounting Bracket
- Mounting Screws (#6 x 3/8") (Qty: 4)
- Wire Tap Connector
Tools Required:
- Drill with 1/8" drill bit
- Screwdriver or 1/4" Nut Driver
- Wire Stripper/Cutter
- Wire Crimping Tool
- Circuit Tester (Probe Type)
Mounting Instructions:
-
Select Mounting Location:
- Choose a solid surface within easy reach of the driver.
- Verify there are no obstructions behind the panel before drilling.
-
Install the Bracket:
- Hold the mounting bracket in place and mark the holes using the bracket’s slots.
- Drill two 1/8" holes in the marked locations.
- Secure the bracket using two self-tapping screws provided.
-
Attach the Brake Control:
- Slide the Brake Control into the bracket.
- Secure the Brake Control with the remaining screws.
Wiring Instructions:
-
Black Wire (Battery +):
- Connect to the positive battery terminal using a 20A auto-reset circuit breaker.
-
White Wire (Ground -):
- Connect to a clean, bare metal surface on the vehicle chassis.
-
Red Wire (Stoplight Switch):
- Connect to the cold side of the stoplight switch (only active when the brake pedal is pressed).
-
Blue Wire (Trailer Brake):
- Connect to the trailer brake wire at the 7-way connector.
Special Instructions for 1989-1991 Ford E and F Series with Anti-Lock Brakes:
- Do NOT connect to the stoplight switch.
- Locate the turn signal harness connector near the steering column.
- Splice the red wire to the light green wire using the provided wire tap connector.
Control Functions:
-
Output Control:
- Adjusts the maximum power delivered to the trailer brakes.
- Turn the knob left to increase power; turn it right to decrease power.
-
Sync Control:
- Adjusts brake aggressiveness or the delay in applying full power.
- Turn + (forward) for more aggressive braking.
- Turn – (backward) for less aggressive braking.
-
Manual Control:
- Applies the trailer brakes independently of the vehicle brakes.
- Slide the control to the left to activate the trailer brakes.
- Power applied is determined by the Output Control setting.
-
Output Indicator:
- The red light glows dimly when braking begins and becomes brighter as power increases.
Setup and Adjustment:
-
Initial Settings:
- Set the Sync Control halfway between + and –.
- Set the Output Control to the lowest position (fully to the right).
-
Brake Test:
- Roll forward slowly and apply the brakes.
- If no trailer braking is felt, adjust the Output Control slightly to the left.
- Repeat until firm trailer braking is achieved. If brakes lock up, adjust the Output Control to the right slightly.
-
Sync Adjustment:
- Move the Sync Control back toward the driver to about 1/4 of the way between + and –.
- Test drive and adjust the Sync Control for smooth, firm stops.
-
Final Verification:
- Check that both the tow vehicle and trailer stoplights activate when the Manual Control is used.
Troubleshooting Guide:
Problem | Cause | Solution |
---|---|---|
Trailer brakes delayed | Sync Control set too low | Adjust Sync Control toward +. |
Trailer brakes lock up quickly | Sync Control set too high | Adjust Sync Control toward –. |
Weak trailer braking | Output Control set too low | Increase the Output Control setting. |
No trailer brakes | Faulty wiring or connections | Verify all wire connections. |
Trailer brakes inconsistent | Poor ground connection | Check and secure White Wire ground. |
Red light does not activate | No stoplight signal to Red Wire | Check stoplight switch connection. |
Safety Notes:
- Inspect and test the brake control system before each use.
- Do not exceed the vehicle’s or trailer’s Gross Combined Weight Rating (GCWR).
- Ensure all connections are secure and insulated to prevent short circuits.
Technical Support:
- For technical support and assistance, our team of experts is available to help.
- Visit www.trailerjacks.com or call 877-869-6690.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
