Trailer Hitch 7 Way RV Wiring Kit For 00‑04 Nissan Xtrerra Plug Prong Pin Brake Control Ready
Model: 118244 85343 20506 7012A2000 - 2004 Nissan, Xterra, w/Factory Tow Package
Includes all necessary parts required to completely install all brake controls. No other parts are necessary. This Kit Retains use of 4-Flat Connector while also giving you a 7-Way RV Plug
Each Kit includes:

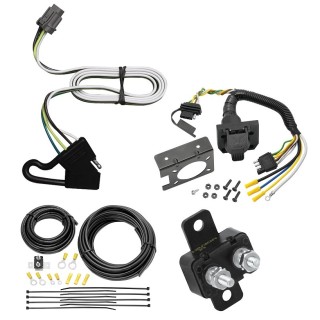

- Plug and Play T-One Wiring Harness Connector
- 4-Way to 7-Way adapter w/ mounting bracket and screws
- Wiring Kit for 6 to 8 Brake Control Systems
- Includes 25 ft. 12-2 Duplex Wire
- (2) 30 Amp Circuit Breakers
- Attaching Terminals and Ring Connectors
Part Numbers | 118244 85343 20506 7012A |
Brand | Tekonsha |
Warranty | 1 Year |
T-One Wiring Installation |
![]() |
4-Way to 7-Way Adapter Installation |
![]() |
Brake Control Wiring Installation |
![]() |
Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control systems. You are here because you need a 7-Way Connector Plug on your vehicle. You are most likely about to purchase or already own a travel trailer or some other type of trailer thas has electric brakes. We have put together a kit for you that includes everything you need to get this job accomplished. After installing this kit on your vehicle the only thing you will need is an electric brake controller. Please scroll down to see our brake controllers.
Partial list of fitment years:
00 01 02 03 04 2000 2001 2002 2003 2004
$125 66 $156.61 20% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$156.61 $125 66
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $31.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Tekonsha
- Model: 118244 85343 20506 7012A
- Includes: Tow Custom Harness, Wiring Adapter, Trailer Brake Controller Installation Kit, Circuit Breaker
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
2000 - 2004 Nissan, Xterra, w/Factory Tow Package
Includes all necessary parts required to completely install all brake controls. No other parts are necessary. This Kit Retains use of 4-Flat Connector while also giving you a 7-Way RV Plug
Each Kit includes:
- Plug and Play T-One Wiring Harness Connector
- 4-Way to 7-Way adapter w/ mounting bracket and screws
- Wiring Kit for 6 to 8 Brake Control Systems
- Includes 25 ft. 12-2 Duplex Wire
- (2) 30 Amp Circuit Breakers
- Attaching Terminals and Ring Connectors
Part Numbers | 118244 85343 20506 7012A |
Brand | Tekonsha |
Warranty | 1 Year |
T-One Wiring Installation |
![]() |
4-Way to 7-Way Adapter Installation |
![]() |
Brake Control Wiring Installation |
![]() |
Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control systems. You are here because you need a 7-Way Connector Plug on your vehicle. You are most likely about to purchase or already own a travel trailer or some other type of trailer thas has electric brakes. We have put together a kit for you that includes everything you need to get this job accomplished. After installing this kit on your vehicle the only thing you will need is an electric brake controller. Please scroll down to see our brake controllers.
Partial list of fitment years:
00 01 02 03 04 2000 2001 2002 2003 2004
Specification | |
Circuit Protected | No |
Hardware Included | Yes |
Harness Type | 4-Way Flat (Vehicle Side) |
Terminal Quantity | 7 |
Universal Or Specific Fit | Specific Fit |
Wire Quantity | 7 |
Be the first to ask a question.
Get Expert Help
Trailer Hitch 7 Way RV Wiring Kit For 00-04 Nissan Xtrerra Plug Prong Pin Brake Control Ready Install Notes
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118244
Wiring Access Location:
- Under the vehicle, behind the rear bumper, on the passenger’s side.
Tools Required:
- None specified.
Step-by-Step Instructions:
-
Locate the Tow Vehicle’s Trailer Harness Connector:
- This harness is located under the vehicle, behind the rear bumper, on the passenger’s side.
-
Remove the Protective Cap:
- Check the mating surfaces of the connectors to ensure they are free of dirt or debris. Clean if necessary.
-
Connect the Tow Plug Adapter:
- Attach the Tow Plug Adapter to the vehicle’s connector.
- Ensure the adapter is fully inserted and the locking tabs are securely in place.
-
Test the Installation:
- Use a test light or trailer to verify the functionality of the adapter and ensure all circuits are operating correctly.
Specifications:
- This unit is rated for 7.5 amps per circuit.
Hardware List:
- Tow Plug Adapter
Safety Notes:
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
- Do not exceed the specified amperage rating to prevent potential damage or fire.
Additional Notes:
- Follow all warnings and instructions provided with the product.
- Confirm proper installation by testing the system with a trailer or test light.
Warranty and Technical Support:
- For complete warranty instructions, please download the full installation PDF.
- For technical support, visit www.trailerjacks.com or call 877-869-6690.
Attention: This is a summary of the installation procedure. For complete instructions, including diagrams and detailed information, please download the full installation PDF.
