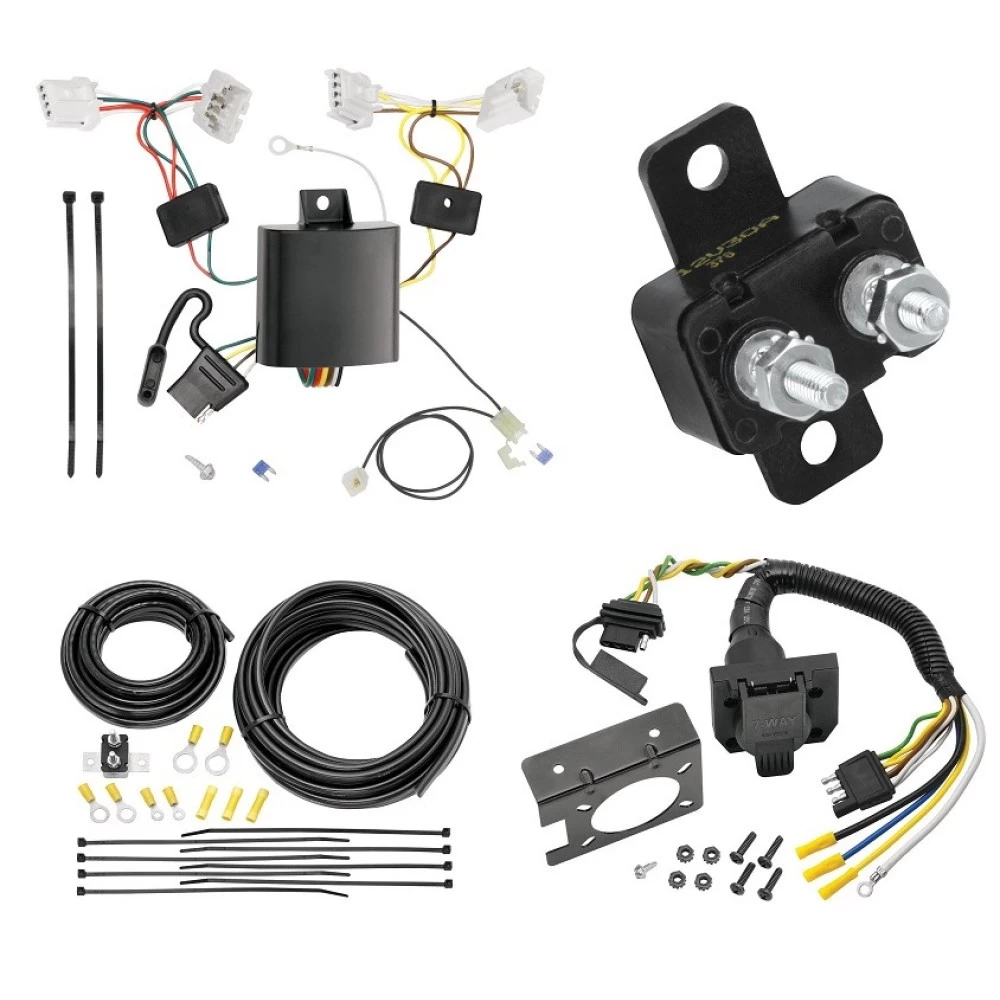

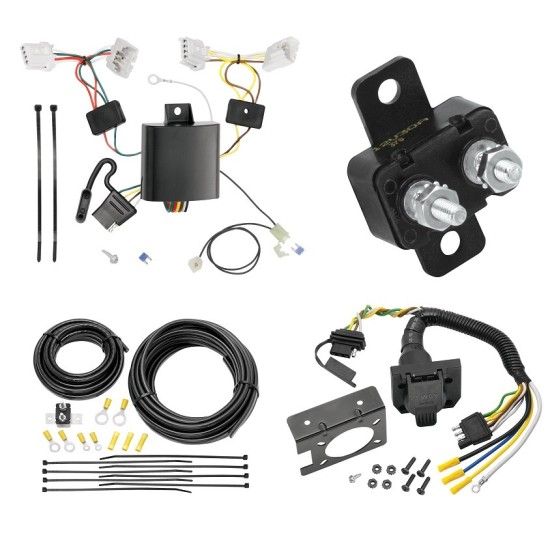

Installation Instructions for T-Connector Adapter for Nissan Murano

Part Numbers:

• 118653

Tools Required:

• Drill (3/32” Drill Bit)
• Phillips Head Screwdriver
• Test Probe
• Trim Panel Puller

Step-by-Step Instructions:

1. Prepare the Rear Cargo Area:

   • Open the rear hatch.
   • Temporarily remove the rear threshold plate, storage covers, and floor covering.

2. Remove Interior Trim Panels:

   • Partially remove the rear interior trim panels on both the driver’s and passenger’s sides.
   • Remove the necessary fasteners to access the panels carefully. Set aside all items to prevent damage.

3. Locate the Taillight Wiring Harness:

   • On both sides of the vehicle, locate the taillight wiring harness.
   • Separate the connectors, ensuring not to damage the locking tabs.
   • Clean the connectors to ensure all surfaces are free of dirt.

4. Install the Driver-Side T-Connector:

   • Insert the T-Connector end with the yellow wire between the vehicle wiring connectors.
   • Ensure all connectors are fully inserted and locked in place.

5. Route the Passenger-Side T-Connector:

   • Route the T-Connector with the green wire behind the panels and along the threshold to the passenger side.
   • Repeat Step 4 for the passenger side.

6. Ground the White Wire:

   • Locate a suitable grounding point near the driver-side connector.
   • Clean the area of dirt and rustproofing.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify what is behind any surface before drilling to avoid damage or injury.
   • Do not drill into the vehicle floor or any exposed surfaces.

7. Connect the 1-Pin Housing:

   • Locate the 1-pin housing taped to the taillight harness on the driver’s side.
   • Plug the 1-pin housing from the T-Connector into the mating housing.

8. Install the Fuse:

   • Open the vehicle hood and locate the fuse box on the driver’s side near the front of the vehicle.
   • Locate the position labeled "20A Trailer."
   • Insert the provided 15-amp fuse into this position.
   • If a fuse is already present in the trailer position, skip this step.

9. Mount the Black Box:

   • Mount the T-Connector black box on the driver’s side using the provided double-sided tape.
   • Secure the remaining T-Connector harness with the provided cable ties to prevent damage or rattling.

10. Reassemble the Vehicle:

    • Reinstall the plastic trim panels, threshold, storage covers, and floor covering removed during installation.
    • Ensure no wires are pinched or cut during reassembly.

11. Test the Installation:

    • Test and verify the installation using a test light or trailer.
    • For the initial test, reset the vehicle’s electrical system by temporarily removing the key from the ignition.

    Specifications:

    • Max. stop/turn light: 1 per side (2.1 amps)
    • Max. tail lights: (5.6 amps)

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
• Always follow all installation instructions and warnings.

Manufacturer Notes:

• Store the 4-flat connector in the rear cargo area when not in use.
• Refer to the vehicle owner’s manual for additional guidance.

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit
• 10mm Socket & Ratchet or Wrench
• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Cable Ties

Part 1: Install the 4-Way to 7-Way Adapter

Step-by-Step Instructions:

1. Mount the Adapter:

   • Choose a suitable mounting point on the vehicle, typically near the hitch.
   • Use the provided bracket and screws to secure the adapter.

2. Connect the 4-Flat Plug:

   • Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
   • This connection enables tail lights, left turn, and right turn signals.

3. Ground the Adapter:

   • Locate a clean, solid grounding point near the adapter.
   • Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.

4. Leave Additional Wires Disconnected:

   • The following wires will remain disconnected until Part 2:
     • Black Wire: Power from the battery.
     • Blue Wire: Brake control output.
     • Yellow Wire: Reverse light (optional; leave disconnected unless needed).

5. Test Initial Connection:

   • Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).

Part 2: Install Brake Control Wiring

Step-by-Step Instructions:

1. Mount Circuit Breakers:

   • Install two 30A circuit breakers on the firewall or another suitable location near the battery.
   • Use self-tapping screws to mount them securely.

2. Route Power Wires:

   • Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
   • Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
   • Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).

3. Install the Brake Controller:

   • Mount the brake controller under the dash on a firm surface.
   • Use the following connections:
     • Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
     • Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
     • White Wire: Connect to a solid ground point on the vehicle body.
     • Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).

4. Optional: Connect Reverse Light Circuit:

   • If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.

5. Reconnect the Battery:

   • Reattach the negative battery cable and ensure all connections are secure.
   • Insert the fuses into both circuit breakers.

6. Secure All Wires:

   • Use cable ties to secure all loose wires and prevent damage or rattling.

7. Test the System:

   • Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
   • If applicable, test the reverse light circuit.

Notes:

• Most installations will only require connecting the black and blue wires from the 7-way adapter.
• Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
• Always adhere to safety guidelines and verify all connections before use.

Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.
