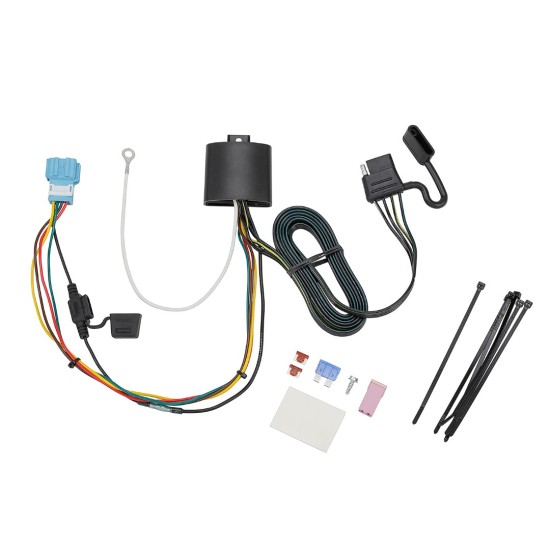

Installation Instructions for T-One® T-Connector for Honda Odyssey

Part Numbers:

• 118781

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Access the Trailer Wiring Harness:

   • Open the rear hatch and push forward the rear seat.
   • Temporarily remove the vehicle’s access panel on the passenger side to gain access to the vehicle’s trailer wiring harness.

2. Locate the Blue Tow Plug:

   • Open the access panel inside the storage compartment to locate the blue tow plug taped to the vehicle wiring harness.
   • Insert the tow plug into the connector, ensuring not to damage the locking tabs. Confirm the connectors are fully inserted with locking tabs in place.

3. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as the vehicle’s frame or crossmember.
   • Clean the area of dirt and rustproofing.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution: Verify what is behind the surface before drilling to avoid damage or injury.

4. Mount the Black Box:

   • On the driver’s side, mount the T-One® Connector black box using the provided double-sided tape.
   • Secure the remainder of the T-One® Connector harness with the provided cable ties to avoid damage or rattling.

5. Install Fuses:

   • Locate the fuse box inside the driver’s side access panel.
   • Install the provided 30-amp Slo-Blo fuse into position #12 and the two provided 7.5-amp mini fuses into positions #10 and #11.

6. Secure the Wiring Harness:

   • Use the provided cable ties to secure the wiring harness, avoiding areas that may pinch, cut, or melt the wire.

7. Route the 4-Flat Connector:

   • Near the access panel, push the trim panel out slightly and route the 4-flat connector to the cargo area under the trim panel.

   Note: Store the 4-flat connector in the rear cargo area when not in use.

8. Test and Verify Installation:

   • Ensure all connections are complete for the T-One® Connector to function properly.
   • Test the installation using a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
• Always wear safety glasses and follow all safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit
• 10mm Socket & Ratchet or Wrench
• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Cable Ties

Part 1: Install the 4-Way to 7-Way Adapter

Step-by-Step Instructions:

1. Mount the Adapter:

   • Choose a suitable mounting point on the vehicle, typically near the hitch.
   • Use the provided bracket and screws to secure the adapter.

2. Connect the 4-Flat Plug:

   • Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
   • This connection enables tail lights, left turn, and right turn signals.

3. Ground the Adapter:

   • Locate a clean, solid grounding point near the adapter.
   • Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.

4. Leave Additional Wires Disconnected:

   • The following wires will remain disconnected until Part 2:
     • Black Wire: Power from the battery.
     • Blue Wire: Brake control output.
     • Yellow Wire: Reverse light (optional; leave disconnected unless needed).

5. Test Initial Connection:

   • Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).

Part 2: Install Brake Control Wiring

Step-by-Step Instructions:

1. Mount Circuit Breakers:

   • Install two 30A circuit breakers on the firewall or another suitable location near the battery.
   • Use self-tapping screws to mount them securely.

2. Route Power Wires:

   • Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
   • Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
   • Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).

3. Install the Brake Controller:

   • Mount the brake controller under the dash on a firm surface.
   • Use the following connections:
     • Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
     • Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
     • White Wire: Connect to a solid ground point on the vehicle body.
     • Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).

4. Optional: Connect Reverse Light Circuit:

   • If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.

5. Reconnect the Battery:

   • Reattach the negative battery cable and ensure all connections are secure.
   • Insert the fuses into both circuit breakers.

6. Secure All Wires:

   • Use cable ties to secure all loose wires and prevent damage or rattling.

7. Test the System:

   • Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
   • If applicable, test the reverse light circuit.

Notes:

• Most installations will only require connecting the black and blue wires from the 7-way adapter.
• Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
• Always adhere to safety guidelines and verify all connections before use.

Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.
