Trailer Hitch 7 Way RV Wiring Kit For 19-24 Toyota Corolla 17-18 Corolla iM 2016 Scion iM Plug Prong Pin Brake Control Ready

Trailer Hitch 7 Way RV Wiring Kit For 19-24 Toyota Corolla 17-18 Corolla iM 2016 Scion iM Plug Prong Pin Brake Control Ready
Trailer Hitch 7 Way RV Wiring Kit For 19-24 Toyota Corolla 17-18 Corolla iM 2016 Scion iM Plug Prong Pin Brake Control Ready
Trailer Hitch 7 Way RV Wiring Kit For 19-24 Toyota Corolla 17-18 Corolla iM 2016 Scion iM Plug Prong Pin Brake Control Ready
Trailer Hitch 7 Way RV Wiring Kit For 19-24 Toyota Corolla 17-18 Corolla iM 2016 Scion iM Plug Prong Pin Brake Control Ready
Trailer Hitch 7 Way RV Wiring Kit For 19-24 Toyota Corolla 17-18 Corolla iM 2016 Scion iM Plug Prong Pin Brake Control Ready
Trailer Hitch 7 Way RV Wiring Kit For 19-24 Toyota Corolla 17-18 Corolla iM 2016 Scion iM Plug Prong Pin Brake Control Ready
Trailer Hitch 7 Way RV Wiring Kit For 19-24 Toyota Corolla 17-18 Corolla iM 2016 Scion iM Plug Prong Pin Brake Control Ready
Trailer Hitch 7 Way RV Wiring Kit For 19-24 Toyota Corolla 17-18 Corolla iM 2016 Scion iM Plug Prong Pin Brake Control Ready
Trailer Hitch 7 Way RV Wiring Kit For 19-24 Toyota Corolla 17-18 Corolla iM 2016 Scion iM Plug Prong Pin Brake Control Ready
Trailer Hitch 7 Way RV Wiring Kit For 19-24 Toyota Corolla 17-18 Corolla iM 2016 Scion iM Plug Prong Pin Brake Control Ready
Trailer Hitch 7 Way RV Wiring Kit For 19-24 Toyota Corolla 17-18 Corolla iM 2016 Scion iM Plug Prong Pin Brake Control Ready
$201.61
  • Stock: In Stock
  • Brand: Tekonsha
  • Model: 118729 85343 20506 7012A

Applies to this product only
Fits The Following Vehicles:

2016 – 2016  Scion, iM, All Styles
2017 - 2018    Toyota, Corolla iM, All Styles
2019 - 2024    Toyota, Corolla, Hatchback


Includes all necessary parts required to completely install all brake controls. No other parts are necessary. This Kit Retains use of 4-Flat Connector while also giving you a 7-Way RV Plug

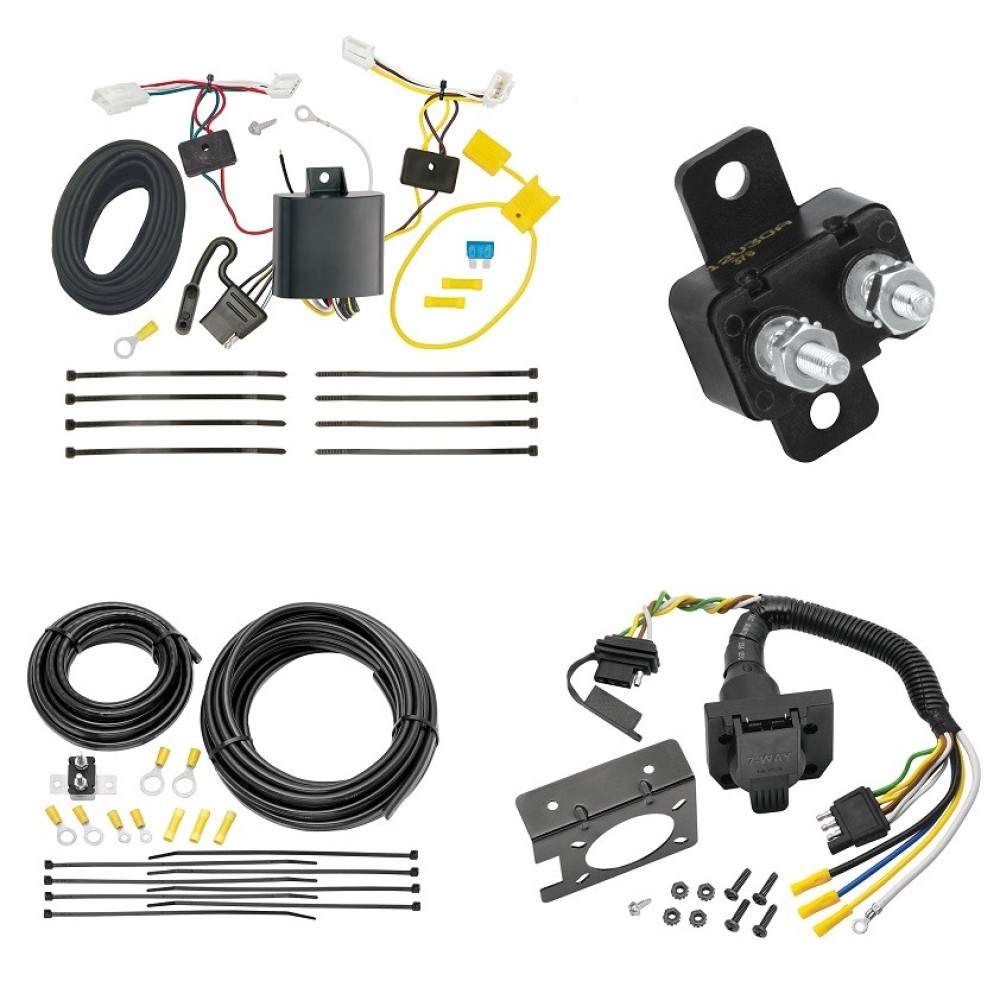

Each Kit includes:

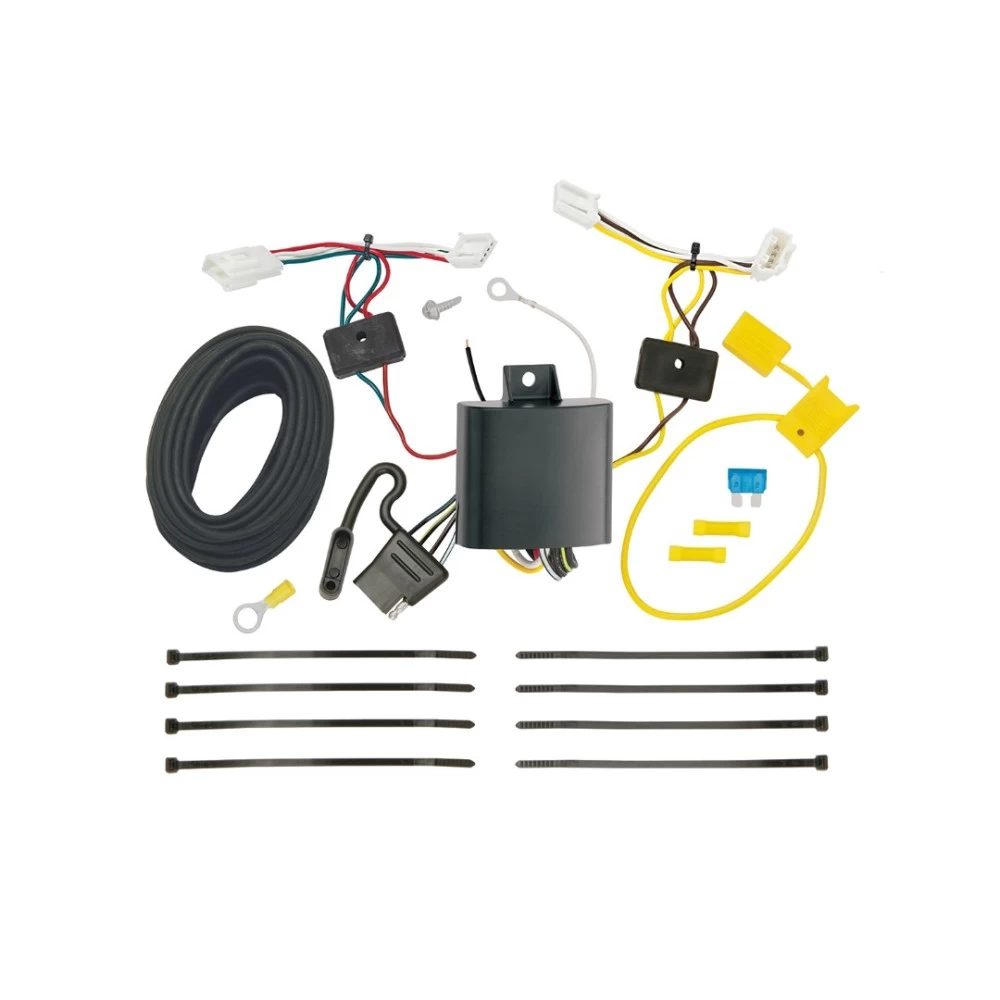

  •   Plug and Play T-One Wiring Harness Connector
  • 4-Way to 7-Way adapter w/ mounting bracket and screws
  • Wiring Kit for 6 to 8 Brake Control Systems
  • Includes 25 ft. 12-2 Duplex Wire
  • (2) 30 Amp Circuit Breakers
  • Attaching Terminals and Ring Connectors



Part Numbers 118729 85343 20506 7012A
Brand Tekonsha
Warranty 1 Year
T-One Wiring
Installation

4-Way to 7-Way
Adapter Installation
Brake Control
Wiring Installation




Questions or Comments? Call 702-374-8999

Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.

Partial list of fitment years:
16 17 18 19 20 21 22 23 24 2016 2017 2018 2019 2020 2021 2022 2023 2024
Specification
Circuit Protected Yes
Hardware Included Yes
Harness Type 4-Way Flat (Vehicle Side)
Terminal Quantity 7
Universal Or Specific Fit Specific Fit
Wire Colors White Ground, Brown Taillights, Green Right turn / brakes, Red Auxiliary power, Yellow Left turn / brakes, Black Reverse lights, Blue Electric brakes
Wire Quantity 7 Wires
