Trailer Hitch 7 Way RV Wiring Kit For 89-95 Toyota Pickup 95-04 Toyota Tacoma Plug Prong Pin Brake Control Ready
$201.61
- Stock: In Stock
- Brand: Reese Towpower
- Model: 85250 85343 20506 7012A
Fits The Following Vehicles
1989 - 1995 Toyota, Pickup, Except T-100
1995 - 2004 Toyota, Tacoma, (App. starts with 95-1/2)
Includes all necessary parts required to completely install all brake controls. No other parts are necessary. This Kit Retains use of 4-Flat Connector while also giving you a 7-Way RV Plug

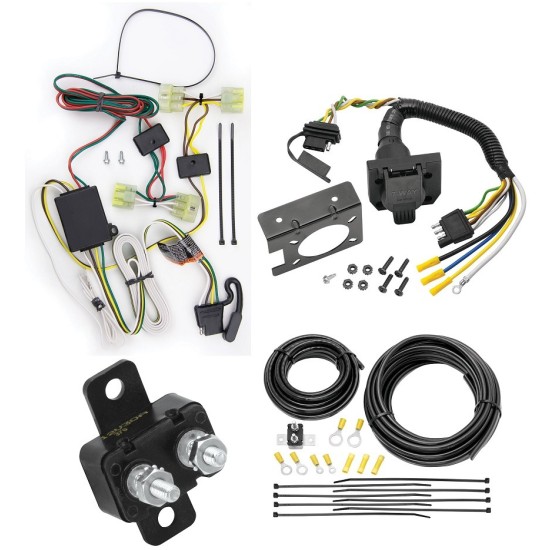

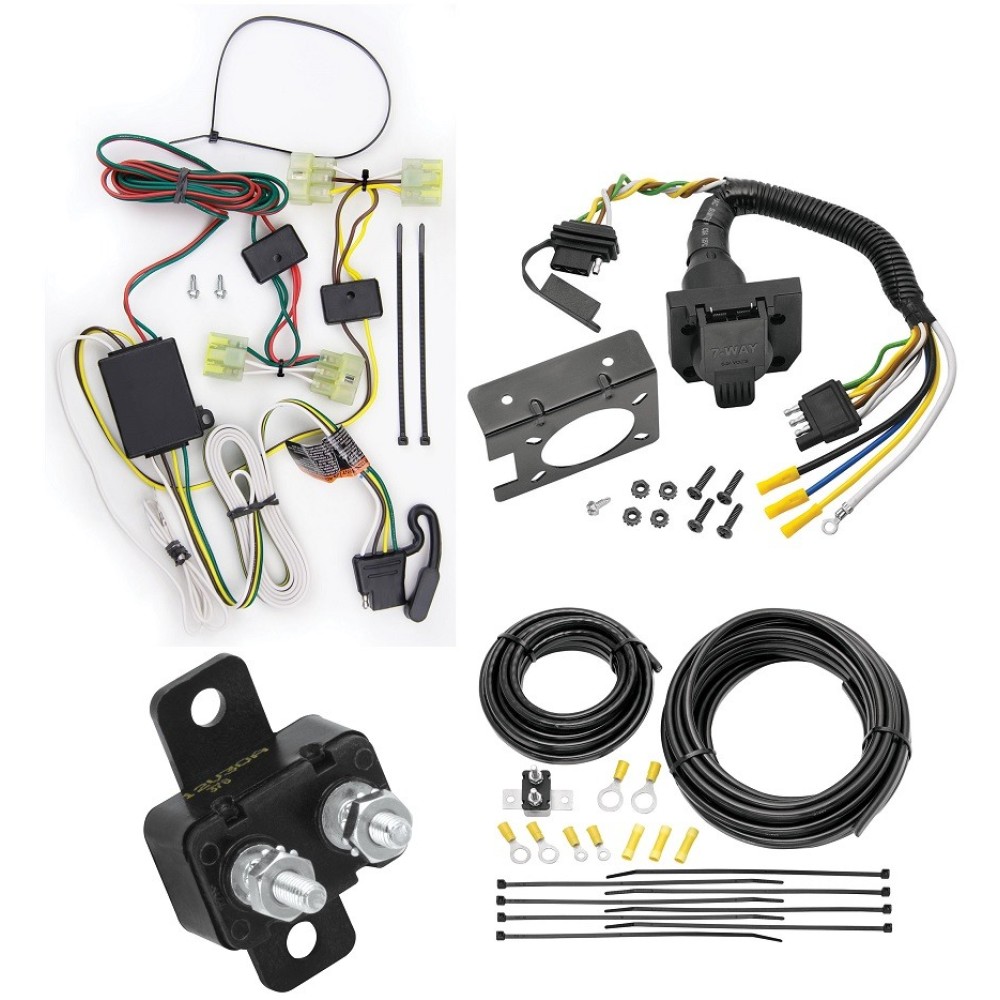

Each Kit includes:
- Plug and Play T-One Wiring Harness Connector
- 4-Way to 7-Way adapter w/ mounting bracket and screws
- Wiring Kit for 6 to 8 Brake Control Systems
- Includes 25 ft. 12-2 Duplex Wire
- (2) 30 Amp Circuit Breakers
- Attaching Terminals and Ring Connectors
| Part Numbers |
85250 85343 20506 7012A |
| Brand | Reese Towpower |
| Warranty | 1 Year |
| T-One Wiring Installation |
 |
| 4-Way to 7-Way Adapter Installation |
|
| Brake Control Wiring Installation |
|
Questions or Comments? Call 702-374-8999
Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 89 90 91 92 93 94 95 96 97 98 99 00 01 02 03 04 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2003 2004
