Trailer Hitch and Brake Control Kit For 07-13 Mercedes-Benz Sprinter Freightliner 2500 3500 07-09 Dodge Sprinter 3500 Controller 7-Way RV Wiring Breakaway Battery Charger Complete System Receiver 2" Tow Ball w/o factory step bumper
$603.37
- Stock: In Stock
- Brand: Draw-Tite
- Model: 75549 23 63845 118650 85343 20506 7012A 5535 50-85-320

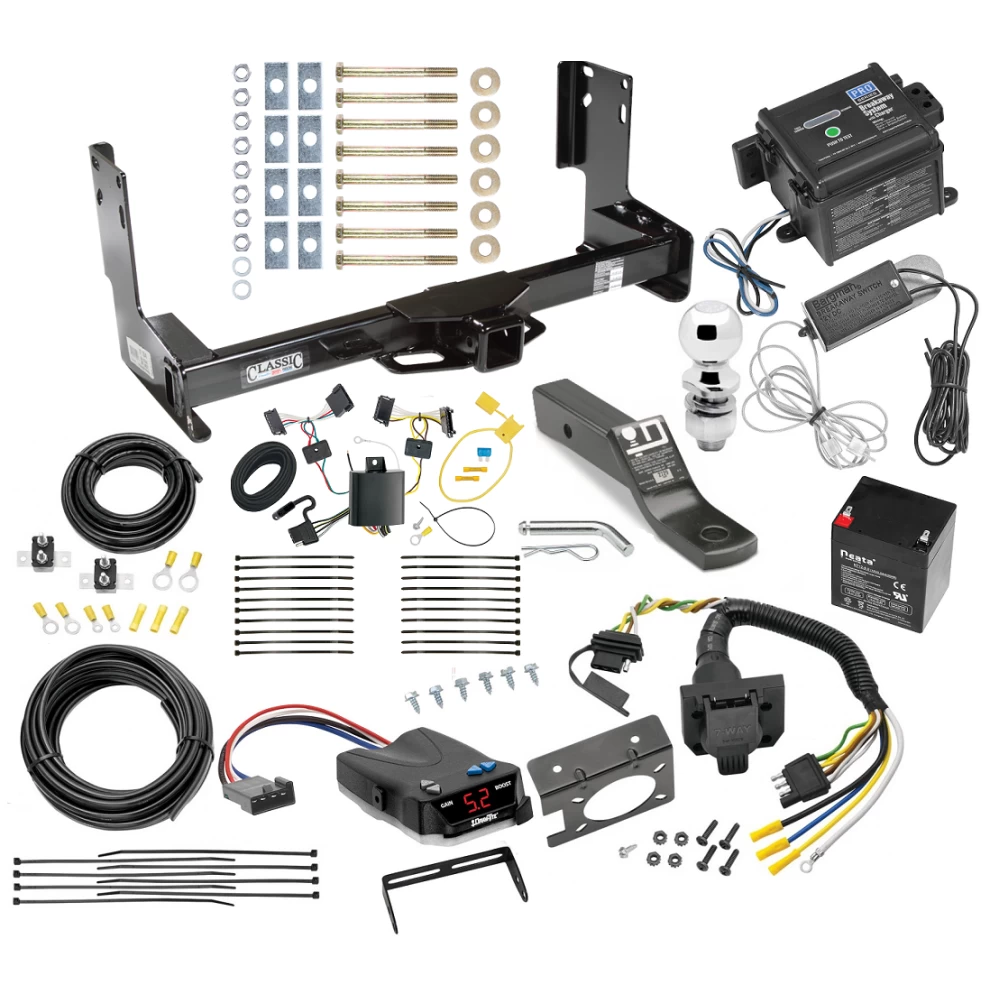

Includes Everything Pictured:
Custom Fit Trailer Hitch Class 3
Class 3 Ball Mount and 2" Chrome Ball w/ Pin/Clip
Wiring Harness (Plug & Play)
4-Way to 7-Way adapter w/ mounting bracket and screws
Proportional Brake Control For 1-4 Axles
Push-To-Test LED Electric Trailer Breakaway System Kit
Wiring Kit for 4 to 8 Brake Control Systems
25 ft. 12-2 Duplex Wire
(2) 30 Amp Circuit Breakers
Attaching Terminals and Ring Connectors

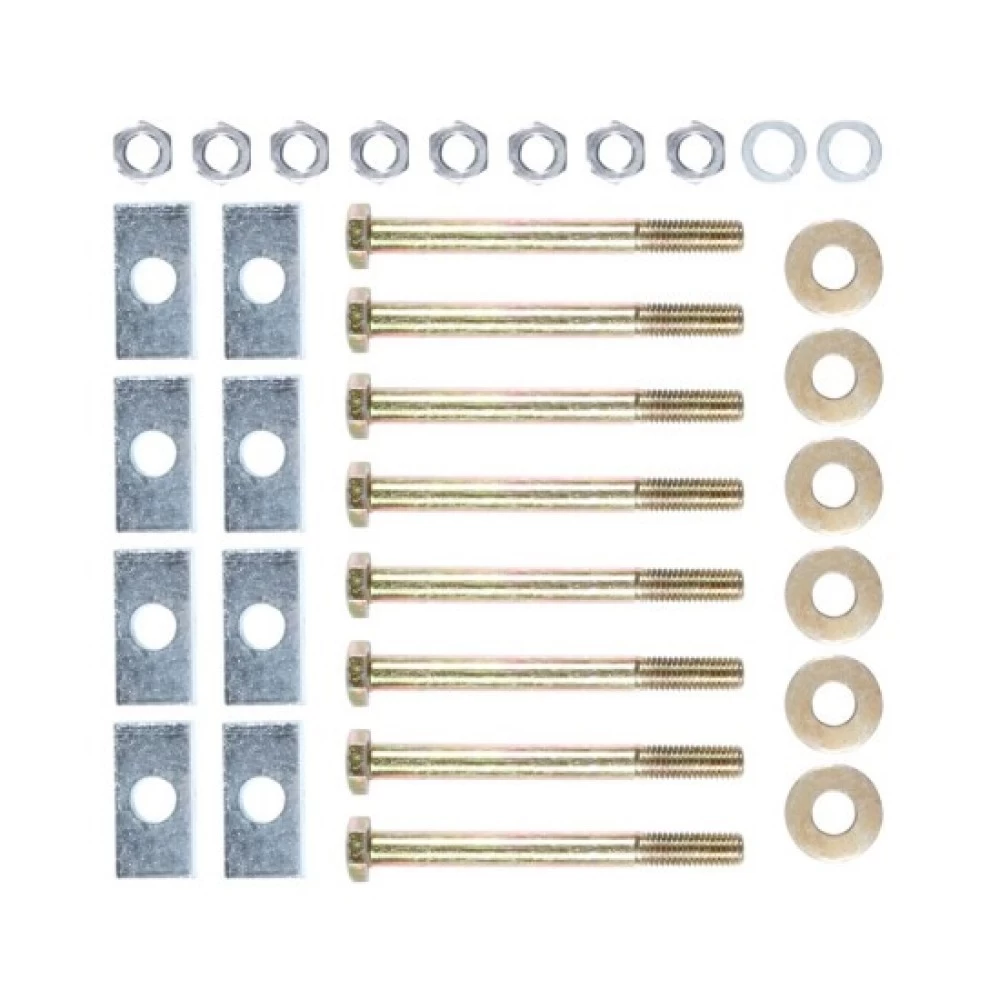

Installation Hardware
Installation Instructions
What you are looking at is a complete tow package for your Sprinter Van model without factory step bumper. This is the best high end level kit for those planning on towing a trailer with electric brakes. This All-in-One bundle takes care of everything. No more searching and stressing out over what parts you need. This specific bundle also includes a break away kit, many states require you to have this part. Having a break away system installed is a good idea in general which is why we include it with this bundle.
This Kit is recommended for trailers weighing up to 6,000 lbs, or 7,500 with weight distribution. Brake controller unit provided is proportional, meaning in an emergency stop the proportional controller will match the braking power instantly instead of ramping up.
Fits The Following Vehicles
2007 - 2009 Dodge, Sprinter 2500, 144" & 170" Wheelbase, Except w/Factory Step Bumper
2007 - 2009 Dodge, Sprinter 3500, 144" & 170" Wheelbase, Except w/Factory Step Bumper
2010 - 2013 Mercedes-Benz, Sprinter 2500, 144" & 170" Wheelbase, Except w/Factory Step Bumper
2010 - 2013 Mercedes-Benz, Sprinter 3500, 144" & 170" Wheelbase, Except w/Factory Step Bumper
2007 - 2013 Freightliner, Sprinter 2500, 144" & 170" Wheelbase, Except w/Factory Step Bumper
2007 - 2013 Freightliner, Sprinter 3500, 144" & 170" Wheelbase, Except w/Factory Step Bumper
Trailer Hitch Specs:

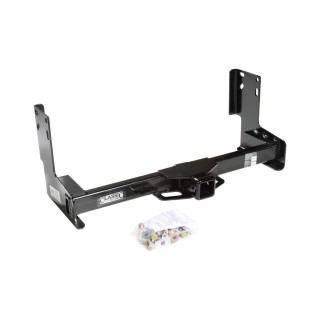

Custom Fit Trailer Hitch Class 3
Class 3 Ball Mount and 2" Chrome Ball w/ Pin/Clip
Wiring Harness (Plug & Play)
4-Way to 7-Way adapter w/ mounting bracket and screws
Proportional Brake Control For 1-4 Axles
Push-To-Test LED Electric Trailer Breakaway System Kit
Wiring Kit for 4 to 8 Brake Control Systems
25 ft. 12-2 Duplex Wire
(2) 30 Amp Circuit Breakers
Attaching Terminals and Ring Connectors
Installation Hardware
Installation Instructions
What you are looking at is a complete tow package for your Sprinter Van model without factory step bumper. This is the best high end level kit for those planning on towing a trailer with electric brakes. This All-in-One bundle takes care of everything. No more searching and stressing out over what parts you need. This specific bundle also includes a break away kit, many states require you to have this part. Having a break away system installed is a good idea in general which is why we include it with this bundle.
This Kit is recommended for trailers weighing up to 6,000 lbs, or 7,500 with weight distribution. Brake controller unit provided is proportional, meaning in an emergency stop the proportional controller will match the braking power instantly instead of ramping up.
Fits The Following Vehicles
2007 - 2009 Dodge, Sprinter 2500, 144" & 170" Wheelbase, Except w/Factory Step Bumper
2007 - 2009 Dodge, Sprinter 3500, 144" & 170" Wheelbase, Except w/Factory Step Bumper
2010 - 2013 Mercedes-Benz, Sprinter 2500, 144" & 170" Wheelbase, Except w/Factory Step Bumper
2010 - 2013 Mercedes-Benz, Sprinter 3500, 144" & 170" Wheelbase, Except w/Factory Step Bumper
2007 - 2013 Freightliner, Sprinter 2500, 144" & 170" Wheelbase, Except w/Factory Step Bumper
2007 - 2013 Freightliner, Sprinter 3500, 144" & 170" Wheelbase, Except w/Factory Step Bumper
Trailer Hitch Specs:
| Part Number | 75549 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 7,500 lbs |
| Max Tongue Weight | 600 / 750 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |

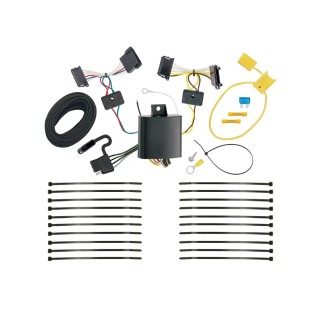

T-One Wiring Kit Specs:
| Part Number | 118650 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |

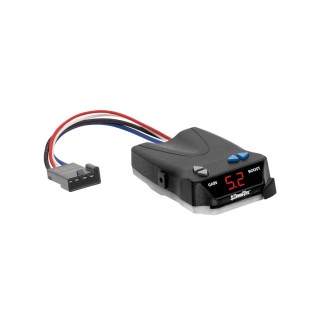

Brake Control Unit Specs:
Brake Control Specs:
| Part Number | 5535 |
| Brand | Draw-Tite |
| Type | Proportional |
| Axles | 1 to 4 axle trailers |
| Warranty | Lifetime |
| Features: | Exclusive to Draw-Tite, a compact, proportional brake control that requires no leveling with up-front buttons for easy access to Output and Boost.
|
| Installation Instructions | |
| Warranty | Lifetime |
Adapter Installation + Brake Control Wiring Install
| Part Numbers | 85343 20506 7012A |
| Brand | Tekonsha |
| Warranty | 1 Year |
| 4-Way to 7-Way Adapter Installation |
|
| Brake Control Wiring Installation |
|
Breakaway System Specs
| Part Number | 50-85-320 |
| Brand | Pro Series |
| Features |
|
| Installation Instructions | |
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions.
Partial list of fitment years: 07 08 09 10 11 12 13 2007 2008 2009 2010 2011 2012 2013
