Trailer Hitch Brake Control Package For 19-24 Chevy GMC Silverado Sierra 1500 New Body Style w/ Wiring Dual 2" and 2- 5/16" Ball 4" Drop Mount 7-Way Pin Blade RV Controller
$347.75
- Stock: In Stock
- Brand: Draw-Tite
- Model: 76326 74682 53 63845 63847 3064 5535

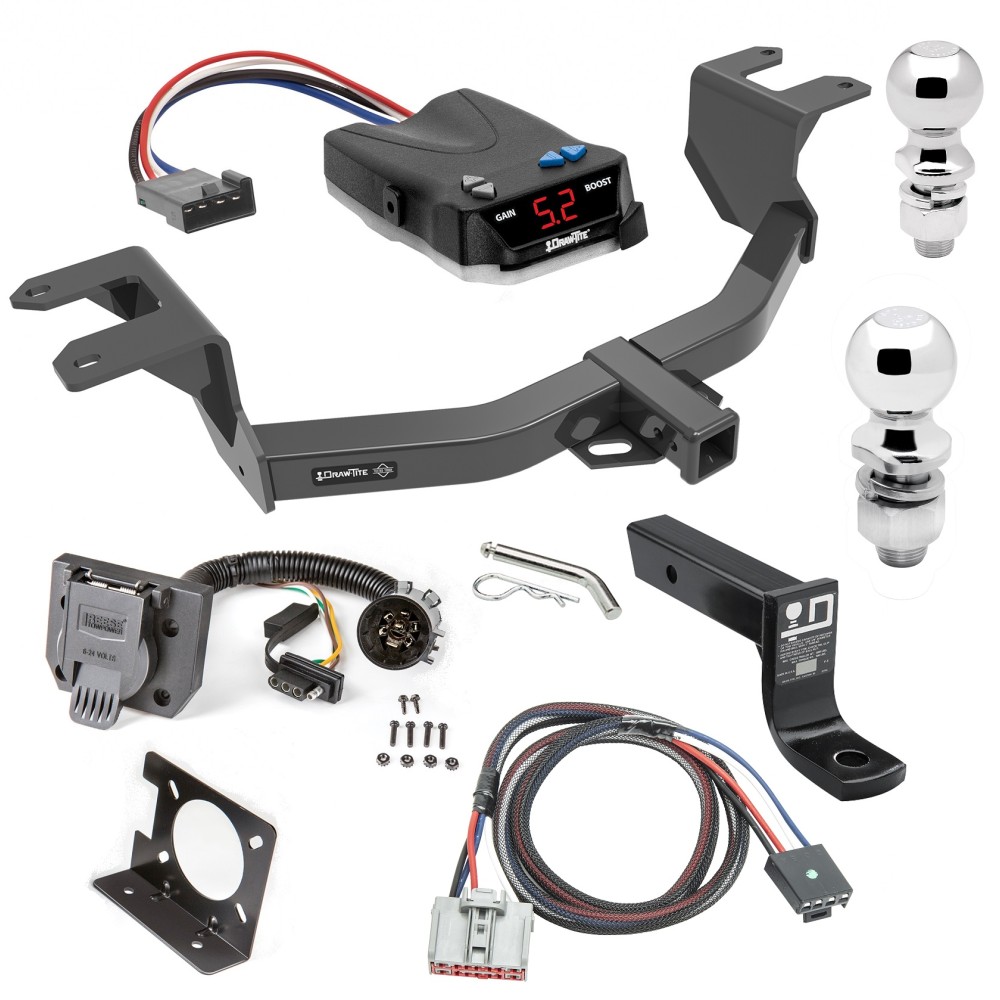

Includes Everything Pictured:
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Proportional Brake Control For 1-4 Axles
Plug & Play Brake Control Wiring Adapter
4" Drop Ball-Mount w/ Pin/Clip
2" and 2-5/16" Chrome Balls
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2019 – 2024 Chevrolet, Silverado 1500, All Styles
2019 – 2024 GMC, Sierra 1500, All Styles
Trailer Hitch Specs:
| Part Number | 76326 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 4 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 10,000 lbs |
| Max Tongue Weight | 900/1,000 Ibs |
| Warranty | Lifetime |
| Installation Instructions |  |
Direct Plug & Play Wiring Kit
| Part Number | 74682 |
| Brand | Reese |
| Features |
7-Way Flat Pin Connector/4-Flat Combo Adapter Harness
|
| Warranty | 1 Year |
| Installation Instructions | |
Brake Control Specs:
| Part Number | 5535 |
| Brand | Draw-Tite |
| Type | Proportional |
| Axles | 1 to 4 axle trailers |
| Warranty | Lifetime |
| Features: | Exclusive to Draw-Tite, a compact, proportional brake control that requires no leveling with up-front buttons for easy access to Output and Boost.
|
| Installation Instructions | |
| Warranty | Lifetime |

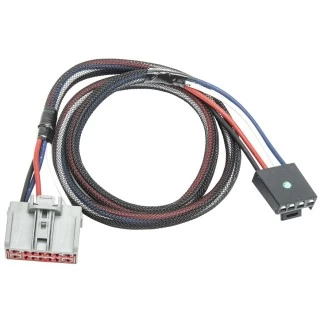

Plug & Play Brake Control Wiring Kit
| Part Number | 3064 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 4" From inside top of hitch opening |
| Rise | 2-3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
2" Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
2-5/16" Hitch Ball Specs:
| Part Number | 63847 |
| Brand | Draw-Tite |
| Size | 2-5/16" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions.
Partial list of fitment years: 19 20 21 22 23 24 2019 2020 2021 2022 2023 2024
