Trailer Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 Platform Style 2 Bike Rack Hitch Lock and Cover

Trailer Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 Platform Style 2 Bike Rack Hitch Lock and Cover
Trailer Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 Platform Style 2 Bike Rack Hitch Lock and Cover
Trailer Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 Platform Style 2 Bike Rack Hitch Lock and Cover
Trailer Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 Platform Style 2 Bike Rack Hitch Lock and Cover
Trailer Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 Platform Style 2 Bike Rack Hitch Lock and Cover
Trailer Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 Platform Style 2 Bike Rack Hitch Lock and Cover
Trailer Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 Platform Style 2 Bike Rack Hitch Lock and Cover
Trailer Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 Platform Style 2 Bike Rack Hitch Lock and Cover
Trailer Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 Platform Style 2 Bike Rack Hitch Lock and Cover
Trailer Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 Platform Style 2 Bike Rack Hitch Lock and Cover
Trailer Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 Platform Style 2 Bike Rack Hitch Lock and Cover
Trailer Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 Platform Style 2 Bike Rack Hitch Lock and Cover
Trailer Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 Platform Style 2 Bike Rack Hitch Lock and Cover
Trailer Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 Platform Style 2 Bike Rack Hitch Lock and Cover
Trailer Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 Platform Style 2 Bike Rack Hitch Lock and Cover
Trailer Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 Platform Style 2 Bike Rack Hitch Lock and Cover
Trailer Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 Platform Style 2 Bike Rack Hitch Lock and Cover
Trailer Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 Platform Style 2 Bike Rack Hitch Lock and Cover
Trailer Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 Platform Style 2 Bike Rack Hitch Lock and Cover
Trailer Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 Platform Style 2 Bike Rack Hitch Lock and Cover
Trailer Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 Platform Style 2 Bike Rack Hitch Lock and Cover
Trailer Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 Platform Style 2 Bike Rack Hitch Lock and Cover
Trailer Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 Platform Style 2 Bike Rack Hitch Lock and Cover
Trailer Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 Platform Style 2 Bike Rack Hitch Lock and Cover
Trailer Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 Platform Style 2 Bike Rack Hitch Lock and Cover
Trailer Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 Platform Style 2 Bike Rack Hitch Lock and Cover
Trailer Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 Platform Style 2 Bike Rack Hitch Lock and Cover
Trailer Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 Platform Style 2 Bike Rack Hitch Lock and Cover
Trailer Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 Platform Style 2 Bike Rack Hitch Lock and Cover
Trailer Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 Platform Style 2 Bike Rack Hitch Lock and Cover
Trailer Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 Platform Style 2 Bike Rack Hitch Lock and Cover
$596.51
  • Stock: Pre-Order
  • Brand: Draw-Tite
  • Model: 41944 63134 63201 7010

Applies to this product only

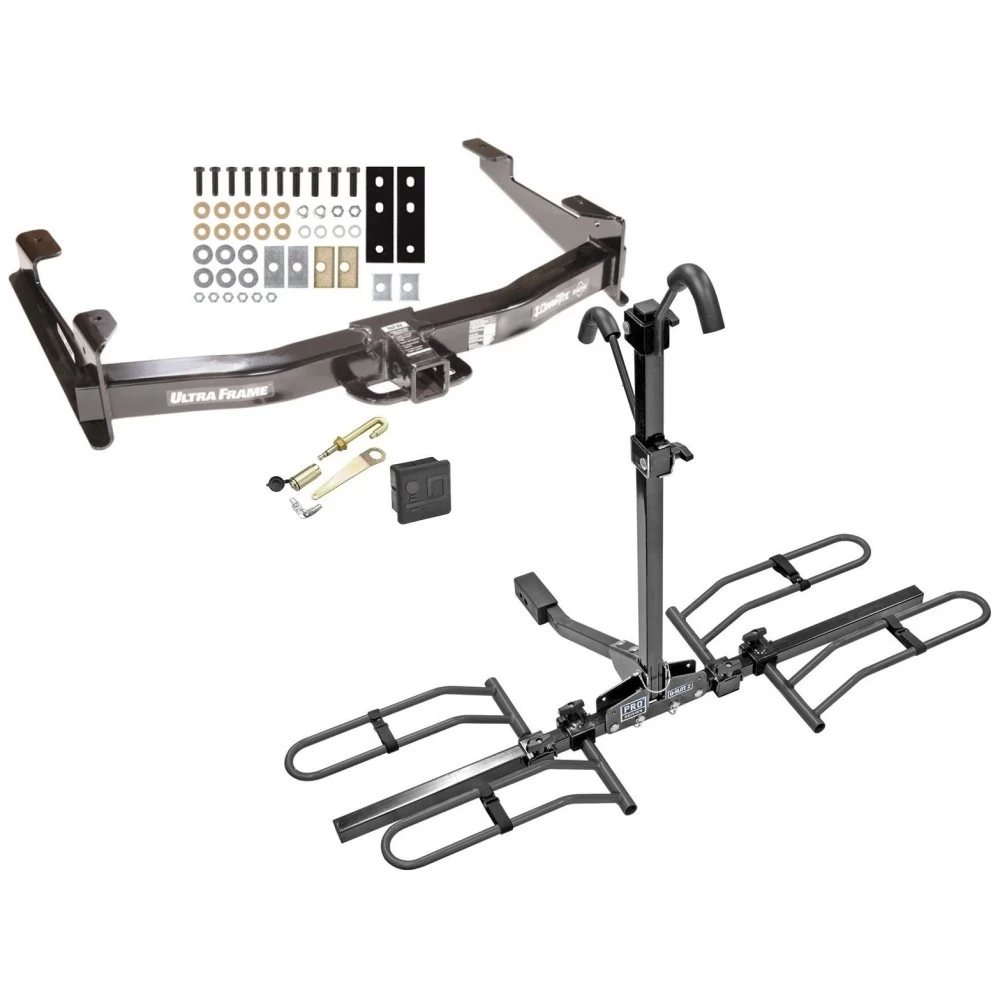

Includes Everything Pictured:
Custom Fit Trailer Hitch
2 Bike Carrier Rail Rack
Anti Rattle Device w/ 2 Keys
Installation Hardware
Installation Instructions


Fits The Following Vehicles

2001 - 2010    Chevrolet, Silverado 2500 HD, All Styles
2001 - 2002    Chevrolet, Silverado 3500, All Styles
2001 - 2010    GMC, Sierra 2500 HD, All Styles
2001 - 2002    GMC, Sierra 3500, All Styles
2003 - 2007    Chevrolet, Silverado 2500 HD, (Classic)
2003 - 2007    Chevrolet, Silverado 3500, (Classic)
2003 - 2007    GMC, Sierra 2500 HD, (Classic)
2003 - 2007    GMC, Sierra 3500, (Classic)
2007 - 2010    Chevrolet, Silverado 3500 HD, All Styles
2007 - 2010    GMC, Sierra 3500 HD, All Styles

Trailer Hitch Specs:
Part Number 41944
Brand Draw-Tite
Finish Black Powdercoat
Class 5
Receiver size opening 2"
Max gross trailer weight 13,000 lbs
Max GTW w/ weight distribution 16,000 lbs
Max Tongue Weight 1,950/1,600 lbs
Warranty Lifetime
Installation Instructions

Bike Rack Specs:
Part Number 63134
Brand Pro Series
Finish Black Powdercoat
Number of Bikes 2
Capacity 90 lbs
Application Fits 1-1/4" and 2" receivers
Weight 34.58 lbs.
Warranty 1 Year Warranty
Installation Instructions

Rubber Hitch Plug
Specs:
Part Number 7010
Fits 2" Receiver
Brand Draw-Tite
Attaches to any 2" receiver
Rubber construction tightly seals tube opening
Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening
Prevents any buildup of dirt and debris
Raised "D" Logo to distinguish the Draw-Tite brand
Warranty 1 Year

Bike Rack Product Overview
Will not damage high-performance frames
Fully adjustable wheel slots
Center tube tilts for rear bike access
A-Coat and powder coat rust resistant finish
Rise shank for extra road clearance
Padded contact points
Tilting vertical stabilizer
Bolt-on 2" shank adapter
Compact storage


More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.
J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.

For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use

STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft    STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head    STEP 3:
Secure ball mount or hitch-mounted accessory with locking head



Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 01 02 03 04 05 06 07 08 09 10 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010
Specification
Attachment Location Rear
Ball Mount Included No
Color Black
Drilling Required No
Gross Towing Weight 13,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit 16,000 lbs.
Hitch Class V
Material Steel
Maximum Tongue Weight 1,950 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit 1,600 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 2 in.
Receiver Type Square Tube
