Trailer Hitch Package w/ Wiring For 06-10 Hummer H3 w/ Factory 7-Way w/ 2-5/16" Ball 4" Drop Mount Pin Blade RV Class 3
$316.45
- Stock: In Stock
- Brand: Draw-Tite
- Model: 75382 74682 53 63847

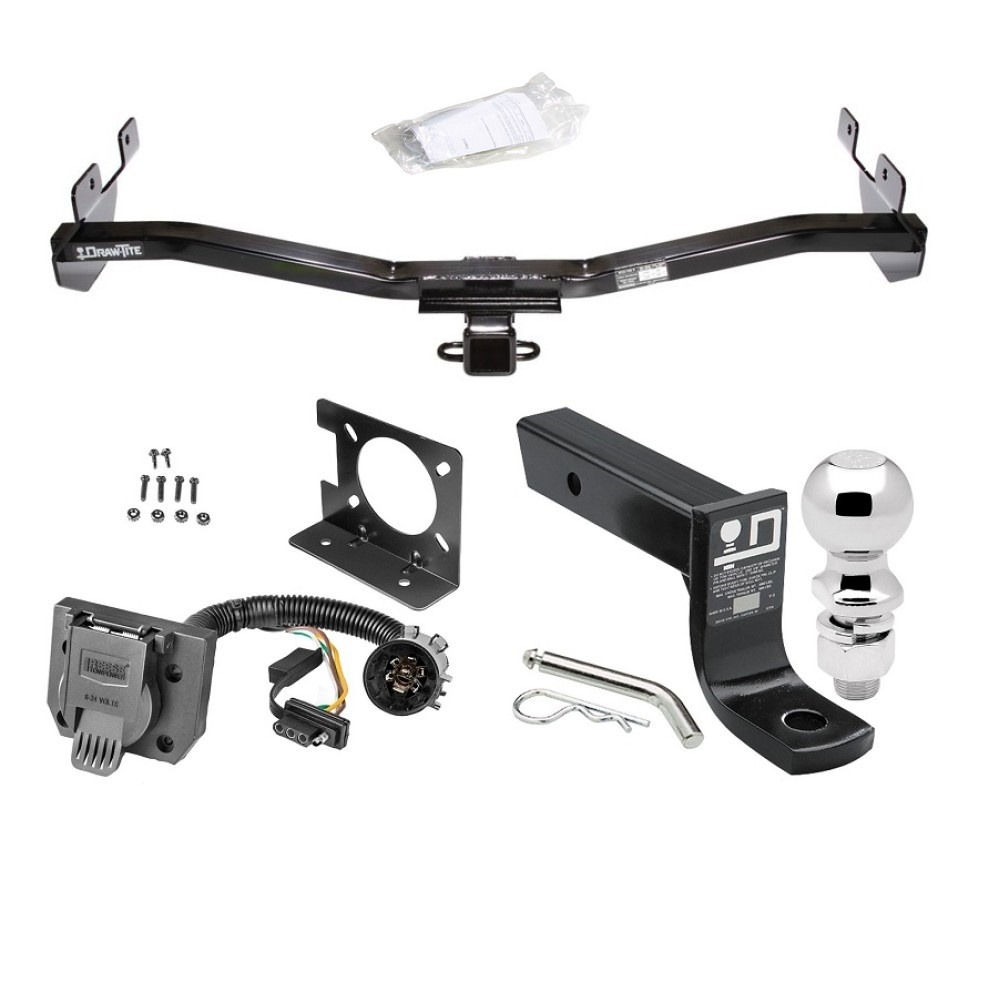

Includes Everything Pictured:
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
4" Drop Ball-Mount w/ Pin/Clip
2-5/16" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2006 - 2010 Hummer, H3, w/ Factory Tow Package
(Wiring will only work if your model was equipped with a factory tow package)
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
4" Drop Ball-Mount w/ Pin/Clip
2-5/16" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2006 - 2010 Hummer, H3, w/ Factory Tow Package
(Wiring will only work if your model was equipped with a factory tow package)
Trailer Hitch Specs:
| Part Number | 75382 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 500/500 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Direct Plug & Play Wiring Kit
| Part Number | 74682 |
| Brand | Reese |
| Features |
7-Way Flat Pin Connector/4-Flat Combo Adapter Harness
|
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 4" From inside top of hitch opening |
| Rise | 2-3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63847 |
| Brand | Draw-Tite |
| Size | 2-5/16" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
This wiring kit fits models that came equipped with the factory 7-Way Connector. On most vehicles the 7-Way connector will be located either on the bumper or hidden under the vehicle along the drivers side frame rail in the back.
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions.
Partial list of fitment years: 06 07 08 09 10 2006 2007 2008 2009 2010
