Trailer Hitch Package w/ Wiring For 99-13 Chevy Silverado GMC Sierra 1500 99-04-2500 LD w/ 2" Ball 2" Drop Mount 7-Way Pin Blade RV Class 4

Trailer Hitch Package w/ Wiring For 99-13 Chevy Silverado GMC Sierra 1500 99-04-2500 LD w/ 2" Ball 2" Drop Mount 7-Way Pin Blade RV Class 4
Trailer Hitch Package w/ Wiring For 99-13 Chevy Silverado GMC Sierra 1500 99-04-2500 LD w/ 2" Ball 2" Drop Mount 7-Way Pin Blade RV Class 4
Trailer Hitch Package w/ Wiring For 99-13 Chevy Silverado GMC Sierra 1500 99-04-2500 LD w/ 2" Ball 2" Drop Mount 7-Way Pin Blade RV Class 4
Trailer Hitch Package w/ Wiring For 99-13 Chevy Silverado GMC Sierra 1500 99-04-2500 LD w/ 2" Ball 2" Drop Mount 7-Way Pin Blade RV Class 4
Trailer Hitch Package w/ Wiring For 99-13 Chevy Silverado GMC Sierra 1500 99-04-2500 LD w/ 2" Ball 2" Drop Mount 7-Way Pin Blade RV Class 4
Trailer Hitch Package w/ Wiring For 99-13 Chevy Silverado GMC Sierra 1500 99-04-2500 LD w/ 2" Ball 2" Drop Mount 7-Way Pin Blade RV Class 4
Trailer Hitch Package w/ Wiring For 99-13 Chevy Silverado GMC Sierra 1500 99-04-2500 LD w/ 2" Ball 2" Drop Mount 7-Way Pin Blade RV Class 4
Trailer Hitch Package w/ Wiring For 99-13 Chevy Silverado GMC Sierra 1500 99-04-2500 LD w/ 2" Ball 2" Drop Mount 7-Way Pin Blade RV Class 4
Trailer Hitch Package w/ Wiring For 99-13 Chevy Silverado GMC Sierra 1500 99-04-2500 LD w/ 2" Ball 2" Drop Mount 7-Way Pin Blade RV Class 4
Trailer Hitch Package w/ Wiring For 99-13 Chevy Silverado GMC Sierra 1500 99-04-2500 LD w/ 2" Ball 2" Drop Mount 7-Way Pin Blade RV Class 4
Trailer Hitch Package w/ Wiring For 99-13 Chevy Silverado GMC Sierra 1500 99-04-2500 LD w/ 2" Ball 2" Drop Mount 7-Way Pin Blade RV Class 4
Trailer Hitch Package w/ Wiring For 99-13 Chevy Silverado GMC Sierra 1500 99-04-2500 LD w/ 2" Ball 2" Drop Mount 7-Way Pin Blade RV Class 4
Trailer Hitch Package w/ Wiring For 99-13 Chevy Silverado GMC Sierra 1500 99-04-2500 LD w/ 2" Ball 2" Drop Mount 7-Way Pin Blade RV Class 4
$262.62
  • Stock: In Stock
  • Brand: Draw-Tite
  • Model: 75521 74682 23 63845

Applies to this product only

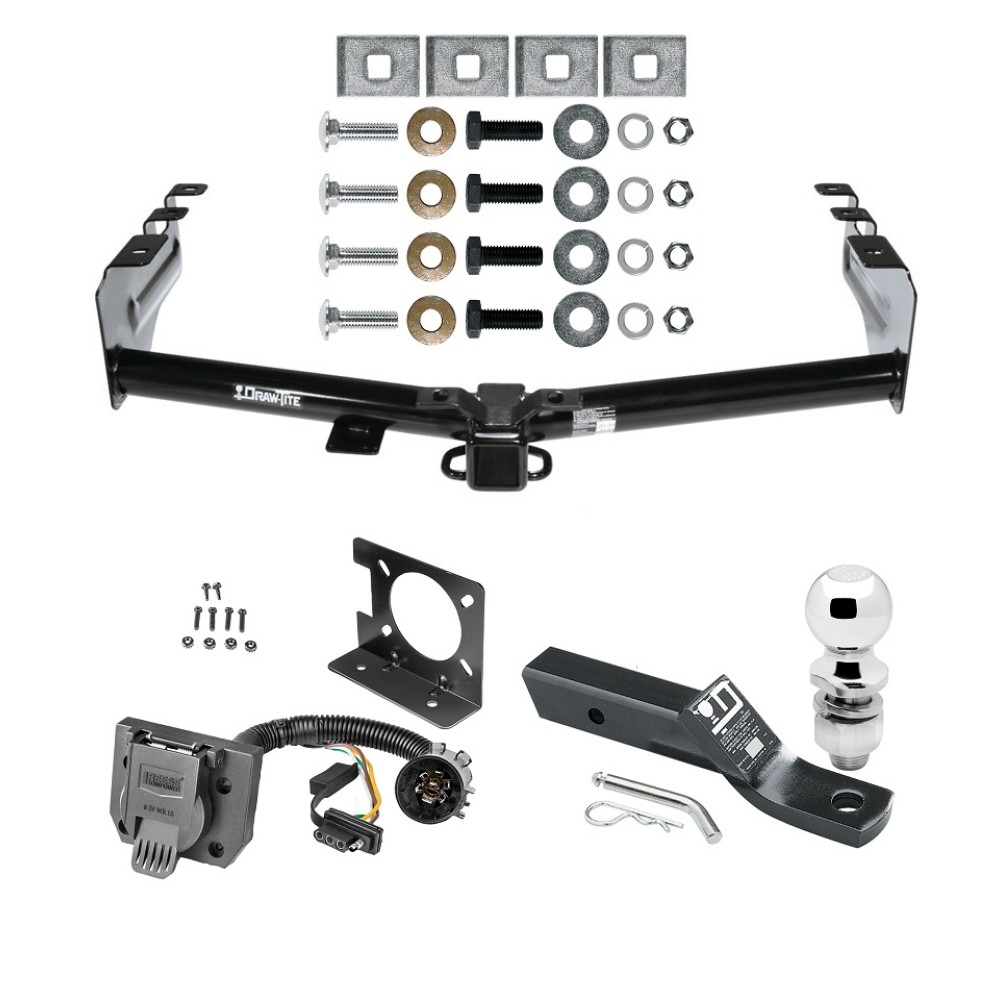

Includes Everything Pictured:
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Installation Hardware
Installation Instructions


Fits The Following Vehicles
1999 - 2013     Chevrolet, Silverado 1500, All Styles
2003 - 2007     Chevrolet, Silverado 1500, (Classic)
2001 - 2003     Chevrolet, Silverado 1500 HD, All Styles
2005 - 2007     Chevrolet, Silverado 1500 HD, (Classic)
1999 - 2004     Chevrolet, Silverado 2500 LD, All Styles
1999 - 2013     GMC, Sierra 1500, All Styles
2003 - 2007     GMC, Sierra 1500, (Classic)
2001 - 2003     GMC, Sierra 1500 HD, All Styles
2005 - 2007     GMC, Sierra 1500 HD, (Classic)
1999 - 2004     GMC, Sierra 2500 LD, All Styles

Trailer Hitch Specs:

Part Number 75521
Brand Draw-Tite
Finish Black Powdercoat
Class 4
Receiver size opening 2"
Max gross trailer weight 6,000 lbs
Max GTW w/ weight distribution 10,500 lbs
Max Tongue Weight 900/1,050 lbs
Warranty Lifetime
Installation Instructions

Direct Plug & Play Wiring Kit

Part Number 74682
Brand Reese
Features
7-Way Flat Pin Connector/4-Flat Combo Adapter Harness
  • For quick connection to 4-Flat or 7-Way trailer connectors
  • Includes mounting bracket and hardware
  • Easily adapts to existing vehicle 7-Way plug
  • Ability to tow trailers with different style trailer connectors
  • Durable plastic shell
  • Weather tight seal
  • Attractive point-of-purchase packaging
Warranty 1 Year
Installation Instructions

Ball Mount Specs:


Fits 2" x 2" Trailer Hitch Receiver
Brand Draw-Tite
Finish Black Powdercoat
Length 9" From Center of Pin Hole to Center of Ball Hole
Towing Capacity 7,500 lb Gross Towing Weight
750 lb Tongue Weight
Drop 2" From inside top of hitch opening
Rise 3/4" from top of inside of hitch opening
Warranty Lifetime

Hitch Ball Specs:


Part Number 63845
Brand Draw-Tite
Size 2" x 1" x 2-1/8"
Towing Capacity 7,500 lbs. GTW
Material Chrome
(Cold forged for superior strength)
Torque torgue to 250 ft. lbs
Ball Hole Diameter 1"
Warranty Lifetime

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions.

Partial list of fitment years: 99 00 01 02 03 04 05 06 07 08 09 10 11 12 13 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013
Specification
Attachment Location Rear
Ball Mount Included Yes
Color Black
Drilling Required No
Gross Towing Weight 6,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit 10,500 lbs.
Hitch Class IV
Material Steel
Maximum Tongue Weight 900 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit 1,050 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 2 in.
Receiver Type Round Tube
