Trailer Hitch Tow Package Prodigy P3 Brake Control For 08-12 Ford Escape 08-11 Mazda Tribute 05-11 Mercury Mariner w/ 7-Way RV Wiring 2" Drop Mount 2" Ball Class 3 2" Receiver Reese Tekonsha
$649.70
- Stock: Pre-Order
- Brand: Reese
- Model: 44680 85343 20506 7012a 85774 21536 90195

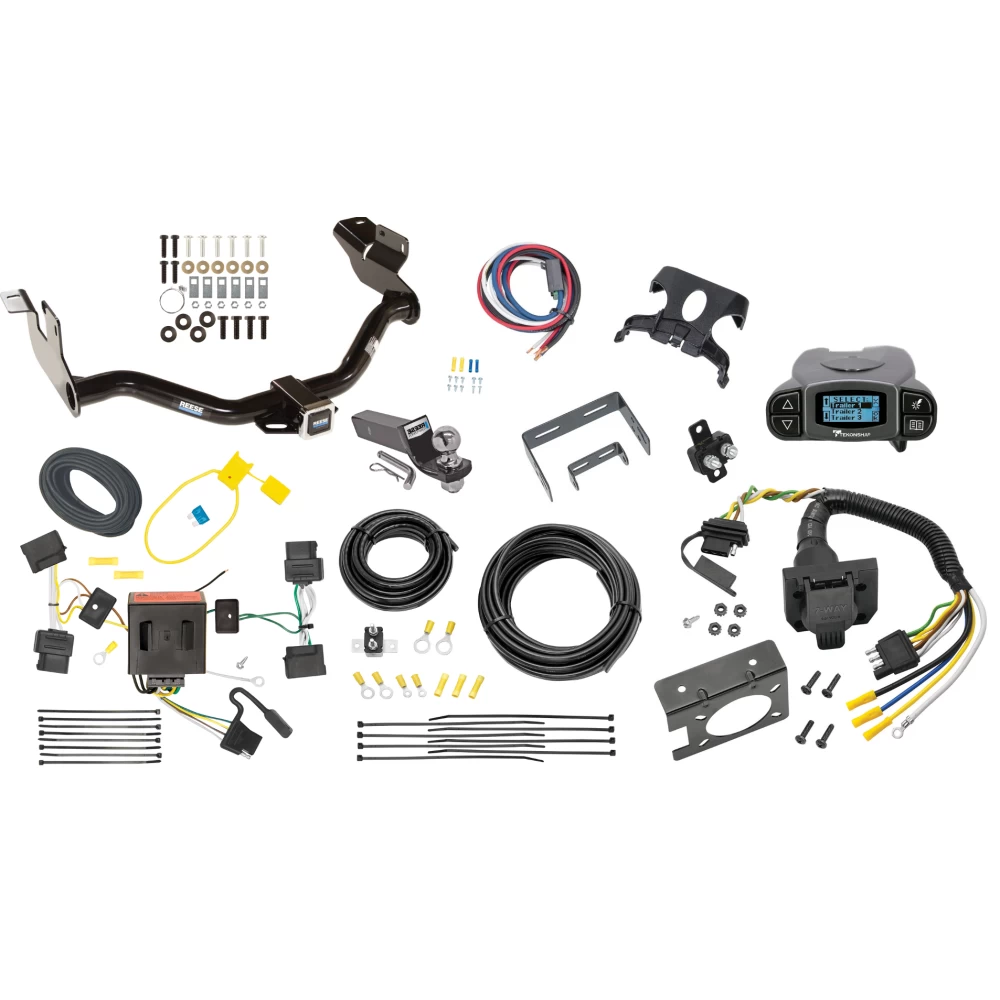

This heavy duty kit is for those planning on towing a large trailer with electric brakes. This All-in-One bundle takes care of everything. No more searching and stressing out over what parts you need. This package includes the most sought after brake control on the market Tekonsha Prodigy P3. Being industries most advanced electric trailer brake control. A true proportional braking system, P3 has several added features, making it the new standard for electric trailer brake controls.
This Hitch Fits The Following Vehicles:
2008 - 2012 Ford, Escape, All Styles
2008 - 2011 Mazda, Tribute, All Styles
2005 - 2011 Mercury, Mariner, All Styles

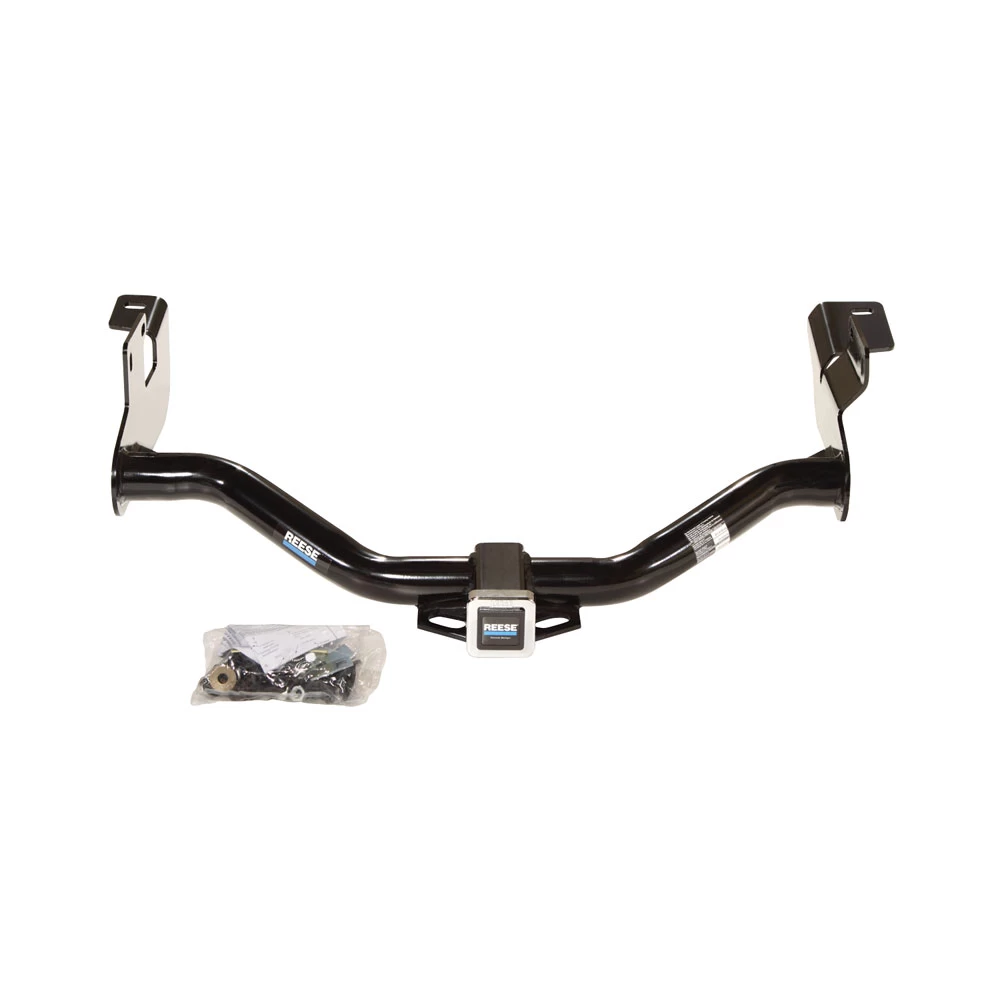

Trailer Hitch Specs:
2008 - 2012 Ford, Escape, All Styles
2008 - 2011 Mazda, Tribute, All Styles
2005 - 2011 Mercury, Mariner, All Styles
Trailer Hitch Specs:
| Part Number | 44680 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | 5,250 lbs |
| Max Tongue Weight | 675/675 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Includes all necessary parts required to completely install all brake controls. No other parts are necessary. This Kit Retains use of 4-Flat Connector while also giving you a 7-Way RV Plug
Each Wiring Kit includes:
- Plug and Play T-One Wiring Harness Connector
- 4-Way to 7-Way adapter w/ mounting bracket and screws
- Wiring Kit for 6 to 8 Brake Control Systems
- Includes 25 ft. 12-2 Duplex Wire
- (2) 30 Amp Circuit Breakers
- Attaching Terminals and Ring Connectors
| Part Numbers | 85774 85343 20506 7012A |
| Brand | Tekonsha |
| Warranty | 1 Year |
| T-One Wiring Installation |
|
| 4-Way to 7-Way Adapter Installation |
|
| Brake Control Wiring Installation |
|
The REESE Towpower starter kit provides you with everything you need to tow. Included is a ball mount with pre-torqued hitch ball, and a pin & clip. Place the draw bar in the hitch receiver tube, and secure with the pin and clip, and you're ready to go.
Ball Mount Specs:
| Part Number | 21536 |
| Brand |
Reese Towpower |
| Finish | Black Powder Coat |
| Towing Capacity |
6000 lbs |
| Tongue Weight Capacity | 600 lbs |
| Fits | 2" Reciever |
| Shank Length | 9" |
| Drop |
2" |
| Rise |
3/4" |
| Warranty | 1 Year |
P3 the industries most advanced electric trailer brake control. A true proportional braking system, P3 has several added features, making it the new standard for electric trailer brake controls.
- 5 storable setting options for pulling different trailers or preferences of multiple drivers.
- A distinct, easy-to-read LCD display with multiple screen color options.
- Up-Front controls provide easy access to all P3 features.
- Easy to understand diagnostics show output current, battery, brake, and output voltage.
- A flashing red warning system alerts user to No Trailer Brake situations.
- Select Electric over Hydraulic or Electric trailer brake mode.
- Screen information display in English, French or Spanish.
- The Original Boost feature allows for different levels of customized braking.
- Compact, dash-hugging design.
Brake Control Specs:
| Part Number | 90195 |
| Brand | Tekonsha |
| Type | Proportional |
| Axles | 1 to 4 axle trailers |
| Warranty | Lifetime |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 05 06 07 08 09 10 11 12 2005 2006 2007 2008 2009 2010 2011 2012
