Product Details
- Brand: Reese
- Model: 44675 85343 20506 7012a 118561 21536 90195

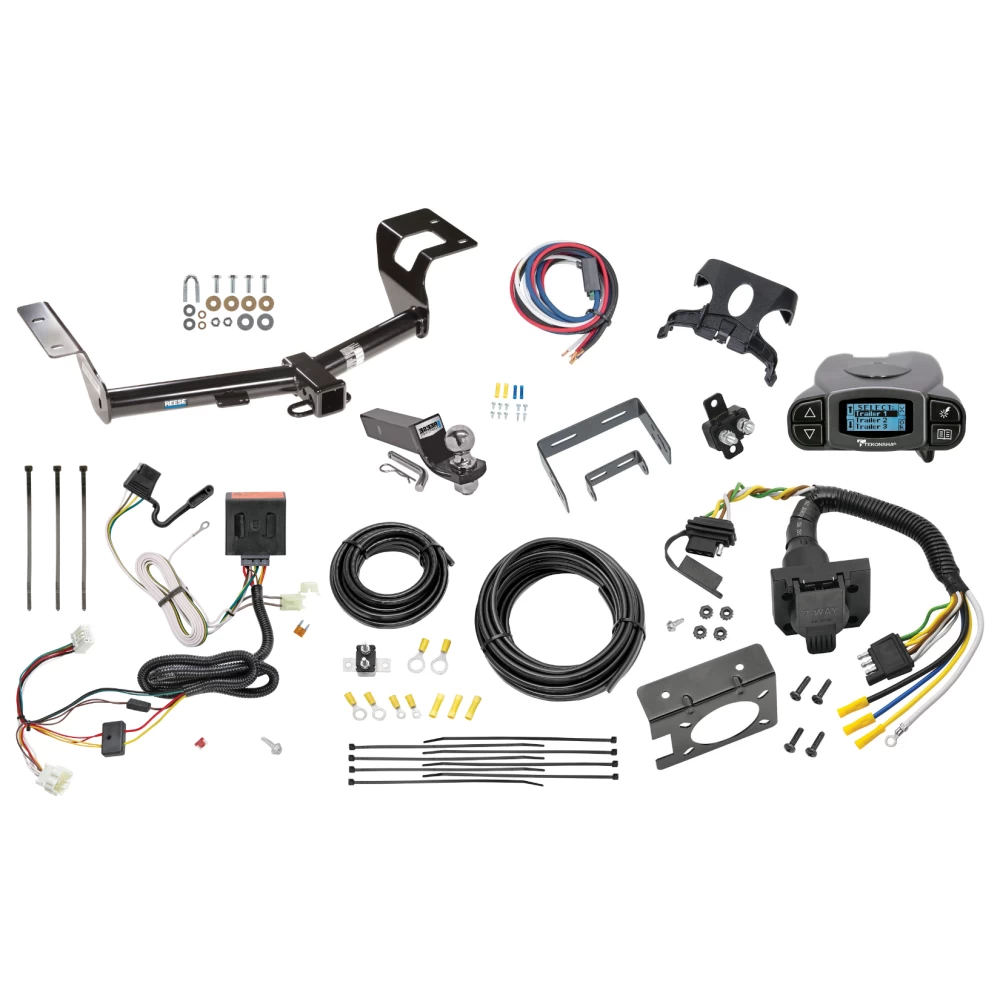

- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Wiring Adapter, Trailer Brake Controller Installation Kit, Circuit Breaker, Trailer Tow Hitch Ball Mount Starter Kit, Prodigy P3 Proportional Brake Controller for Trailers with 1-4 Axles
Compatibility Chart
Get Expert Help
Trailer Hitch Tow Package Prodigy P3 Brake Control For 12-16 Honda CR-V w/ 7-Way RV Wiring 2" Drop Mount 2" Ball Class 3 2" Receiver Reese Tekonsha Install Notes
Installation Instructions for Honda CR-V
Part Numbers:
- 75742
- 87621
- 44675
Wiring Access Location:
- SUV3
Tools Required:
- Wrenches: 10mm, 17mm, 11/16
- Other Tools: Tape, Utility Knife, Tape Measure, Marking Pencil, Lubricant or Soapy Water, Small Phillips Head Screwdriver
Step-by-Step Instructions:
- Remove appearance panel:
- Remove the appearance panel on the driver’s side by detaching 5 plastic rivets, 3 hex nuts, and 2 Phillips head screws located in the wheel well behind the rear tire. This panel needs to be trimmed and reinstalled.
- Clear weld nut threads:
- Run the provided M10 bolt (item 1) into existing weld nuts to clear the threads.
- Reinstall appearance panel:
- If trimmed, reinstall the appearance panel.
- Lower exhaust:
- Remove the rubber isolators from the muffler hangers. Remove the outer isolator first, then the inner isolator. Use lubricant or soapy water to ease removal.
- Prepare frame:
- Tape a flat washer (item 7) to the rearward weld nut location on both frame rails.
- Position hitch:
- Raise the hitch into position under the vehicle.
- Install M10 fasteners:
- Attach the M10 bolts, conical washers, and other hardware as shown in the instructions.
- Install U-bolt:
- Insert the 3/8-16 U-bolt through the vehicle’s tie-down hook and the receiver’s tie-down hook attachment. Secure with flat washers, lock washers, and hex nuts.
- Torque all fasteners:
- Tighten all bolts to the specified torque values.
- Reinstall exhaust:
- Raise the exhaust system back into position and reattach the rubber isolators.

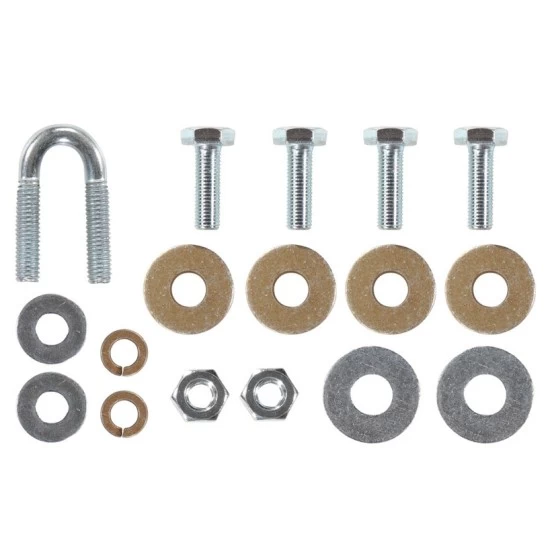

Hardware List:
- Qty (4): Hex Bolt M10X1.25X30 CL8.8
- Qty (4): Conical Washers
- Qty (2): Lock Washers
- Qty (2): Hex Nut 3/8
- Qty (1): 3/8-16 U-Bolt
- Qty (2): Flat Washer 3/8”
- Qty (2): Flat Washer 1/2”
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 4,500 lbs (2,043 kg)
- Max Tongue Weight: 675 lbs (306 kg)
- Weight Distributing: Not compatible with spring bars.
Manufacturer Notes:
- Tighten all 3/8-16 GR5 fasteners to 30 lb-ft (41 N*m).
- Tighten all M10 CL8.8 fasteners to 38 lb-ft (52 N*m).
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.

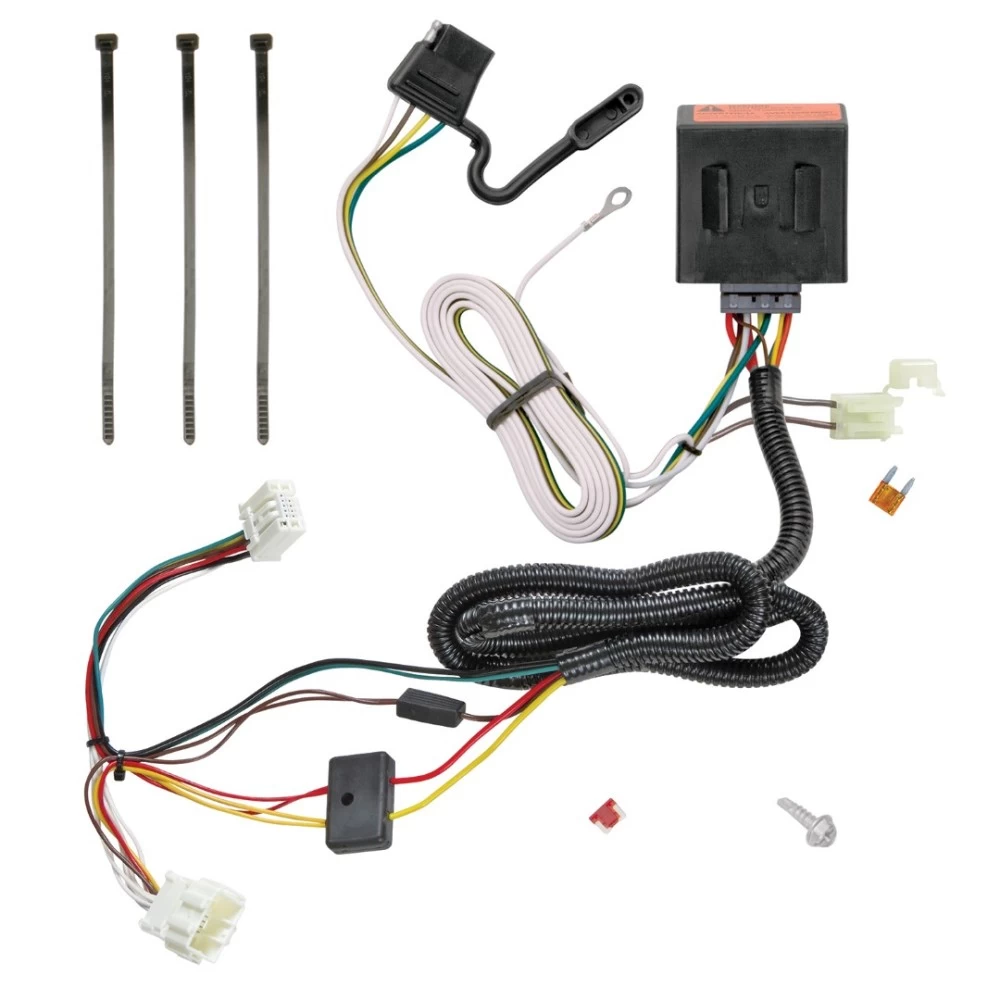

Installation Instructions for T-Connector Adapter for CR-V
Part Numbers:
- 118561
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or 10mm Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Prepare the Rear Cargo Area:
- Open the rear door of the vehicle and remove the rear threshold, cargo net, and cargo cover to access the driver’s side rear interior trim panel.
Note:
- Folding the rear seat forward may provide easier access.
-
Remove Interior Trim Panels:
- Use a trim panel remover to carefully remove two plastic panels.
- Partially remove the main trim panel by unscrewing one 10mm bolt, two screws behind the seat lever, one clip, and one cargo hook.
-
Locate the Vehicle’s Wiring Connectors:
- Gently pull back the upper trim panel to reveal the vehicle’s 13-pin connectors.
- Verify that the connectors match the T-Connector ends and are clean.
-
Install the T-Connector:
- Locate the T-Connector’s grey 12-pin connector and insert it into the mating connector on the black box module.
- Ensure all connections are fully inserted and secured with locking tabs.
-
Mount the Black Box Module:
- Mount the black box below the rear threshold in the spare tire compartment in an area free from moisture and away from direct water or liquids.
Warning:
- The black box must only be mounted inside the vehicle to prevent damage.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as an existing ground stud, or drill a 3/32” hole.
- Secure the white wire using the provided eyelet and screw.
Caution:
- Verify the area behind the surface before drilling to avoid damage.
-
Install the Fuse:
- Locate the fuse compartment under the driver-side dashboard.
- Insert the provided 7.5-amp fuse into the appropriate fuse box slot.
-
Route and Mount the 4-Flat Connector:
- Route the 4-flat connector through the driver-side trim panel into the side storage compartment.
- Store the 4-flat connector in this compartment when not in use.
-
Test the Installation:
- Test the T-Connector with a test light or trailer.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition, reinserting it, and turning it to the proper position.
-
Reassemble the Vehicle:
- Reinstall the threshold, trim panel, cargo net, and cargo cover, ensuring no wires are pinched or cut.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: 5 amps
Safety Notes:
- Do not exceed the manufacturer’s ratings for towing.
- Follow all vehicle warnings and installation instructions.
- Wear safety glasses and take safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual for additional information.
Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring
Tools Required:
- Phillips Head Screwdriver
- Drill with 3/32" Drill Bit
- 10mm Socket & Ratchet or Wrench
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Cable Ties
Part 1: Install the 4-Way to 7-Way Adapter
Step-by-Step Instructions:
-
Mount the Adapter:
- Choose a suitable mounting point on the vehicle, typically near the hitch.
- Use the provided bracket and screws to secure the adapter.
-
Connect the 4-Flat Plug:
- Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
- This connection enables tail lights, left turn, and right turn signals.
-
Ground the Adapter:
- Locate a clean, solid grounding point near the adapter.
- Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.
-
Leave Additional Wires Disconnected:
- The following wires will remain disconnected until Part 2:
- Black Wire: Power from the battery.
- Blue Wire: Brake control output.
- Yellow Wire: Reverse light (optional; leave disconnected unless needed).
- The following wires will remain disconnected until Part 2:
-
Test Initial Connection:
- Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).
Part 2: Install Brake Control Wiring
Step-by-Step Instructions:
-
Mount Circuit Breakers:
- Install two 30A circuit breakers on the firewall or another suitable location near the battery.
- Use self-tapping screws to mount them securely.
-
Route Power Wires:
- Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
- Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
- Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).
-
Install the Brake Controller:
- Mount the brake controller under the dash on a firm surface.
- Use the following connections:
- Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
- Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
- White Wire: Connect to a solid ground point on the vehicle body.
- Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).
-
Optional: Connect Reverse Light Circuit:
- If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.
-
Reconnect the Battery:
- Reattach the negative battery cable and ensure all connections are secure.
- Insert the fuses into both circuit breakers.
-
Secure All Wires:
- Use cable ties to secure all loose wires and prevent damage or rattling.
-
Test the System:
- Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
- If applicable, test the reverse light circuit.
Notes:
- Most installations will only require connecting the black and blue wires from the 7-way adapter.
- Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
- Always adhere to safety guidelines and verify all connections before use.
Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.
Installation and Operation Instructions for the P3 Electronic Brake Control
Specifications:
- Supports 2, 4, 6, and 8 brake applications.
- Utilizes proportional braking with an inertial sensor.
Tools Required:
- Drill with a 1/8" bit.
- Screwdriver or nut driver.
- Wire crimp tool.
- Probe-type circuit tester.
Safety Notes:
- Avoid mounting or activating RF-generating devices (e.g., cell phones) within 12 inches of the brake control.
- Always adhere to the vehicle's Gross Combined Weight Rating (GCWR).
- Do not use the Boost feature during icy or slippery road conditions.
- Disconnect the trailer plug before testing a breakaway switch to prevent damage.
Hardware List:
- P3 Brake Control Unit.
- Mounting bracket.
- Wiring harness.
- #8 x 3/8" self-tapping screws.
Installation Instructions:
Mounting the Brake Control:
-
Traditional Bracket Mount:
- Secure the bracket to a solid surface using the provided screws.
- Attach the brake control unit and adjust to the desired angle.
- Tighten screws securely.
-
Under Dash Pocket Mount:
- Secure the small metal bracket with screws to a flat surface.
- Attach the T-slot mount to the metal bracket and insert the brake control.
Wiring the Brake Control:
- Option 1: Use the included pigtail wiring harness for a generic installation.
- Option 2: Use an OEM-specific wiring harness compatible with the vehicle's tow package.
- Wire Functions:
- Black: Positive power (+12V).
- White: Vehicle ground.
- Red: Cold side of brake pedal switch.
- Blue: Trailer brakes output.
Setting Up the Control:
- Connect the trailer to the vehicle.
- Use the Menu/Options button to access the setup screen.
- Select the brake type:
- Electric: For electric brakes.
- Hydraulic: For electric over hydraulic braking systems.
- Adjust the power output to ensure effective braking without wheel lock-up.
Boost Feature:
- Provides enhanced braking sensitivity.
- Available in three levels:
- B1: Light braking boost.
- B2: Moderate braking boost.
- B3: Aggressive braking boost.
- Recommended for heavier trailers or varying load conditions.
Reverse Mode:
- Cancel Boost and Hold features for 3 minutes by pressing and holding the Boost button for 5 seconds while holding the brake pedal.
Troubleshooting Guide:
Problem | Possible Cause | Solution |
---|---|---|
No trailer brakes | Poor ground or power loss | Check power and ground connections. |
Brakes lock up | Power too high | Reduce the power setting. |
Open Ground Warning | Loose ground connection | Inspect and secure ground wire. |
Overload Warning | Excessive brake current | Inspect trailer brake wiring. |
Output Shorted | Wiring short in circuit | Inspect the blue wire for damage. |
Maintenance:
- Inspect connections and wiring regularly for damage or wear.
- Adjust trailer brakes after the first 200 miles of use and every 3,000 miles thereafter.
- Clean the brake control unit periodically to maintain optimal performance.
Warranty Information:
- Limited Lifetime Warranty:
- Covers defects in materials and workmanship under normal use.
- Excludes damage caused by misuse, improper installation, or external factors.
- Attention: For complete warranty instructions, please download the full installation PDF.
