Product Details
- Brand: Reese
- Model: 44611 85343 20506 7012a 118675 21536 90195

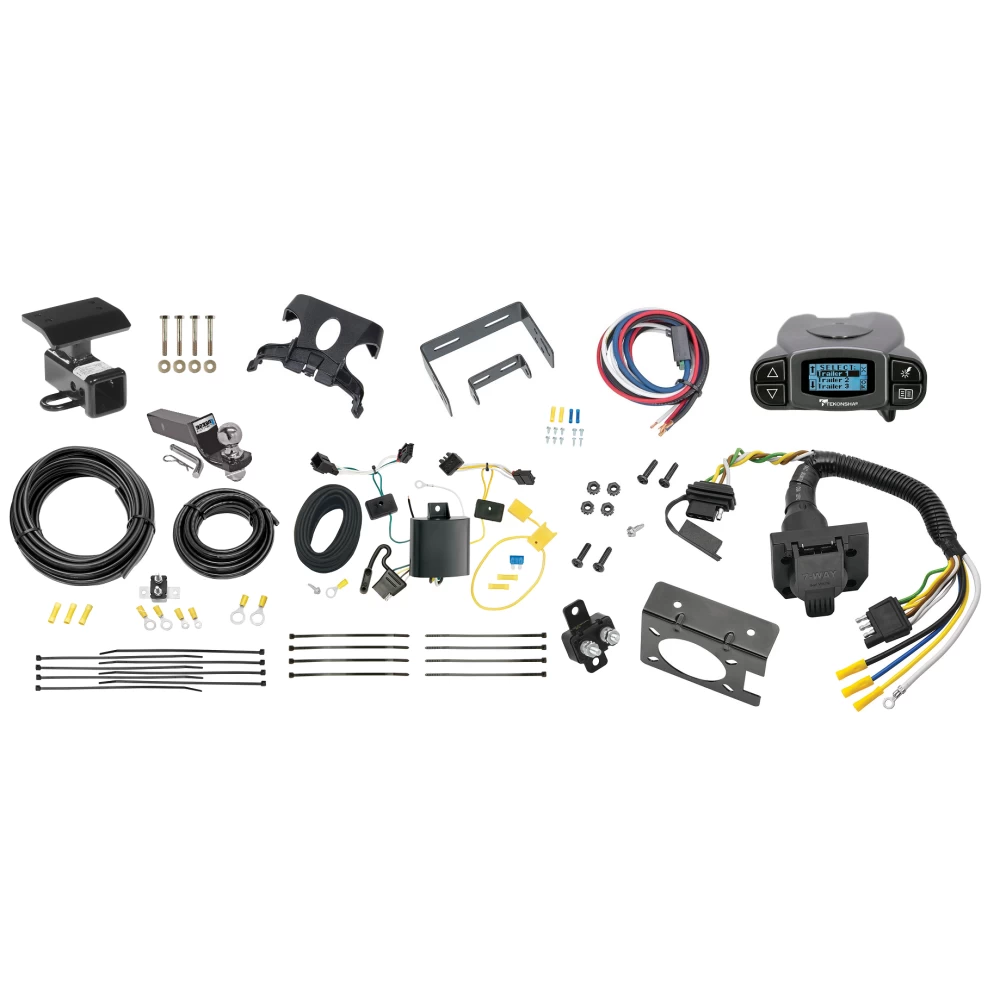

- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Wiring Adapter, Trailer Brake Controller Installation Kit, Circuit Breaker, Trailer Tow Hitch Ball Mount Starter Kit, Prodigy P3 Proportional Brake Controller for Trailers with 1-4 Axles
Compatibility Chart
Description
Get Expert Help
Trailer Hitch Tow Package Prodigy P3 Brake Control For 12-17 Volkswagen Tiguan w/ 7-Way RV Wiring 2" Drop Mount 2" Ball Class 3 2" Receiver Reese Tekonsha Install Notes
Installation Instructions for Volkswagen Tiguan
Part Numbers:
- 44611
- 75658
- 87600
Tools Required:
- Utility Knife
- Wrench: 17mm
- Drill Bits: None
Wiring Access Location:
- PC1, PC2
Step-by-Step Instructions:
-
Prepare the Fascia for Installation:
- Locate the existing grooved area on the bottom of the fascia as shown in Figure 2.
- Cut the fascia to provide access to the mounting holes in the vehicle cross member.
- Note: Obtain the vehicle owner's approval before cutting.
-
Position the Hitch:
- Raise the hitch into position, aligning the holes in the hitch top plate with the holes in the vehicle cross member.
-
Install Fasteners:
- Secure the hitch using four (4) M10 x 1.50 x 70mm hex bolts and four (4) 3/8” conical toothed washers.
-
Torque Fasteners:
- Tighten all M10 CL8.8 fasteners to 38 lb-ft (52 N·m) using a torque wrench.

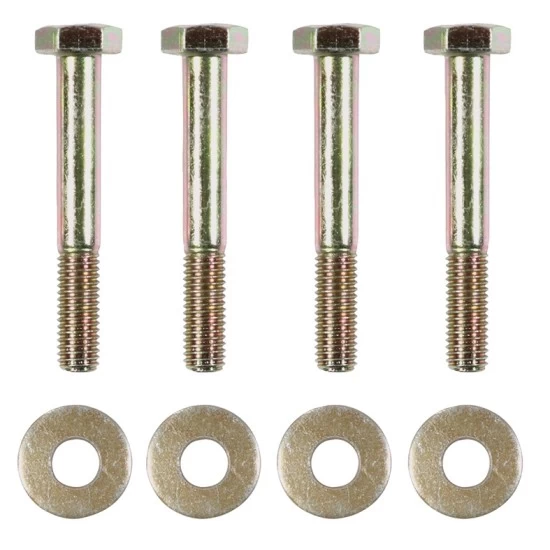

Hardware List:
- (4) M10 x 1.50 x 70mm CL8.8 Hex Bolts
- (4) 3/8” Conical Toothed Washers
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Weight Distributing: Not for use with spring bars.
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Fascia trimming is required for this installation. Ensure the cut is precise and approved by the vehicle owner beforehand.

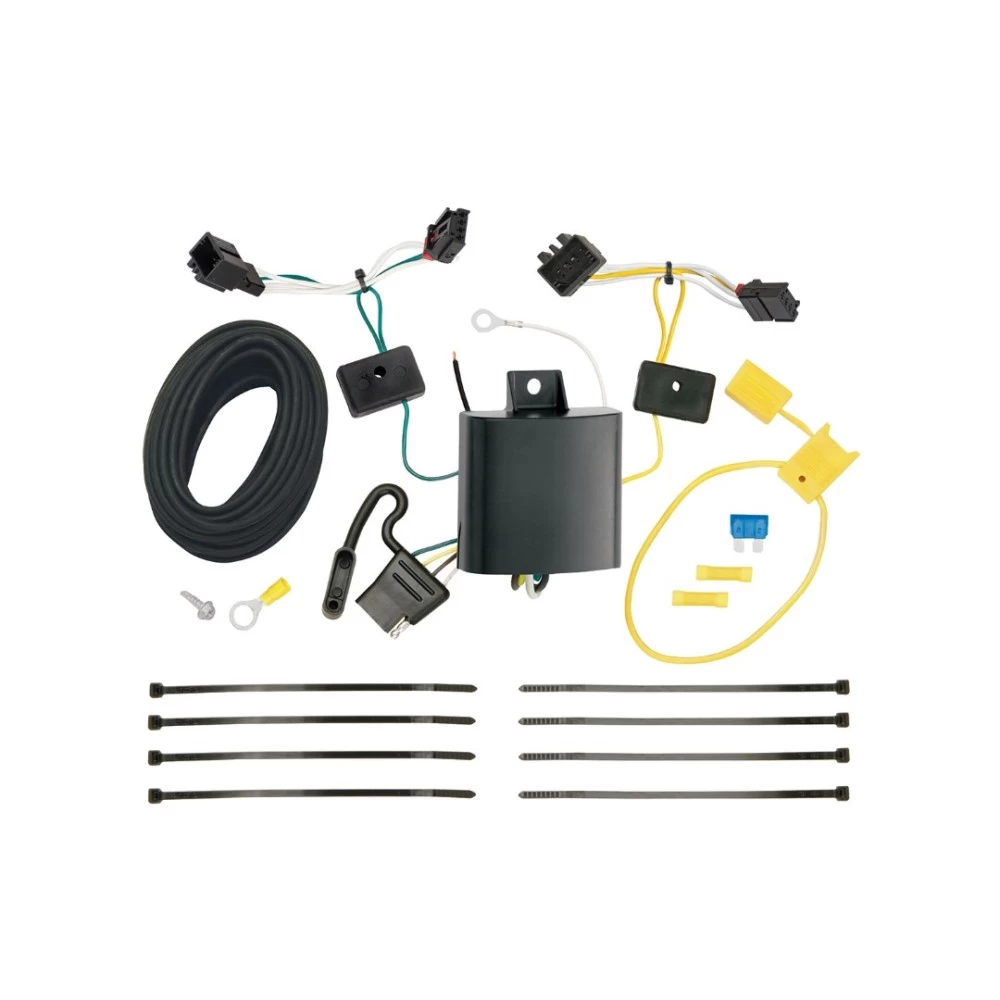

Installation Instructions for T-Connector Adapter for Volkswagon Tiguan
Part Numbers:
- 118675
Tools Required:
- Torx #20 Driver
- 10mm Socket or Wrench
-
2 Phillips Screwdriver
- Trim Panel Remover
- Wire Crimpers
- Wire Cutters
- Test Probe
Step-by-Step Instructions:
-
Remove the Taillight Assemblies:
- Open the tailgate and use a trim panel puller to carefully pry the black taillight trim cover to expose the two Torx-20 fasteners.
- Use the Torx-T20 driver to remove the two bolts holding the taillight in place. Do not remove the taillight yet.
-
Prepare the Rear Cargo Area:
- Remove all floor coverings and storage trays to expose the spare tire compartment.
- Use a trim panel tool to carefully pry the threshold plate away from the vehicle without damaging the clips.
-
Remove Interior Trim Panels:
- Partially remove the lower interior trim panels on both sides of the vehicle to access the taillight wiring.
-
Remove the Taillights:
- Locate the white plastic Philips head screw behind the trim panel holding the taillight in place.
- Turn the screw 90° counterclockwise with a Philips screwdriver to release the taillight.
- Carefully remove the taillight assembly and repeat for the passenger side.
-
Connect the Passenger-Side T-Connector:
- On the passenger side, route the T-Connector with the green wire through the square hole to the taillight pocket area.
- Plug the T-Connector between the taillight socket and vehicle wiring harness.
-
Connect the Driver-Side T-Connector:
- Route the T-Connector with the yellow wire along the threshold to the driver’s side.
- Repeat the connection process using the yellow wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the connectors on the passenger side.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
-
Connect the Power Wire:
- Disconnect the vehicle’s negative (-) battery cable.
- Attach the yellow fuse holder to the positive (+) battery cable using the ring terminal.
- Connect the black wire from the T-Connector black box to the fuse holder using the yellow butt connector.
-
Route the Power Wire:
- Route the black wire through a grommet and along the vehicle’s exterior frame or thresholds to the battery, avoiding hot pipes, heat shields, and other potential damage points.
-
Reconnect the Battery:
- Reconnect the negative (-) battery cable.
- Install the 15-amp fuse into the fuse holder and test the installation with a test light or trailer.
-
Mount the Black Box:
- On the passenger side, locate a flat, out-of-the-way surface and mount the T-Connector’s black box using the provided double-sided tape.
-
Reassemble the Vehicle:
- Reinstall the taillight housing assemblies, plastic trim panels, threshold, storage covers, and floor covering, ensuring no wires are pinched.
-
Store the 4-Flat Connector:
- Route the 4-flat connector through the passenger’s side trim panel into the side storage compartment for storage when not in use.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps)
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the stated product ratings.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and instruction sheet for additional details.
Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring
Tools Required:
- Phillips Head Screwdriver
- Drill with 3/32" Drill Bit
- 10mm Socket & Ratchet or Wrench
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Cable Ties
Part 1: Install the 4-Way to 7-Way Adapter
Step-by-Step Instructions:
-
Mount the Adapter:
- Choose a suitable mounting point on the vehicle, typically near the hitch.
- Use the provided bracket and screws to secure the adapter.
-
Connect the 4-Flat Plug:
- Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
- This connection enables tail lights, left turn, and right turn signals.
-
Ground the Adapter:
- Locate a clean, solid grounding point near the adapter.
- Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.
-
Leave Additional Wires Disconnected:
- The following wires will remain disconnected until Part 2:
- Black Wire: Power from the battery.
- Blue Wire: Brake control output.
- Yellow Wire: Reverse light (optional; leave disconnected unless needed).
- The following wires will remain disconnected until Part 2:
-
Test Initial Connection:
- Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).
Part 2: Install Brake Control Wiring
Step-by-Step Instructions:
-
Mount Circuit Breakers:
- Install two 30A circuit breakers on the firewall or another suitable location near the battery.
- Use self-tapping screws to mount them securely.
-
Route Power Wires:
- Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
- Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
- Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).
-
Install the Brake Controller:
- Mount the brake controller under the dash on a firm surface.
- Use the following connections:
- Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
- Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
- White Wire: Connect to a solid ground point on the vehicle body.
- Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).
-
Optional: Connect Reverse Light Circuit:
- If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.
-
Reconnect the Battery:
- Reattach the negative battery cable and ensure all connections are secure.
- Insert the fuses into both circuit breakers.
-
Secure All Wires:
- Use cable ties to secure all loose wires and prevent damage or rattling.
-
Test the System:
- Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
- If applicable, test the reverse light circuit.
Notes:
- Most installations will only require connecting the black and blue wires from the 7-way adapter.
- Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
- Always adhere to safety guidelines and verify all connections before use.
Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.
Installation and Operation Instructions for the P3 Electronic Brake Control
Specifications:
- Supports 2, 4, 6, and 8 brake applications.
- Utilizes proportional braking with an inertial sensor.
Tools Required:
- Drill with a 1/8" bit.
- Screwdriver or nut driver.
- Wire crimp tool.
- Probe-type circuit tester.
Safety Notes:
- Avoid mounting or activating RF-generating devices (e.g., cell phones) within 12 inches of the brake control.
- Always adhere to the vehicle's Gross Combined Weight Rating (GCWR).
- Do not use the Boost feature during icy or slippery road conditions.
- Disconnect the trailer plug before testing a breakaway switch to prevent damage.
Hardware List:
- P3 Brake Control Unit.
- Mounting bracket.
- Wiring harness.
- #8 x 3/8" self-tapping screws.
Installation Instructions:
Mounting the Brake Control:
-
Traditional Bracket Mount:
- Secure the bracket to a solid surface using the provided screws.
- Attach the brake control unit and adjust to the desired angle.
- Tighten screws securely.
-
Under Dash Pocket Mount:
- Secure the small metal bracket with screws to a flat surface.
- Attach the T-slot mount to the metal bracket and insert the brake control.
Wiring the Brake Control:
- Option 1: Use the included pigtail wiring harness for a generic installation.
- Option 2: Use an OEM-specific wiring harness compatible with the vehicle's tow package.
- Wire Functions:
- Black: Positive power (+12V).
- White: Vehicle ground.
- Red: Cold side of brake pedal switch.
- Blue: Trailer brakes output.
Setting Up the Control:
- Connect the trailer to the vehicle.
- Use the Menu/Options button to access the setup screen.
- Select the brake type:
- Electric: For electric brakes.
- Hydraulic: For electric over hydraulic braking systems.
- Adjust the power output to ensure effective braking without wheel lock-up.
Boost Feature:
- Provides enhanced braking sensitivity.
- Available in three levels:
- B1: Light braking boost.
- B2: Moderate braking boost.
- B3: Aggressive braking boost.
- Recommended for heavier trailers or varying load conditions.
Reverse Mode:
- Cancel Boost and Hold features for 3 minutes by pressing and holding the Boost button for 5 seconds while holding the brake pedal.
Troubleshooting Guide:
Problem | Possible Cause | Solution |
---|---|---|
No trailer brakes | Poor ground or power loss | Check power and ground connections. |
Brakes lock up | Power too high | Reduce the power setting. |
Open Ground Warning | Loose ground connection | Inspect and secure ground wire. |
Overload Warning | Excessive brake current | Inspect trailer brake wiring. |
Output Shorted | Wiring short in circuit | Inspect the blue wire for damage. |
Maintenance:
- Inspect connections and wiring regularly for damage or wear.
- Adjust trailer brakes after the first 200 miles of use and every 3,000 miles thereafter.
- Clean the brake control unit periodically to maintain optimal performance.
Warranty Information:
- Limited Lifetime Warranty:
- Covers defects in materials and workmanship under normal use.
- Excludes damage caused by misuse, improper installation, or external factors.
- Attention: For complete warranty instructions, please download the full installation PDF.
