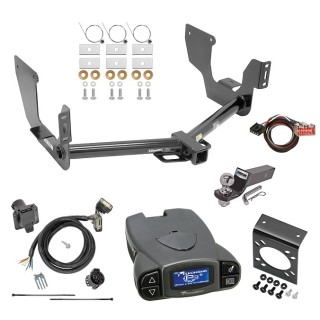

Installation Instructions for T-One® T-Connector for Ford F-150

Part Numbers:

• 118283

Tools Required:

• Trim Panel Remover
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Philips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Locate Tow-Plug Harness:

   • Underneath the vehicle on the driver’s side, locate the vehicle’s Tow-Plug harness behind the rear tire.
   • Separate the connector carefully without breaking the locking tabs. Ensure all connector surfaces are clean and free of dirt.

2. Insert T-One® Connector:

   • Insert the T-One® Connector harness into the vehicle’s Tow-Plug harness and lock it into place.

3. Ground the White Wire:

   • Locate a suitable grounding point near the connector.
   • Clean the area of dirt and rustproofing.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
   • Caution: Verify what is behind the surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.

4. Route the 7-Way Harness:

   • Determine the mounting location for the 7-Way connector.
   • Route the harness containing the seven wires along the inside of the bumper toward the center of the vehicle and the mounting location.
   • Warning: Avoid routing wires near hot pipes, heat shields, the fuel tank, or any areas that could pinch or damage the wire.

5. Consult 7-Way Diagram:

   • Refer to the included 7-Way diagram for proper wire locations.

6. Install the 7-Way Socket:

   • Plug the 7-way socket (provided) into the Trailer Tow Harness.
   • Mount the 7-Way connector in an accessible location using a bracket or electrical box (not included).

7. Secure the Harness:

   • Secure the remaining harness using the provided cable ties to prevent damage or rattling.
   • Avoid areas that could pinch, cut, or melt the wires.

8. Test the Installation:

   • Ensure all connections are complete for proper T-One® Connector functionality.
   • Reset the vehicle’s electrical system by temporarily removing the ignition key.
   • Test the installation with a test light or trailer.

   Warning: Overloading circuits can cause fires. Do not exceed the following ratings:

   • Max. stop/turn light: 10 amps
   • Max. tail lights: 10 amps
   • Max. backup: 10 amps
   • Max. power circuit: 20 amps
   • Max. trailer brakes: 3 axles/6 brakes (18 amps)

Safety Notes:

• Always follow all warnings and instructions included with the product.
• Wear safety glasses and use proper precautions during installation.
• Avoid exceeding the lower of the manufacturer’s ratings or the specific amperage ratings stated on the product.

Manufacturer Notes:

• Store these instructions for future reference.
• Refer to the vehicle owner’s manual for additional details.

Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Number: 303600

Tools Required:

• Trim Panel Remover
• Flashlight

Step-by-Step Instructions:

Step 1: Vehicle Preparation

1. Ensure the vehicle is off, and the keys are removed from the ignition.

Step 2: Remove the Instrument Cluster Finish Panel

1. Locate the instrument cluster finish panel in the center of the dashboard on the driver side.
2. Use a trim panel remover to carefully pry the panel out and away from the dash.
   • Take care not to damage the trim or panel.
3. Unplug the housings attaching the panel.
   • Be careful not to damage the locking tabs.
4. Set the panel aside.

Step 3: Access the Brake Control Harness

Option 1:

1. Locate and remove two bolts that were exposed in Step 2.
2. Remove the bin and unplug the grey connector from the back of the bin.

Option 2:

1. For vehicles with a factory-installed brake controller, locate the large grey housing plugged into the back of the unit.
2. Additional harnesses may need to be unplugged to gain access to the location.

NOTE:
Disconnecting the factory-installed brake controller may trigger a fault code on the vehicle's message center.

Step 4: Connect the Brake Control Adapter

1. Plug the brake control adapter into the vehicle’s electric brake control harness connector.

Step 5: Route the Adapter

1. Identify a suitable routing path for the adapter to exit through the bottom of the dash.
   • Use a flashlight to locate a suitable hole for the adapter.

Step 6: Complete Installation

1. Follow the brake controller manufacturer’s instructions to complete the installation.
2. Mount the brake controller securely as directed.
3. Perform all test procedures as instructed.

Step 7: Reassemble

1. Reconnect any unused connectors back into their original housings.
2. Snap the instrument cluster finish panel back into place.

Notes:

• Vehicles not equipped with an OEM trailer tow package may require additional fuses and relays to complete the circuits.
  • These components are sold separately.
  • Refer to the vehicle owner’s manual for fuse and relay locations.

Safety Warnings:

1. Circuit Overload Warning:
   • DO NOT exceed the lower of:
     • The vehicle manufacturer’s towing rating, or
     • Maximum Capacity: 3 axles / 6 brakes (18 amps).
2. Overloading circuits can result in fires.
3. Always wear safety glasses and follow vehicle warnings and installation instructions.

Wiring Overview:

• Trailer Brake Controller (Output): Sends braking signals to the trailer brakes.
• Fused Battery Feed: Powers the brake controller.
• Stop Lamp Switch (Input): Provides the braking signal to the controller.
• Ground: Connects the system securely to the vehicle chassis.

End of Instructions

Installation and Operation Instructions for the P3 Electronic Brake Control

Specifications:

• Supports 2, 4, 6, and 8 brake applications.
• Utilizes proportional braking with an inertial sensor.

Tools Required:

• Drill with a 1/8" bit.
• Screwdriver or nut driver.
• Wire crimp tool.
• Probe-type circuit tester.

Safety Notes:

1. Avoid mounting or activating RF-generating devices (e.g., cell phones) within 12 inches of the brake control.
2. Always adhere to the vehicle's Gross Combined Weight Rating (GCWR).
3. Do not use the Boost feature during icy or slippery road conditions.
4. Disconnect the trailer plug before testing a breakaway switch to prevent damage.

Hardware List:

• P3 Brake Control Unit.
• Mounting bracket.
• Wiring harness.
• #8 x 3/8" self-tapping screws.

Installation Instructions:

Mounting the Brake Control:

1. Traditional Bracket Mount:

   • Secure the bracket to a solid surface using the provided screws.
   • Attach the brake control unit and adjust to the desired angle.
   • Tighten screws securely.

2. Under Dash Pocket Mount:

   • Secure the small metal bracket with screws to a flat surface.
   • Attach the T-slot mount to the metal bracket and insert the brake control.

Wiring the Brake Control:

• Option 1: Use the included pigtail wiring harness for a generic installation.
• Option 2: Use an OEM-specific wiring harness compatible with the vehicle's tow package.
• Wire Functions:
  • Black: Positive power (+12V).
  • White: Vehicle ground.
  • Red: Cold side of brake pedal switch.
  • Blue: Trailer brakes output.

Setting Up the Control:

1. Connect the trailer to the vehicle.
2. Use the Menu/Options button to access the setup screen.
3. Select the brake type:
   • Electric: For electric brakes.
   • Hydraulic: For electric over hydraulic braking systems.
4. Adjust the power output to ensure effective braking without wheel lock-up.

Boost Feature:

• Provides enhanced braking sensitivity.
• Available in three levels:
  • B1: Light braking boost.
  • B2: Moderate braking boost.
  • B3: Aggressive braking boost.
• Recommended for heavier trailers or varying load conditions.

Reverse Mode:

• Cancel Boost and Hold features for 3 minutes by pressing and holding the Boost button for 5 seconds while holding the brake pedal.

Troubleshooting Guide:

Maintenance:

• Inspect connections and wiring regularly for damage or wear.
• Adjust trailer brakes after the first 200 miles of use and every 3,000 miles thereafter.
• Clean the brake control unit periodically to maintain optimal performance.

Warranty Information:

• Limited Lifetime Warranty:
  • Covers defects in materials and workmanship under normal use.
  • Excludes damage caused by misuse, improper installation, or external factors.
• Attention: For complete warranty instructions, please download the full installation PDF.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
