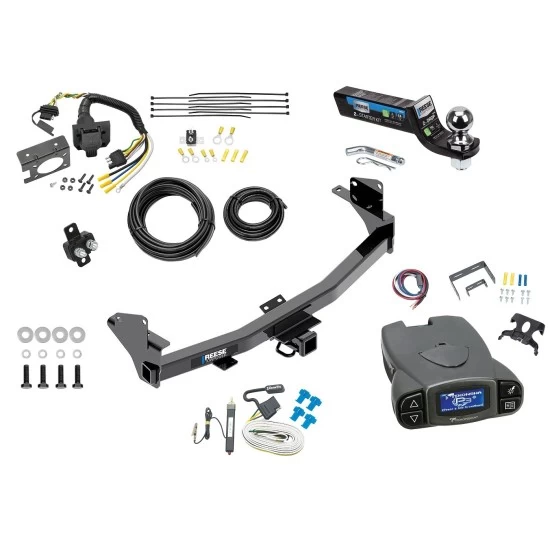

Trailer Hitch Tow Package Prodigy P3 Brake Control For 15-22 Chevrolet Colorado GMC Canyon w/ 7-Way RV Wiring 2" Drop Mount 2" Ball Class 4 2" Receiver Reese Tekonsha

This heavy duty kit is for those planning on towing a large trailer with electric brakes. This All-in-One bundle takes care of everything. No more searching and stressing out over what parts you need. This package includes the most sought after brake control on the market Tekonsha Prodigy P3. Being industries most advanced electric trailer brake control. A true proportional braking system, P3 has several added features, making it the new standard for electric trailer brake controls.



 This Hitch Fits The Following Vehicles:​

2015 - 2022     Chevrolet, Colorado, All Styles
2015 - 2022     GMC, Canyon, All Styles

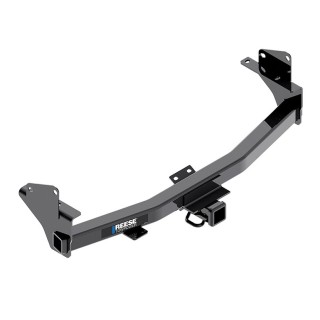

Trailer Hitch Specs:



Includes all necessary parts required to completely install all brake controls. No other parts are necessary. This Kit Retains use of 4-Flat Connector while also giving you a 7-Way RV Plug

Each Wiring Kit includes:

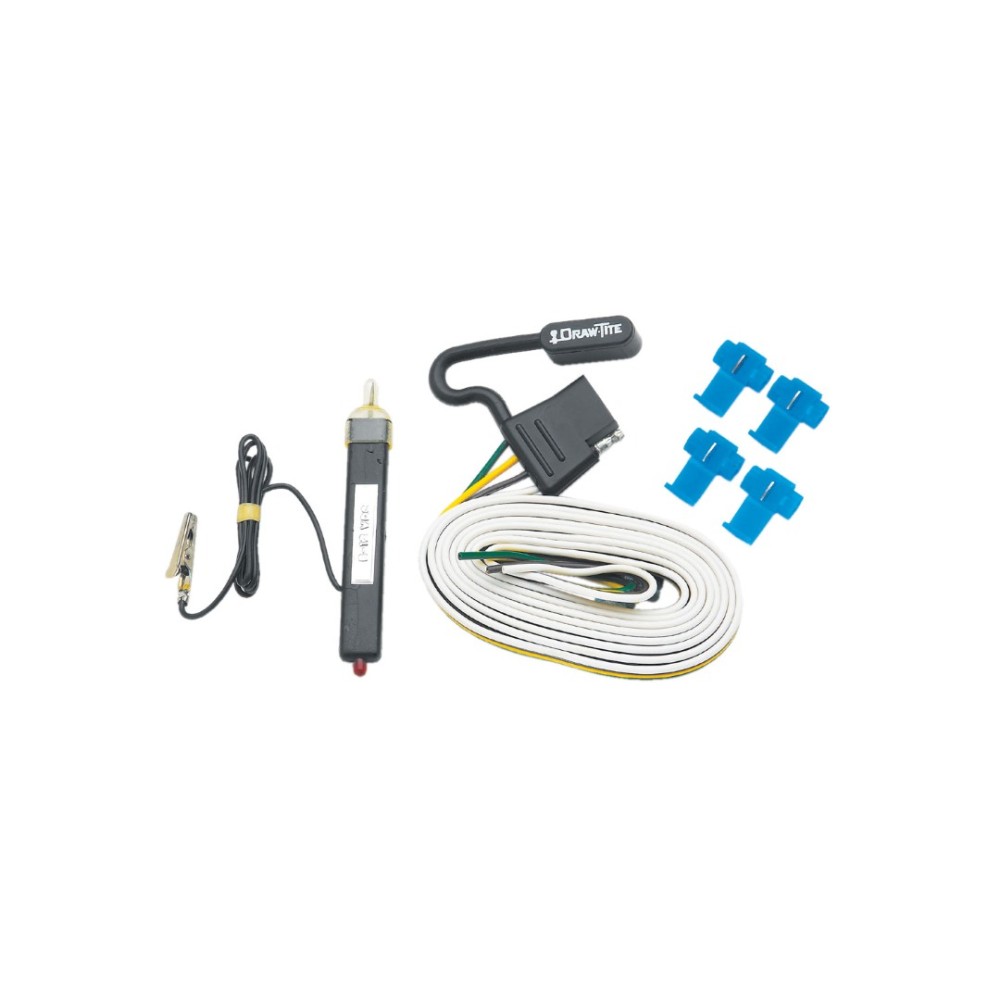

•   Plug and Play T-One Wiring Harness Connector
• 4-Way to 7-Way adapter w/ mounting bracket and screws
• Wiring Kit for 6 to 8 Brake Control Systems
• Includes 25 ft. 12-2 Duplex Wire
• (2) 30 Amp Circuit Breakers
• Attaching Terminals and Ring Connectors
•

Part Numbers	20252 85343 20506 7012A
Brand	Tekonsha
Warranty	1 Year
T-One Wiring Installation
4-Way to 7-Way Adapter Installation
Brake Control Wiring Installation



Ball Mount Specs:

Part Number	7080500
Brand	Reese Towpower
Finish	Black Powder Coat
Towing Capacity	7500 lbs
Tongue Weight Capacity	750 lbs
Hitch Opening	2"
Drop	2"
Rise	3/4"
Warranty	1 Year



P3 the industries most advanced electric trailer brake control. A true proportional braking system, P3 has several added features, making it the new standard for electric trailer brake controls.


• 5 storable setting options for pulling different trailers or preferences of multiple drivers.
• A distinct, easy-to-read LCD display with multiple screen color options.
• Up-Front controls provide easy access to all P3 features.
• Easy to understand diagnostics show output current, battery, brake, and output voltage.
• A flashing red warning system alerts user to No Trailer Brake situations.
• Select Electric over Hydraulic or Electric trailer brake mode.
• Screen information display in English, French or Spanish.
• The Original Boost feature allows for different levels of customized braking.
• Compact, dash-hugging design.

Brake Control Specs:

Part Number	90195
Brand	Tekonsha
Type	Proportional
Axles	1 to 4 axle trailers
Warranty	Lifetime
Installation Instructions




Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 15 16 17 18 19 20 21 22 2015 2016 2017 2018 2019 2020 2021 2022
