Product Details
- Brand: Reese
- Model: 44750 85343 20506 7012a 118269 21536 90195
- Includes: Class 3 Trailer Tow Hitch, Tow Custom Harness, Wiring Adapter, Trailer Brake Controller Installation Kit, Circuit Breaker, Trailer Tow Hitch Ball Mount Starter Kit, Prodigy P3 Proportional Brake Controller for Trailers with 1-4 Axles
Compatibility Chart
Description
Get Expert Help

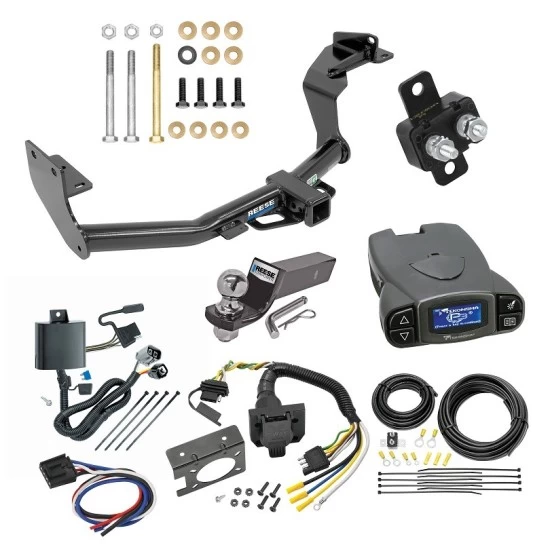

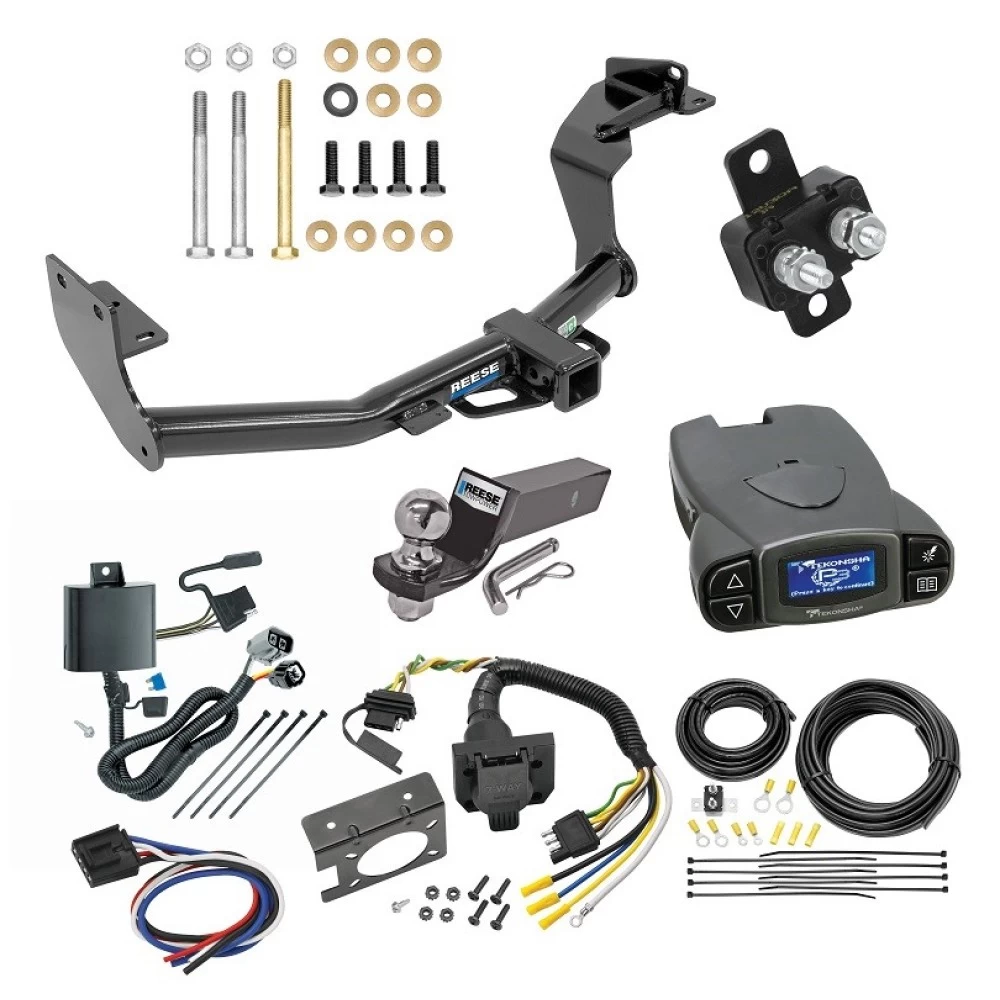

Trailer Hitch Tow Package Prodigy P3 Brake Control For 16-20 KIA Sorento w/ V6 Engine w/ 7-Way RV Wiring 2" Drop Mount 2" Ball Class 3 2" Receiver Reese Tekonsha Install Notes
Installation Instructions for Kia Sorento (2016–Current)
Part Numbers:
- 75908
- 87665
- 44750
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Wrenches: 3/4", 14mm, 16mm, 17mm, 18mm, 19mm
- Socket Extension: 6"
- Philips Screwdriver
- Lubricant or Soapy Water
Step-by-Step Instructions:
-
Lower and Remove Spare Tire:
- The tire release is located underneath the storage compartment in the back of the vehicle.
-
Remove Driver Side Rear Plastic Cover:
- Use a small Phillips screwdriver to remove fasteners.
- Remove (5) plastic push pins and (2) nuts.
-
Lower Exhaust:
- Remove the rear and side hangers, supporting the exhaust to prevent damage.
- Spray lubricant or soapy water on the metal hanger rod and the rubber isolator for easier removal.
- Remove rubber plugs from the bottom of the frame rail on both sides.
-
Prepare Weldnuts:
- Run M10 bolts into the existing weldnuts in the frame rail to clean out debris, then remove them.
-
Position Hitch:
- Raise the hitch into position.
- Insert (items 1 & 2) on the driver’s side and (items 4 & 5) on the passenger’s side.
- Insert bolts through the bracket and frame as shown in Figure 1 for support.
- Note: If the bumper locator pin interferes with the hitch hardware, trim the pin with an angle grinder at the shoulder.
-
Secure Bolts:
- Insert M10 bolts (items 8 & 7) through the bracket into the frame and hand-tighten.
-
Install Washers and Nuts:
- Attach the remaining conical washers and hex nuts to the bolts.
-
Torque Fasteners:
- Tighten fasteners to the specified torque values:
- M10 CL10.9 bolts: 40 lb-ft (54 N*m)
- 1/2 GR5 bolts: 75 lb-ft (102 N*m)
- M12 GR8.8 bolts: 68 lb-ft (92 N*m)
- Tighten fasteners to the specified torque values:
-
Reattach Exhaust:
- Raise the exhaust back into position.
-
Reinstall Plastic Cover:
- Reinstall the plastic cover removed in Step 2.
-
Reinstall Spare Tire:
- Ensure the spare tire is seated properly.
Hardware List:
- Qty (2): Hex Bolt – 1/2-13 x 4.50 GR5
- Qty (5): Conical Washer – 1/2"
- Qty (2): Hex Nut – 1/2-13
- Qty (1): Hex Bolt – M12 x 1.75 x 120mm CL8.8
- Qty (1): Flat Washer – 1/2" Hardened
- Qty (1): Hex Nut – M12 x 1.75 CL8
- Qty (4): Hex Bolt – M10 x 1.25 x 30mm CL10.9
- Qty (4): Conical Washer – 7/16"
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 5,000 lbs (2,270 kg)
- Max Tongue Weight: 500 lbs (227 kg)
- Weight Distributing: Not compatible with spring bars.
Manufacturer Notes:
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.

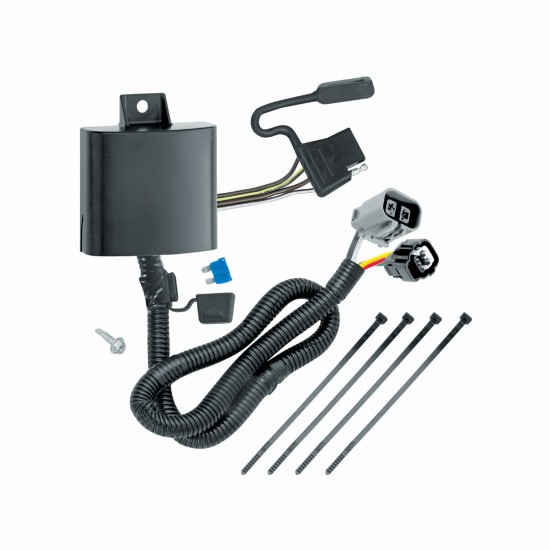

Installation Instructions for T-Connector Adapter for Kia Sorento and Hyundai Veracruz
Part Numbers:
- 118269
Tools Required:
- Trim Panel Remover
- Wire Cutters
- 10mm Socket & Ratchet or Wrench
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Access the Vehicle Wiring:
- Kia Sorento: Lower the spare tire to access the vehicle wiring.
- Hyundai Veracruz: Locate the access hole inside the bumper support channel, above the passenger side exhaust, and route the T-Connector harness plugs through the hole.
-
Locate the Tow-Plug Harness:
- Kia Sorento: On the passenger side, on top of the frame rail near the rear tire, locate the vehicle’s Tow-Plug harness. If covered by a protective cover, remove the plastic trim fasteners to access the harness.
- Hyundai Veracruz: Find the Tow-Plug harness on the passenger side frame near the rear tire. Ensure all connector surfaces are clean and free of dirt.
-
Connect the T-Connector:
- Remove the protective caps from the vehicle’s tow plug harness.
- Insert the T-Connector harness into the vehicle’s Tow-Plug harness and lock it into place.
- Ensure the connectors are fully inserted with locking tabs secure.
-
Route the T-Connector Wiring:
- Kia Sorento: Route the T-Connector harness rearward to the back of the fascia and along the inside of the bumper toward the center of the vehicle.
- Hyundai Veracruz: Route the T-Connector harness along the inside of the bumper support channel toward the center of the vehicle.
Warning:
- Route the wire carefully to avoid hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.
-
Mount the Black Box:
- Use the provided double-sided tape to mount the T-Connector black box on the bumper support channel.
- Secure all loose wires with cable ties to prevent damage or rattling.
-
Test the Installation:
- Ensure all connections are complete. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
- Test and verify the installation with a test light or trailer.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps)
- Max. tail lights: (7.5 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
- Refer to the vehicle owner’s manual for additional information.
Manufacturer Notes:
- Ensure all connections are clean and secure.
- Follow all installation warnings and guidelines carefully.
Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring
Tools Required:
- Phillips Head Screwdriver
- Drill with 3/32" Drill Bit
- 10mm Socket & Ratchet or Wrench
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Cable Ties
Part 1: Install the 4-Way to 7-Way Adapter
Step-by-Step Instructions:
-
Mount the Adapter:
- Choose a suitable mounting point on the vehicle, typically near the hitch.
- Use the provided bracket and screws to secure the adapter.
-
Connect the 4-Flat Plug:
- Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
- This connection enables tail lights, left turn, and right turn signals.
-
Ground the Adapter:
- Locate a clean, solid grounding point near the adapter.
- Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.
-
Leave Additional Wires Disconnected:
- The following wires will remain disconnected until Part 2:
- Black Wire: Power from the battery.
- Blue Wire: Brake control output.
- Yellow Wire: Reverse light (optional; leave disconnected unless needed).
- The following wires will remain disconnected until Part 2:
-
Test Initial Connection:
- Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).
Part 2: Install Brake Control Wiring
Step-by-Step Instructions:
-
Mount Circuit Breakers:
- Install two 30A circuit breakers on the firewall or another suitable location near the battery.
- Use self-tapping screws to mount them securely.
-
Route Power Wires:
- Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
- Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
- Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).
-
Install the Brake Controller:
- Mount the brake controller under the dash on a firm surface.
- Use the following connections:
- Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
- Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
- White Wire: Connect to a solid ground point on the vehicle body.
- Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).
-
Optional: Connect Reverse Light Circuit:
- If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.
-
Reconnect the Battery:
- Reattach the negative battery cable and ensure all connections are secure.
- Insert the fuses into both circuit breakers.
-
Secure All Wires:
- Use cable ties to secure all loose wires and prevent damage or rattling.
-
Test the System:
- Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
- If applicable, test the reverse light circuit.
Notes:
- Most installations will only require connecting the black and blue wires from the 7-way adapter.
- Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
- Always adhere to safety guidelines and verify all connections before use.
Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.
Installation and Operation Instructions for the P3 Electronic Brake Control
Specifications:
- Supports 2, 4, 6, and 8 brake applications.
- Utilizes proportional braking with an inertial sensor.
Tools Required:
- Drill with a 1/8" bit.
- Screwdriver or nut driver.
- Wire crimp tool.
- Probe-type circuit tester.
Safety Notes:
- Avoid mounting or activating RF-generating devices (e.g., cell phones) within 12 inches of the brake control.
- Always adhere to the vehicle's Gross Combined Weight Rating (GCWR).
- Do not use the Boost feature during icy or slippery road conditions.
- Disconnect the trailer plug before testing a breakaway switch to prevent damage.
Hardware List:
- P3 Brake Control Unit.
- Mounting bracket.
- Wiring harness.
- #8 x 3/8" self-tapping screws.
Installation Instructions:
Mounting the Brake Control:
-
Traditional Bracket Mount:
- Secure the bracket to a solid surface using the provided screws.
- Attach the brake control unit and adjust to the desired angle.
- Tighten screws securely.
-
Under Dash Pocket Mount:
- Secure the small metal bracket with screws to a flat surface.
- Attach the T-slot mount to the metal bracket and insert the brake control.
Wiring the Brake Control:
- Option 1: Use the included pigtail wiring harness for a generic installation.
- Option 2: Use an OEM-specific wiring harness compatible with the vehicle's tow package.
- Wire Functions:
- Black: Positive power (+12V).
- White: Vehicle ground.
- Red: Cold side of brake pedal switch.
- Blue: Trailer brakes output.
Setting Up the Control:
- Connect the trailer to the vehicle.
- Use the Menu/Options button to access the setup screen.
- Select the brake type:
- Electric: For electric brakes.
- Hydraulic: For electric over hydraulic braking systems.
- Adjust the power output to ensure effective braking without wheel lock-up.
Boost Feature:
- Provides enhanced braking sensitivity.
- Available in three levels:
- B1: Light braking boost.
- B2: Moderate braking boost.
- B3: Aggressive braking boost.
- Recommended for heavier trailers or varying load conditions.
Reverse Mode:
- Cancel Boost and Hold features for 3 minutes by pressing and holding the Boost button for 5 seconds while holding the brake pedal.
Troubleshooting Guide:
Problem | Possible Cause | Solution |
---|---|---|
No trailer brakes | Poor ground or power loss | Check power and ground connections. |
Brakes lock up | Power too high | Reduce the power setting. |
Open Ground Warning | Loose ground connection | Inspect and secure ground wire. |
Overload Warning | Excessive brake current | Inspect trailer brake wiring. |
Output Shorted | Wiring short in circuit | Inspect the blue wire for damage. |
Maintenance:
- Inspect connections and wiring regularly for damage or wear.
- Adjust trailer brakes after the first 200 miles of use and every 3,000 miles thereafter.
- Clean the brake control unit periodically to maintain optimal performance.
Warranty Information:
- Limited Lifetime Warranty:
- Covers defects in materials and workmanship under normal use.
- Excludes damage caused by misuse, improper installation, or external factors.
- Attention: For complete warranty instructions, please download the full installation PDF.
