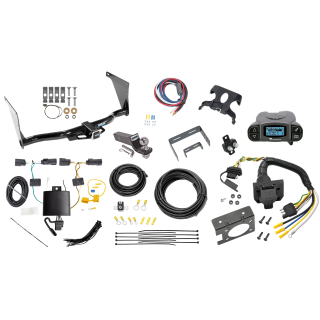

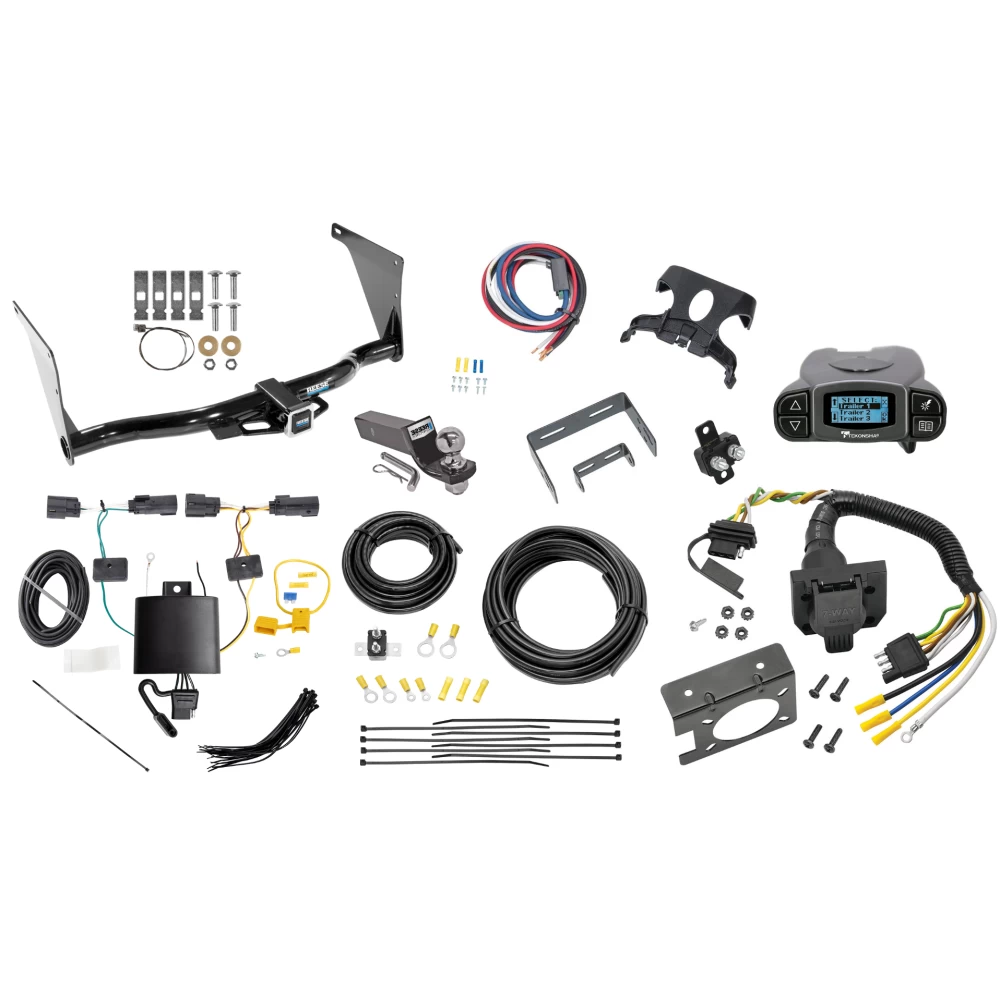

Trailer Hitch Tow Package Prodigy P3 Brake Control For 19-19 Ford Escape w/ 7-Way RV Wiring 2" Drop Mount 2" Ball Class 3 2" Receiver Reese Tekonsha Install Notes
Installation Instructions for Ford Escape
Part Numbers:
- 75758
- 87627
- 44681
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 11/16"
- Other Tools: Pull Wires (provided)
Step-by-Step Instructions:
- Prepare fasteners:
- Feed spacers and carriage bolts into position using the provided pull wires on both frame rails. Leave the pull wires attached.
- Note: It is easier to insert the bolts and spacers separately into the frame rail (see Figure 3).
- Position fasteners:
- Push the fasteners back into the frame rail, leaving the pull wires and extra wire protruding.
- Raise hitch into position:
- Position the hitch between the frame rails. Feed the pull wires through adjacent holes in the hitch.
- On the passenger side, raise the forward end of the bracket over the hoses crossing the frame rail (not shown in diagram).
- Secure fasteners:
- Pull the fasteners back through the access holes and the hitch.
- Remove the pull wires and attach conical washers and nuts. Be careful not to push the fasteners back into the frame rail.
- Tighten fasteners:
- Torque all fasteners to the specified value using a wrench.
Hardware List:
- Qty (4): Carriage Bolt – 7/16-14 x 1.50 GR5
- Qty (4): Spacer – 1/4 x 7/8 x 3.00
- Qty (4): Conical Washer – 7/16"
- Qty (4): Hex Nut – 7/16-14 GR2
- Qty (4): Pull Wire – 7/16
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Distributing
- Max Gross Trailer Weight: 5,000 lbs (2,270 kg)
- Max Tongue Weight: 675 lbs (306 kg)
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 4,500 lbs (2,043 kg)
- Max Tongue Weight: 675 lbs (306 kg)
Manufacturer Notes:
- Tighten all 7/16-14 GR5 fasteners to 50 lb-ft (68 N*m).
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- For vehicles equipped with the “Hands-Free Lift Gate” option, the sensor will only work in a limited area (see Figure 2).
- If the spacer and bolt head do not fit through the access hole, modify the hole using a file or by prying it open as illustrated.

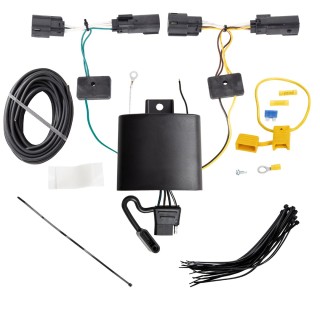

Installation Instructions for T-One® T-Connector for Ford Escape
Part Numbers:
- 118802
Tools Required:
- Trim Panel Remover
- 8mm Socket & Ratchet or 8mm Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Remove the Taillight Assemblies:
- Open the tailgate and remove the vehicle’s taillight assemblies by removing the two 8mm hex head bolts on each side.
- Carefully pull the taillights away from the vehicle, ensuring not to damage the alignment pins.
- Set the taillight housings aside.
-
Disconnect the Wiring Harness:
- Disconnect the vehicle wiring harness from both taillight sockets.
- Separate the connectors carefully, ensuring not to break the locking tabs.
- Clean all connector surfaces to remove dirt.
-
Remove Floor Trim Panels:
- Carefully remove the floor trim panels and access panels on both sides of the vehicle.
- Locate the rubber grommet in the taillight pocket and remove it.
-
Route the T-Connector for Driver-Side:
- Behind the driver’s side trim panel, route the T-Connector end with the yellow wire out of the opening exposed by removing the grommet.
- Plug the yellow wire end between the driver’s side taillight socket and vehicle wiring harness.
-
Route the T-Connector for Passenger-Side:
- Route the green wire through the interior trim panel, along the threshold plate, and up through the passenger side trim panel.
- Insert the green wire end between the passenger-side taillight socket and vehicle wiring harness.
-
Ground the White Wire:
- Locate a suitable grounding point on the driver’s side near the connectors.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution: Verify what is behind the surface before drilling to avoid damage or injury.
-
Route the Power Wire:
- Locate the black 12-gauge power wire from the T-Connector box.
- Attach the provided black wire and route it along the vehicle’s frame or existing wiring to the engine compartment.
Warning: Avoid routing near hot pipes, heat shields, or areas that may pinch or damage the wire.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s Negative (-) battery cable.
- Remove the fuse from the yellow fuse holder. Attach the ring terminal to the Positive (+) battery cable.
- Connect the other end of the fuse holder to the black wire using the provided yellow butt connector.
-
Reconnect the Battery and Test:
- Reconnect the Negative (-) battery cable and insert the 15-amp fuse into the fuse holder.
- Test the installation using a test light or trailer.
-
Reinstall Taillights and Panels:
- Reinstall the taillight assemblies and other panels removed during installation.
- Ensure no wires are pinched or damaged.
-
Secure the Wiring Harness:
- Use the provided cable ties to secure the wiring harness.
- Avoid areas that may pinch, cut, or melt the wire.
-
Store the 4-Flat Connector:
- Route the 4-flat connector through the driver’s side trim panel into the spare tire compartment for storage when not in use.
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring
Tools Required:
- Phillips Head Screwdriver
- Drill with 3/32" Drill Bit
- 10mm Socket & Ratchet or Wrench
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Cable Ties
Part 1: Install the 4-Way to 7-Way Adapter
Step-by-Step Instructions:
-
Mount the Adapter:
- Choose a suitable mounting point on the vehicle, typically near the hitch.
- Use the provided bracket and screws to secure the adapter.
-
Connect the 4-Flat Plug:
- Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
- This connection enables tail lights, left turn, and right turn signals.
-
Ground the Adapter:
- Locate a clean, solid grounding point near the adapter.
- Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.
-
Leave Additional Wires Disconnected:
- The following wires will remain disconnected until Part 2:
- Black Wire: Power from the battery.
- Blue Wire: Brake control output.
- Yellow Wire: Reverse light (optional; leave disconnected unless needed).
- The following wires will remain disconnected until Part 2:
-
Test Initial Connection:
- Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).
Part 2: Install Brake Control Wiring
Step-by-Step Instructions:
-
Mount Circuit Breakers:
- Install two 30A circuit breakers on the firewall or another suitable location near the battery.
- Use self-tapping screws to mount them securely.
-
Route Power Wires:
- Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
- Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
- Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).
-
Install the Brake Controller:
- Mount the brake controller under the dash on a firm surface.
- Use the following connections:
- Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
- Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
- White Wire: Connect to a solid ground point on the vehicle body.
- Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).
-
Optional: Connect Reverse Light Circuit:
- If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.
-
Reconnect the Battery:
- Reattach the negative battery cable and ensure all connections are secure.
- Insert the fuses into both circuit breakers.
-
Secure All Wires:
- Use cable ties to secure all loose wires and prevent damage or rattling.
-
Test the System:
- Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
- If applicable, test the reverse light circuit.
Notes:
- Most installations will only require connecting the black and blue wires from the 7-way adapter.
- Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
- Always adhere to safety guidelines and verify all connections before use.
Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.
Installation and Operation Instructions for the P3 Electronic Brake Control
Specifications:
- Supports 2, 4, 6, and 8 brake applications.
- Utilizes proportional braking with an inertial sensor.
Tools Required:
- Drill with a 1/8" bit.
- Screwdriver or nut driver.
- Wire crimp tool.
- Probe-type circuit tester.
Safety Notes:
- Avoid mounting or activating RF-generating devices (e.g., cell phones) within 12 inches of the brake control.
- Always adhere to the vehicle's Gross Combined Weight Rating (GCWR).
- Do not use the Boost feature during icy or slippery road conditions.
- Disconnect the trailer plug before testing a breakaway switch to prevent damage.
Hardware List:
- P3 Brake Control Unit.
- Mounting bracket.
- Wiring harness.
- #8 x 3/8" self-tapping screws.
Installation Instructions:
Mounting the Brake Control:
-
Traditional Bracket Mount:
- Secure the bracket to a solid surface using the provided screws.
- Attach the brake control unit and adjust to the desired angle.
- Tighten screws securely.
-
Under Dash Pocket Mount:
- Secure the small metal bracket with screws to a flat surface.
- Attach the T-slot mount to the metal bracket and insert the brake control.
Wiring the Brake Control:
- Option 1: Use the included pigtail wiring harness for a generic installation.
- Option 2: Use an OEM-specific wiring harness compatible with the vehicle's tow package.
- Wire Functions:
- Black: Positive power (+12V).
- White: Vehicle ground.
- Red: Cold side of brake pedal switch.
- Blue: Trailer brakes output.
Setting Up the Control:
- Connect the trailer to the vehicle.
- Use the Menu/Options button to access the setup screen.
- Select the brake type:
- Electric: For electric brakes.
- Hydraulic: For electric over hydraulic braking systems.
- Adjust the power output to ensure effective braking without wheel lock-up.
Boost Feature:
- Provides enhanced braking sensitivity.
- Available in three levels:
- B1: Light braking boost.
- B2: Moderate braking boost.
- B3: Aggressive braking boost.
- Recommended for heavier trailers or varying load conditions.
Reverse Mode:
- Cancel Boost and Hold features for 3 minutes by pressing and holding the Boost button for 5 seconds while holding the brake pedal.
Troubleshooting Guide:
Problem | Possible Cause | Solution |
---|---|---|
No trailer brakes | Poor ground or power loss | Check power and ground connections. |
Brakes lock up | Power too high | Reduce the power setting. |
Open Ground Warning | Loose ground connection | Inspect and secure ground wire. |
Overload Warning | Excessive brake current | Inspect trailer brake wiring. |
Output Shorted | Wiring short in circuit | Inspect the blue wire for damage. |
Maintenance:
- Inspect connections and wiring regularly for damage or wear.
- Adjust trailer brakes after the first 200 miles of use and every 3,000 miles thereafter.
- Clean the brake control unit periodically to maintain optimal performance.
Warranty Information:
- Limited Lifetime Warranty:
- Covers defects in materials and workmanship under normal use.
- Excludes damage caused by misuse, improper installation, or external factors.
- Attention: For complete warranty instructions, please download the full installation PDF.
