Trailer Hitch Tow Package w/ 7-Way RV Wiring For 03-18 Dodge Ram 1500 19-23 (Classic) 03-09 2500 3500 w/ 2" Drop Mount 2" Ball Class 4 2" Receiver

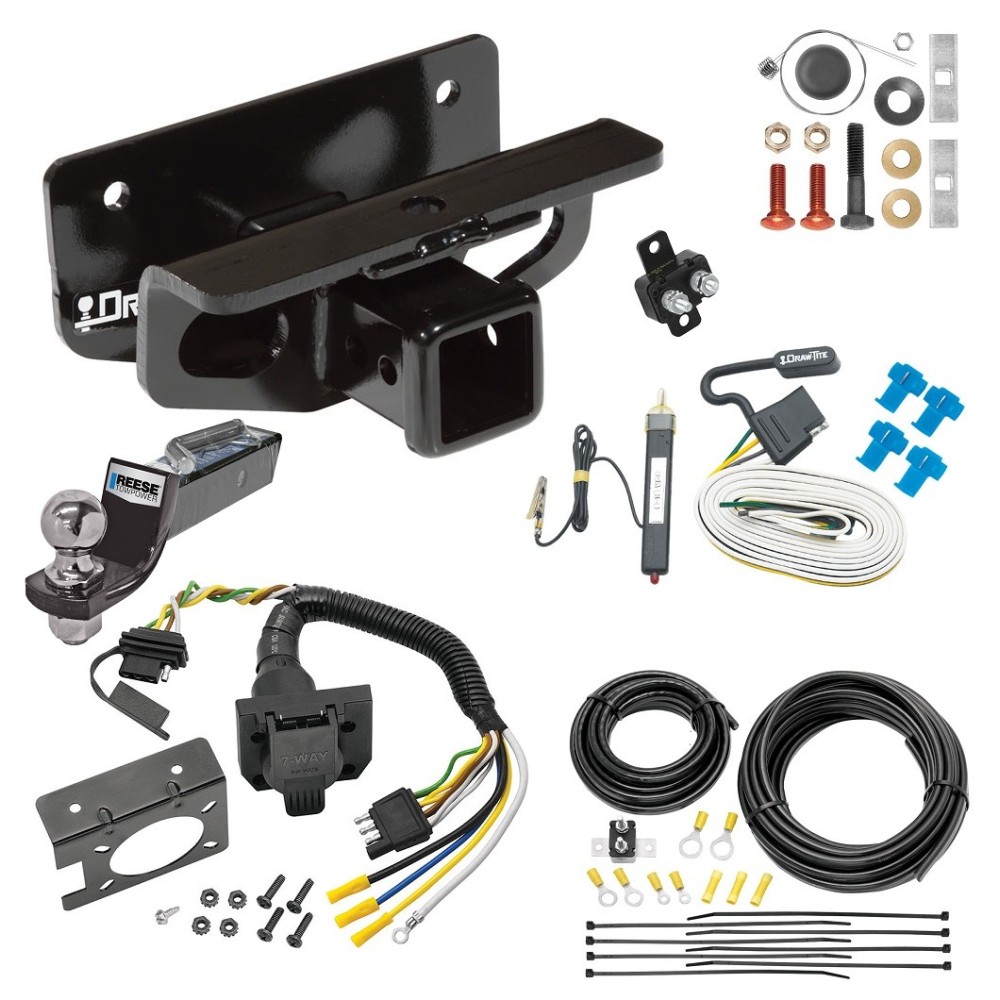

Includes Everything Pictured:
Custom Fit Trailer Hitch
Wiring Harness (Requires Splicing)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Trailer Connector Adapter
Brake Control Wiring Kit
Circuit Breaker
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2003 - 2003     Dodge, Ram 1500, (Built After 11/2002)
2004 - 2005     Dodge, Ram 1500, Except Daytona/Hemi Sport Quad Cab/Ram Rumble Bee/SRT-10
2006 - 2010     Dodge, Ram 1500, All Styles
2003 - 2009     Dodge, Ram 2500, All Styles
2003 - 2009     Dodge, Ram 3500, All Styles
2011 - 2018     RAM, 1500, All Styles



Includes all necessary parts required to completely install all brake controls. No other parts are necessary. This Kit Retains use of 4-Flat Connector while also giving you a 7-Way RV Plug

Each Wiring Kit includes:

•   Plug and Play T-One Wiring Harness Connector
• 4-Way to 7-Way adapter w/ mounting bracket and screws
• Wiring Kit for 6 to 8 Brake Control Systems
• Includes 25 ft. 12-2 Duplex Wire
• (2) 30 Amp Circuit Breakers
• Attaching Terminals and Ring Connectors



Part Numbers	20252 85343 20506 7012A
Brand	Tekonsha
Warranty	1 Year
T-One Wiring Installation
4-Way to 7-Way Adapter Installation
Brake Control Wiring Installation



Towing Starter Kit Specs:

Part Number	21536
Brand	Reese
Fits	2" x 2" Trailer Hitch Receiver
Ball Size	2"
Ball Shank Dia.	1"
Ball-Mount Length	9" From Center of Pin Hole to Center of Ball Hole
Towing Capacity	6,000 lb Gross Towing Weight 600 lb Tongue Weight
Drop	2" From inside top of hitch opening
Rise	3/4" from top of inside of hitch opening
Ball-Mount Finish	Black Powdercoat
Ball Finish	Chrome (Cold forged for superior strength)
Warranty	Lifetime




Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.

For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.

Partial list of fitment years: 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023
