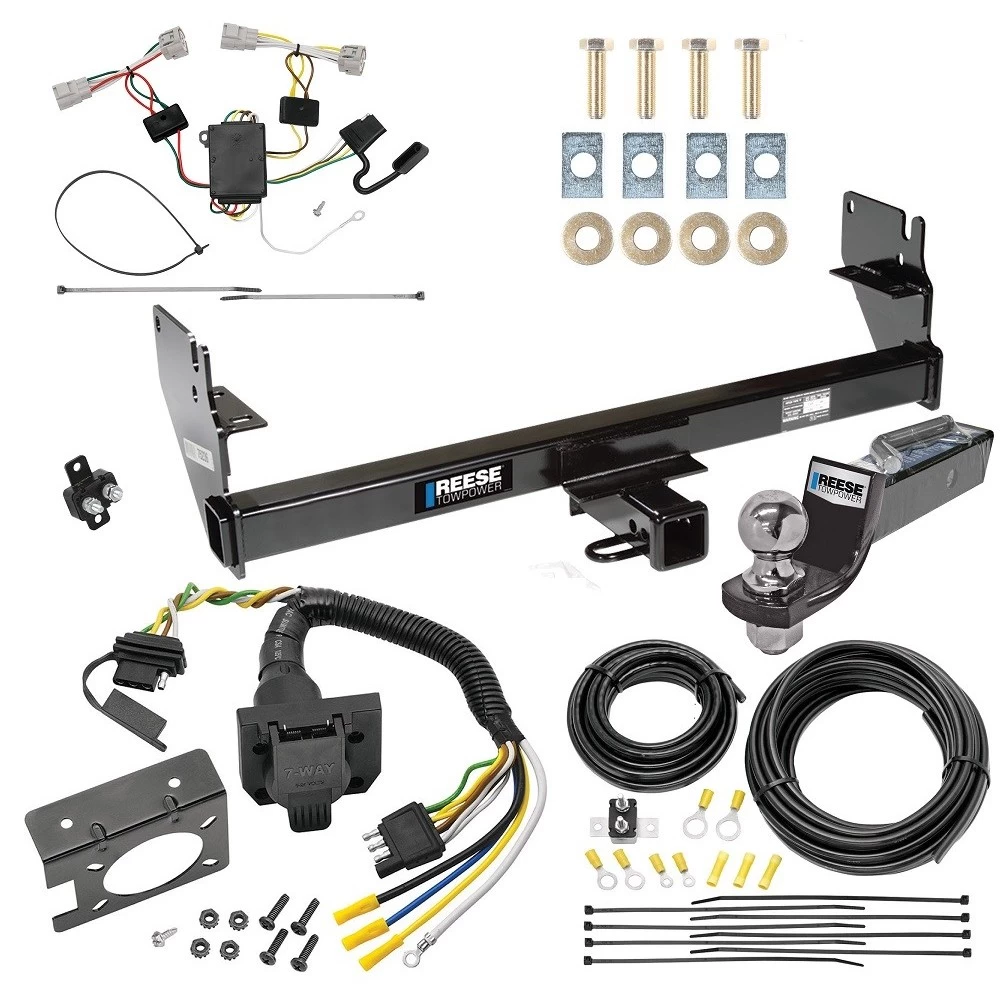

Trailer Hitch Tow Package w/ 7-Way RV Wiring For 05-15 Toyota Tacoma w/ 2" Drop Mount 2" Ball Class 3 2" Receiver Reese
Model: 44746 85343 20506 7012a 118496 21536Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Trailer Connector Adapter
Brake Control Wiring Kit
Circuit Breaker
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2005 - 2015 Toyota, Tacoma, Except X-Runner
Trailer Hitch Specs:
Includes all necessary parts required to completely install all brake controls. No other parts are necessary. This Kit Retains use of 4-Flat Connector while also giving you a 7-Way RV Plug
Each Wiring Kit includes:
- Plug and Play T-One Wiring Harness Connector
- 4-Way to 7-Way adapter w/ mounting bracket and screws
- Wiring Kit for 6 to 8 Brake Control Systems
- Includes 25 ft. 12-2 Duplex Wire
- (2) 30 Amp Circuit Breakers
- Attaching Terminals and Ring Connectors
Part Numbers | 118496 85343 20506 7012A |
Brand | Tekonsha |
Warranty | 1 Year |
T-One Wiring Installation |
![]() |
4-Way to 7-Way Adapter Installation |
![]() |
Brake Control Wiring Installation |
![]() |
Towing Starter Kit Specs:
Part Number | 21536 |
Brand | Reese |
Fits | 2" x 2" Trailer Hitch Receiver |
Ball Size | 2" |
Ball Shank Dia. | 1" |
Ball-Mount Length | 9" From Center of Pin Hole to Center of Ball Hole |
Towing Capacity | 6,000 lb Gross Towing Weight 600 lb Tongue Weight |
Drop | 2" From inside top of hitch opening |
Rise | 3/4" from top of inside of hitch opening |
Ball-Mount Finish | Black Powdercoat |
Ball Finish | Chrome (Cold forged for superior strength) |
Warranty | Lifetime |
Reese has been the leader in towing systems for more than 60 years. Over those years, much has changed within the industry with tow vehicles and their frames made lighter while the trailers have become heavier. The technology utilized yesterday can no longer be used in today’s world. Reese purchases metals from high quality steel mills with history of performance. Metals are routinely audited by third party labs for chemistry.
Partial list of fitment years: 05 06 07 08 09 10 11 12 13 14 15 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015
$370 05 $524.22 29% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$524.22 $370 05
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 44746 85343 20506 7012a 118496 21536
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Wiring Adapter, Trailer Brake Controller Installation Kit, Circuit Breaker, Trailer Tow Hitch Ball Mount Starter Kit
Compatibility Chart
Year Range | Make | Model | Style |
---|
Specification | |
Attachment Location | Rear |
Ball Mount Included | Yes |
Color | Black |
Drilling Required | No |
Gross Towing Weight | 5,000 lbs. |
Gross Towing Weight w/ Weight Distribution Kit | 5,500 lbs. |
Hitch Class | III |
Material | Steel |
Maximum Tongue Weight | 500 lbs. |
Maximum Tongue Weight w/ Weight Distribution Kit | 550 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 2 in. |
Receiver Type | Square Tube |
Ask a Question about Trailer Hitch Tow Package w/ 7-Way RV Wiring For 05-15 Toyota Tacoma w/ 2" Drop Mount 2" Ball Class 3 2" Receiver Reese
Be the first to ask a question.
Description
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Trailer Connector Adapter
Brake Control Wiring Kit
Circuit Breaker
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2005 - 2015 Toyota, Tacoma, Except X-Runner
Trailer Hitch Specs:
Includes all necessary parts required to completely install all brake controls. No other parts are necessary. This Kit Retains use of 4-Flat Connector while also giving you a 7-Way RV Plug
Each Wiring Kit includes:
- Plug and Play T-One Wiring Harness Connector
- 4-Way to 7-Way adapter w/ mounting bracket and screws
- Wiring Kit for 6 to 8 Brake Control Systems
- Includes 25 ft. 12-2 Duplex Wire
- (2) 30 Amp Circuit Breakers
- Attaching Terminals and Ring Connectors
Part Numbers | 118496 85343 20506 7012A |
Brand | Tekonsha |
Warranty | 1 Year |
T-One Wiring Installation |
![]() |
4-Way to 7-Way Adapter Installation |
![]() |
Brake Control Wiring Installation |
![]() |
Towing Starter Kit Specs:
Part Number | 21536 |
Brand | Reese |
Fits | 2" x 2" Trailer Hitch Receiver |
Ball Size | 2" |
Ball Shank Dia. | 1" |
Ball-Mount Length | 9" From Center of Pin Hole to Center of Ball Hole |
Towing Capacity | 6,000 lb Gross Towing Weight 600 lb Tongue Weight |
Drop | 2" From inside top of hitch opening |
Rise | 3/4" from top of inside of hitch opening |
Ball-Mount Finish | Black Powdercoat |
Ball Finish | Chrome (Cold forged for superior strength) |
Warranty | Lifetime |
Reese has been the leader in towing systems for more than 60 years. Over those years, much has changed within the industry with tow vehicles and their frames made lighter while the trailers have become heavier. The technology utilized yesterday can no longer be used in today’s world. Reese purchases metals from high quality steel mills with history of performance. Metals are routinely audited by third party labs for chemistry.
Partial list of fitment years: 05 06 07 08 09 10 11 12 13 14 15 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015
