Trailer Hitch Tow Package w/ 7-Way RV Wiring For 14-20 Acura MDX w/ 2" Drop Mount 2" Ball Class 4 2" Receiver

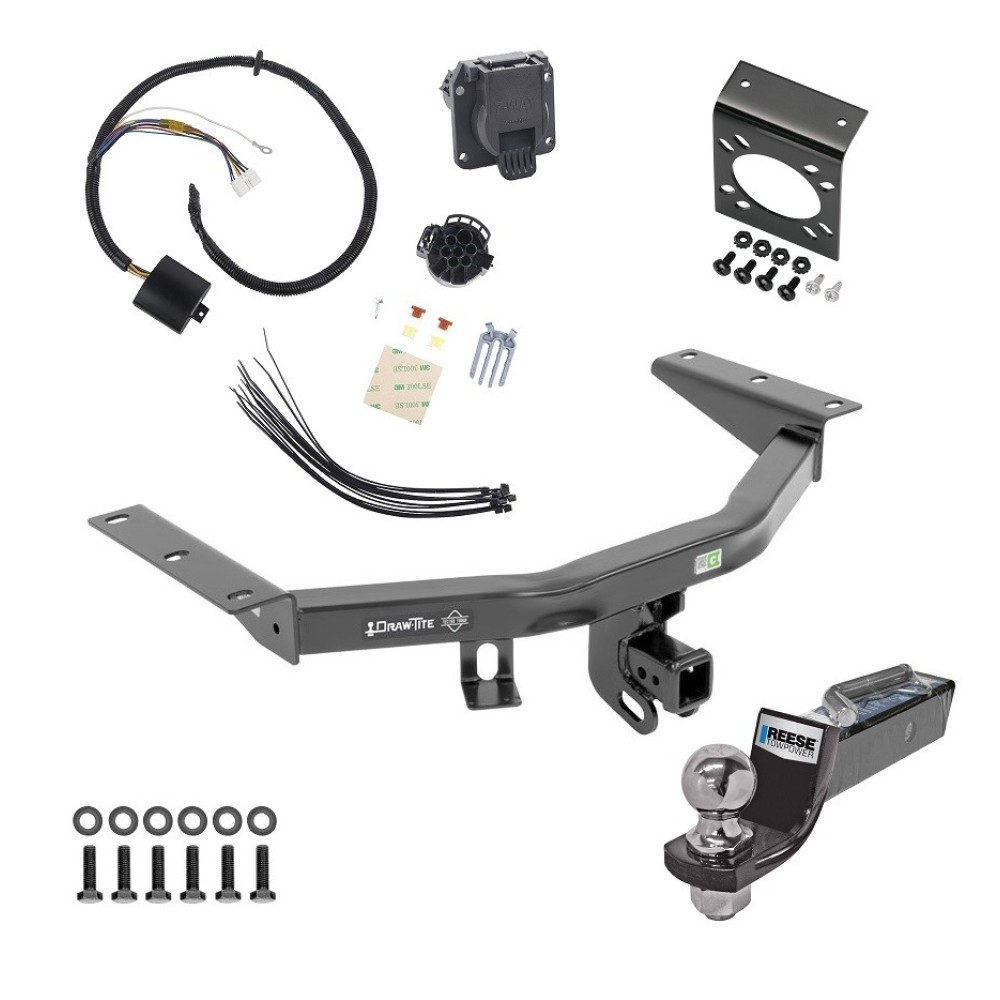

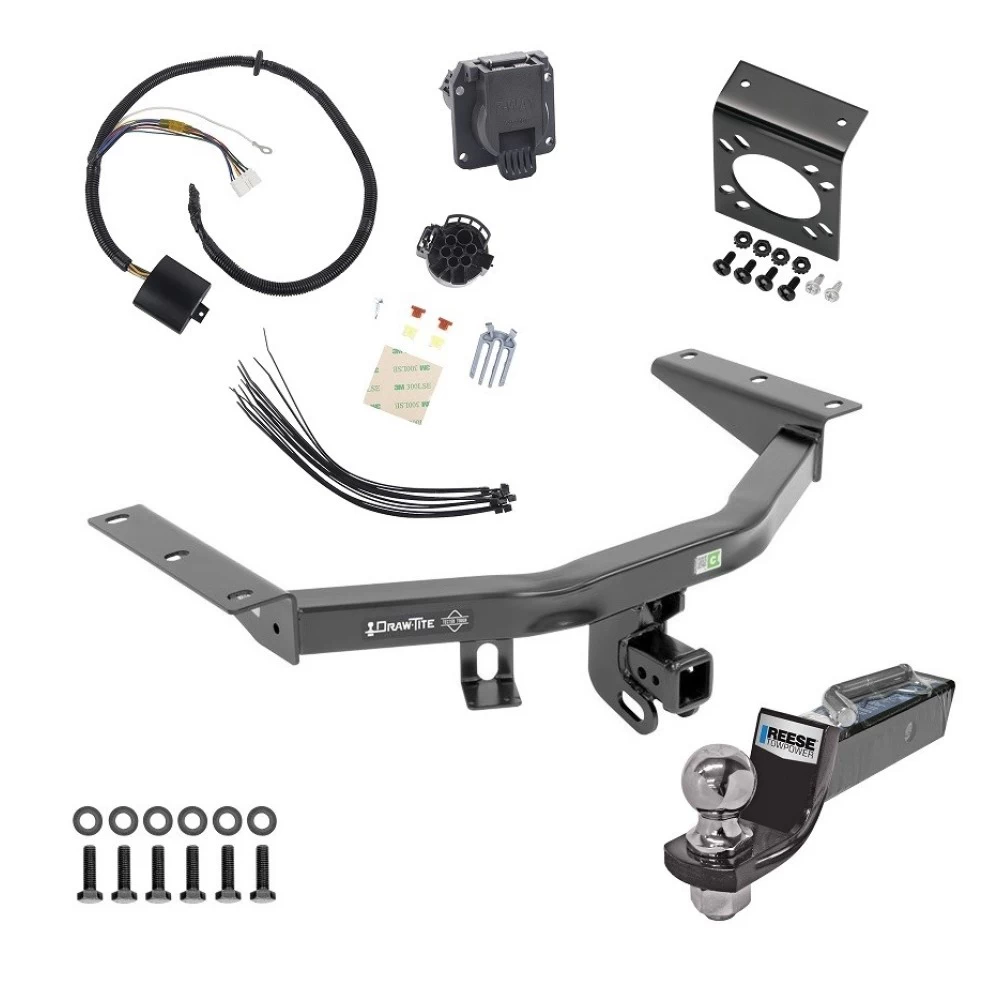

Includes Everything Pictured:
Custom Fit Trailer Hitch
Tow Harness Wiring Package (7-Way)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
7-Way Mounting Bracket
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2014 - 2020    Acura, MDX, Except w/Full Size Spare Tire

Trailer Hitch Specs:



Direct Plug & Play Wiring Kit

Part Number	118289
Brand	Tekonsha
Warranty	1 Year
Installation Instructions



7-Way Mount Bracket

Part Number	20212
Fits	7-Way Flat Pin Connectors
Brand	Tow Ready
Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging
Warranty	1 Year



Towing Starter Kit Specs:

Part Number	21536
Brand	Reese
Fits	2" x 2" Trailer Hitch Receiver
Ball Size	2"
Ball Shank Dia.	1"
Ball-Mount Length	9" From Center of Pin Hole to Center of Ball Hole
Towing Capacity	6,000 lb Gross Towing Weight 600 lb Tongue Weight
Drop	2" From inside top of hitch opening
Rise	3/4" from top of inside of hitch opening
Ball-Mount Finish	Black Powdercoat
Ball Finish	Chrome (Cold forged for superior strength)
Warranty	Lifetime




Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.

For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.

Partial list of fitment years: 14 15 16 17 18 19 20 2014 2015 2016 2017 2018 2019 2020
