Product Details
- Brand: Draw-Tite
- Model: 76021 85343 20506 7012a 118651 21536

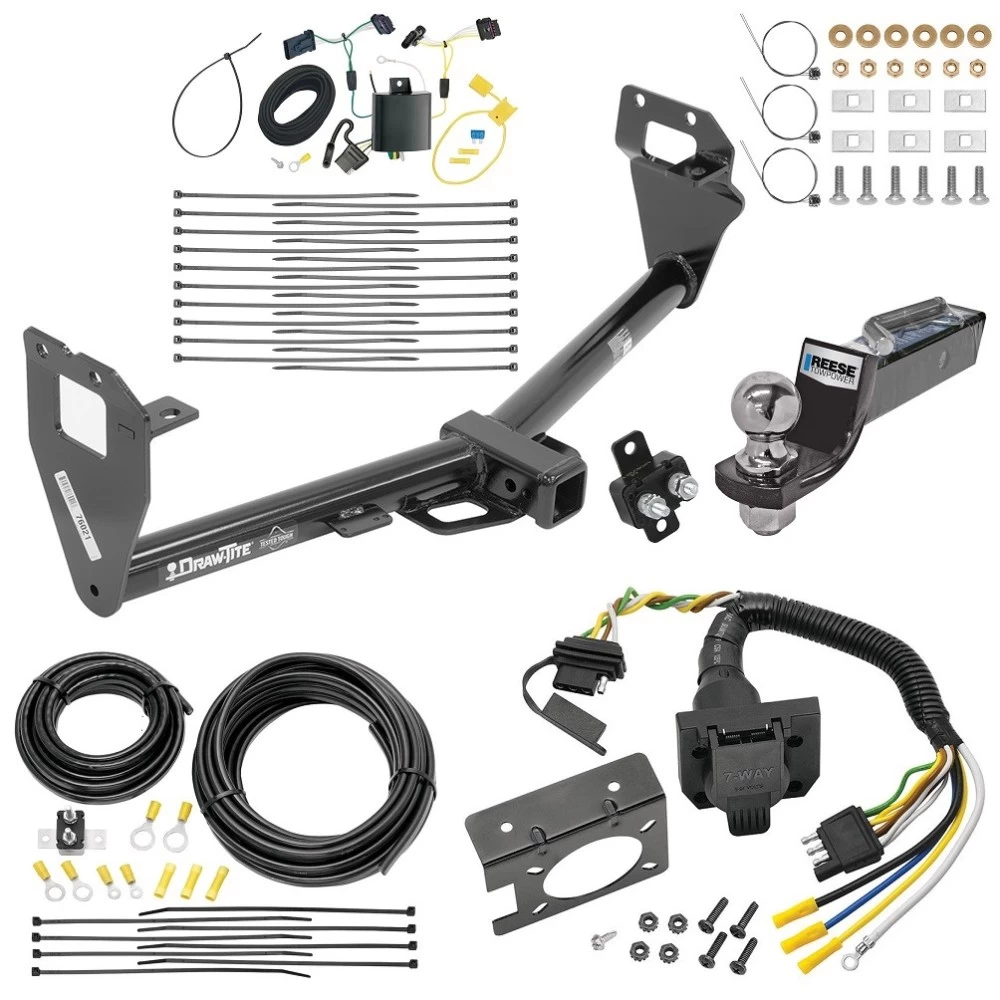

- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Wiring Adapter, Trailer Brake Controller Installation Kit, Circuit Breaker, Trailer Tow Hitch Ball Mount Starter Kit
Compatibility Chart
Description
Get Expert Help
Trailer Hitch Tow Package w/ 7-Way RV Wiring For 15-23 Jeep Renegade w/ 2" Drop Mount 2" Ball Class 3 2" Receiver All Models Install Notes
Installation Instructions for Jeep Renegade (2015-Current)
Part Numbers:
- 76021
- 84021
- CQT76021
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10mm, 13mm, 21mm, 3/4"
- Flat Head Screwdriver
- Phillips Screwdriver
- Utility Knife
- Drill with 1” Holesaw
- 6” Socket Extension
Wiring Access Location:
- [Information not provided]
Step-by-Step Instructions:
-
Loosen Wheel Well Fender:
- Use a Phillips screwdriver and a 10mm socket to remove (4) bolts and (1) plastic flange nut from the wheel well fender on the passenger side.
-
Remove Rubber Plugs:
- Use a flat head screwdriver to remove (1) plug from the bottom frame rail and (2) plugs from the outside frame rail on each side.
Note: For models with a factory tow hook, use a 21mm socket to remove the M14 bolts in these locations. Retain bolts for reinstallation and skip Step 3.
-
Drill Access Holes for Fasteners:
- Locate the area between the exhaust hanger bracket and the suspension mount on the frame rail.
- Use a 1” holesaw to drill an access hole on each side.
- Use pliers to bend the heat shield edge down, if necessary.
-
Lower Exhaust and Clear Caulk:
- Use a 13mm socket to remove (1) bolt from the exhaust hanger on each side and lower the muffler temporarily.
- Support the muffler to prevent damage.
- Use a utility knife to remove caulk near mounting holes and slightly bend the heat shield edge down on each side.
-
Install Hitch:
- Fishwire the carriage bolts and spacers into the frame through the drilled holes. Leave pull wires attached.
- Raise the hitch into position and carefully slide it over the exhaust hanger.
- Feed pull wires through bracket holes, remove pull wires, and loosely install conical washers and hex nuts.
- For models with a factory tow hook, loosely secure the factory M14 bolts to the hitch attachment holes.
-
Tighten Fasteners:
- Torque all 1/2" fasteners to 75 lb-ft (102 N·m).
- Torque all M14 fasteners to 115 lb-ft (156 N·m).
-
Reinstall Components:
- Reinstall the exhaust hanger and all fasteners removed from the wheel well fender in Steps 1 and 4.
Hardware List:
- (6) 1/2”-13 x 1.75” Grade 5 Carriage Bolts
- (6) .250 x 1.0 x 2.0 Spacer Blocks
- (6) 1/2" Conical Washers
- (6) 1/2”-13 Grade 5 Hex Nuts
- (6) 1/2”-13 Pull Wires
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
- Weight Distributing: [Information not provided].
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation time is approximately 40 minutes for a professional installer.
- Contact a professional installer if you are not comfortable performing the installation.
Installation Instructions for T-One® T-Connector for Jeep Renegade
Part Numbers:
- 118651
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Open the Rear Tailgate:
- Remove the threshold, trunk floor panels, and trays. Set aside all items carefully to avoid damage.
-
Remove Interior Trim Panels:
- On the driver and passenger sides, remove access panels to locate the rear of the taillight assemblies.
- Partially remove the interior trim panels to expose the taillight wiring harness.
-
Locate the Vehicle’s Wiring Harness:
- Locate the wiring harness in the trim panel area behind the taillight assembly. Ensure the connection points match the T-One® T-Connector ends.
-
Install the Driver-Side T-Connector:
- On the driver’s side, separate the vehicle wiring connectors without damaging the locking tabs.
- Insert the T-One® T-Connector end with the yellow wire between the vehicle wiring connectors and secure it.
-
Route and Connect the Passenger-Side T-Connector:
- Route the T-One® T-Connector end with the green wire below the threshold cover to the passenger side.
- Repeat Step 4 for the passenger-side wiring harness.
-
Ground the White Wire:
- Locate a suitable grounding point on the driver’s side.
- Drill a 3/32” hole and secure the white wire with the provided eyelet and screw.
Caution: Verify the surface before drilling to avoid vehicle damage or personal injury.
-
Mount the Black Box:
- Locate a flat surface near the rear interior area and mount the T-One® T-Connector’s black box with the provided double-sided tape.
-
Route the Power Wire:
- Connect the black 12-gauge wire from the T-One® T-Connector black box to the provided black wire using a yellow butt connector.
- Route the black wire through a grommet and along the exterior frame or follow the existing wiring to the engine compartment up to the battery.
Warning: Avoid hot pipes, heat shields, and the fuel tank when routing the wire.
-
Connect to the Vehicle Battery:
- Disconnect the negative (-) battery cable.
- Attach the fuse holder’s ring terminal to the positive (+) battery cable.
- Connect the other end of the fuse holder to the black power wire using a yellow butt connector.
- Insert the 15-amp fuse into the fuse holder.
-
Reconnect the Battery:
- Reconnect the vehicle’s negative (-) battery cable.
- Test the installation with a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
-
Secure the Wiring:
- Use cable ties to secure the T-One® T-Connector harness, avoiding areas that may pinch, cut, or melt the wires.
-
Reassemble the Vehicle:
- Replace all trim panels, threshold, storage covers, and floor covering removed during installation. Ensure no wires are pinched.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the rear cargo area when not in use.
Specifications:
- Max. stop/turn light: 4.2 amps per side
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow all safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual for additional information.
- Store these instructions for future reference.
Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring
Tools Required:
- Phillips Head Screwdriver
- Drill with 3/32" Drill Bit
- 10mm Socket & Ratchet or Wrench
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Cable Ties
Part 1: Install the 4-Way to 7-Way Adapter
Step-by-Step Instructions:
-
Mount the Adapter:
- Choose a suitable mounting point on the vehicle, typically near the hitch.
- Use the provided bracket and screws to secure the adapter.
-
Connect the 4-Flat Plug:
- Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
- This connection enables tail lights, left turn, and right turn signals.
-
Ground the Adapter:
- Locate a clean, solid grounding point near the adapter.
- Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.
-
Leave Additional Wires Disconnected:
- The following wires will remain disconnected until Part 2:
- Black Wire: Power from the battery.
- Blue Wire: Brake control output.
- Yellow Wire: Reverse light (optional; leave disconnected unless needed).
- The following wires will remain disconnected until Part 2:
-
Test Initial Connection:
- Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).
Part 2: Install Brake Control Wiring
Step-by-Step Instructions:
-
Mount Circuit Breakers:
- Install two 30A circuit breakers on the firewall or another suitable location near the battery.
- Use self-tapping screws to mount them securely.
-
Route Power Wires:
- Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
- Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
- Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).
-
Install the Brake Controller:
- Mount the brake controller under the dash on a firm surface.
- Use the following connections:
- Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
- Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
- White Wire: Connect to a solid ground point on the vehicle body.
- Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).
-
Optional: Connect Reverse Light Circuit:
- If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.
-
Reconnect the Battery:
- Reattach the negative battery cable and ensure all connections are secure.
- Insert the fuses into both circuit breakers.
-
Secure All Wires:
- Use cable ties to secure all loose wires and prevent damage or rattling.
-
Test the System:
- Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
- If applicable, test the reverse light circuit.
Notes:
- Most installations will only require connecting the black and blue wires from the 7-way adapter.
- Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
- Always adhere to safety guidelines and verify all connections before use.
Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.
