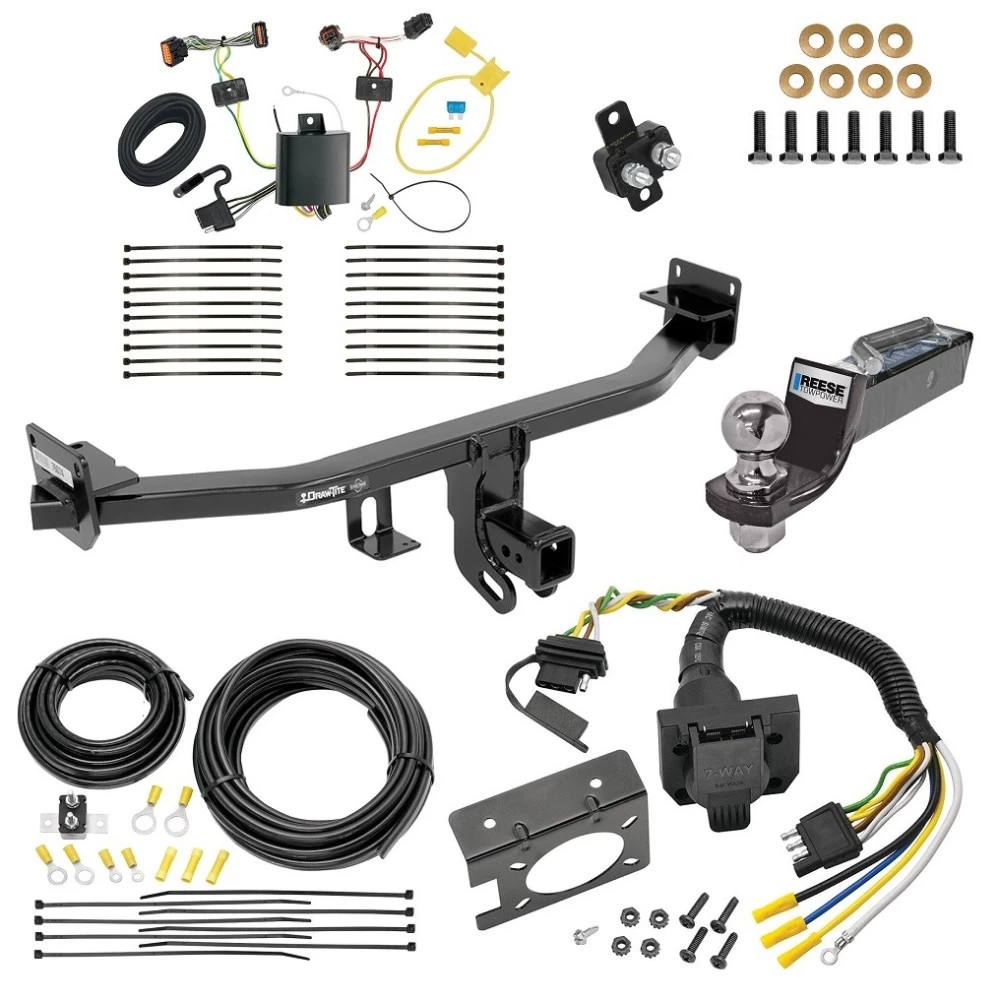

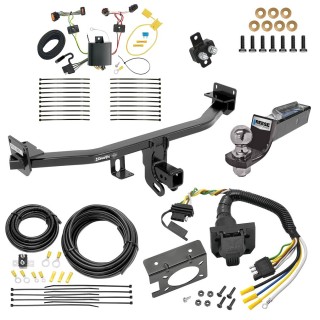

Installation Instructions for Trailer Hitch Models #76074, #84074, and #CQT76074

Part Numbers:

• 76074
• 84074
• CQT76074

Applications:

• Years: 2017-Current
• Make and Models: Kia Sportage

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 17 mm
• Flat Head Screwdriver
• Adjustable Wrench
• Exhaust Removal Pliers
• 6" Socket Extension

Step-by-Step Instructions:

1. Lower Muffler:

• Lower the muffler by removing the (2) rearmost rubber hangers.
• Spray a lubricant on the rubber hangers to make removal easier.
• Note: Ensure the exhaust is supported before removing the rubber hangers.

2. Remove Underbody Appearance Panels (If Present):

• Remove (2) plastic underbody panels, one on each side, located under the rear bumper and behind the rear wheels.
• Use a standard screwdriver to remove the plastic push rivets, then pull down to detach the panels.
• Set the panels aside for later reinstallation.

3. Raise Hitch into Position:

• Lift the hitch over the tailpipe(s) and align the holes in the hitch with the existing weldnuts in the frame rail.

4. Install Fasteners:

• Install (7) M10 bolts and conical toothed washers as required.

5. Tighten Fasteners:

• Torque all M10 CL10.9 fasteners to 42 lb-ft (57 N·m).

6. Raise Muffler:

• Raise the muffler back into position and reattach the rubber hangers, one on each side.

7. Modify Exhaust Hangers (If Necessary):

• If additional clearance is required between the muffler and hitch, bend the (2) metal exhaust hanger rods downward, one on each side.

8. Reinstall Plastic Appearance Panels (If Present):

• Using the existing fasteners, reinstall the (2) plastic appearance panels removed in Step 2.

Hardware List:

• 7 × M10 × 1.25 × 30 mm CL10.9 Bolts
• 7 × 3/8" Conical Toothed Washers

Safety Notes:

• Always wear safety glasses during installation.
• Periodically check the hitch to ensure all fasteners and the hitch ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Damaged hitches or balls should be removed and replaced.
• Do not cut access or attachment holes with a torch.

Specifications:

• Max Gross Trailer Weight (Weight Carrying/Weight Distributing): 4,500 lbs (2,043 kg)
• Max Tongue Weight (Weight Carrying/Weight Distributing): 675 lbs (306 kg)
• Installation Time: Approximately 25 minutes

This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

This hitch comes with a limited warranty covering defects in material and workmanship for the duration specified. For complete warranty instructions, please download the full installation PDF.

Installation Instructions for T-One® T-Connector for Kia Sportage

Part Numbers:

• 118698

Tools Required:

• Trim Panel Remover
• Drill (3/32” Drill Bit)
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Remove the Driver-Side Taillight:

   • Open the rear hatch.
   • Remove the two screws holding the driver-side taillight assembly.
   • Pull the taillight housing directly rearward to remove it.
   • Set the taillight housing aside.

2. Access the Underbody Panel:

   • Underneath the rear of the vehicle on the driver’s side, locate the plastic appearance panel.
   • Use a trim panel puller to remove the clips holding it in place.
   • Remove the plastic nuts to take off the panel and set it aside.

3. Locate the Vehicle’s Wiring Harness:

   • Underneath the rear of the vehicle on the driver’s side, locate the wiring harness.
   • Disconnect the connector carefully to avoid damaging the locking tabs.
   • Ensure all connector surfaces are clean and free of dirt.

4. Connect the T-One® Harness:

   • Plug the T-Connector with the yellow and green wires into the vehicle’s matching connector.
   • Ensure all connections are fully inserted and the locking tabs are secure.

5. Ground the White Wire:

   • Find a suitable grounding point near the connector.
   • Clean the area to remove dirt and rustproofing.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution: Verify what is behind the surface before drilling to avoid damage or injury.

6. Route the T-Connector to the Taillight Pocket:

   • Route the T-Connector with the red and brown wires up to the driver’s side taillight pocket.
   • Plug the T-Connector into the vehicle’s mating connectors.
   • Ensure all connectors are fully inserted with locking tabs in place.
   • Reassemble the taillight assembly.

7. Connect the Power Wire:

   • On the driver’s side, locate the black 12-gauge power wire from the T-One® Connector box.
   • Attach the provided black wire and route it along the vehicle’s frame to the engine compartment, avoiding areas that may pinch or damage the wire.

   Warning: Avoid routing near hot pipes, heat shields, or the fuel tank.

8. Connect to the Vehicle Battery:

   • Disconnect the vehicle’s Negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder.
   • Attach the ring terminal to the Positive (+) battery cable and secure it.
   • Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.

9. Reconnect the Battery and Test:

   • Reconnect the Negative (-) battery cable.
   • Insert the 15-amp fuse into the fuse holder.
   • Test the installation using a test light or trailer.

10. Mount the Black Box Module:

    • Find a flat surface in an out-of-the-way location and mount the black box to prevent damage or rattling.

11. Secure the Wiring Harness:

    • Use the provided cable ties to secure the harness, avoiding areas that may pinch, cut, or melt the wire.

12. Replace the Appearance Panel:

    • Reinstall the appearance panel and any clips removed during installation.

13. Route the 4-Flat Connector:

    • Route the 4-flat harness to the center of the vehicle.
    • Mount the 4-flat end in an accessible location using a bracket or electrical box (not included).

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit
• 10mm Socket & Ratchet or Wrench
• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Cable Ties

Part 1: Install the 4-Way to 7-Way Adapter

Step-by-Step Instructions:

1. Mount the Adapter:

   • Choose a suitable mounting point on the vehicle, typically near the hitch.
   • Use the provided bracket and screws to secure the adapter.

2. Connect the 4-Flat Plug:

   • Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
   • This connection enables tail lights, left turn, and right turn signals.

3. Ground the Adapter:

   • Locate a clean, solid grounding point near the adapter.
   • Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.

4. Leave Additional Wires Disconnected:

   • The following wires will remain disconnected until Part 2:
     • Black Wire: Power from the battery.
     • Blue Wire: Brake control output.
     • Yellow Wire: Reverse light (optional; leave disconnected unless needed).

5. Test Initial Connection:

   • Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).

Part 2: Install Brake Control Wiring

Step-by-Step Instructions:

1. Mount Circuit Breakers:

   • Install two 30A circuit breakers on the firewall or another suitable location near the battery.
   • Use self-tapping screws to mount them securely.

2. Route Power Wires:

   • Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
   • Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
   • Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).

3. Install the Brake Controller:

   • Mount the brake controller under the dash on a firm surface.
   • Use the following connections:
     • Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
     • Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
     • White Wire: Connect to a solid ground point on the vehicle body.
     • Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).

4. Optional: Connect Reverse Light Circuit:

   • If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.

5. Reconnect the Battery:

   • Reattach the negative battery cable and ensure all connections are secure.
   • Insert the fuses into both circuit breakers.

6. Secure All Wires:

   • Use cable ties to secure all loose wires and prevent damage or rattling.

7. Test the System:

   • Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
   • If applicable, test the reverse light circuit.

Notes:

• Most installations will only require connecting the black and blue wires from the 7-way adapter.
• Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
• Always adhere to safety guidelines and verify all connections before use.

Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.
