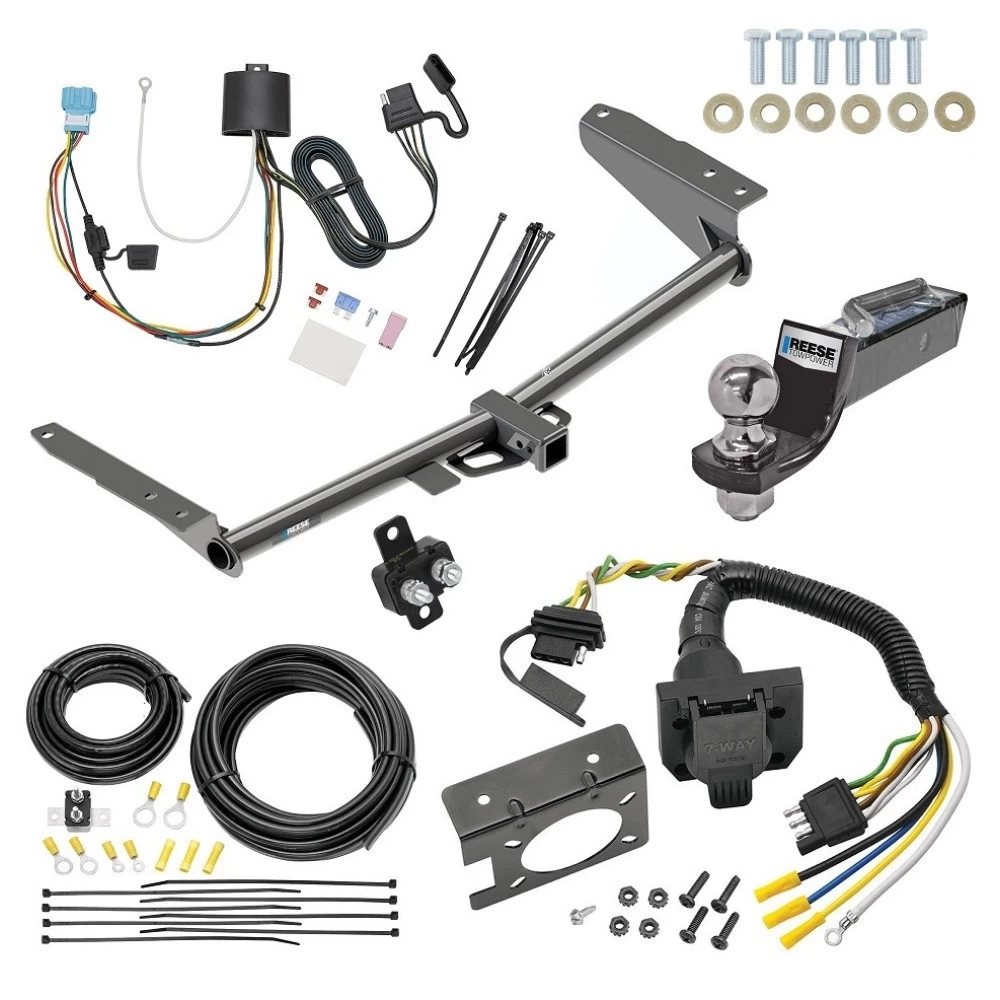

Trailer Hitch Tow Package w/ 7-Way RV Wiring For 18-24 Honda Odyssey w/ 2" Drop Mount 2" Ball Class 3 2" Receiver Reese Install Notes
Installation Instructions for Trailer Hitch
Part Numbers:
- 76171
- 84171
- CQT76171
Applications:
- Years: 2018-Current
- Make and Models: Honda Odyssey
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10 mm, 19 mm
- 6" Socket Extension
- Panel Removal Tool
- Phillips Screwdriver
- Utility Knife
- Exhaust Removal Pliers
- Tape
Step-by-Step Instructions:
1. Remove Mud Flap and Bottom Appearance Panels:
- Remove the mud flap on the driver side if present.
- Use a Phillips screwdriver, panel removal tool, and 10 mm socket to remove (4) rivets and (2) screws from the bottom appearance panel on the driver side.
- Use the panel removal tool to remove (2) rivets from the small plastic panel above the exhaust tip on the passenger side.
- Retain all fasteners and panels for reinstallation.
2. Lower Exhaust Pipe:
- Use exhaust removal pliers to lower the exhaust pipe on the passenger side temporarily.
- Use a support or bungee cord to prevent damage to the muffler.
3. Install Hitch:
- Raise the hitch into position and carefully slide it over the passenger-side exhaust pipe first.
- Loosely install M12 bolts and conical washers into the hitch.
4. Tighten Fasteners:
- Tighten all M12 fasteners with a torque wrench to 76 lb-ft (103 N·m).
5. Trim Bottom Appearance Panel:
- Trim the bottom appearance panel as shown in the provided diagram.
6. Reinstall Components:
- Reinstall all fasteners, exhaust, appearance panels, and mud flaps removed in Steps 1 and 2.
Hardware List:
- 6 × Conical Washers (1/2”)
- 6 × M12 Bolts (1.25 × 35 mm, CL8.8)
Safety Notes:
- Always wear safety glasses during installation.
- Proper torque is essential to secure the hitch to the vehicle.
- Check the hitch frequently to ensure all fasteners and the hitch ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball before use.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight (Weight Carrying): 4,500 lbs (2,043 kg)
- Max Tongue Weight (Weight Carrying): 675 lbs (306 kg)
- Max Gross Trailer Weight (Weight Distributing): 5,000 lbs (2,270 kg)
- Max Tongue Weight (Weight Distributing): 675 lbs (306 kg)
- Installation Time: Approximately 25 minutes
This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-One® T-Connector for Honda Odyssey
Part Numbers:
- 118781
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or 10mm Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Access the Trailer Wiring Harness:
- Open the rear hatch and push forward the rear seat.
- Temporarily remove the vehicle’s access panel on the passenger side to gain access to the vehicle’s trailer wiring harness.
-
Locate the Blue Tow Plug:
- Open the access panel inside the storage compartment to locate the blue tow plug taped to the vehicle wiring harness.
- Insert the tow plug into the connector, ensuring not to damage the locking tabs. Confirm the connectors are fully inserted with locking tabs in place.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle’s frame or crossmember.
- Clean the area of dirt and rustproofing.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution: Verify what is behind the surface before drilling to avoid damage or injury.
-
Mount the Black Box:
- On the driver’s side, mount the T-One® Connector black box using the provided double-sided tape.
- Secure the remainder of the T-One® Connector harness with the provided cable ties to avoid damage or rattling.
-
Install Fuses:
- Locate the fuse box inside the driver’s side access panel.
- Install the provided 30-amp Slo-Blo fuse into position #12 and the two provided 7.5-amp mini fuses into positions #10 and #11.
-
Secure the Wiring Harness:
- Use the provided cable ties to secure the wiring harness, avoiding areas that may pinch, cut, or melt the wire.
-
Route the 4-Flat Connector:
- Near the access panel, push the trim panel out slightly and route the 4-flat connector to the cargo area under the trim panel.
Note: Store the 4-flat connector in the rear cargo area when not in use.
-
Test and Verify Installation:
- Ensure all connections are complete for the T-One® Connector to function properly.
- Test the installation using a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow all safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring
Tools Required:
- Phillips Head Screwdriver
- Drill with 3/32" Drill Bit
- 10mm Socket & Ratchet or Wrench
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Cable Ties
Part 1: Install the 4-Way to 7-Way Adapter
Step-by-Step Instructions:
-
Mount the Adapter:
- Choose a suitable mounting point on the vehicle, typically near the hitch.
- Use the provided bracket and screws to secure the adapter.
-
Connect the 4-Flat Plug:
- Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
- This connection enables tail lights, left turn, and right turn signals.
-
Ground the Adapter:
- Locate a clean, solid grounding point near the adapter.
- Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.
-
Leave Additional Wires Disconnected:
- The following wires will remain disconnected until Part 2:
- Black Wire: Power from the battery.
- Blue Wire: Brake control output.
- Yellow Wire: Reverse light (optional; leave disconnected unless needed).
- The following wires will remain disconnected until Part 2:
-
Test Initial Connection:
- Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).
Part 2: Install Brake Control Wiring
Step-by-Step Instructions:
-
Mount Circuit Breakers:
- Install two 30A circuit breakers on the firewall or another suitable location near the battery.
- Use self-tapping screws to mount them securely.
-
Route Power Wires:
- Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
- Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
- Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).
-
Install the Brake Controller:
- Mount the brake controller under the dash on a firm surface.
- Use the following connections:
- Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
- Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
- White Wire: Connect to a solid ground point on the vehicle body.
- Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).
-
Optional: Connect Reverse Light Circuit:
- If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.
-
Reconnect the Battery:
- Reattach the negative battery cable and ensure all connections are secure.
- Insert the fuses into both circuit breakers.
-
Secure All Wires:
- Use cable ties to secure all loose wires and prevent damage or rattling.
-
Test the System:
- Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
- If applicable, test the reverse light circuit.
Notes:
- Most installations will only require connecting the black and blue wires from the 7-way adapter.
- Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
- Always adhere to safety guidelines and verify all connections before use.
Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.
