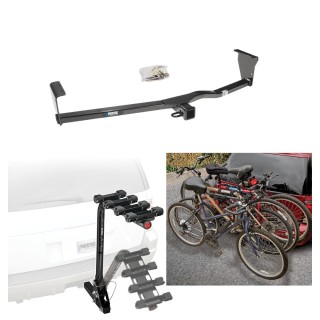

Trailer Hitch w/ 4 Bike Rack For 11‑13 Kia Sorento 10‑12 Hyundai Santa Fe Approved for Recreational & Offroad Use Carrier for Adult Woman or Child Bicycles Foldable
Model: 44639 63124Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Pro Series Eclipse 4 Bike Rack Carrier Foldable Approved for Trailers RVs Trucks SUV Offroad 2" Receivers
Traditional, sport, mountain, racing, men's and women's; no matter the type of bike being transported, Pro Series offers a wide variety of bike carriers to fit your needs Designed with stylish function, these carriers have everything you would expect from an industry leader.
This Hitch and Bike Rack Fits The Following Vehicles:
2010 - 2012 Hyundai, Santa Fe, All Styles
2011 - 2013 KIA, Sorento, All Styles
Trailer Hitch Specs:
Bike Carrier Specs:
Part Number | 63124 |
Brand |
Pro Series |
Finish |
Black Powder Coat |
Capacity | 120 lbs |
Carrying Amount |
4 Bikes |
Fits | 2" Receiver |
Warranty | 1 Year |
Install Intructions | ![]() |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 10 11 12 13 2010 2011 2012 2013
$318 30 $631.11 50% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$631.11 $318 30
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $79.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 44639 63124
- Includes: Class 3 Trailer Tow Hitch, Eclipse Trailer Tow Hitch Bike Carrier
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Specification | |
Attachment Location | Rear |
Ball Mount Included | No |
Color | Black |
Drilling Required | No |
Gross Towing Weight | 3,500 lbs. |
Gross Towing Weight w/ Weight Distribution Kit | 5,000 lbs. |
Hitch Class | III |
Material | Steel |
Maximum Tongue Weight | 350 lbs. |
Maximum Tongue Weight w/ Weight Distribution Kit | 500 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 2 in. |
Receiver Type | Square Tube |
Be the first to ask a question.
Description
Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Pro Series Eclipse 4 Bike Rack Carrier Foldable Approved for Trailers RVs Trucks SUV Offroad 2" Receivers
Traditional, sport, mountain, racing, men's and women's; no matter the type of bike being transported, Pro Series offers a wide variety of bike carriers to fit your needs Designed with stylish function, these carriers have everything you would expect from an industry leader.
This Hitch and Bike Rack Fits The Following Vehicles:
2010 - 2012 Hyundai, Santa Fe, All Styles
2011 - 2013 KIA, Sorento, All Styles
Trailer Hitch Specs:
Bike Carrier Specs:
Part Number | 63124 |
Brand |
Pro Series |
Finish |
Black Powder Coat |
Capacity | 120 lbs |
Carrying Amount |
4 Bikes |
Fits | 2" Receiver |
Warranty | 1 Year |
Install Intructions | ![]() |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 10 11 12 13 2010 2011 2012 2013
Get Expert Help
Trailer Hitch w/ 4 Bike Rack For 11-13 Kia Sorento 10-12 Hyundai Santa Fe Approved for Recreational & Offroad Use Carrier for Adult Woman or Child Bicycles Foldable Install Notes
Installation Instructions for Hyundai Santa Fe and Kia Sorento
Part Numbers:
- 75684
- 87574
- 44639
Tools Required:
- Wrenches: 16mm
- Drill Bits: None
Wiring Access Location:
- Hyundai Santa Fe: SUV3, SUV4
- Kia Sorento: SUV7
Step-by-Step Instructions:
-
Raise the Vehicle:
- Elevate the vehicle on ramps, a hoist, or jack stands for easier access to the frame.
-
Position the Hitch:
- Raise the hitch into position, aligning it with the existing weldnuts in the vehicle frame.
-
Install Fasteners:
- Secure the hitch using four (4) M10 x 1.25 x 30mm hex bolts and four (4) 7/16” conical toothed washers.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M10 x 1.25 CL10.9 fasteners to 59 lb-ft (80 N·m).
Hardware List:
- (4) M10 x 1.25 x 30mm CL10.9 Hex Bolts
- (4) 7/16” Conical Toothed Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
