Trailer Hitch w/ 4 Bike Rack For 11‑24 Mitsubishi Outlander Approved for Recreational & Offroad Use Carrier for Adult Woman or Child Bicycles Foldable

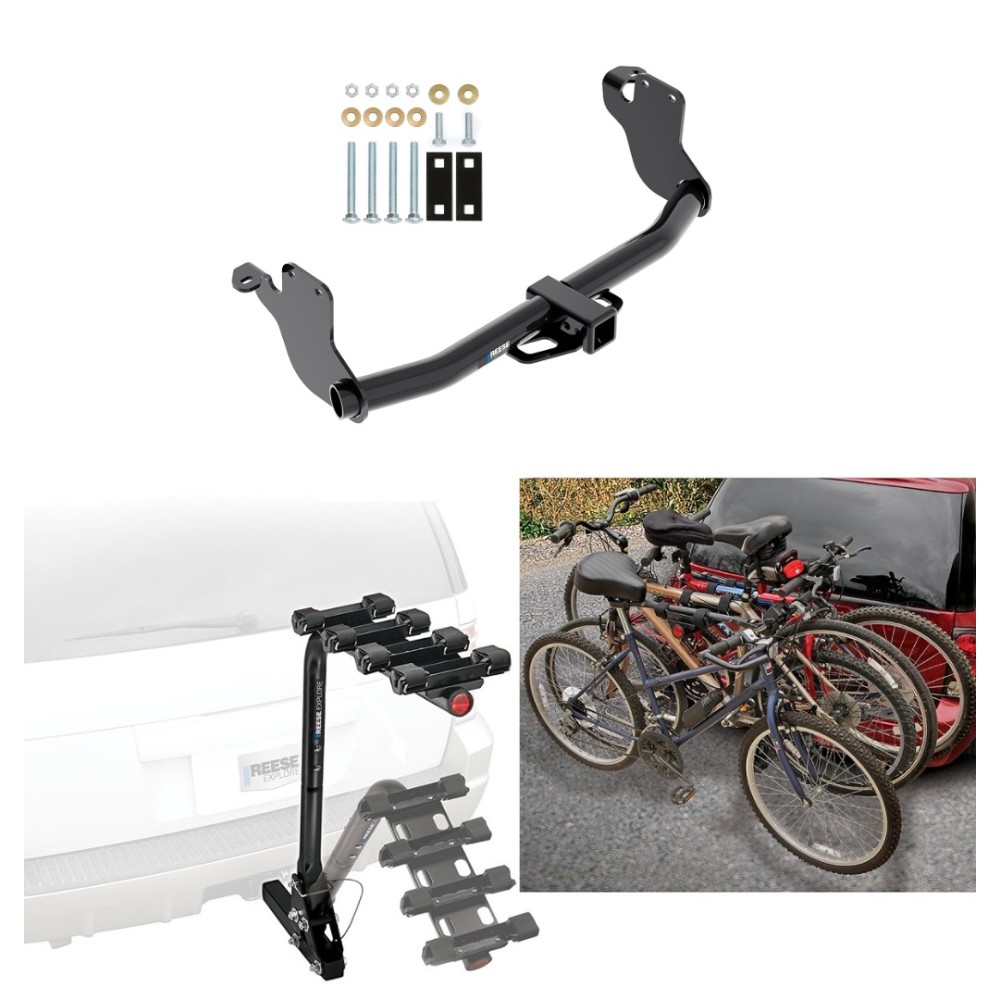

Model: 84098 63124Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Pro Series Eclipse 4 Bike Rack Carrier Foldable Approved for Trailers RVs Trucks SUV Offroad 2" Receivers
Traditional, sport, mountain, racing, men's and women's; no matter the type of bike being transported, Pro Series offers a wide variety of bike carriers to fit your needs Designed with stylish function, these carriers have everything you would expect from an industry leader.
This Hitch and Bike Rack Fits The Following Vehicles:
2011 - 2024 Mitsubishi, Outlander, Only Sport
2011 - 2024 Mitsubishi, RVR, (Canada Only)

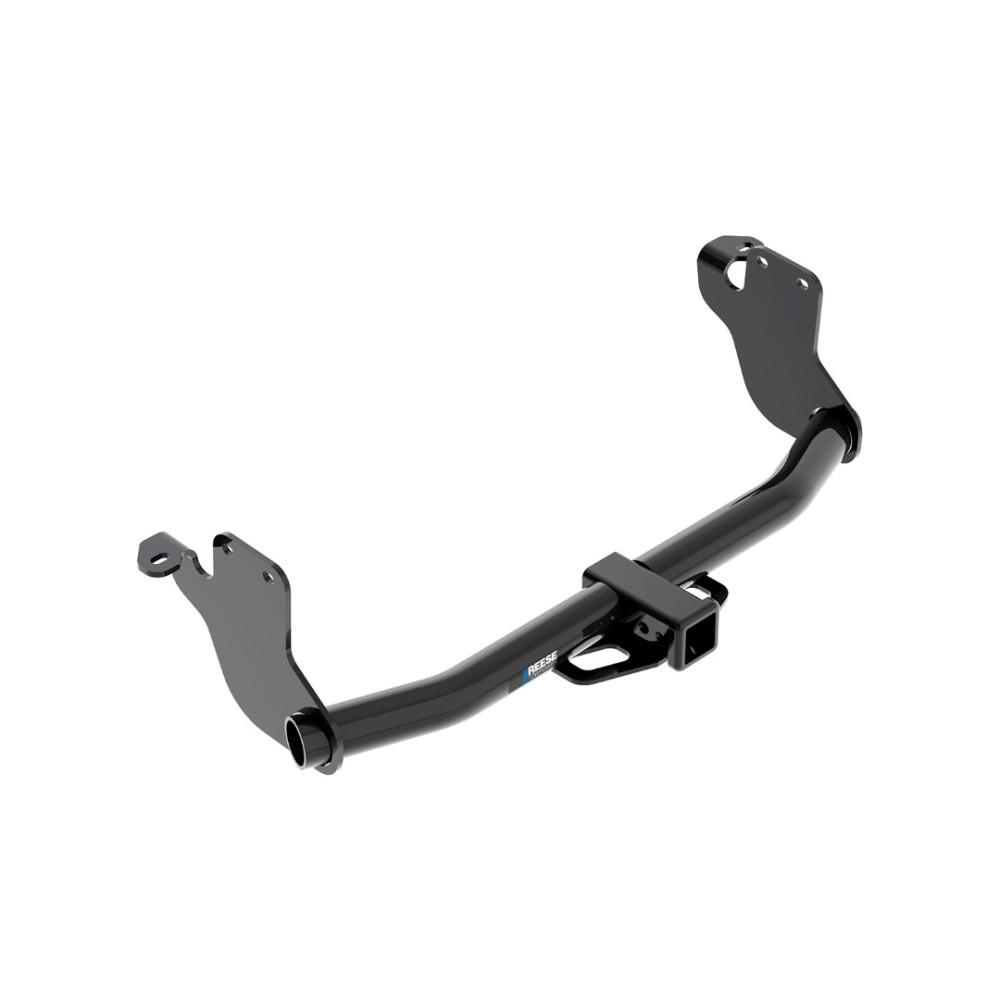

Trailer Hitch Specs:
| Part Number | 84098 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | 6,000 lbs |
| Max Tongue Weight | 675/750 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Bike Carrier Specs:
| Part Number | 63124 |
| Brand |
Pro Series |
| Finish |
Black Powder Coat |
| Capacity | 120 lbs |
| Carrying Amount |
4 Bikes |
| Fits | 2" Receiver |
| Warranty | 1 Year |
| Install Intructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 11 12 13 14 15 16 17 18 19 20 21 22 23 24 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
$309 44 $589.88 48% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$589.88 $309 44
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $77.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 84098 63124
- Includes: Class 3 Trailer Tow Hitch, Eclipse Trailer Tow Hitch Bike Carrier
Compatibility Chart
Description
Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Pro Series Eclipse 4 Bike Rack Carrier Foldable Approved for Trailers RVs Trucks SUV Offroad 2" Receivers
Traditional, sport, mountain, racing, men's and women's; no matter the type of bike being transported, Pro Series offers a wide variety of bike carriers to fit your needs Designed with stylish function, these carriers have everything you would expect from an industry leader.
This Hitch and Bike Rack Fits The Following Vehicles:
2011 - 2024 Mitsubishi, Outlander, Only Sport
2011 - 2024 Mitsubishi, RVR, (Canada Only)
Trailer Hitch Specs:
| Part Number | 84098 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | 6,000 lbs |
| Max Tongue Weight | 675/750 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Bike Carrier Specs:
| Part Number | 63124 |
| Brand |
Pro Series |
| Finish |
Black Powder Coat |
| Capacity | 120 lbs |
| Carrying Amount |
4 Bikes |
| Fits | 2" Receiver |
| Warranty | 1 Year |
| Install Intructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 11 12 13 14 15 16 17 18 19 20 21 22 23 24 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
Get Expert Help
Trailer Hitch w/ 4 Bike Rack For 11-24 Mitsubishi Outlander Approved for Recreational & Offroad Use Carrier for Adult Woman or Child Bicycles Foldable Install Notes
Installation Instructions for Trailer Hitch
Part Numbers:
- 76098
- 84098
- CQT76098
Applications:
- Years: 2011-Current
- Make and Models: Mitsubishi Outlander, Outlander Sport, RVR
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 3/4", 14 mm, 17 mm
- 6" Socket Extension
Step-by-Step Instructions:
1. Remove Factory Tow Loop:
- Remove (3) bolts and the factory tow loop from the passenger-side frame rail.
- Return the bolts and tow loop to the vehicle owner.
2. Install Carriage Bolts and Blocks:
- Insert (2) carriage bolts and blocks into the existing holes on the side of the frame rails.
- Adjust the carriage bolts so they are flush with the inside of the frame rails.
- Note: On the driver side, install carriage bolts by reaching between the bumper fascia and over the carbon canister.
3. Position and Secure the Hitch:
- Raise the hitch into position, guiding the carriage bolts through the holes in the hitch.
- Install 1/2" conical washers (teeth side toward the hitch) and 1/2"-13 hex nuts onto the carriage bolts.
- Tip: Raise the driver side first, guiding the side bracket around the carbon canister, then raise the passenger side into position.
4. Attach Forward Fasteners:
- Loosely install M10 hex bolts with 7/16" conical washers (teeth side toward the hitch) into the existing weld nuts on the bottom of the frame rails.
5. Tighten All Fasteners:
- Torque all 1/2"-13 GR5 carriage bolts to 75 lb-ft (102 N·m).
- Torque all M10 CL8.8 bolts to 38 lb-ft (52 N·m).
Hardware List:
- 4 × Carriage Bolts (1/2"-13 × 4.00", GR5)
- 2 × Spacer Blocks (0.25" × 1.50" × 4.00" with square holes)
- 4 × Conical Washers (1/2")
- 4 × Hex Nuts (1/2"-13)
- 2 × Hex Bolts (M10 × 1.25 × 30 mm, CL8.8)
- 2 × Conical Washers (7/16")
Safety Notes:
- Always wear safety glasses during installation.
- Check the hitch frequently to ensure all fasteners and the hitch ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight (Weight Carrying): 4,500 lbs (2,043 kg)
- Max Tongue Weight (Weight Carrying): 675 lbs (306 kg)
- Weight Distribution: Not applicable
- Installation Time: Approximately 20 minutes
This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
