Trailer Hitch w/ 4 Bike Rack For 14‑24 RAM ProMaster 1500 2500 All (3500 w/o Extended Body) Approved for Recreational & Offroad Use Carrier for Adult Woman or Child Bicycles Foldable
Model: 44706 63124

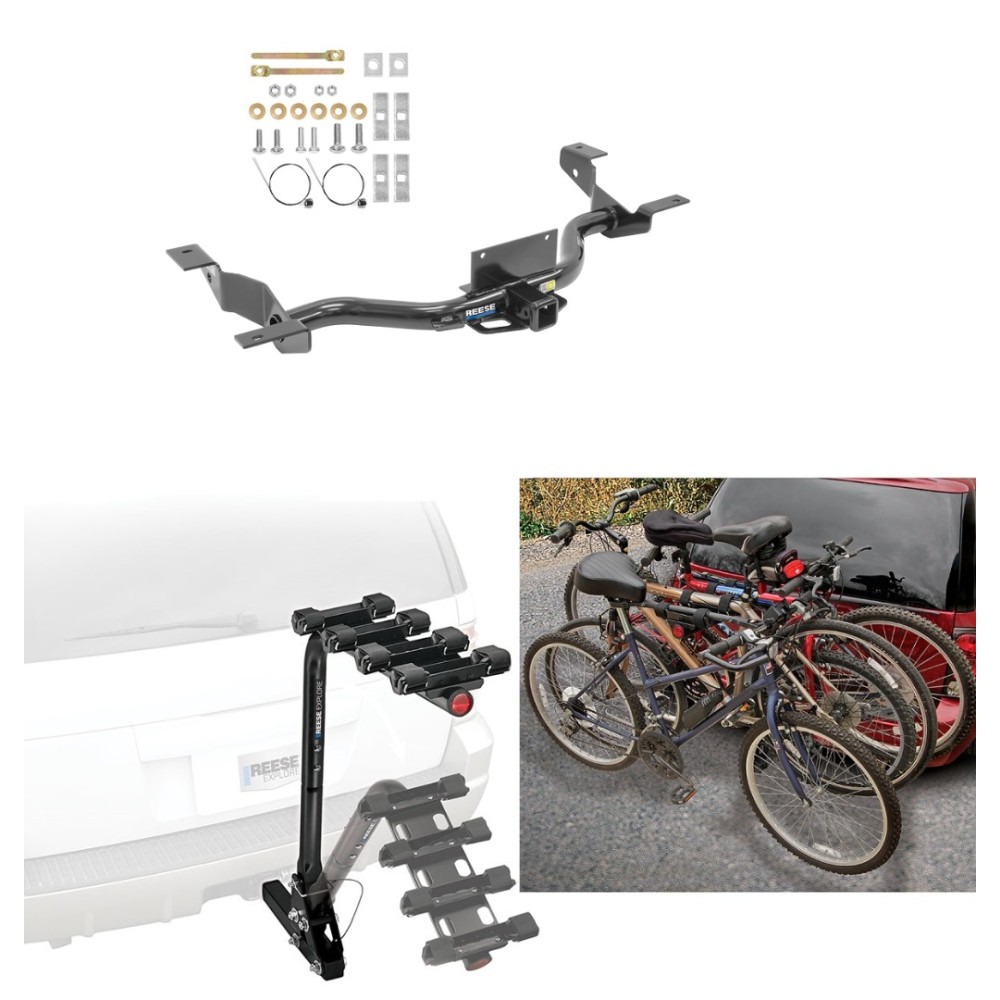

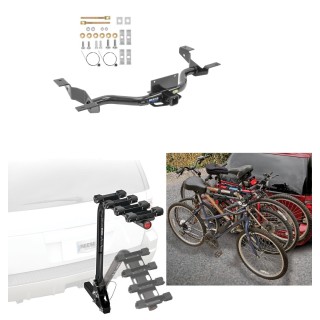

Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Pro Series Eclipse 4 Bike Rack Carrier Foldable Approved for Trailers RVs Trucks SUV Offroad 2" Receivers
Traditional, sport, mountain, racing, men's and women's; no matter the type of bike being transported, Pro Series offers a wide variety of bike carriers to fit your needs Designed with stylish function, these carriers have everything you would expect from an industry leader.
This Hitch and Bike Rack Fits The Following Vehicles:
ProMaster comes in 3 different wheelbase lengths. This hitch will fit the 118" and 136" wheelbase, but will not fit 159. If you need a hitch for 159 wheelbase please order part 76050 instead
2014-2024 RAM, ProMaster 1500, All Styles
2014-2024 RAM, ProMaster 2500, All Styles
2014 - 2024 RAM, ProMaster 3500, without Extended Body
Trailer Hitch Specs:
| Part Number | 44706 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 7,500 lbs |
| Max Tongue Weight | 750 / 750 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Bike Carrier Specs:
| Part Number | 63124 |
| Brand |
Pro Series |
| Finish |
Black Powder Coat |
| Capacity | 120 lbs |
| Carrying Amount |
4 Bikes |
| Fits | 2" Receiver |
| Warranty | 1 Year |
| Install Intructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 14 15 16 17 18 19 20 21 22 23 24 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
$444 44 $828.89 46% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$828.89 $444 44
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $111.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 44706 63124
- Includes: Class 4 Trailer Tow Hitch, Eclipse Trailer Tow Hitch Bike Carrier
Compatibility Chart
Description
Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Pro Series Eclipse 4 Bike Rack Carrier Foldable Approved for Trailers RVs Trucks SUV Offroad 2" Receivers
Traditional, sport, mountain, racing, men's and women's; no matter the type of bike being transported, Pro Series offers a wide variety of bike carriers to fit your needs Designed with stylish function, these carriers have everything you would expect from an industry leader.
This Hitch and Bike Rack Fits The Following Vehicles:
ProMaster comes in 3 different wheelbase lengths. This hitch will fit the 118" and 136" wheelbase, but will not fit 159. If you need a hitch for 159 wheelbase please order part 76050 instead
2014-2024 RAM, ProMaster 1500, All Styles
2014-2024 RAM, ProMaster 2500, All Styles
2014 - 2024 RAM, ProMaster 3500, without Extended Body
Trailer Hitch Specs:
| Part Number | 44706 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 7,500 lbs |
| Max Tongue Weight | 750 / 750 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Bike Carrier Specs:
| Part Number | 63124 |
| Brand |
Pro Series |
| Finish |
Black Powder Coat |
| Capacity | 120 lbs |
| Carrying Amount |
4 Bikes |
| Fits | 2" Receiver |
| Warranty | 1 Year |
| Install Intructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 14 15 16 17 18 19 20 21 22 23 24 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
Get Expert Help
Trailer Hitch w/ 4 Bike Rack For 14-24 RAM ProMaster 1500 2500 All (3500 w/o Extended Body) Approved for Recreational & Offroad Use Carrier for Adult Woman or Child Bicycles Foldable Install Notes
Installation Instructions for Ram ProMaster (Except Extended Model)
Part Numbers:
- 75882
- 87655
- 44706
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Wrenches: 16mm, 3/4", T-30 Torque Head
- Other Tools: None
Step-by-Step Instructions:
-
Lower Spare Tire:
- Lower and remove the spare tire to gain access to the installation area.
-
Remove Bumper Fascia Screws:
- Remove eight (8) torque head screws (four on top, four on bottom) that secure the bumper fascia to the understructure.
-
Raise Hitch into Position:
- Lift the hitch into place. For easier installation, raise one side of the forward attachment above the leaf spring, then repeat on the other side.
-
Install Nut Plate and Bolts:
- Slide the nut plate into the frame from the front of the vehicle as shown. Hand-tighten the 1/2” bolts into place.
-
Insert Bolts Using Fish Wire:
- Remove rubber grommets from the frame. Using the provided fish wires, insert two (2) 7/16” carriage bolts and two (2) 1/2” carriage bolts into their respective positions.
-
Secure Middle Bolts:
- Attach the middle 7/16” bolts to the hitch and hand-tighten.
-
Install Spacer Blocks and Rear Bolts:
- Slide 5/8” spacer blocks into place. Pass 1/2” bolts through the blocks and rearward slots in the vehicle frame as shown. Hand-tighten bolts.
-
Tighten All Fasteners:
- Use a torque wrench to tighten all fasteners to the specified torque values:
- 7/16”-14 GR5: 50 lb-ft (68 N*m)
- 1/2”-13 GR5: 75 lb-ft (102 N*m)
- Use a torque wrench to tighten all fasteners to the specified torque values:
-
Reinstall Bumper Fascia and Spare Tire:
- Reattach the bumper fascia using the eight (8) screws removed earlier. Raise and secure the spare tire.

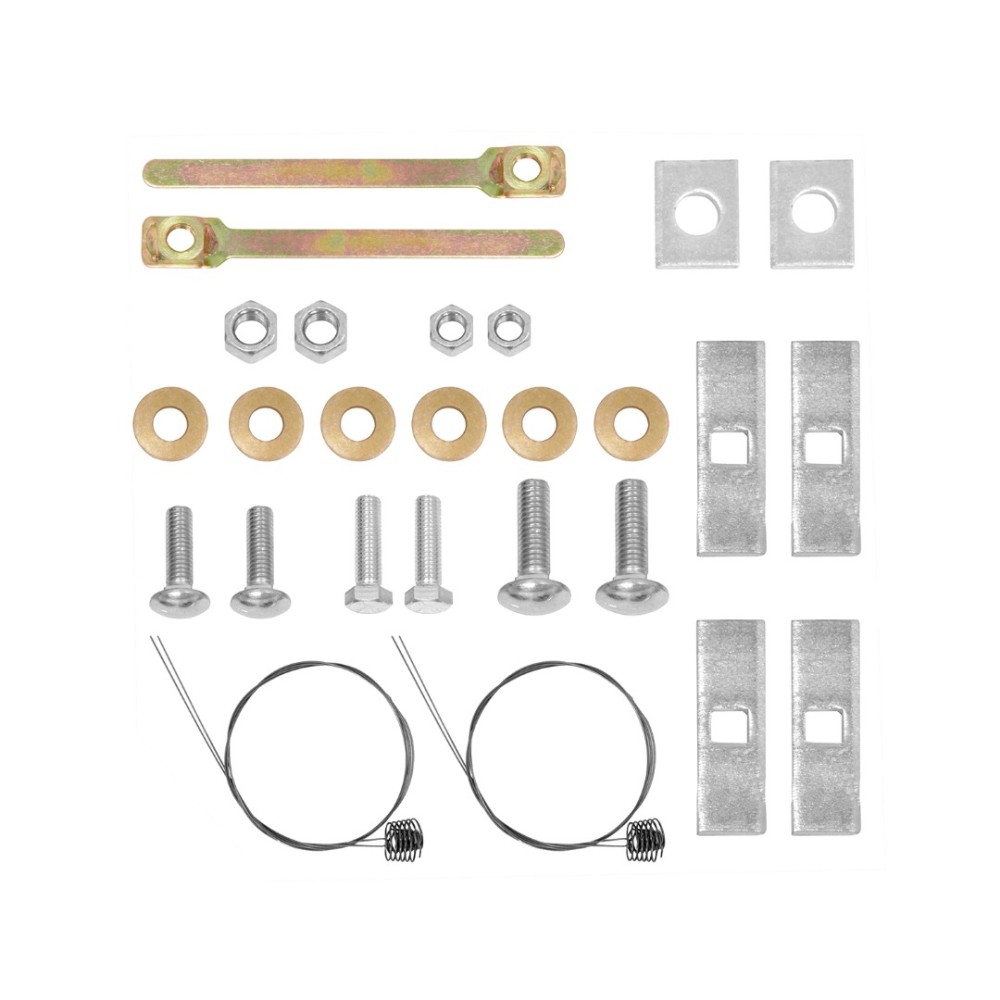

Hardware List:
- Qty (2): Nut Plate – 1/2"-13
- Qty (2): Carriage Bolt – 7/16"-14 x 1.75 GR5
- Qty (2): Carriage Bolt – 1/2"-13 x 1.50 GR5
- Qty (2): Carriage Bolt – 1/2"-13 x 2.25 GR5
- Qty (4): Spacer Block – 1/4" x 3.00" x 1.00"
- Qty (2): Spacer Block – 5/8" x 2.00" x 1.50"
- Qty (4): Conical Washer – 1/2"
- Qty (2): Conical Washer – 7/16"
- Qty (2): Hex Nut – 1/2"-13
- Qty (2): Hex Nut – 7/16"-14
- Qty (2): Fish Wire – 1/2"
- Qty (2): Fish Wire – 7/16"
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Distributing
- Max Gross Trailer Weight: 7,500 lbs (3,402 kg)
- Max Tongue Weight: 750 lbs (340 kg)
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 6,000 lbs (2,722 kg)
- Max Tongue Weight: 750 lbs (340 kg)
Manufacturer Notes:
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
