Trailer Hitch w/ 4 Bike Rack For 16‑23 Toyota Tacoma All Styles Approved for Recreational & Offroad Use Carrier for Adult Woman or Child Bicycles Foldable

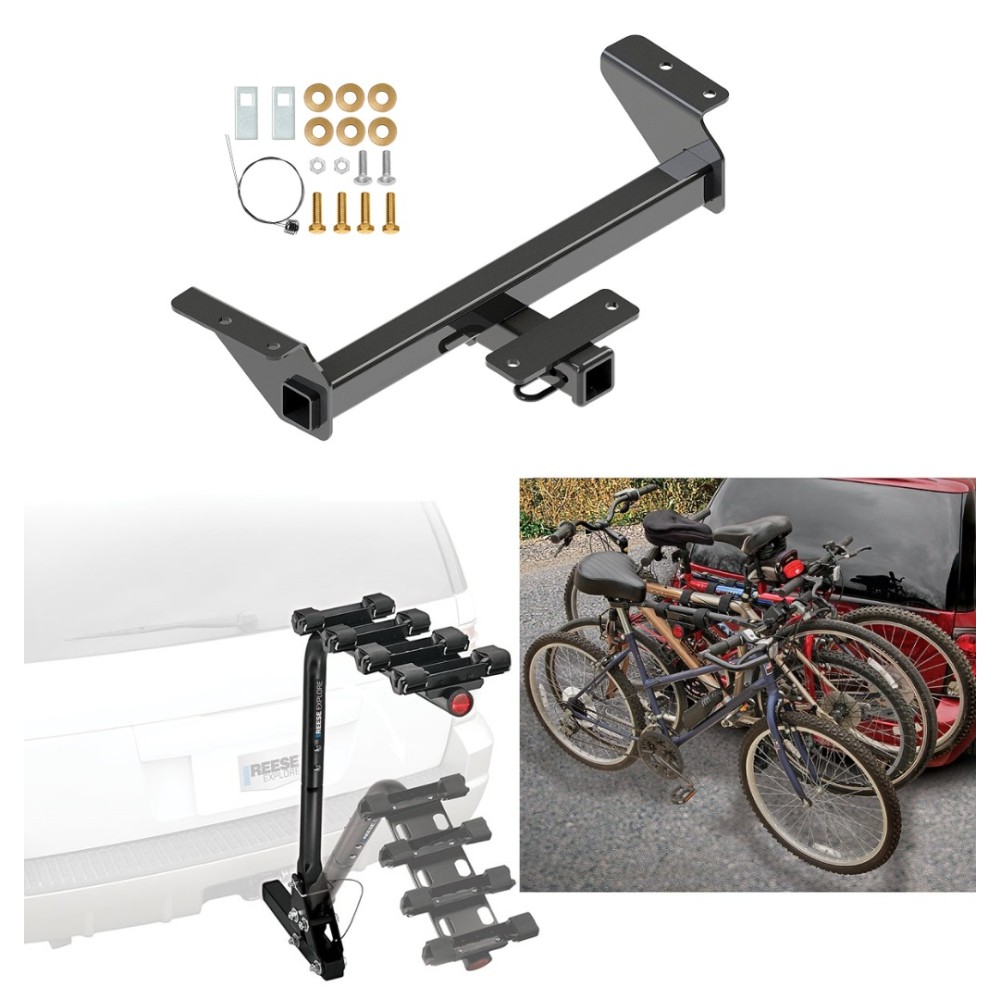

Model: 84238 63124Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Pro Series Eclipse 4 Bike Rack Carrier Foldable Approved for Trailers RVs Trucks SUV Offroad 2" Receivers
Traditional, sport, mountain, racing, men's and women's; no matter the type of bike being transported, Pro Series offers a wide variety of bike carriers to fit your needs Designed with stylish function, these carriers have everything you would expect from an industry leader.
This Hitch and Bike Rack Fits The Following Vehicles:
2016 - 2023 Toyota, Tacoma, All Styles
Trailer Hitch Specs:
| Part Number | 84238 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 4 |
| Receiver size opening | 2" |
| Max gross trailer weight | 7,000 lbs |
| Max GTW w/ weight distribution | 8,000 lbs |
| Max Tongue Weight | 1,050 / 1,200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Bike Carrier Specs:
| Part Number | 63124 |
| Brand |
Pro Series |
| Finish |
Black Powder Coat |
| Capacity | 120 lbs |
| Carrying Amount |
4 Bikes |
| Fits | 2" Receiver |
| Warranty | 1 Year |
| Install Intructions | |
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.
Partial list of fitment years: 16 17 18 19 20 21 22 23 2016 2017 2018 2019 2020 2021 2022 2023
$303 77 $596.74 49% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$596.74 $303 77
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $75.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese Towpower
- Model: 84238 63124
- Includes: Class 4 Trailer Tow Hitch, Eclipse Trailer Tow Hitch Bike Carrier
Compatibility Chart
Description
Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Pro Series Eclipse 4 Bike Rack Carrier Foldable Approved for Trailers RVs Trucks SUV Offroad 2" Receivers
Traditional, sport, mountain, racing, men's and women's; no matter the type of bike being transported, Pro Series offers a wide variety of bike carriers to fit your needs Designed with stylish function, these carriers have everything you would expect from an industry leader.
This Hitch and Bike Rack Fits The Following Vehicles:
2016 - 2023 Toyota, Tacoma, All Styles
Trailer Hitch Specs:
| Part Number | 84238 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 4 |
| Receiver size opening | 2" |
| Max gross trailer weight | 7,000 lbs |
| Max GTW w/ weight distribution | 8,000 lbs |
| Max Tongue Weight | 1,050 / 1,200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Bike Carrier Specs:
| Part Number | 63124 |
| Brand |
Pro Series |
| Finish |
Black Powder Coat |
| Capacity | 120 lbs |
| Carrying Amount |
4 Bikes |
| Fits | 2" Receiver |
| Warranty | 1 Year |
| Install Intructions | |
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.
Partial list of fitment years: 16 17 18 19 20 21 22 23 2016 2017 2018 2019 2020 2021 2022 2023
Get Expert Help
Trailer Hitch w/ 4 Bike Rack For 16-23 Toyota Tacoma All Styles Approved for Recreational & Offroad Use Carrier for Adult Woman or Child Bicycles Foldable Install Notes
Installation Instructions for Toyota Tacoma
Part Numbers:
- 75238
- 84238
Applications:
- 2016-Current Toyota Tacoma
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 19mm, 11/16"
- 6" Socket Extension
- M12x1.25 Tap (if necessary)
Installation Time:
- Approximately 20 minutes (for professional installers)
Step-by-Step Instructions:
-
Clean Weldnuts (if necessary):
- Use an M12x1.25 tap to clean the weldnuts at the ends of the frame rail on both sides (see Figure 2).
-
Install Hitch:
- Insert pull wires through the bumper beam side openings and use them to feed the carriage bolts and spacers into the bumper beam (see Figures 3 and 4). Leave the pull wires attached.
- Raise the hitch into position, feeding the carriage bolts through the top plate holes (see Figure 1).
- Loosely install M12 bolts and conical washers into the frame weldnuts.
- Loosely install nuts and conical washers on the carriage bolts.
-
Tighten Fasteners:
- Torque all M12 fasteners to 105 lb-ft (142 N·m).
- Torque all 7/16" fasteners to 50 lb-ft (68 N·m).
-
Check Installation:
- Ensure all fasteners are properly tightened.
- Inspect for any interference between the hitch and other components.
Hardware List:
- (4) M12 x 1.25 x 40mm CL10.9 Bolts
- (4) 1/2" Conical Washers
- (2) 7/16"-14 x 1.25 GR5 Carriage Bolts
- (2) 0.109 Spacers with Square Hole
- (2) 7/16" Pull Wires
- (2) 7/16" Conical Washers
- (2) 7/16"-14 GR2 Hex Nuts
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying: Max Trailer Weight 7,000 lbs (3,178 kg), Max Tongue Weight 1,050 lbs (476 kg).
- Weight Distributing: Max Trailer Weight 8,000 lbs (3,632 kg), Max Tongue Weight 1,200 lbs (545 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
