Trailer Hitch w/ 4 Bike Rack For 17‑24 Chrysler Pacifica 20‑23 Voyager 22‑23 Grand Caravan Except Hybrid Approved for Recreational & Offroad Use Carrier for Adult Woman or Child Bicycles Foldable

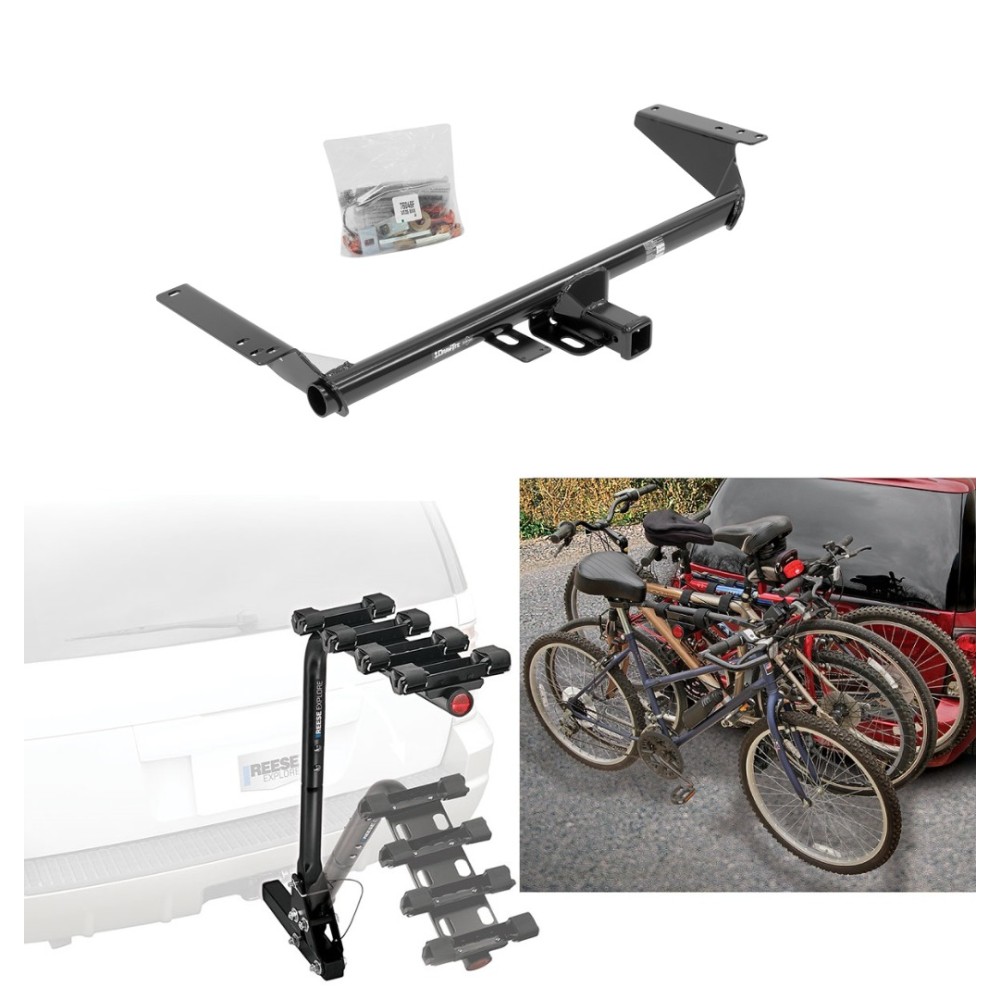

Model: 76046 63124Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Pro Series Eclipse 4 Bike Rack Carrier Foldable Approved for Trailers RVs Trucks SUV Offroad 2" Receivers
Traditional, sport, mountain, racing, men's and women's; no matter the type of bike being transported, Pro Series offers a wide variety of bike carriers to fit your needs Designed with stylish function, these carriers have everything you would expect from an industry leader.
This Hitch and Bike Rack Fits The Following Vehicles:
2017 - 2024 Chrysler, Pacifica, Except Hybrid
2022- 2023 Chrysler, Grand Caravan, (Canada Only)
Trailer Hitch Specs:
| Part Number | 76046 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 675/675 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Bike Carrier Specs:
| Part Number | 63124 |
| Brand |
Pro Series |
| Finish |
Black Powder Coat |
| Capacity | 120 lbs |
| Carrying Amount |
4 Bikes |
| Fits | 2" Receiver |
| Warranty | 1 Year |
| Install Intructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 17 18 19 20 21 22 23 24 2017 2018 2019 2020 2021 2022 2023 2024
$345 14 $637.97 46% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$637.97 $345 14
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $86.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76046 63124
- Includes: Class 3 Trailer Tow Hitch, Eclipse Trailer Tow Hitch Bike Carrier
Compatibility Chart
Description
Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Pro Series Eclipse 4 Bike Rack Carrier Foldable Approved for Trailers RVs Trucks SUV Offroad 2" Receivers
Traditional, sport, mountain, racing, men's and women's; no matter the type of bike being transported, Pro Series offers a wide variety of bike carriers to fit your needs Designed with stylish function, these carriers have everything you would expect from an industry leader.
This Hitch and Bike Rack Fits The Following Vehicles:
2017 - 2024 Chrysler, Pacifica, Except Hybrid
2022- 2023 Chrysler, Grand Caravan, (Canada Only)
Trailer Hitch Specs:
| Part Number | 76046 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 675/675 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Bike Carrier Specs:
| Part Number | 63124 |
| Brand |
Pro Series |
| Finish |
Black Powder Coat |
| Capacity | 120 lbs |
| Carrying Amount |
4 Bikes |
| Fits | 2" Receiver |
| Warranty | 1 Year |
| Install Intructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 17 18 19 20 21 22 23 24 2017 2018 2019 2020 2021 2022 2023 2024
Get Expert Help
Trailer Hitch w/ 4 Bike Rack For 17-24 Chrysler Pacifica 20-23 Voyager 22-23 Grand Caravan Except Hybrid Approved for Recreational & Offroad Use Carrier for Adult Woman or Child Bicycles Foldable Install Notes
Installation Instructions for Trailer Hitch Models #76046, #84046, and #CQT76046
Part Numbers:
- 76046
- 84046
- CQT76046
Applications:
- Years: 2017-Current (Chrysler Pacifica), 2020-2021 (Chrysler Voyager)
- Make and Models: Chrysler Pacifica, Chrysler Voyager
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 7/8", 8 mm, 10 mm
- 6" Socket Extension
- Flat Head Screwdriver
- Pliers (for exhaust removal)
- Tin Snips
Step-by-Step Instructions:
1. Remove Underbody Panel:
- Remove (9) M8 fasteners, (5-8) M10 nuts, and (1-2) plastic push-on fasteners. Unscrew the fasteners with a standard screwdriver while pulling down on the panel.
- Detach the panel and set it aside.
2. Lower Exhaust:
- Pry off the two rearmost rubber exhaust hangers using exhaust removal pliers or a suitable tool. Spray with soapy water to make this step easier.
- Support the exhaust system to prevent damage.
3. Remove Heat Shield:
- Remove the remaining (2) M10 nuts (one is above the muffler).
- Set the heat shield aside. For 2020 and newer models, the heat shield may be connected to the underbody panel and already removed in Step 1.
4. Fishwire Rearward Bolts:
- Use the fishwire method to install the carriage bolts and 2" blocks through the access hole and into the rearward attachment holes.
- Ensure the blocks are not overlapping each other and leave the pull wires attached.
5. Fishwire Forward Bolts:
- Use the reverse fishwire method to install the carriage bolts and 3" blocks into the forward attachment holes.
- Leave the pull wires attached.
6. Install Hitch:
- Raise the hitch into position, starting with the passenger side over the muffler.
- Guide the pull wire ends through the attachment holes, remove the pull wires, and install conical washers (teeth side toward hitch) and 1/2" hex nuts onto the carriage bolts.
- Verify that no wires or other items are pinched between the hitch and the vehicle frame.
7. Tighten Fasteners:
- Torque all hitch fasteners to 110 lb-ft (149 N·m).
8. Trim Heat Shield:
- Trim the heat shield as necessary and reinstall the remaining portion.
- For 2020 and newer models, if the heat shield cannot be separated from the underbody panel due to metal rivets, do not trim it and return it to the vehicle owner.
9. Reinstall Exhaust Hangers:
- Raise the exhaust back into position and reinstall all exhaust hangers.
10. Trim and Reinstall Underbody Panel:
- Trim the underbody panel as necessary and reinstall it.
- For 2020 and newer models, do not trim the panel and return it to the vehicle owner.
Hardware List:
- 6 × Carriage Bolts (1/2"-13 × 1.75", GR8)
- 6 × Conical Washers (1/2")
- 6 × Hex Nuts (1/2"-13, GR8)
- 2 × Blocks (1/4" × 1" × 3")
- 4 × Blocks (1/4" × 1" × 2")
- 6 × Pull Wires (1/2")
Safety Notes:
- Always wear safety glasses during installation.
- Do not cut access or attachment holes with a torch.
- Check the hitch frequently, ensuring all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
Specifications:
- Max Gross Trailer Weight (Weight Carrying): 4,500 lbs (2,043 kg)
- Max Tongue Weight (Weight Carrying): 675 lbs (306 kg)
- Max Gross Trailer Weight (Weight Distributing): 5,000 lbs (2,270 kg)
- Max Tongue Weight (Weight Distributing): 675 lbs (306 kg)
- Installation Time: Approximately 45 minutes
This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
This hitch comes with a limited warranty covering defects in material and workmanship for the duration specified. For complete warranty instructions, please download the full installation PDF.
