Trailer Hitch w/ 4 Bike Rack For 19‑24 Cadillac XT4 All Styles Approved for Recreational & Offroad Use Carrier for Adult Woman or Child Bicycles Foldable

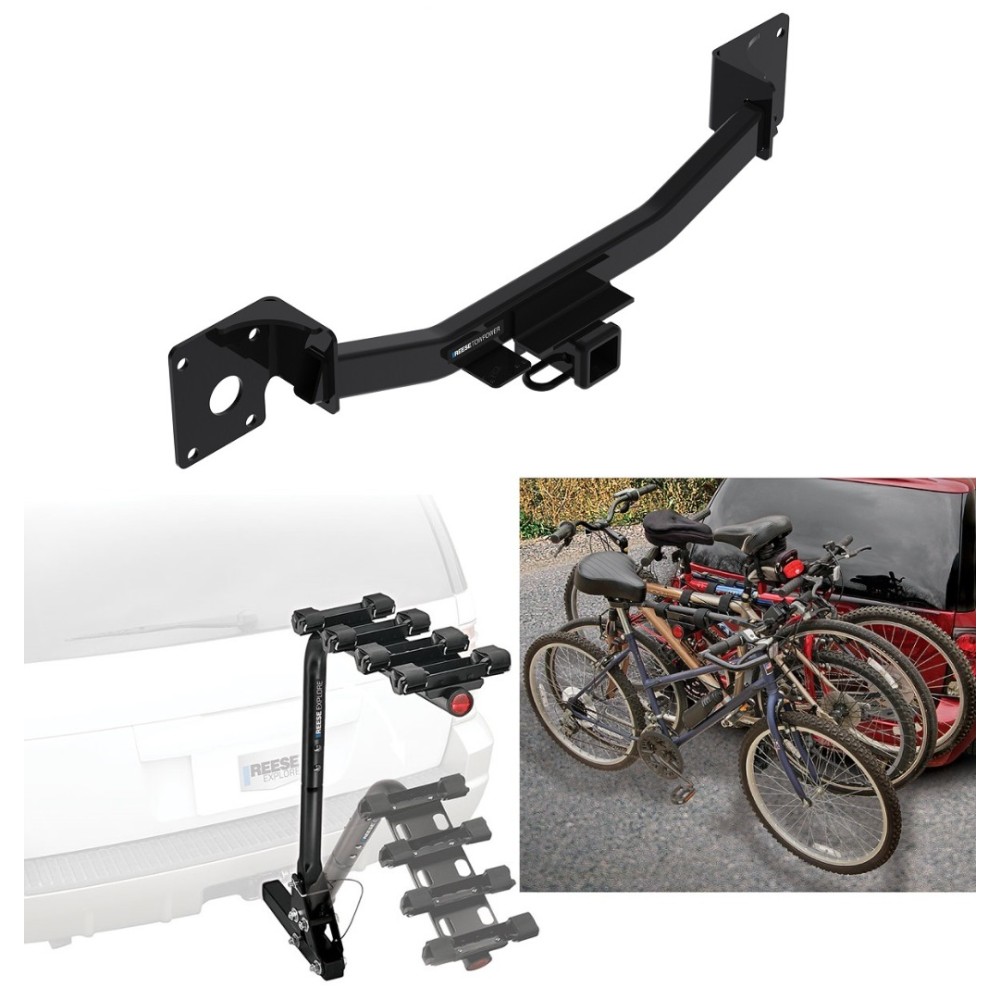

Model: 84266 63124Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions

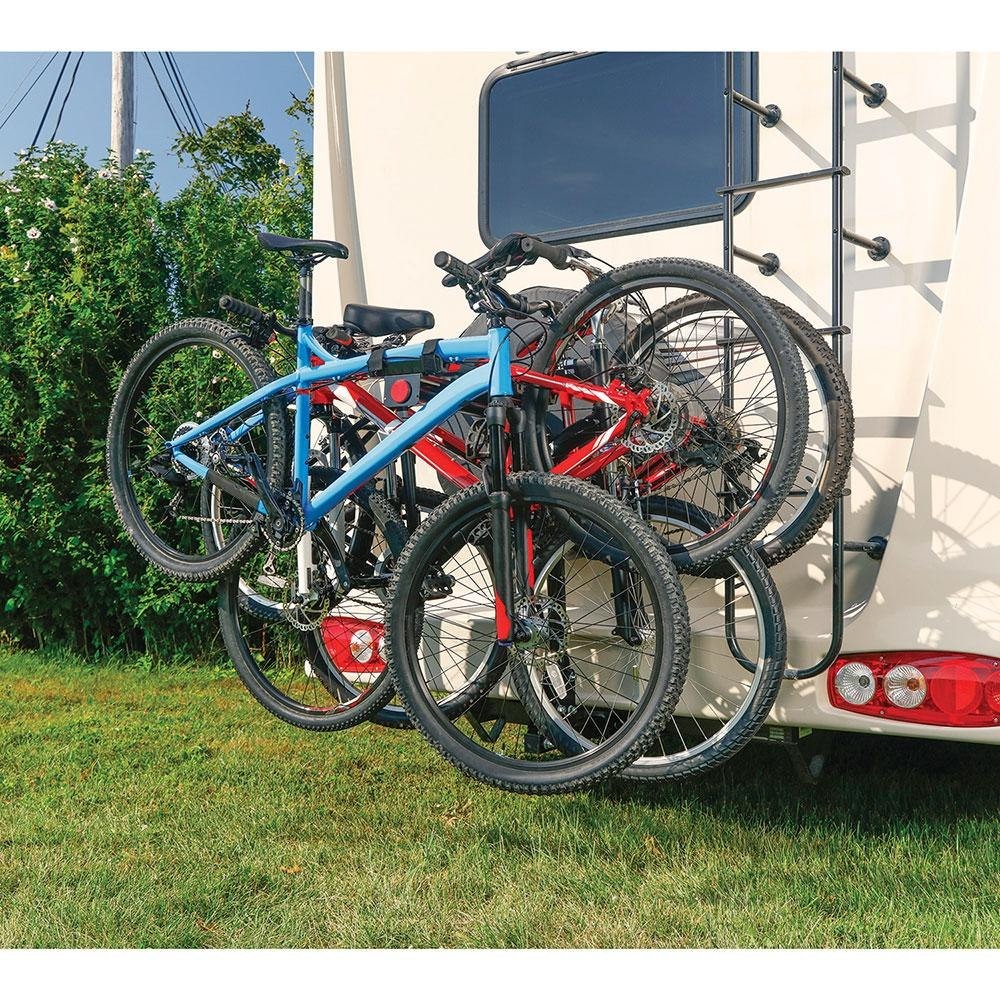

Pro Series Eclipse 4 Bike Rack Carrier Foldable Approved for Trailers RVs Trucks SUV Offroad 2" Receivers
Traditional, sport, mountain, racing, men's and women's; no matter the type of bike being transported, Pro Series offers a wide variety of bike carriers to fit your needs Designed with stylish function, these carriers have everything you would expect from an industry leader.
This Hitch and Bike Rack Fits The Following Vehicles:
2019 - 2024 Cadillac, XT4, All Styles
Trailer Hitch Specs:
| Part Number | 84266 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 675 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Bike Carrier Specs:
| Part Number | 63124 |
| Brand |
Pro Series |
| Finish |
Black Powder Coat |
| Capacity | 120 lbs |
| Carrying Amount |
4 Bikes |
| Fits | 2" Receiver |
| Warranty | 1 Year |
| Install Intructions | |
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.
Partial list of fitment years: 19 20 21 22 23 24 2019 2020 2021 2022 2023 2024
$312 65 $596.74 48% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$596.74 $312 65
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $78.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese Towpower
- Model: 84266 63124
- Includes: Class 3 Trailer Tow Hitch, Eclipse Trailer Tow Hitch Bike Carrier
Compatibility Chart
Description
Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Pro Series Eclipse 4 Bike Rack Carrier Foldable Approved for Trailers RVs Trucks SUV Offroad 2" Receivers
Traditional, sport, mountain, racing, men's and women's; no matter the type of bike being transported, Pro Series offers a wide variety of bike carriers to fit your needs Designed with stylish function, these carriers have everything you would expect from an industry leader.
This Hitch and Bike Rack Fits The Following Vehicles:
2019 - 2024 Cadillac, XT4, All Styles
Trailer Hitch Specs:
| Part Number | 84266 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 675 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Bike Carrier Specs:
| Part Number | 63124 |
| Brand |
Pro Series |
| Finish |
Black Powder Coat |
| Capacity | 120 lbs |
| Carrying Amount |
4 Bikes |
| Fits | 2" Receiver |
| Warranty | 1 Year |
| Install Intructions | |
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.
Partial list of fitment years: 19 20 21 22 23 24 2019 2020 2021 2022 2023 2024
Get Expert Help
Trailer Hitch w/ 4 Bike Rack For 19-24 Cadillac XT4 All Styles Approved for Recreational & Offroad Use Carrier for Adult Woman or Child Bicycles Foldable Install Notes
Installation Instructions for Cadillac XT4 (2019-Present)
Part Numbers:
- 76266
- 84266
- CQT76266
Tools Required:
- Safety Glasses
- Ratchet
- Torque Wrench
- Plastic Trim Tools
- Tape
- Utility Knife
- Sockets: 7mm, 15mm
- Torx Bits: T15, T20
- 6" Socket Extension
Weight Capacities:
- Weight Carrying:
- Max Gross Trailer Weight: 4,500 lbs (2,043 kg)
- Max Tongue Weight: 675 lbs (306 kg)
- Weight Distributing:
- Not Applicable
Step-by-Step Instructions:
Remove Fascia:
- Open the liftgate.
- Remove the plastic covers next to the taillights by pulling upward to release the clips.
- Using a T20 Torx bit, remove the screws connecting the fascia to the vehicle on both sides.
- Use plastic trim tools to remove the wheel well trim. Pull the trim back enough to access the screw located behind it.
- Remove the screw behind the wheel well trim using a 7mm socket.
- Use a T15 Torx bit to remove screws from the wheel well liner, then pull the liner back from the fascia.
- Remove the hitch access panel in the middle of the fascia. Use a T15 Torx bit to remove screws holding the bottom of the fascia.
- Starting from the wheel wells, carefully pull the fascia away from the vehicle, working toward the middle. Use plastic trim tools to release clips as needed.
- Caution: Be extra careful around the taillight area. Masking the bottom of the taillight is recommended to avoid scratches. Unplug electrical connectors behind the fascia and set it aside.
Lower Exhaust:
- Support the exhaust to prevent damage. Remove the two M10 factory bolts from the exhaust hangers on both sides using a 15mm socket.
Remove Bumper Beam:
- Use a 15mm socket to remove four 10mm factory nuts (two on each side). Set the bumper beam aside for reinstallation.
Install Hitch:
- Raise the hitch into position, aligning its holes with the M10 studs on the vehicle's end panel.
- Reinstall the bumper beam over the hitch and onto the M10 studs.
- Loosely reinstall the factory M10 nuts removed earlier.
Reinstall Exhaust Hangers:
- Raise the exhaust back into position and reinstall the M10 factory bolts removed earlier through the exhaust hangers, bumper, and hitch.
Tighten Fasteners:
- Torque all M10 fasteners to 53 lb-ft (72 N·m).
Reinstall Fascia:
- Reverse the steps in the "Remove Fascia" section to reinstall the fascia and taillight covers.
- Note: The fascia has a removable panel for hitch usage, which can be replaced when the hitch is not in use.
Safety Notes:
- Always inspect all fasteners periodically to ensure the hitch is secure.
- If the hitch is removed, plug any holes in the trunk pan or other body panels to prevent water or exhaust fume entry.
- Replace any damaged hitch or ball immediately.
- Wear safety glasses and observe all safety precautions when working under the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Class III
- Compliance: This product meets safety specifications as per V.E.S.C. Regulation V-5 and SAE J684.
Note: Always adhere to the towing vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.
