Trailer Hitch w/ 4 Bike Rack For 19‑24 Honda Passport All Styles Approved for Recreational & Offroad Use Carrier for Adult Woman or Child Bicycles Foldable

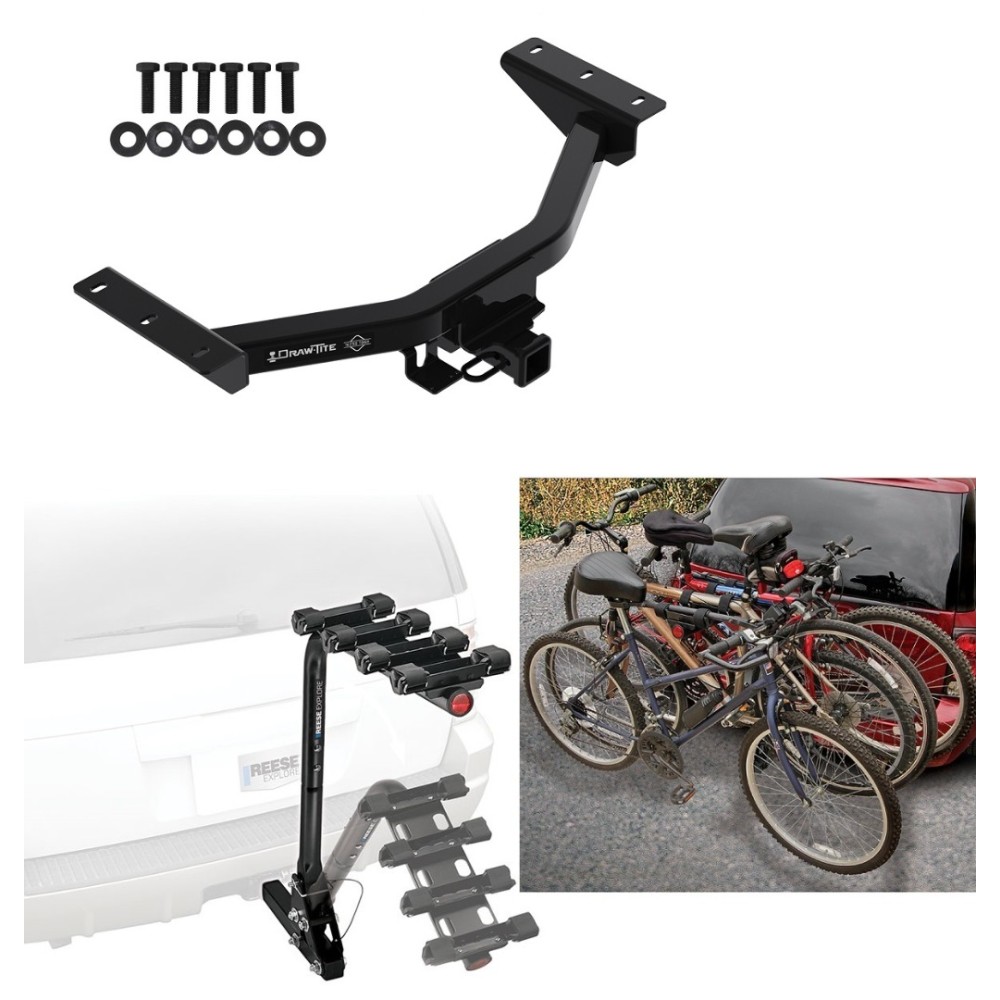

Model: 76290 63124Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Pro Series Eclipse 4 Bike Rack Carrier Foldable Approved for Trailers RVs Trucks SUV Offroad 2" Receivers
Traditional, sport, mountain, racing, men's and women's; no matter the type of bike being transported, Pro Series offers a wide variety of bike carriers to fit your needs Designed with stylish function, these carriers have everything you would expect from an industry leader.
This Hitch and Bike Rack Fits The Following Vehicles:
2019 - 2024 Honda, Passport, All StylesTrailer Hitch Specs:
| Part Number | 76290 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 8,000 lbs |
| Max Tongue Weight | 900/900 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Bike Carrier Specs:
| Part Number | 63124 |
| Brand |
Pro Series |
| Finish |
Black Powder Coat |
| Capacity | 120 lbs |
| Carrying Amount |
4 Bikes |
| Fits | 2" Receiver |
| Warranty | 1 Year |
| Install Intructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 19 20 21 22 23 24 2019 2020 2021 2022 2023 2024
$368 32 $693.89 47% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$693.89 $368 32
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $92.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76290 63124
- Includes: Class 4 Trailer Tow Hitch, Eclipse Trailer Tow Hitch Bike Carrier
Compatibility Chart
Description
Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Pro Series Eclipse 4 Bike Rack Carrier Foldable Approved for Trailers RVs Trucks SUV Offroad 2" Receivers
Traditional, sport, mountain, racing, men's and women's; no matter the type of bike being transported, Pro Series offers a wide variety of bike carriers to fit your needs Designed with stylish function, these carriers have everything you would expect from an industry leader.
This Hitch and Bike Rack Fits The Following Vehicles:
2019 - 2024 Honda, Passport, All StylesTrailer Hitch Specs:
| Part Number | 76290 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 8,000 lbs |
| Max Tongue Weight | 900/900 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Bike Carrier Specs:
| Part Number | 63124 |
| Brand |
Pro Series |
| Finish |
Black Powder Coat |
| Capacity | 120 lbs |
| Carrying Amount |
4 Bikes |
| Fits | 2" Receiver |
| Warranty | 1 Year |
| Install Intructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 19 20 21 22 23 24 2019 2020 2021 2022 2023 2024
Get Expert Help
Trailer Hitch w/ 4 Bike Rack For 19-24 Honda Passport All Styles Approved for Recreational & Offroad Use Carrier for Adult Woman or Child Bicycles Foldable Install Notes
Installation Instructions for 2019-Current Honda Passport
Part Numbers:
- 76290
- 84290
- CQT76290
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- 21 mm Socket
- 6-inch Socket Extension
- M14x1.5 Tap
Step-by-Step Instructions:
-
Clean Weldnuts:
- Remove any stickers or plugs covering the weldnuts on the frame rails (both sides).
- Ensure weldnuts are free of rust and debris. Use an M14x1.5 tap if necessary.
-
Install Hitch:
- Raise the hitch into position and align the holes in the hitch bracket with the frame rail weldnuts.
- Loosely install the supplied M14 bolts and conical washers.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M14 fasteners to 89 ft-lbs (121 Nm).

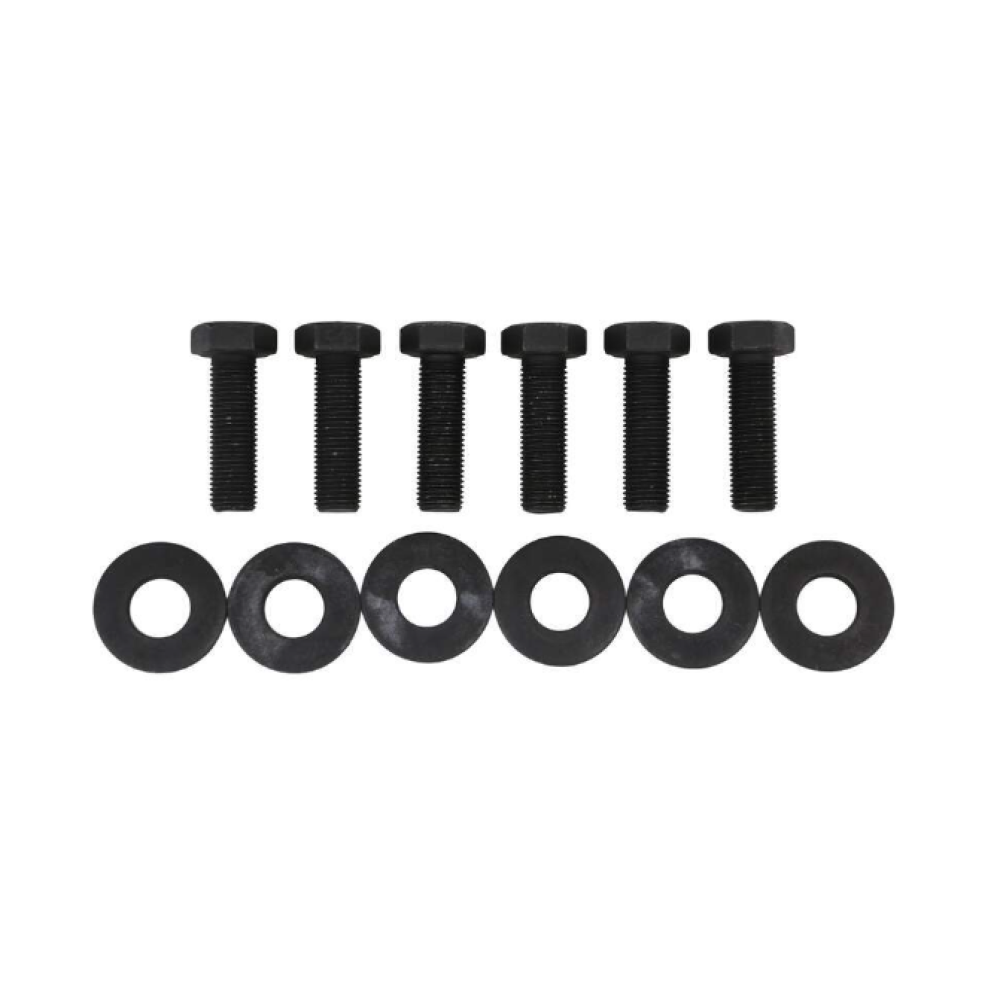

Hardware List:
- (6) Bolt M14x1.5x45 CL10.9
- (6) Conical Washer 5/8"
Safety Notes:
- Always wear safety glasses during installation.
- Ensure proper torque to keep the hitch securely mounted.
- Check hitch and fasteners regularly for proper tightness.
- Damaged hitch or ball should be removed and replaced.
- Never cut attachment holes with a torch.
- Observe all safety precautions when working under the vehicle.
Specifications:
- Weight Carrying Capacity: 6,000 lbs (2,724 kg) trailer weight, 900 lbs (409 kg) tongue weight.
- Weight Distributing Capacity: 8,000 lbs (3,632 kg) trailer weight, 900 lbs (409 kg) tongue weight.
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
