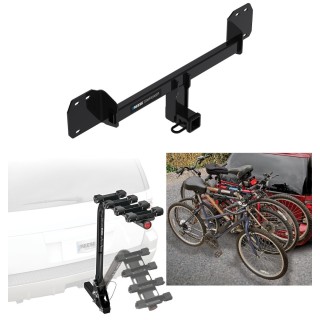

Trailer Hitch w/ 4 Bike Rack For 19‑23 Volvo XC40 All Styles Approved for Recreational & Offroad Use Carrier for Adult Woman or Child Bicycles Foldable

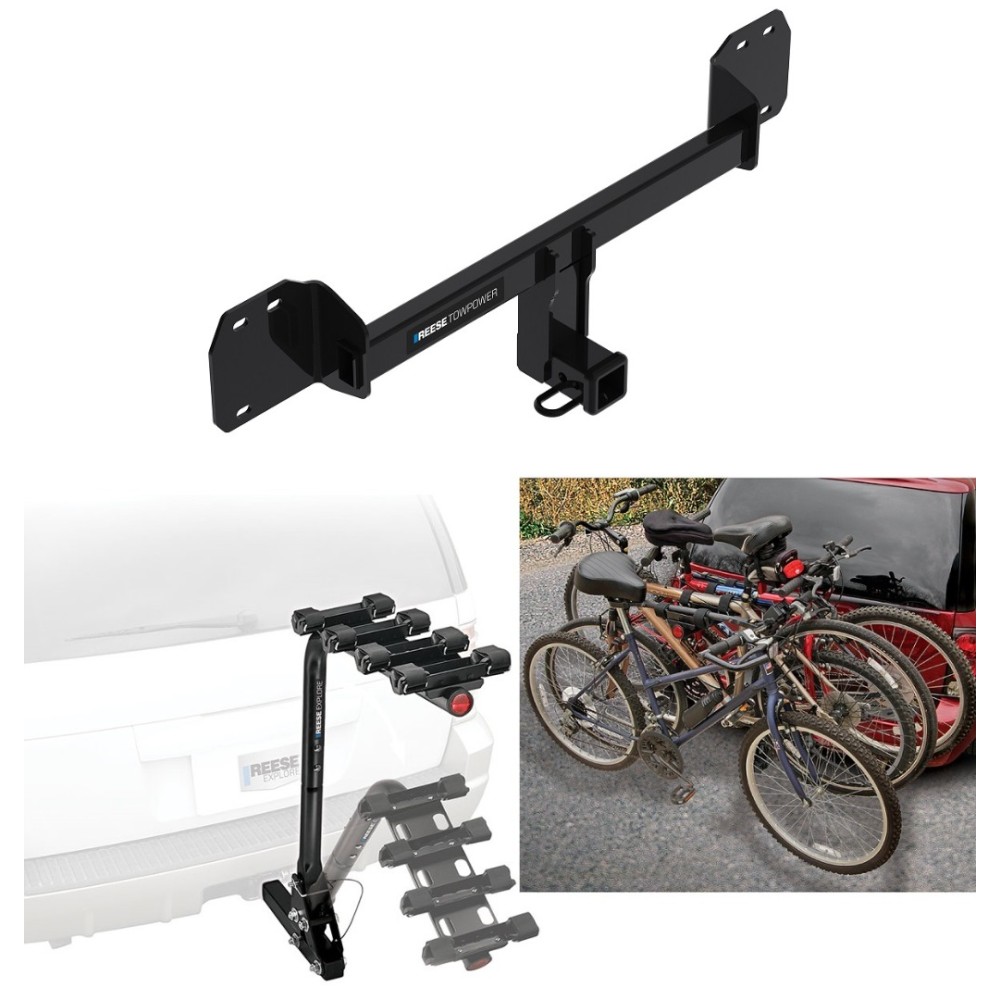

Model: 84245 63124Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Pro Series Eclipse 4 Bike Rack Carrier Foldable Approved for Trailers RVs Trucks SUV Offroad 2" Receivers
Traditional, sport, mountain, racing, men's and women's; no matter the type of bike being transported, Pro Series offers a wide variety of bike carriers to fit your needs Designed with stylish function, these carriers have everything you would expect from an industry leader.
This Hitch and Bike Rack Fits The Following Vehicles:
2019 - 2023 Volvo, XC40, All Styles
Trailer Hitch Specs:
| Part Number | 84245 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 600 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Bike Carrier Specs:
| Part Number | 63124 |
| Brand |
Pro Series |
| Finish |
Black Powder Coat |
| Capacity | 120 lbs |
| Carrying Amount |
4 Bikes |
| Fits | 2" Receiver |
| Warranty | 1 Year |
| Install Intructions | |
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.
Partial list of fitment years: 19 20 22 23 2019 2021 2022 2023
$318 01 $603.62 47% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$603.62 $318 01
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $79.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese Towpower
- Model: 84245 63124
- Includes: Class 3 Trailer Tow Hitch, Eclipse Trailer Tow Hitch Bike Carrier
Compatibility Chart
Description
Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Pro Series Eclipse 4 Bike Rack Carrier Foldable Approved for Trailers RVs Trucks SUV Offroad 2" Receivers
Traditional, sport, mountain, racing, men's and women's; no matter the type of bike being transported, Pro Series offers a wide variety of bike carriers to fit your needs Designed with stylish function, these carriers have everything you would expect from an industry leader.
This Hitch and Bike Rack Fits The Following Vehicles:
2019 - 2023 Volvo, XC40, All Styles
Trailer Hitch Specs:
| Part Number | 84245 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 600 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Bike Carrier Specs:
| Part Number | 63124 |
| Brand |
Pro Series |
| Finish |
Black Powder Coat |
| Capacity | 120 lbs |
| Carrying Amount |
4 Bikes |
| Fits | 2" Receiver |
| Warranty | 1 Year |
| Install Intructions | |
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.
Partial list of fitment years: 19 20 22 23 2019 2021 2022 2023
Get Expert Help
Trailer Hitch w/ 4 Bike Rack For 19-23 Volvo XC40 All Styles Approved for Recreational & Offroad Use Carrier for Adult Woman or Child Bicycles Foldable Install Notes
Installation Instructions for Volvo XC40 (2019-Present)
Part Numbers:
- 76245
- 84245
- CQT76245
Tools Required:
- Safety Glasses
- Ratchet
- Torque Wrench
- Sockets: 8mm, 15mm
- 6" Socket Extension
- T25 Torx Bit
- Plastic Trim Tools
- Utility Knife
- Marker
- Tape Measure
- Silicone Sealant
- Gloves
Weight Capacities:
- Weight Carrying:
- Max Gross Trailer Weight: 4,000 lbs (1,816 kg)
- Max Tongue Weight: 600 lbs (272 kg)
- Weight Distributing:
- Not Applicable
Installation Time:
- Estimated: 70 minutes
Step-by-Step Instructions:
-
Remove Lower Fascia:
- Using a T25 Torx bit, remove (5) screws holding the wheel well liner to the fascia on both sides.
- Use an 8mm socket to remove (4) bolts from the bottom edge of the fascia (2 per side). Do not remove the (4) Torx screws from the bottom edge of the fascia.
- Use plastic trim tools to detach the lower fascia from the upper fascia starting at the outer edges near the wheel wells. Gently pull rearward to release the clips.
- Disconnect the backup sensor wiring harness at (4) locations and unplug the middle wiring plug from the hands-free liftgate housing.
- Remove (2) lights from the fascia, unclip the wiring harness as needed, and set the fascia aside carefully.
-
Remove Bumper Beam:
- Use a 15mm socket to remove (6) M10 flange nuts from the bumper beam. Set the bumper beam aside.
-
Prepare Hitch Mounting Area:
- Using a utility knife, remove excess caulk from the end panel near the hitch bracket mounting surface to ensure the bracket sits flat.
-
Apply Sealant:
- Apply silicone sealant to the hitch bracket mounting surfaces on both sides.
-
Install Hitch and Bumper Beam:
- Raise the hitch and bumper beam into position, aligning the holes with the studs on the end panel.
- Loosely reinstall the (6) M10 flange nuts onto the studs.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M10 flange nuts to 38 lb-ft (52 N·m).
-
Trim Lower Fascia:
- Using a tape measure, marker, and utility knife, cut a notch in the lower fascia approximately 3.5 inches wide and 3.5 inches tall.
-
Reinstall Lower Fascia:
- Align the tabs in the lower fascia with the upper fascia and reinstall it.
- Secure the original fasteners and reconnect all wiring disconnected in Step 1.
Safety Notes:
- Regularly inspect the hitch and all fasteners for secure attachment.
- Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust entry.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses and observe safety precautions when working under the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Class III
- Compliance: This product meets safety specifications and requirements as per V.E.S.C. Regulation V-5 and SAE J684.
Note: Always adhere to the vehicle manufacturer's weight rating or the hitch’s maximum load rating, whichever is lower.
