Trailer Hitch w/ 4 Bike Rack For 22‑24 KIA EV6 All Styles Approved for Recreational & Offroad Use Carrier for Adult Woman or Child Bicycles Foldable
Model: 84592 63124Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Pro Series Eclipse 4 Bike Rack Carrier Foldable Approved for Trailers RVs Trucks SUV Offroad 2" Receivers
Traditional, sport, mountain, racing, men's and women's; no matter the type of bike being transported, Pro Series offers a wide variety of bike carriers to fit your needs Designed with stylish function, these carriers have everything you would expect from an industry leader.
This Hitch and Bike Rack Fits The Following Vehicles:
2022 - 2024 KIA, EV6, All Styles
Trailer Hitch Specs:
| Part Number | 84592 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 525 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Bike Carrier Specs:
| Part Number | 63124 |
| Brand |
Pro Series |
| Finish |
Black Powder Coat |
| Capacity | 120 lbs |
| Carrying Amount |
4 Bikes |
| Fits | 2" Receiver |
| Warranty | 1 Year |
| Install Intructions | |
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.
Partial list of fitment years: 22 23 24 2022 2023 2024
$376 53 $663.17 43% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$663.17 $376 53
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $94.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese Towpower
- Model: 84592 63124
- Includes: Class 3 Trailer Tow Hitch, Eclipse Trailer Tow Hitch Bike Carrier
Compatibility Chart
Description

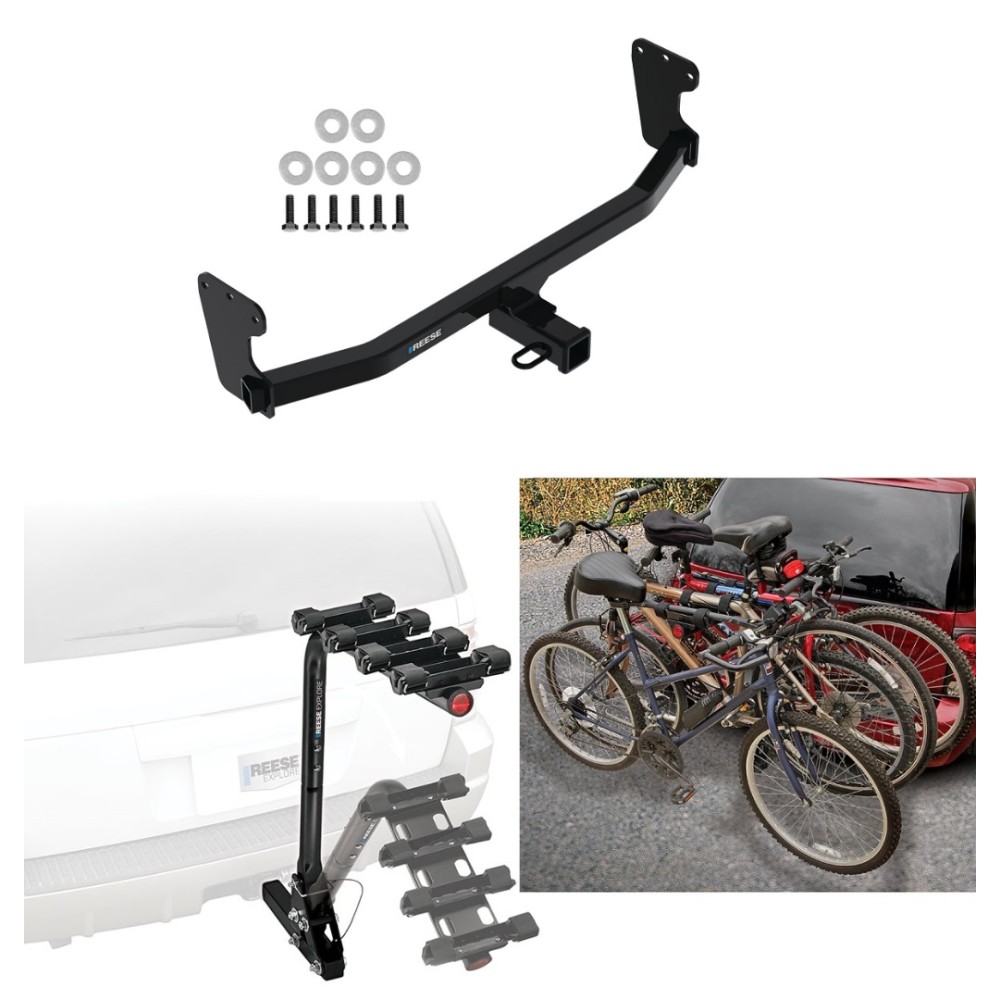

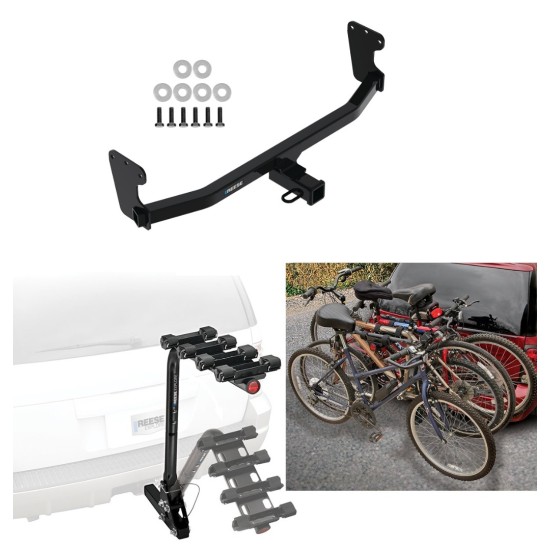

Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Pro Series Eclipse 4 Bike Rack Carrier Foldable Approved for Trailers RVs Trucks SUV Offroad 2" Receivers
Traditional, sport, mountain, racing, men's and women's; no matter the type of bike being transported, Pro Series offers a wide variety of bike carriers to fit your needs Designed with stylish function, these carriers have everything you would expect from an industry leader.
This Hitch and Bike Rack Fits The Following Vehicles:
2022 - 2024 KIA, EV6, All Styles
Trailer Hitch Specs:
| Part Number | 84592 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 525 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Bike Carrier Specs:
| Part Number | 63124 |
| Brand |
Pro Series |
| Finish |
Black Powder Coat |
| Capacity | 120 lbs |
| Carrying Amount |
4 Bikes |
| Fits | 2" Receiver |
| Warranty | 1 Year |
| Install Intructions | |
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.
Partial list of fitment years: 22 23 24 2022 2023 2024
Get Expert Help
Trailer Hitch w/ 4 Bike Rack For 22-24 KIA EV6 All Styles Approved for Recreational & Offroad Use Carrier for Adult Woman or Child Bicycles Foldable Install Notes
Installation Instructions for 2022-Current Kia EV6
Part Numbers:
- 76592
- 84592
- CQT76592
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10 mm, 19 mm
- 6-inch Socket Extension
- Wire Brush
- Flat Head Screwdriver
- Die Grinder
- Marker
- Tape
Step-by-Step Instructions:
-
Remove Underbody Panel:
- Using a flat head screwdriver, remove 6 plastic push rivets from the bottom of the underbody panel.
- Use a 10 mm socket to remove 3 nuts securing the underbody panel, then set the panel aside.
-
Trim Underbody Panel and Lower Fascia:
- Locate the center of the underbody panel and mark the area to be trimmed for the receiver. Refer to Figure 2.
- Mark the center of the lower fascia and trim the area to fit the receiver. Refer to Figure 3.
- Note: Ensure that no sensor wires are in the trimming area. Move them if necessary.
-
Install Hitch:
- Remove any stickers covering the weldnut holes on the frame rail.
- Clean the weldnuts with a wire brush if necessary.
- Position the spacer plates (attached to the hitch) on the frame rail around the weldnut area.
- Carefully raise the hitch into position, ensuring no wiring is damaged.
- Align the attachment holes in the hitch with the spacer and weldnut holes.
- Insert the supplied M12 bolts and conical washers (teeth side toward the hitch).
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 fasteners to 76 ft-lbs (103 N*m).
-
Reinstall Trimmed Underbody Panel:
- Reattach the trimmed underbody panel to the vehicle.
Hardware List:
- (6) Bolt M12 x 1.25 x 50 mm CL10.9
- (6) Conical Washer 1/2"
Safety Notes:
- Always wear safety glasses during installation.
- Proper torque is required to keep the hitch securely mounted to the vehicle.
- Periodically check the hitch and all fasteners to ensure they are secure.
- Replace any damaged hitch or ball immediately.
- Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Observe all safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying Capacity: 3,500 lbs (1,587 kg) trailer weight, 525 lbs (238 kg) tongue weight.
- Weight Distributing Capacity: Not applicable.
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Additional Notes:
- Installation time for professional installers is approximately 40 minutes.
- For step-by-step photo instructions, scan the QR code provided in the manual or visit the website.
