Trailer Hitch w/ 4 Bike Rack For 22‑24 Acura MDX 23‑24 Honda Pilot Approved for Recreational & Offroad Use Carrier for Adult Woman or Child Bicycles Foldable

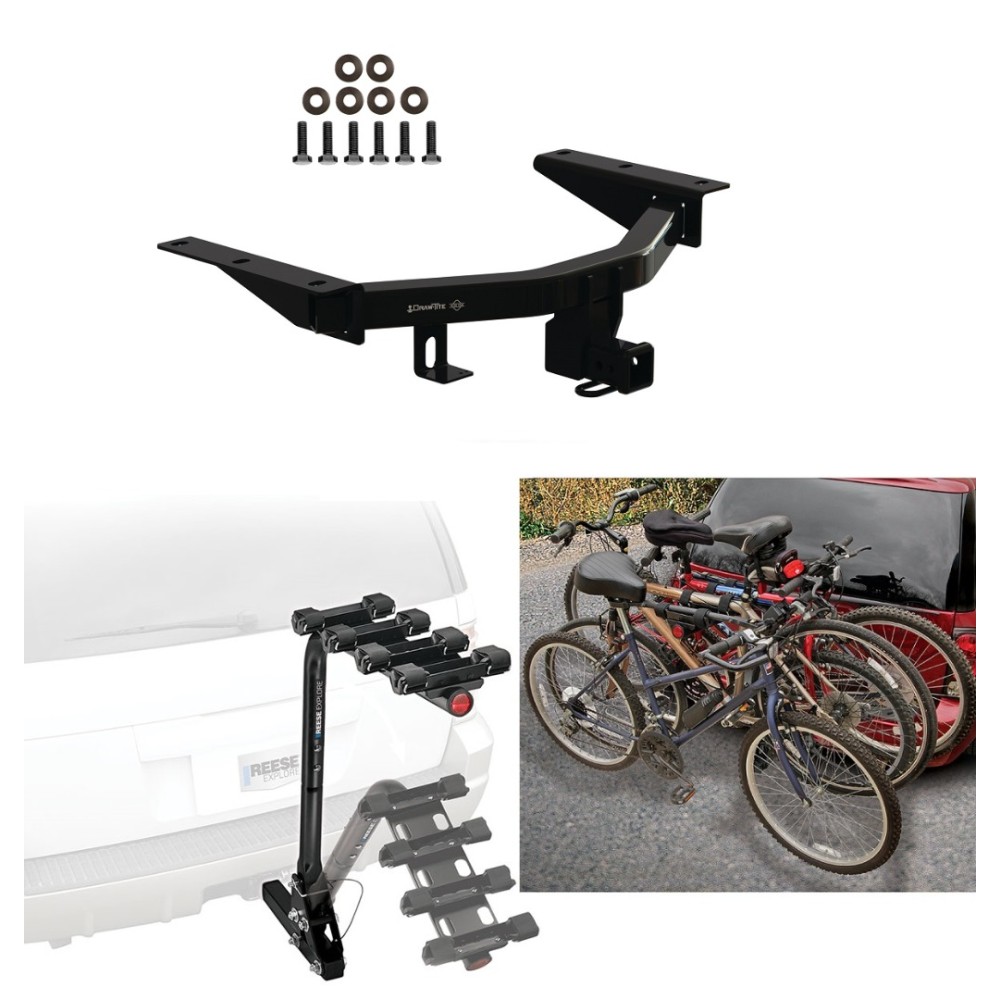

Model: 76453 63124Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Pro Series Eclipse 4 Bike Rack Carrier Foldable Approved for Trailers RVs Trucks SUV Offroad 2" Receivers
Traditional, sport, mountain, racing, men's and women's; no matter the type of bike being transported, Pro Series offers a wide variety of bike carriers to fit your needs Designed with stylish function, these carriers have everything you would expect from an industry leader.
This Hitch and Bike Rack Fits The Following Vehicles:
2022 - 2025 Acura, MDX, All Styles
2023 - 2025 Honda, Pilot, All Styles
Trailer Hitch Specs:
| Part Number | 76453 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | IV |
| Receiver size opening | 2 |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 8,000 lbs |
| Max Tongue Weight | 900/900 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Bike Carrier Specs:
| Part Number | 63124 |
| Brand |
Pro Series |
| Finish |
Black Powder Coat |
| Capacity | 120 lbs |
| Carrying Amount |
4 Bikes |
| Fits | 2" Receiver |
| Warranty | 1 Year |
| Install Intructions | |
Questions or Comments? Call 702-374-8999
Whether you drive a pick-up truck or a cross over SUV, you can be sure that Draw-Tite® has a hitch to fit your vehicle. For more than 75 years, Draw-Tite hitches have been the choice when excellence is the expectation. Made of solid, all-welded construction for maximum strength and safety, Draw-Tite has an application-specific, custom-fit hitch that will fit your needs no matter what vehicle you drive. As an added bonus, nearly all Draw-Tite Class III/IV trailer hitches are compatible with a weight distribution system.
$374 22 $698.96 46% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$698.96 $374 22
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $93.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76453 63124
- Includes: Class 4 Trailer Tow Hitch, Eclipse Trailer Tow Hitch Bike Carrier
Compatibility Chart
Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Pro Series Eclipse 4 Bike Rack Carrier Foldable Approved for Trailers RVs Trucks SUV Offroad 2" Receivers
Traditional, sport, mountain, racing, men's and women's; no matter the type of bike being transported, Pro Series offers a wide variety of bike carriers to fit your needs Designed with stylish function, these carriers have everything you would expect from an industry leader.
This Hitch and Bike Rack Fits The Following Vehicles:
2022 - 2025 Acura, MDX, All Styles
2023 - 2025 Honda, Pilot, All Styles
Trailer Hitch Specs:
| Part Number | 76453 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | IV |
| Receiver size opening | 2 |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 8,000 lbs |
| Max Tongue Weight | 900/900 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Bike Carrier Specs:
| Part Number | 63124 |
| Brand |
Pro Series |
| Finish |
Black Powder Coat |
| Capacity | 120 lbs |
| Carrying Amount |
4 Bikes |
| Fits | 2" Receiver |
| Warranty | 1 Year |
| Install Intructions | |
Questions or Comments? Call 702-374-8999
Whether you drive a pick-up truck or a cross over SUV, you can be sure that Draw-Tite® has a hitch to fit your vehicle. For more than 75 years, Draw-Tite hitches have been the choice when excellence is the expectation. Made of solid, all-welded construction for maximum strength and safety, Draw-Tite has an application-specific, custom-fit hitch that will fit your needs no matter what vehicle you drive. As an added bonus, nearly all Draw-Tite Class III/IV trailer hitches are compatible with a weight distribution system.
Get Expert Help
Trailer Hitch w/ 4 Bike Rack For 22-24 Acura MDX 23-24 Honda Pilot Approved for Recreational & Offroad Use Carrier for Adult Woman or Child Bicycles Foldable Install Notes
Installation Instructions for 2022-Current Acura MDX
Part Numbers:
- 76453
- 84453
- CQT76453
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Socket: 22 mm
- Flat Head Screwdriver
- M14x1.50 Tap
- Hack Saw
- Socket Extension
Step-by-Step Instructions:
-
Lower Spare Tire:
- Open the trunk and use tools from the storage compartment to lower the spare tire.
-
Trim Fascia:
- Using a hack saw, trim the bottom center of the fascia as shown in Figure 2.
- Measurements:
- Width: 4.00 inches
- Height: 3.50 inches
-
Clean Weldnuts:
- Using an M14x1.50 tap, remove paint and debris from the weldnuts on both sides of the vehicle frame.
-
Install Hitch:
- Raise the hitch into position and align the holes with the existing weldnuts.
- Loosely install the M14 bolts and conical washers (teeth side toward hitch) using a 22 mm socket.
-
Tighten Fasteners:
- Tighten all M14 CL10.9 fasteners to 148 ft-lbs (201 Nm) using a torque wrench.
-
Reinstall Spare Tire:
- Raise the spare tire back into position, ensuring it does not interfere with the hitch.
Hardware List:
- (6) Bolt M14x1.50x45 CL10.9
- (6) Conical Washer 5/8"
Safety Notes:
- Always wear safety glasses during installation.
- Ensure proper torque to keep the hitch securely mounted to the vehicle.
- Regularly check that all fasteners and the ball are properly tightened.
- Replace any damaged hitch or ball immediately.
- Do not cut or modify the hitch.
- Observe safety precautions when working beneath the vehicle.
Specifications:
- Weight Carrying Capacity: 6,000 lbs (2,722 kg) trailer weight, 900 lbs (408 kg) tongue weight.
- Weight Distributing Capacity: 8,000 lbs (3,629 kg) trailer weight, 900 lbs (408 kg).
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Additional Notes:
- Installation time for professional installers is approximately 40 minutes.
- This hitch does not fit vehicles equipped with a full-size spare tire.
- For detailed photo instructions, scan the QR code provided in the manual or visit the website.
