Trailer Hitch w/ 4 Bike Rack For 22‑24 KIA Carnival Approved for Recreational & Offroad Use Carrier for Adult Woman or Child Bicycles Foldable
Model: 76511 63124Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Pro Series Eclipse 4 Bike Rack Carrier Foldable Approved for Trailers RVs Trucks SUV Offroad 2" Receivers
Traditional, sport, mountain, racing, men's and women's; no matter the type of bike being transported, Pro Series offers a wide variety of bike carriers to fit your needs Designed with stylish function, these carriers have everything you would expect from an industry leader.
This Hitch and Bike Rack Fits The Following Vehicles:
2022 - 2024 KIA, Carnival, All Styles
Trailer Hitch Specs:
| Part Number | 76511 |
| Brand |
Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | 4,000 lbs. |
| Max Tongue Weight | 600 / 600 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Bike Carrier Specs:
| Part Number | 63124 |
| Brand |
Pro Series |
| Finish |
Black Powder Coat |
| Capacity | 120 lbs |
| Carrying Amount |
4 Bikes |
| Fits | 2" Receiver |
| Warranty | 1 Year |
| Install Intructions | |
Whether you drive a pick-up truck or a cross over SUV, you can be sure that Draw-Tite® has a hitch to fit your vehicle. For more than 75 years, Draw-Tite hitches have been the choice when excellence is the expectation. Made of solid, all-welded construction for maximum strength and safety, Draw-Tite has an application-specific, custom-fit hitch that will fit your needs no matter what vehicle you drive. As an added bonus, nearly all Draw-Tite Class III/IV trailer hitches are compatible with a weight distribution system.
Partial list of fitment years: 22 23 24 2022 2023 2024
$377 77 $698.96 46% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$698.96 $377 77
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $94.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76511 63124
- Includes: Class 3 Trailer Tow Hitch, Eclipse Trailer Tow Hitch Bike Carrier
Compatibility Chart
Description

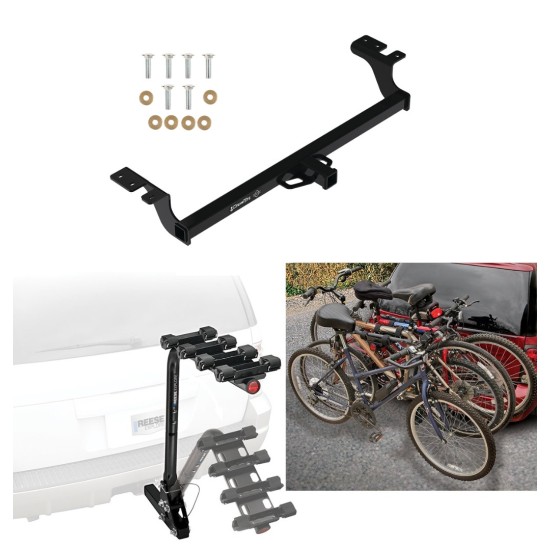

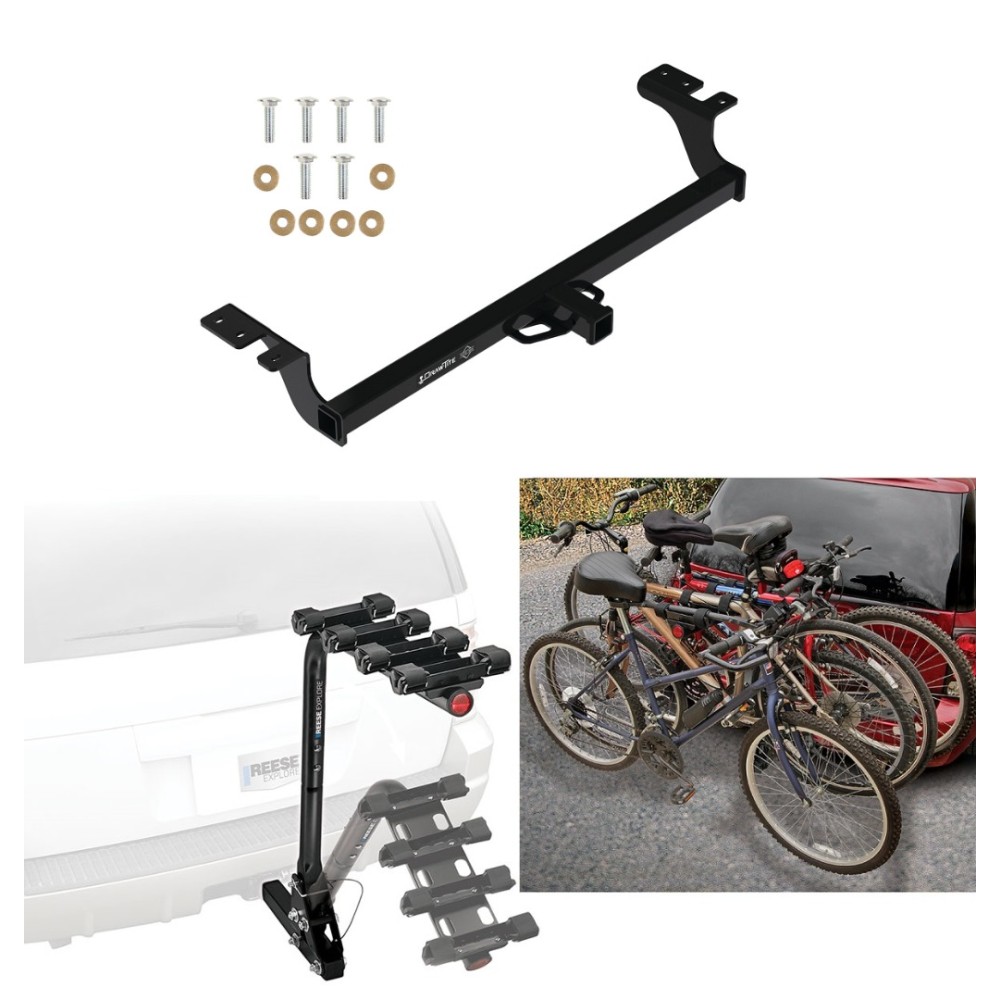

Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Pro Series Eclipse 4 Bike Rack Carrier Foldable Approved for Trailers RVs Trucks SUV Offroad 2" Receivers
Traditional, sport, mountain, racing, men's and women's; no matter the type of bike being transported, Pro Series offers a wide variety of bike carriers to fit your needs Designed with stylish function, these carriers have everything you would expect from an industry leader.
This Hitch and Bike Rack Fits The Following Vehicles:
2022 - 2024 KIA, Carnival, All Styles
Trailer Hitch Specs:
| Part Number | 76511 |
| Brand |
Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | 4,000 lbs. |
| Max Tongue Weight | 600 / 600 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Bike Carrier Specs:
| Part Number | 63124 |
| Brand |
Pro Series |
| Finish |
Black Powder Coat |
| Capacity | 120 lbs |
| Carrying Amount |
4 Bikes |
| Fits | 2" Receiver |
| Warranty | 1 Year |
| Install Intructions | |
Whether you drive a pick-up truck or a cross over SUV, you can be sure that Draw-Tite® has a hitch to fit your vehicle. For more than 75 years, Draw-Tite hitches have been the choice when excellence is the expectation. Made of solid, all-welded construction for maximum strength and safety, Draw-Tite has an application-specific, custom-fit hitch that will fit your needs no matter what vehicle you drive. As an added bonus, nearly all Draw-Tite Class III/IV trailer hitches are compatible with a weight distribution system.
Partial list of fitment years: 22 23 24 2022 2023 2024
Get Expert Help
Trailer Hitch w/ 4 Bike Rack For 22-24 KIA Carnival Approved for Recreational & Offroad Use Carrier for Adult Woman or Child Bicycles Foldable Install Notes
Installation Instructions for 2021-Current Kia Carnival
Part Numbers:
- 76511
- 84511
- CQT76511
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 16 mm
- 6-inch Socket Extension
- Exhaust Removal Pliers
- Utility Knife
- Flat Head Screwdriver
Step-by-Step Instructions:
-
Remove Trim Panel:
- Using a flat head screwdriver, remove five plastic push rivets from the underside of the driver-side trim panel.
- Carefully remove the trim panel and return it to the owner.
-
Lower Exhaust:
- Support the exhaust system to avoid damage.
- Using exhaust removal pliers, detach two rubber exhaust hangers—one at the rear and one at the base of the exhaust.
-
Trim Caulking:
- Using a utility knife, partially remove the caulking from the trunk pan on both sides to create a flatter surface.
-
Install Hitch:
- Raise the hitch into position, aligning the bracket holes with the weldnuts in the vehicle's frame rail.
- Loosely install the M12 bolts and conical washers (teeth side toward hitch).
- Use a wire brush to clean the weldnuts if necessary.
-
Tighten Fasteners:
- Using a torque wrench, tighten all M12 fasteners to 76 ft-lbs (103 N*m).
-
Reinstall Exhaust:
- Raise the exhaust back into position and secure the hangers.
Hardware List:
- (6) Bolt M12 x 1.25 x 35
- (6) Conical Tooth Washer 1/2"
Safety Notes:
- Always wear safety glasses during installation.
- Ensure proper torque to keep the hitch securely mounted to the vehicle.
- Regularly check all fasteners and the hitch for proper tightness.
- Replace any damaged hitch or ball immediately.
- Do not cut or modify the hitch.
- Observe safety precautions when working beneath the vehicle.
Specifications:
- Weight Carrying Capacity: 4,000 lbs (1,814 kg) trailer weight, 600 lbs (272 kg) tongue weight.
- Weight Distributing Capacity: 4,000 lbs (1,814 kg) trailer weight, 600 lbs (272 kg) tongue weight.
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Additional Notes:
- Installation time for professional installers is approximately 30 minutes.
- For detailed photo instructions, scan the QR code provided in the manual or visit the website.
