Trailer Hitch w/ 7-Way RV Wiring For 00-02 Chevy Express GMC Savana Van Class 3 2" Receiver All Models Reese
$326.74
- Stock: In Stock
- Brand: Reese
- Model: 51023 85343 20506 7012a 118377

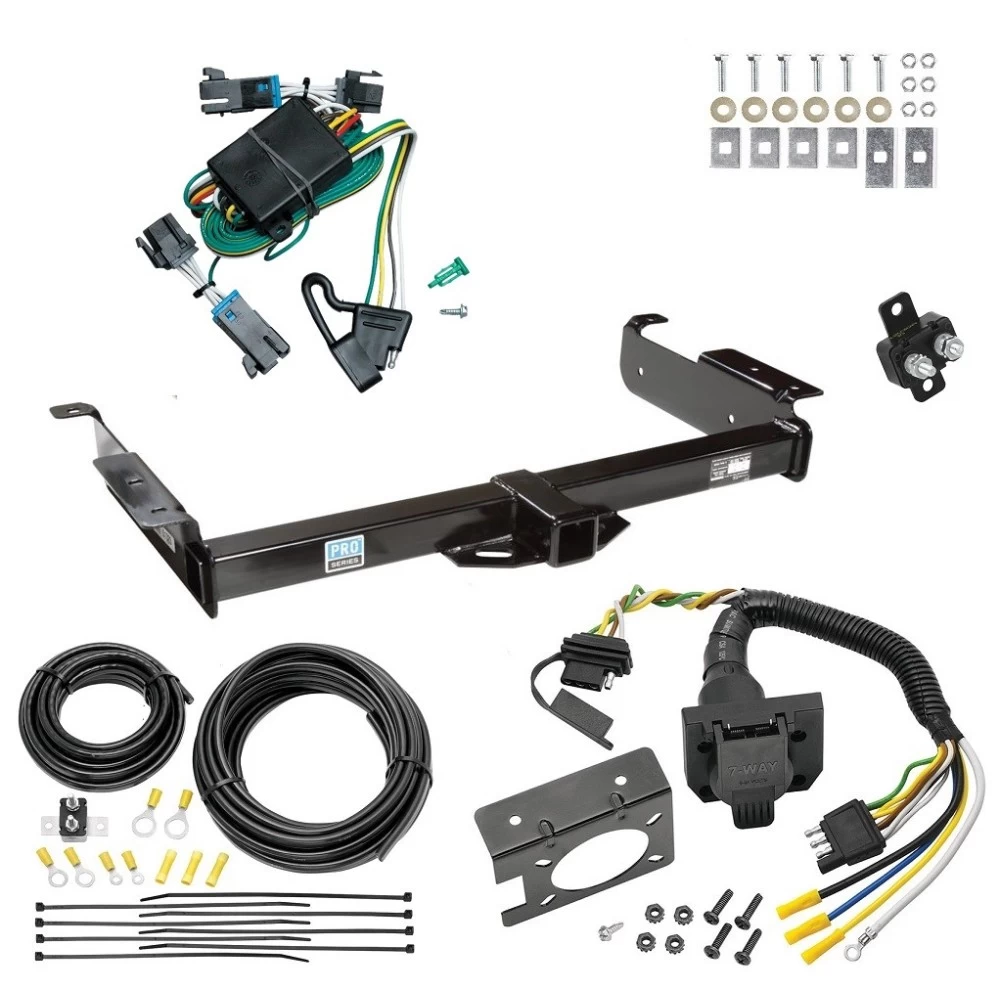

Includes Everything Pictured:
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Trailer Connector Adapter
Brake Control Wiring Kit
Circuit Breaker
Installation Hardware
Installation Instructions
This Hitch Fits The Following Vehicles:
2000 - 2002 Chevrolet, Express 1500, All Styles
2000 - 2002 Chevrolet, Express 2500, All Styles
2000 - 2002 Chevrolet, Express 3500, All Styles
2000 - 2002 GMC, Savana 1500, All Styles
2000 - 2002 GMC, Savana 2500, All Styles
2000 - 2002 GMC, Savana 3500, All Styles
Trailer Hitch Specs:
| Part Number | 51023 |
| Brand | Resse |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 10,000 lbs |
| Max Tongue Weight | 500/1000 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Includes all necessary parts required to completely install all brake controls. No other parts are necessary. This Kit Retains use of 4-Flat Connector while also giving you a 7-Way RV Plug
Each Wiring Kit includes:

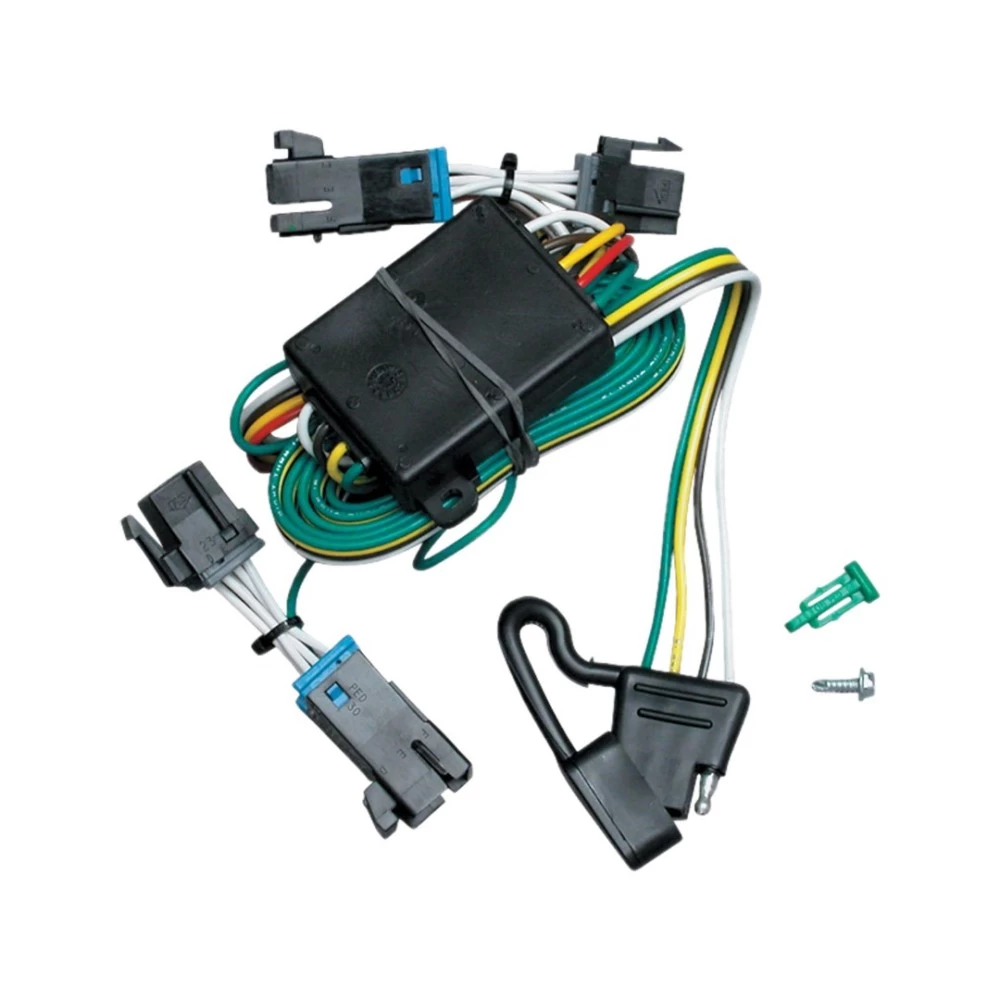

- Plug and Play T-One Wiring Harness Connector

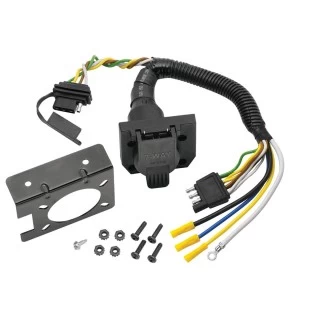

- 4-Way to 7-Way adapter w/ mounting bracket and screws

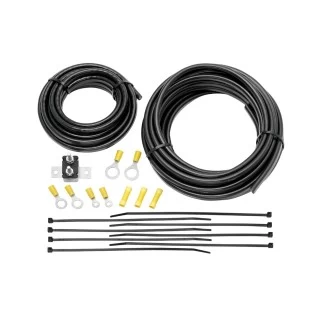

- Wiring Kit for 6 to 8 Brake Control Systems
- Includes 25 ft. 12-2 Duplex Wire

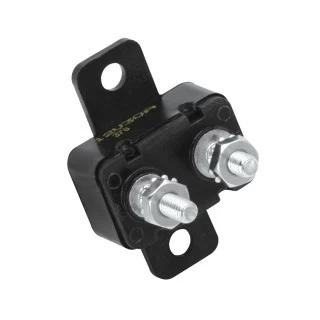

- (2) 30 Amp Circuit Breakers
- Attaching Terminals and Ring Connectors
| Part Numbers | 118377 85343 20506 7012A |
| Brand | Tekonsha |
| Warranty | 1 Year |
| T-One Wiring Installation |
|
| 4-Way to 7-Way Adapter Installation |
|
| Brake Control Wiring Installation |
|
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite, Hidden Hitch and Reese. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 00 01 02 2000 2001 2002
