Trailer Hitch w/ 7-Way RV Wiring For 15-24 Ford Transit 350 Class 3 2" Receiver Except Single Rear Wheel w/148" Wheelbase

Trailer Hitch w/ 7-Way RV Wiring For 15-23 Ford Transit 350 Class 3 2" Receiver Except Single Rear Wheel w/148" Wheelbase
Trailer Hitch w/ 7-Way RV Wiring For 15-23 Ford Transit 350 Class 3 2" Receiver Except Single Rear Wheel w/148" Wheelbase
Trailer Hitch w/ 7-Way RV Wiring For 15-23 Ford Transit 350 Class 3 2" Receiver Except Single Rear Wheel w/148" Wheelbase
Trailer Hitch w/ 7-Way RV Wiring For 15-23 Ford Transit 350 Class 3 2" Receiver Except Single Rear Wheel w/148" Wheelbase
Trailer Hitch w/ 7-Way RV Wiring For 15-23 Ford Transit 350 Class 3 2" Receiver Except Single Rear Wheel w/148" Wheelbase
Trailer Hitch w/ 7-Way RV Wiring For 15-23 Ford Transit 350 Class 3 2" Receiver Except Single Rear Wheel w/148" Wheelbase
Trailer Hitch w/ 7-Way RV Wiring For 15-23 Ford Transit 350 Class 3 2" Receiver Except Single Rear Wheel w/148" Wheelbase
Trailer Hitch w/ 7-Way RV Wiring For 15-23 Ford Transit 350 Class 3 2" Receiver Except Single Rear Wheel w/148" Wheelbase
Trailer Hitch w/ 7-Way RV Wiring For 15-23 Ford Transit 350 Class 3 2" Receiver Except Single Rear Wheel w/148" Wheelbase
Trailer Hitch w/ 7-Way RV Wiring For 15-23 Ford Transit 350 Class 3 2" Receiver Except Single Rear Wheel w/148" Wheelbase
Trailer Hitch w/ 7-Way RV Wiring For 15-24 Ford Transit 350 Class 3 2" Receiver Except Single Rear Wheel w/148" Wheelbase
$371.99
  • Stock: In Stock
  • Brand: Draw-Tite
  • Model: 75912 22116 20212

Applies to this product only

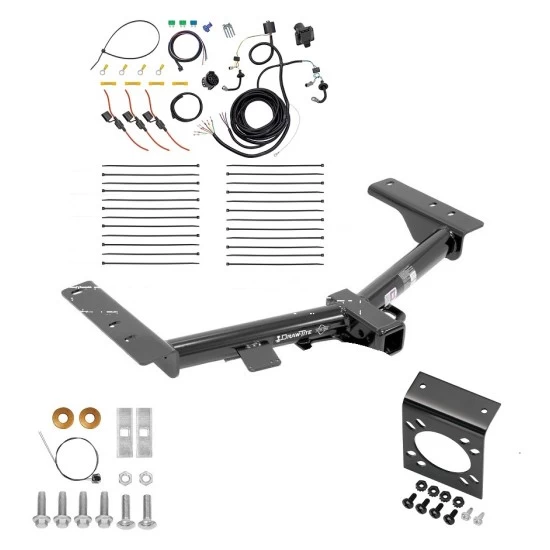

Includes Everything Pictured:
Custom Fit Trailer Hitch
Tow Harness Wiring Package (7-Way)
7-Way Mounting Bracket
Installation Hardware
Installation Instructions


Fits The Following Vehicles

2015 - 2024  Ford, Transit-350, Except Single Rear Wheel w/148" Wheelbase or Cab & Chassis and the Cutaway


Trailer Hitch Specs:
Part Number 75912
Brand Draw-Tite
Finish Black Powdercoat
Class 3
Receiver size opening 2"
Max gross trailer weight 5,000 lbs
Max GTW w/ weight distribution 8,000 lbs
Max Tongue Weight 750/800 lbs
Warranty Lifetime
Installation Instructions


Direct Plug & Play Wiring Kit

Part Number 22116
Brand Tekonsha
Warranty 1 Year
Installation Instructions



7-Way Mount Bracket

Part Number 20212
Fits 7-Way Flat Pin Connectors
Brand Tow Ready
Mounts electrical connector to attachment bracket
Includes screws and nuts
Attractive point-of-purchase packaging
Warranty 1 Year



Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.

For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.

Partial list of fitment years: 15 16 17 18 19 20 21 22 23 24 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
Specification
Attachment Location Rear
Ball Mount Included No
Color Black
Drilling Required No
Gross Towing Weight 5,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit 8,000 lbs.
Hitch Class III
Material Steel
Maximum Tongue Weight 750 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit 800 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 2 in.
Receiver Type Round Tube
